Simpson Strong-Tie MCB9.5X9.5 MCB™ 9-1/2 in. x 9-1/2 in. Mass Timber Column Base

Simpson Strong-Tie MCB9.5X9.5 MCB™ 9-1/2 in. x 9-1/2 in. Mass Timber Column Base

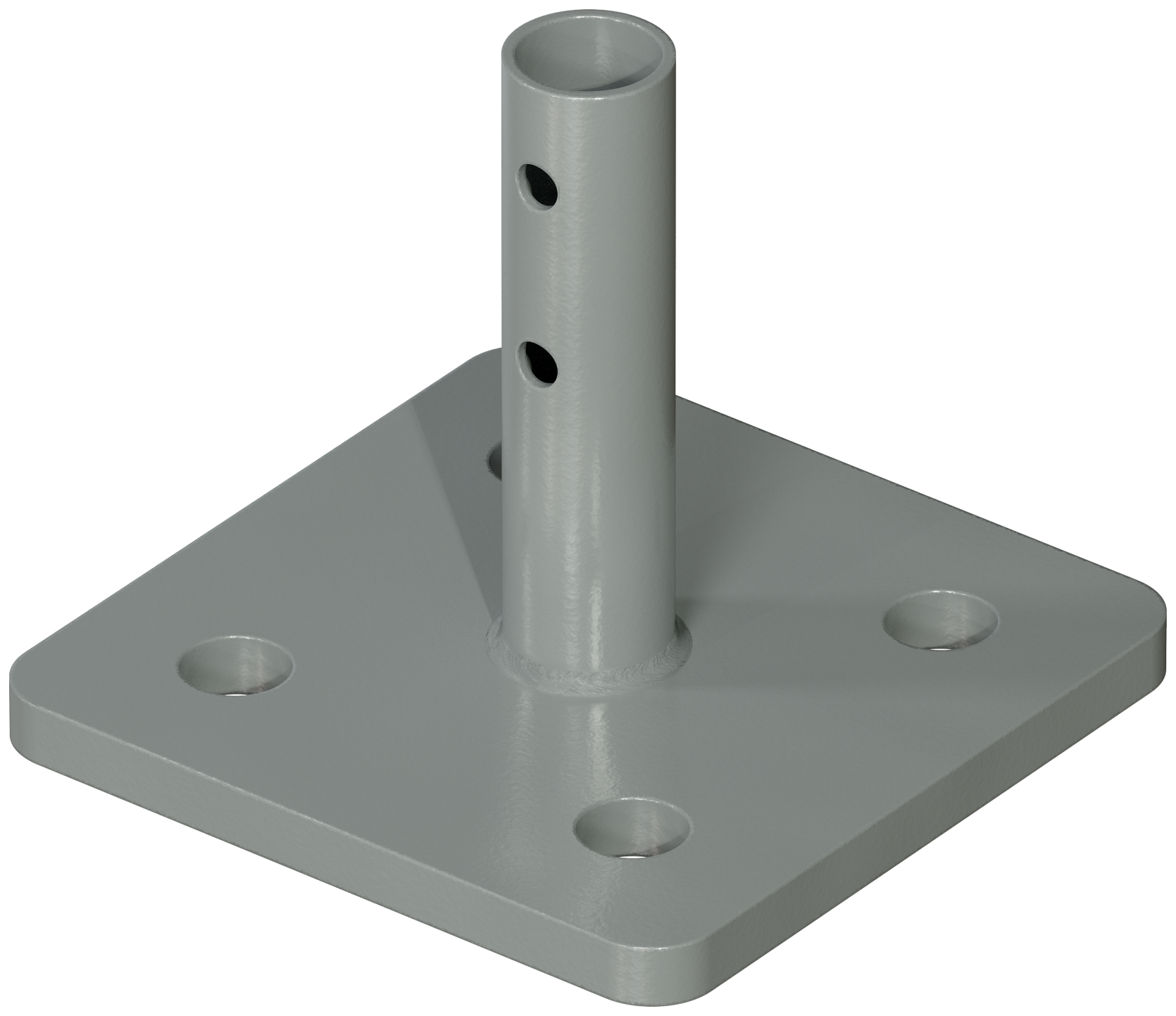

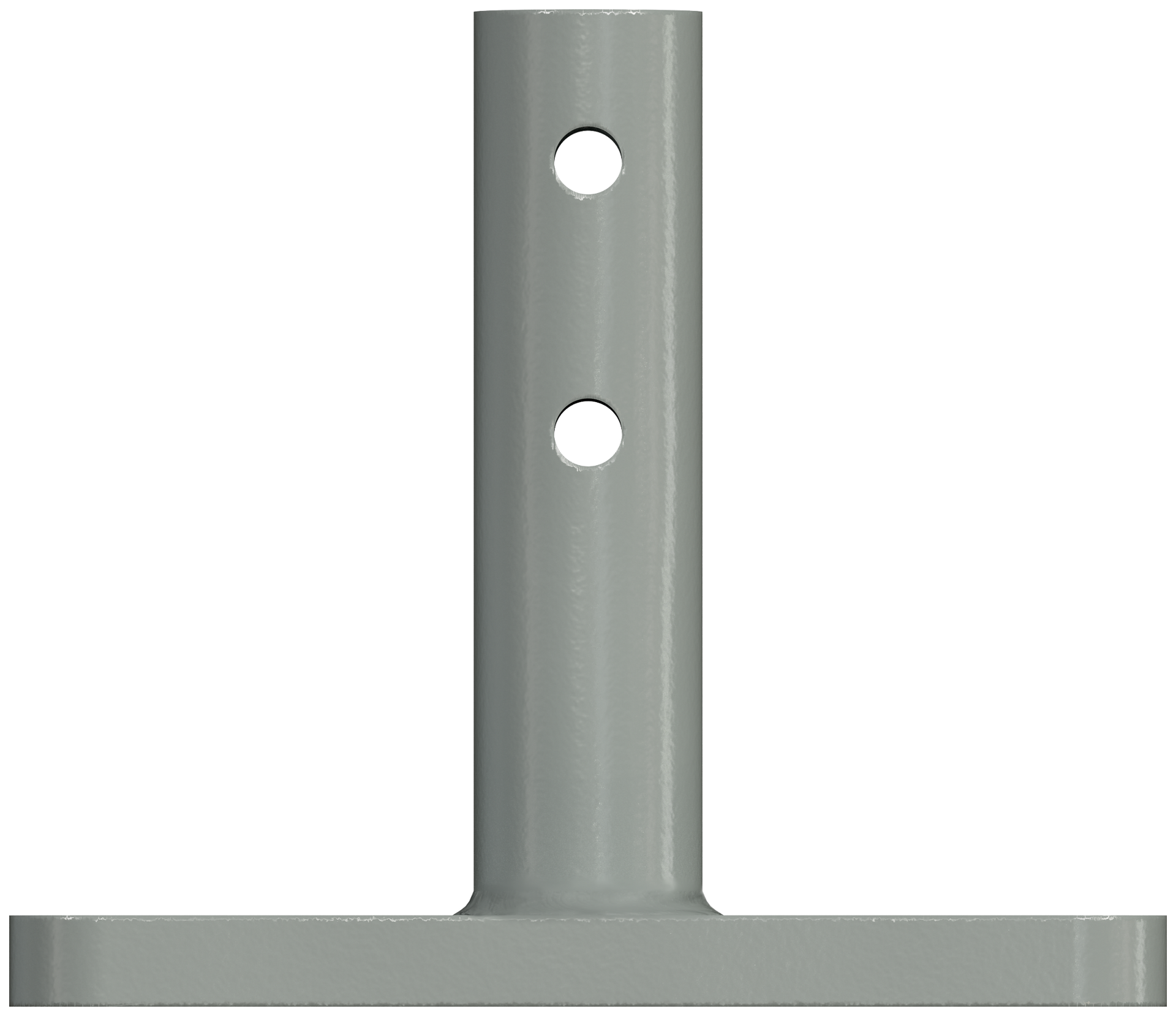

The Simpson Strong-Tie® MCB mass timber column base provides a standardized connection between a glulam column and concrete foundation or support. The MCB is an economical option for use in conditions where a standoff between the column and concrete is not required. Its robust design ensures reliable load transfer, making it a dependable solution for a variety of structural applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Concealed connection for architectural aesthetics and fire protection
• Wide range of base sizes and load capacities
• Simple routing for CNC fabrication of columns
• Threaded rods and leveling nuts may be used with grout pad for vertical adjustability
• Base plate oversized holes provide horizontal adjustability
• Recommended for use at column-to-foundation connections in any Seismic Design Category
• Size: 9-1/2 in. x 9-1/2 in.
• Steel with Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: MCB9.5X9.5
• UPC: 707392032250
• GTIN: 707392032250
• Feature 01: Concealed connection for architectural aesthetics and fire protection
• Feature 02: Wide range of base sizes and load capacities
• Feature 03: Simple routing for CNC fabrication of columns
• Feature 04: Threaded rods and leveling nuts may be used with grout pad for vertical adjustability
• Feature 05: Base plate oversized holes provide horizontal adjustability
• Feature 06: Recommended for use at column-to-foundation connections in any Seismic Design Category
• Feature 07: Size: 9-1/2 in. x 9-1/2 in.
• Feature 08: Steel with Simpson Strong-Tie gray paint finish
• Install With: (2) 1/2 in. x 4-3/4 in. (min.) dowel or 1/2 in. bolt
• Assembled Depth - Imperial: 9.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 9.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: MCB_Base
• Base Product Name: MCB™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Column Base
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Simpson Strong-Tie Gray Paint
• GUID: 197851541545831002927428523573138560671
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Base
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 19.5
• Short Product Name: MT Column Base 9.5x9.5
• Strongtie.com URL: https://www.strongtie.com/columnbases_capsandbases/mcb_base/p/mcb
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bases
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
