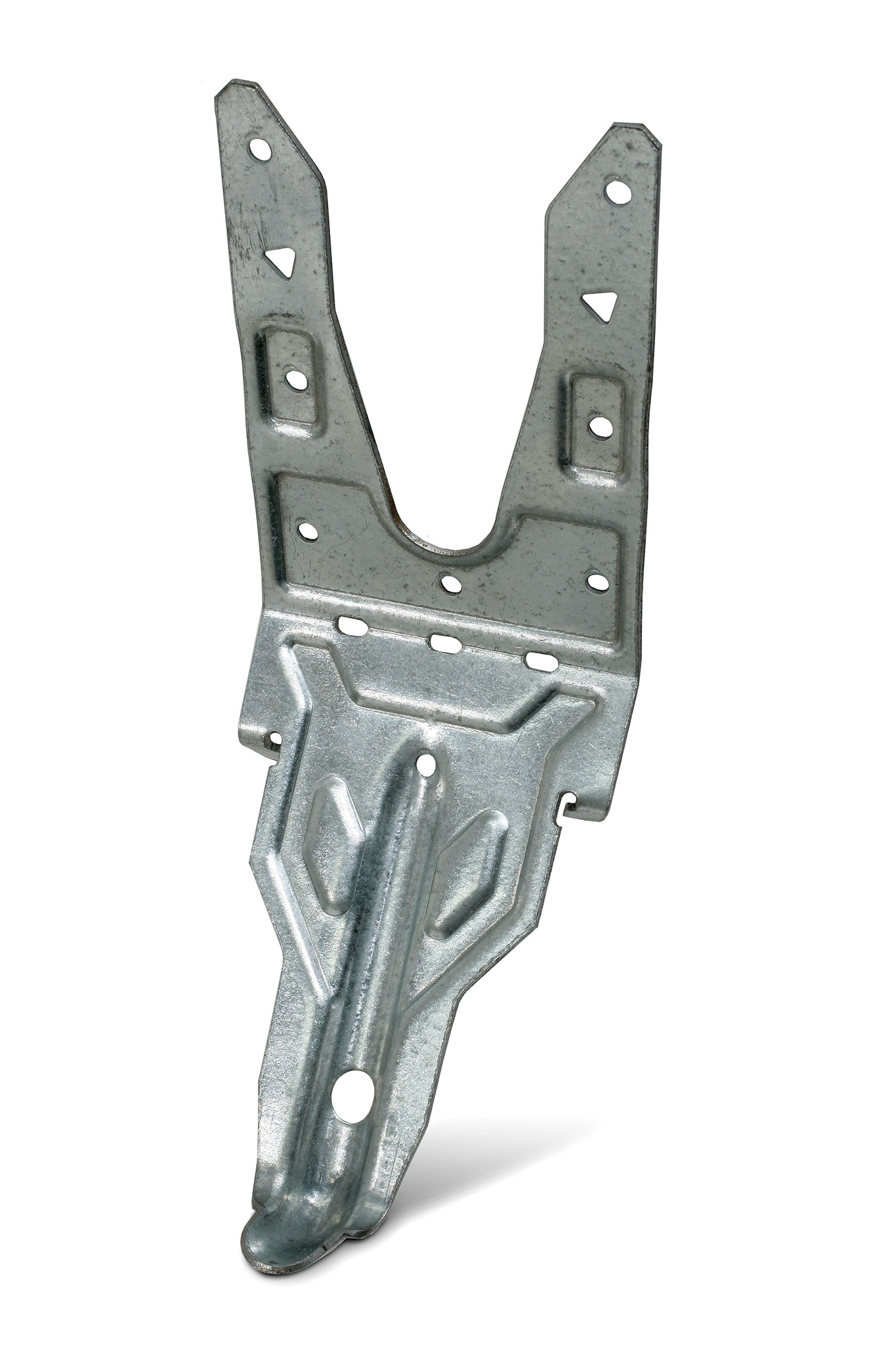

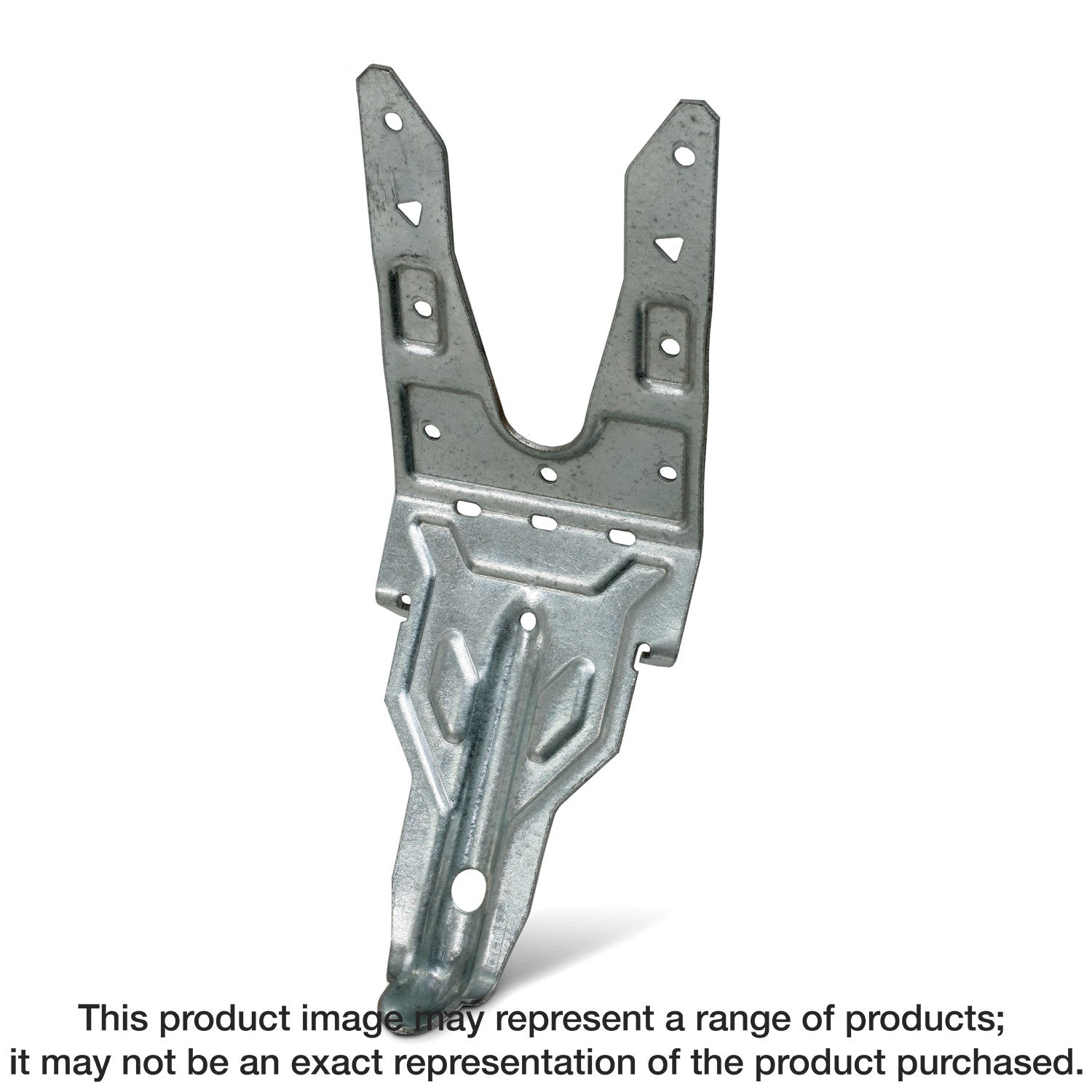

Simpson Strong-Tie MASAPZ MASAP™ 16-Gauge ZMAX® Galvanized Mudsill Anchor for Panelized Forms (Pack of 2200)

Simpson Strong-Tie MASAPZ MASAP™ 16-Gauge ZMAX® Galvanized Mudsill Anchor for Panelized Forms (Pack of 2200)

Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchor provides even greater load-carrying capacity alternative for 5/8-in. and 1/2-in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3-in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available — the standard MASA for installation on standard forms and the MASAP for panelized forms.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Attaches easily to the concrete form for quick installation
• No labor costs involved in drilling plates and aligning holes
• Flat design eliminates chances of modification in prefabricated walls
• Eliminates the need to notch studs due the anchor bolts being placed where it will interfere
• Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: MASAPZ
• UPC: 50707392768406
• GTIN: 50707392768406
• Feature 01: Attaches easily to the concrete form for quick installation
• Feature 02: No labor costs involved in drilling plates and aligning holes
• Feature 03: Flat design eliminates chances of modification in prefabricated walls
• Feature 04: Eliminates the need to notch studs due the anchor bolts being placed where it will interfere
• Feature 05: Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
• Feature 06: Made from 16-gauge steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 4.08475
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: MASAP_Anchor
• Base Product Name: MASAP™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mudsill Anchors > Mudsill Anchor
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 289974679771765815846262259894269917651
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Mudsill Anchor
• Prop 65 Warning: No
• Quantity: 2200
• Shipping Weight: 682
• Short Product Name: MUDSILL ANCHOR FOR PANELIZED FORMS ZMAX
• Strongtie.com URL: https://www.strongtie.com/mudsillanchors_concreteconnectorsandanchors/masap_anchor/p/masap
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mudsill Anchors
• US Patents: 8,484,917
