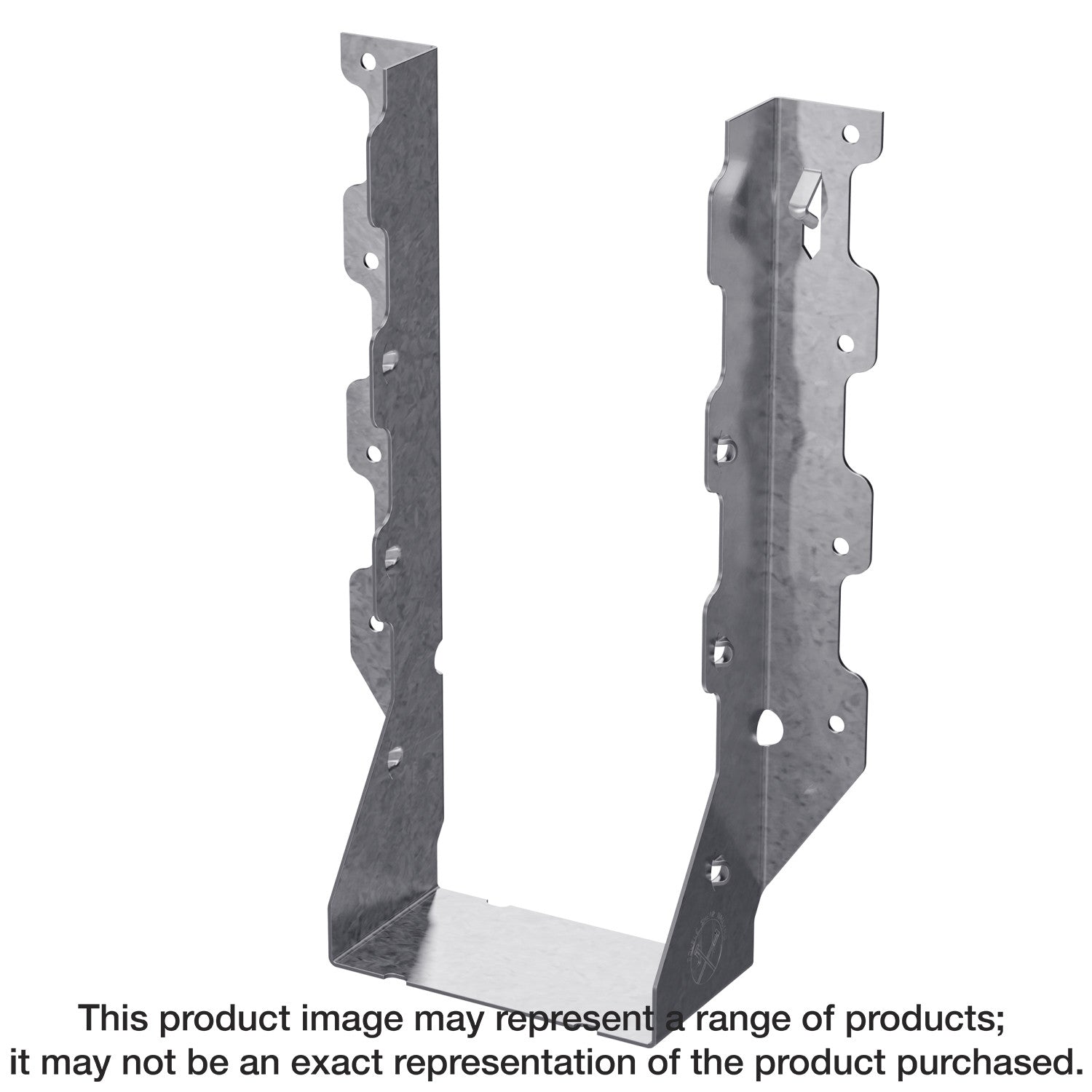

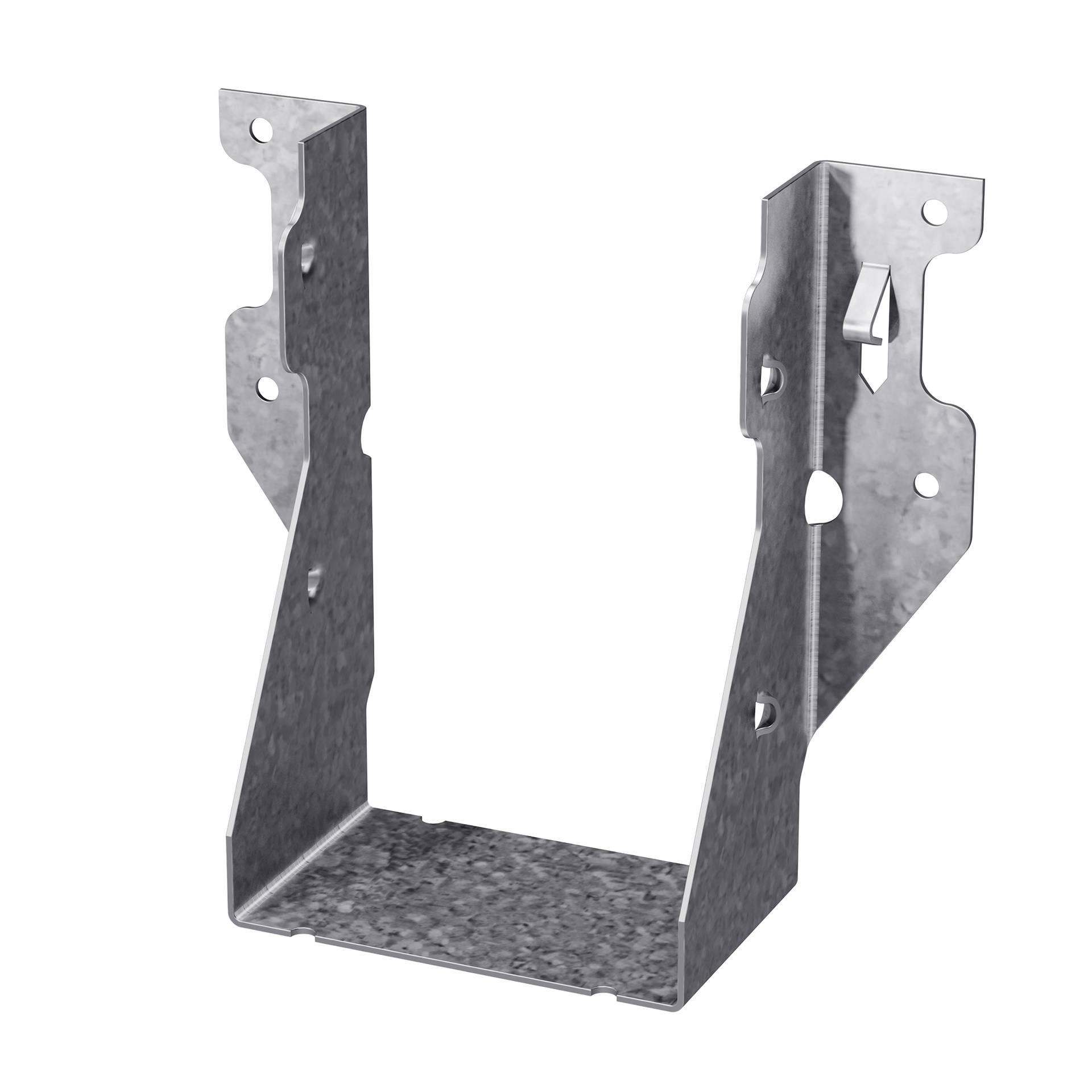

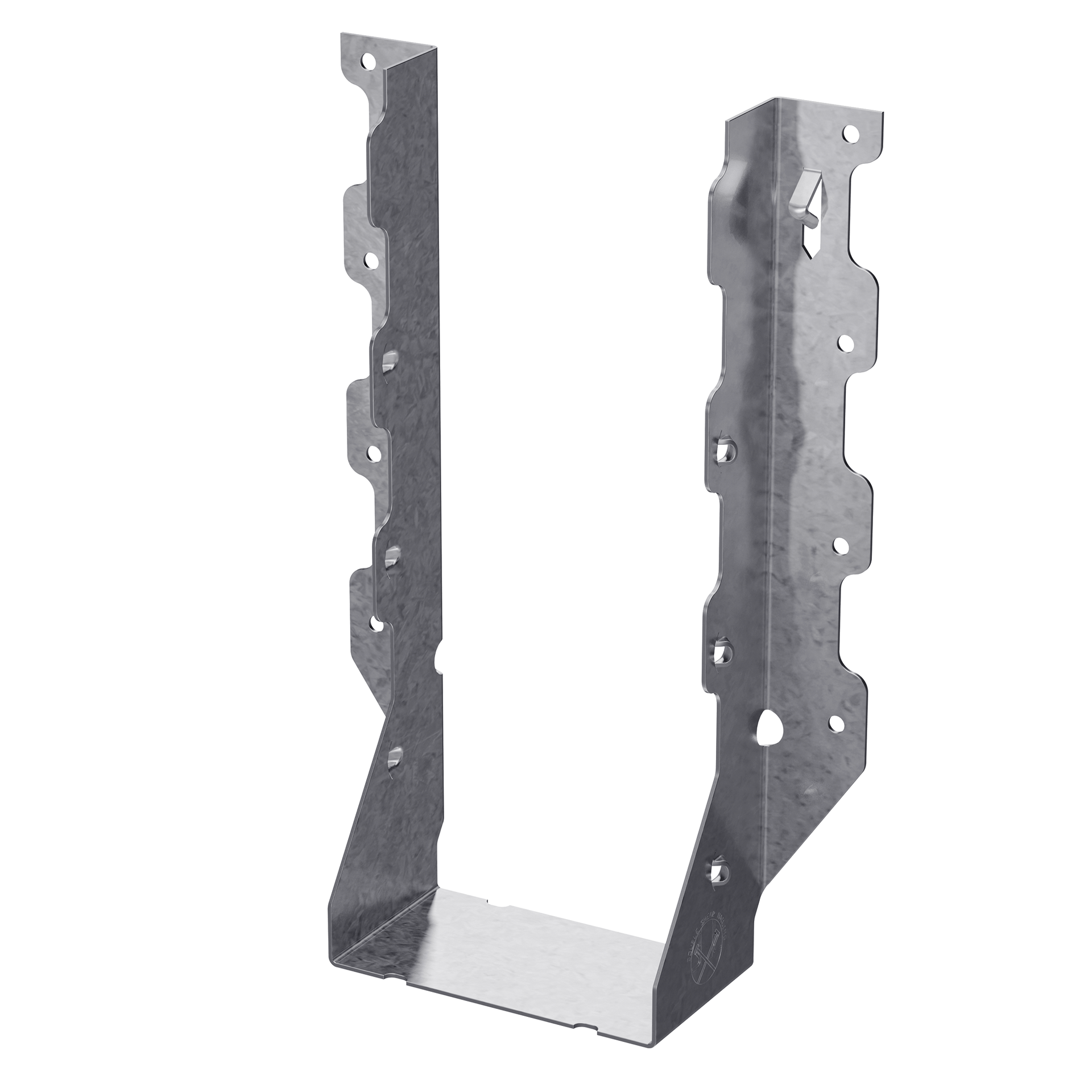

Simpson Strong-Tie LUS26-2Z LUS ZMAX® Galvanized Face-Mount Joist Hanger for Double 2x6 (Pack of 25)

Simpson Strong-Tie LUS26-2Z LUS ZMAX® Galvanized Face-Mount Joist Hanger for Double 2x6 (Pack of 25)

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Patented double-shear nailing design provides greater strength with fewer nails
• Speed prongs for fast and easy installation
• Angled joist nailing easier in tight spaces
• Do not bend or remove tabs
• Nominal joist size: Double 2x6 and Double 2x8
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: LUS26-2Z
• UPC: 10044315271905
• GTIN: 10044315271905
• Feature 01: Patented double-shear nailing design provides greater strength with fewer nails
• Feature 02: Speed prongs for fast and easy installation
• Feature 03: Angled joist nailing easier in tight spaces
• Feature 04: Do not bend or remove tabs
• Feature 05: Nominal joist size: Double 2x6 and Double 2x8
• Feature 06: Made from 18-gauge steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Feature 08: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 2.20425
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.9855
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.346
• Assembled Width UOM - Imperial: in.
• Base Product ID: LUS_Hanger
• Base Product Name: LUS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 82758651585691977670802874912330805760
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.625
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8
• Package Width UOM - Imperial: in.
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 25
• Shipping Weight: 9.75
• Short Product Name: 2-2x6 DBL SHEAR FACE MOUNT HANGER ZMAX
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/lus_hanger/p/lus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 44315271908
• PAL Reference: 50044315271903
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
