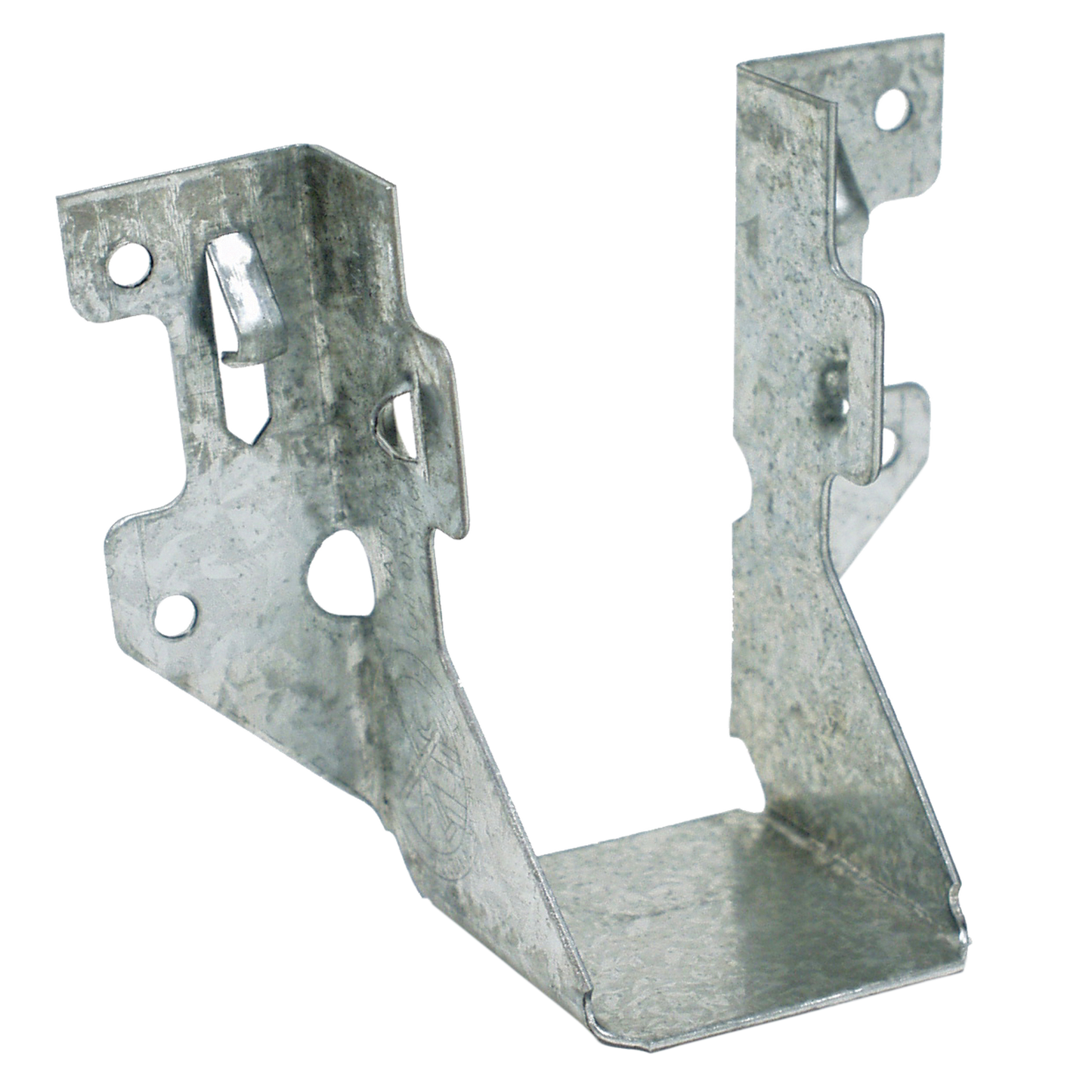

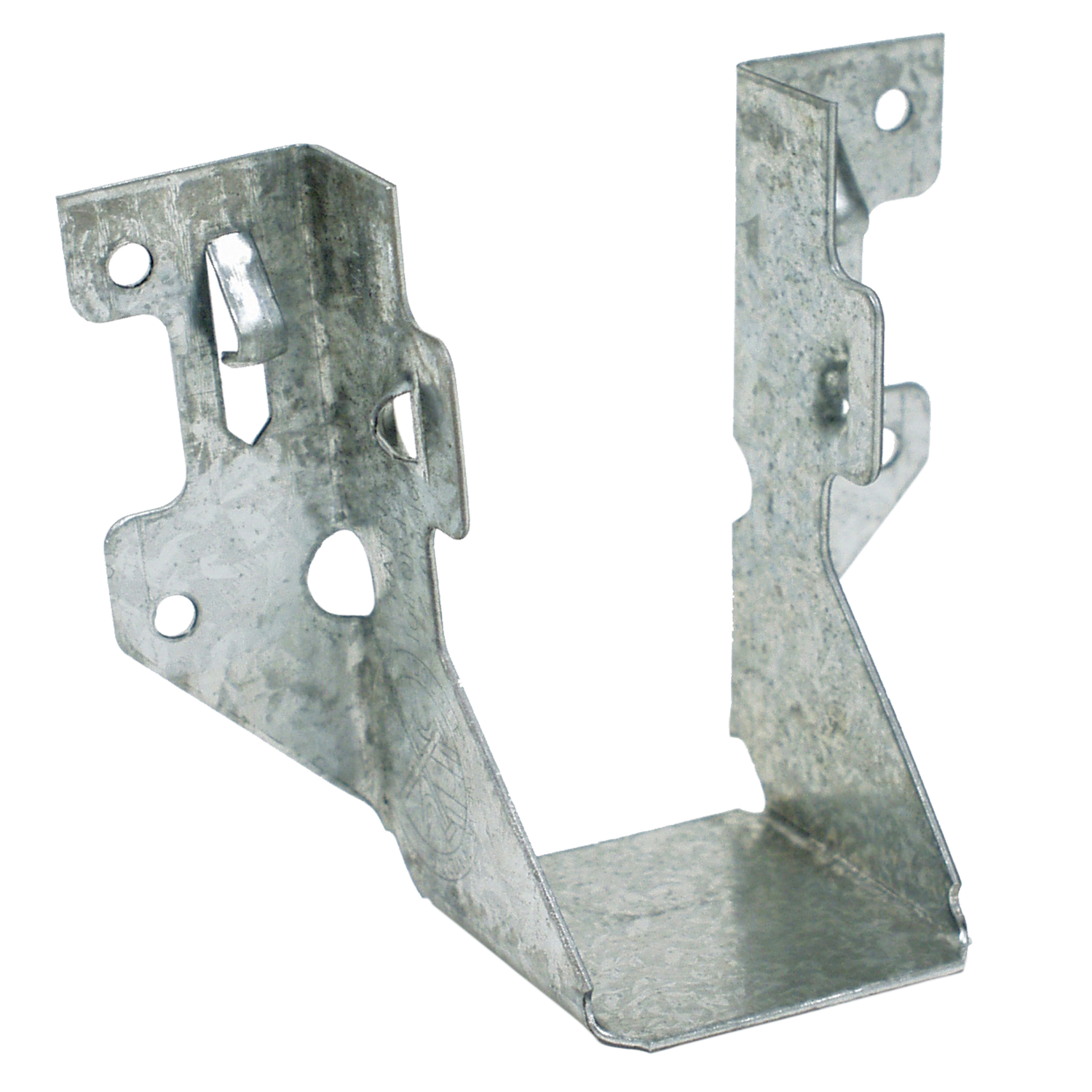

Simpson Strong-Tie LUS24 LUS Galvanized Face-Mount Joist Hanger for 2x4

Simpson Strong-Tie LUS24 LUS Galvanized Face-Mount Joist Hanger for 2x4

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Patented double-shear nailing design provides greater strength with fewer nails
• Speed prongs for fast and easy installation
• Angled joist nailing easier in tight spaces
• Do not bend or remove tabs
• Nominal joist size: 2x4
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LUS24
• UPC: 44315683909
• GTIN: 44315683909
• Feature 01: Patented double-shear nailing design provides greater strength with fewer nails
• Feature 02: Speed prongs for fast and easy installation
• Feature 03: Angled joist nailing easier in tight spaces
• Feature 04: Do not bend or remove tabs
• Feature 05: Nominal joist size: 2x4
• Feature 06: Made from 18-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with Simpson Strong-Tie® Strong-Drive® SD Connector screws: (4) #9 x 1-1/2 in. screws in the header AND (2) #9 x 2-1/2 in. screws in the joist, OR (6) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 10DHDG)
• Assembled Depth - Imperial: 2.046
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.1085
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.6545
• Assembled Width UOM - Imperial: in.
• Base Product ID: LUS_Hanger
• Base Product Name: LUS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: ZZ
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 279878687790111845990484112303392478139
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.19
• Short Product Name: 2 X 4 DBL SHEAR FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/lus_hanger/p/lus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315683906
• PAL Reference: 50044315683904
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
