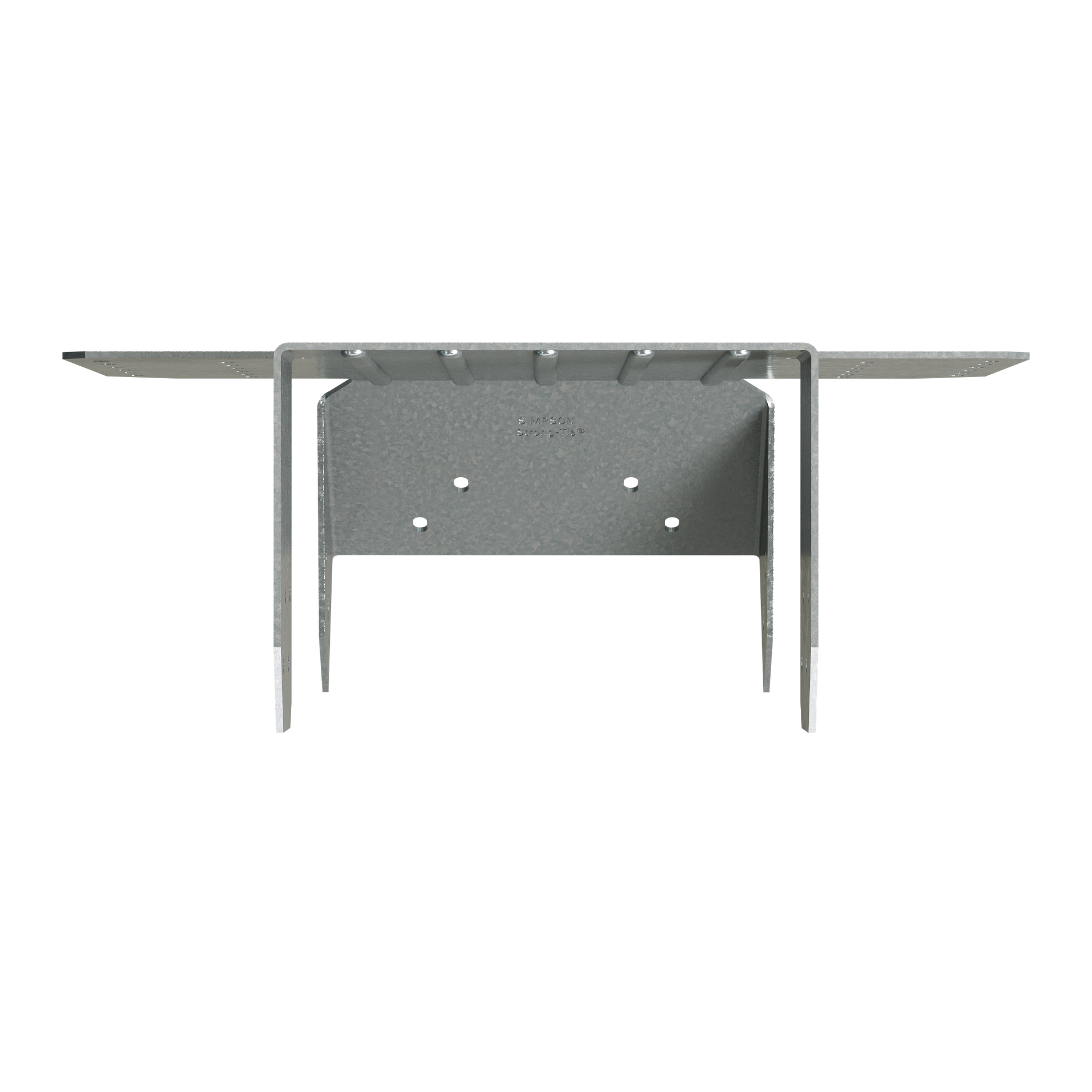

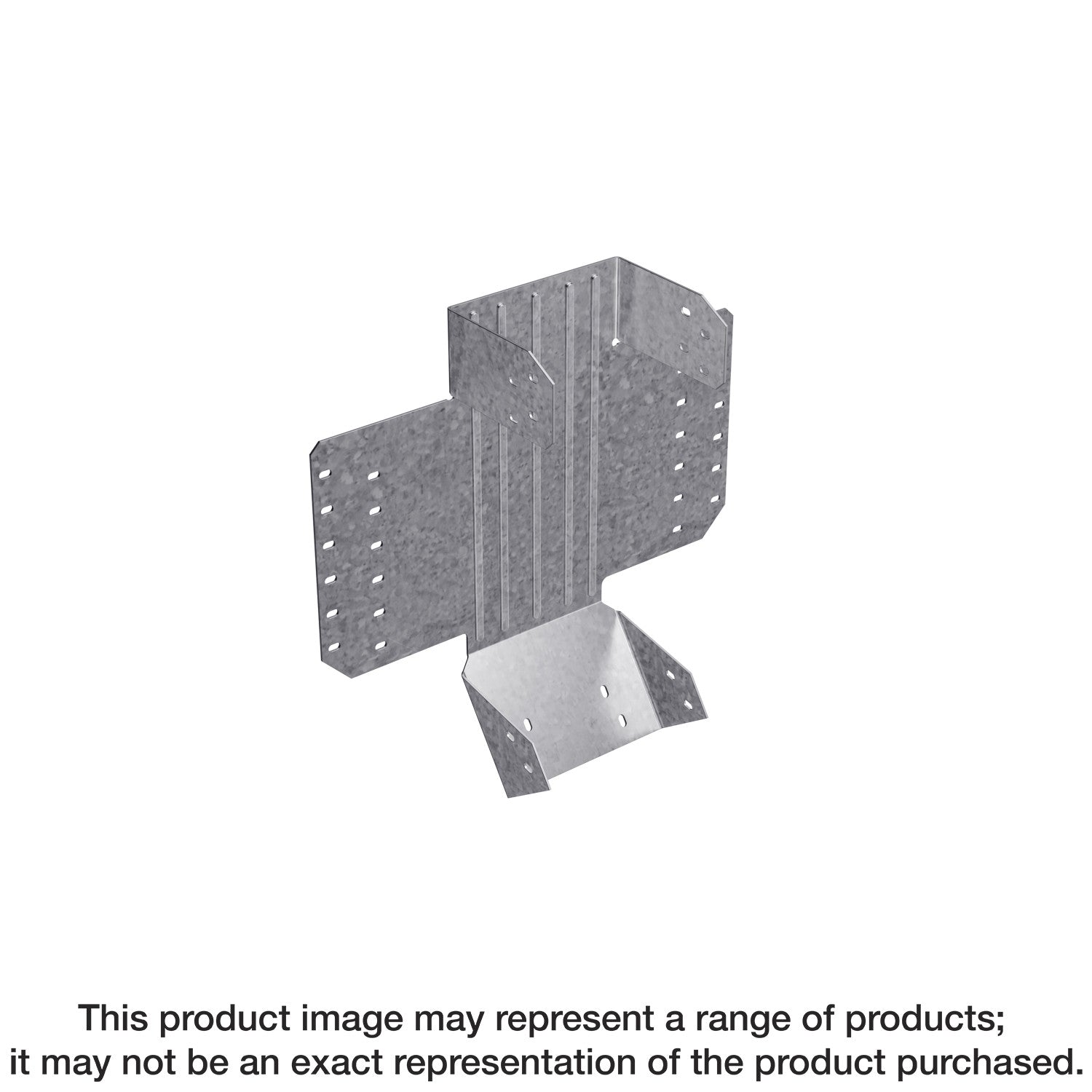

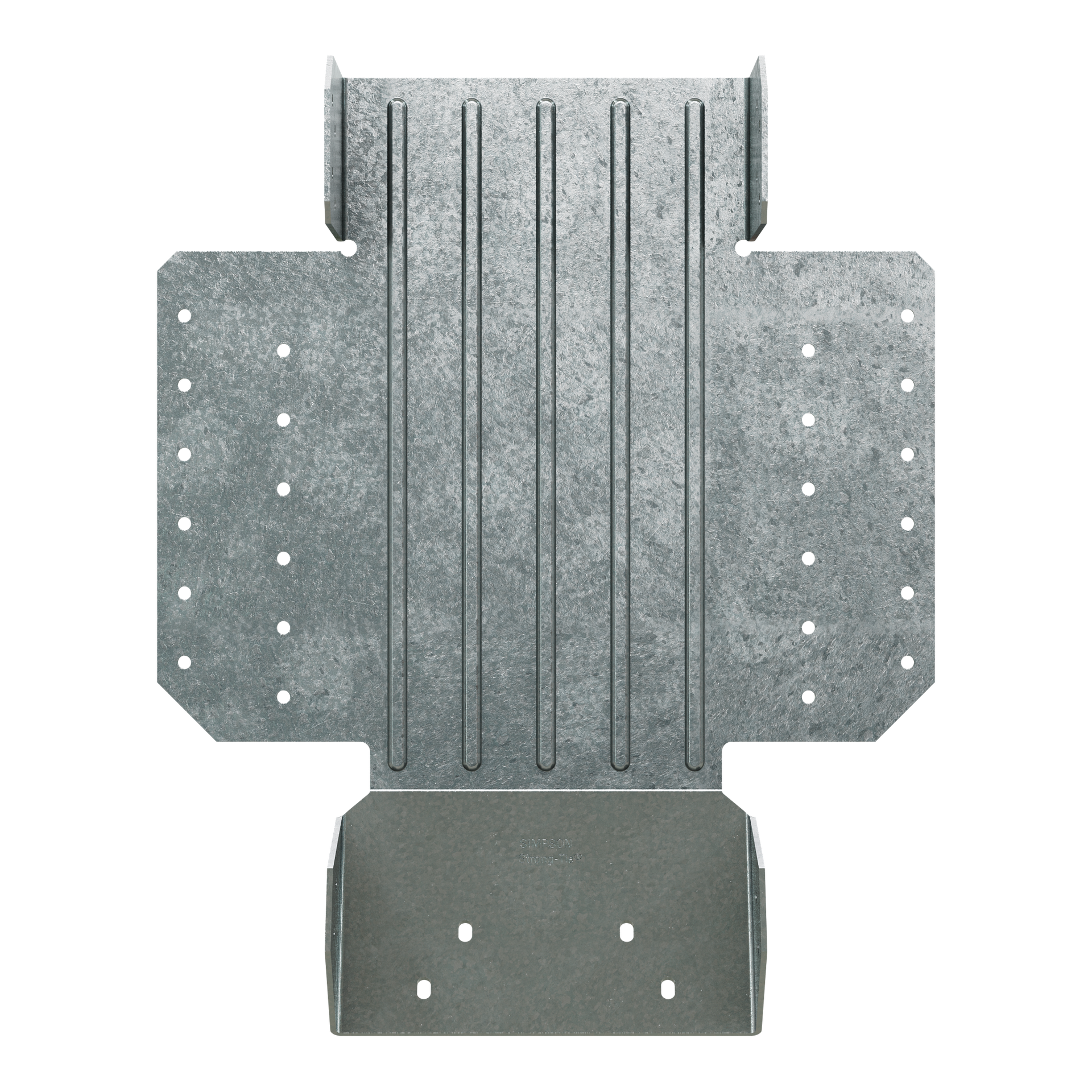

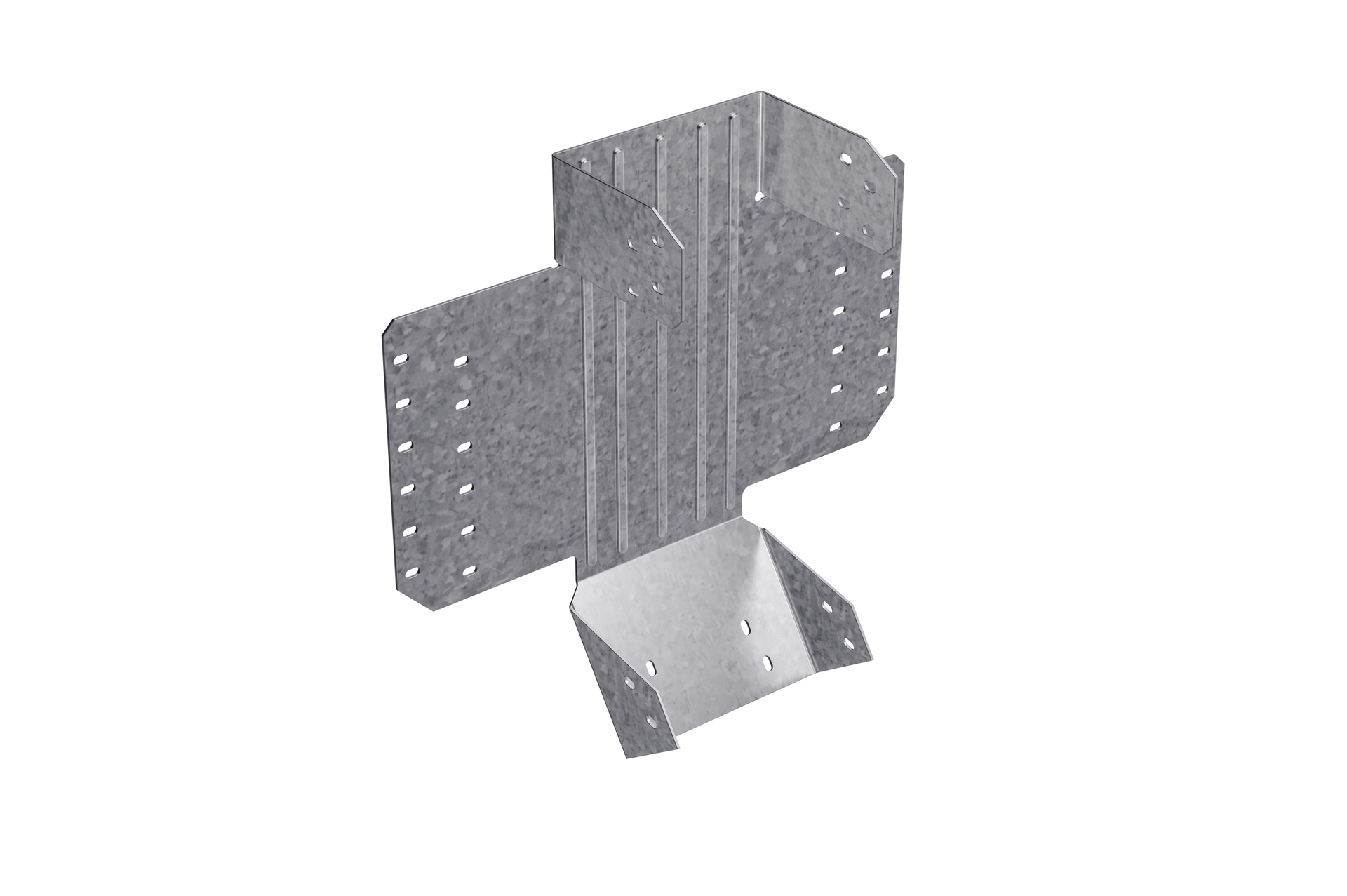

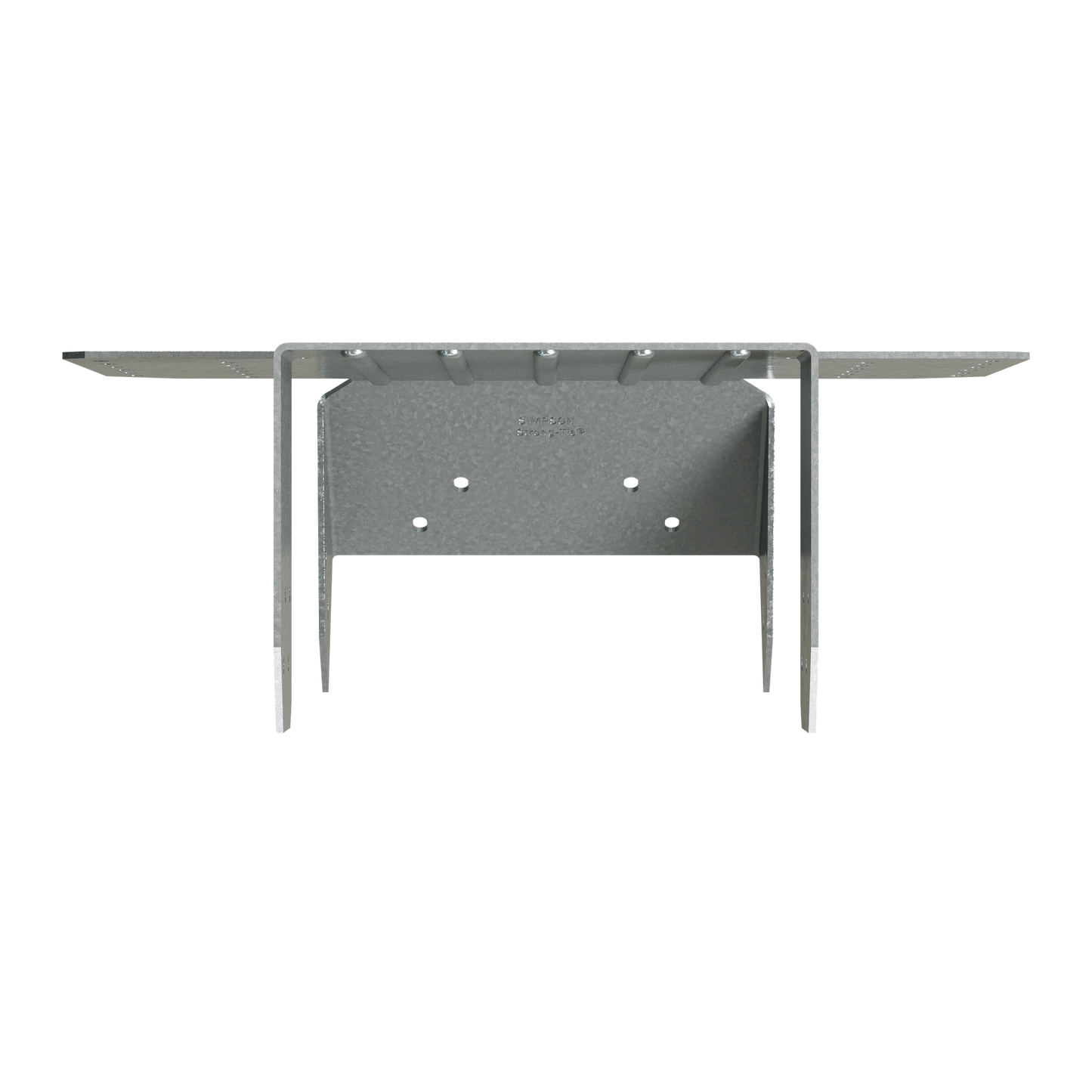

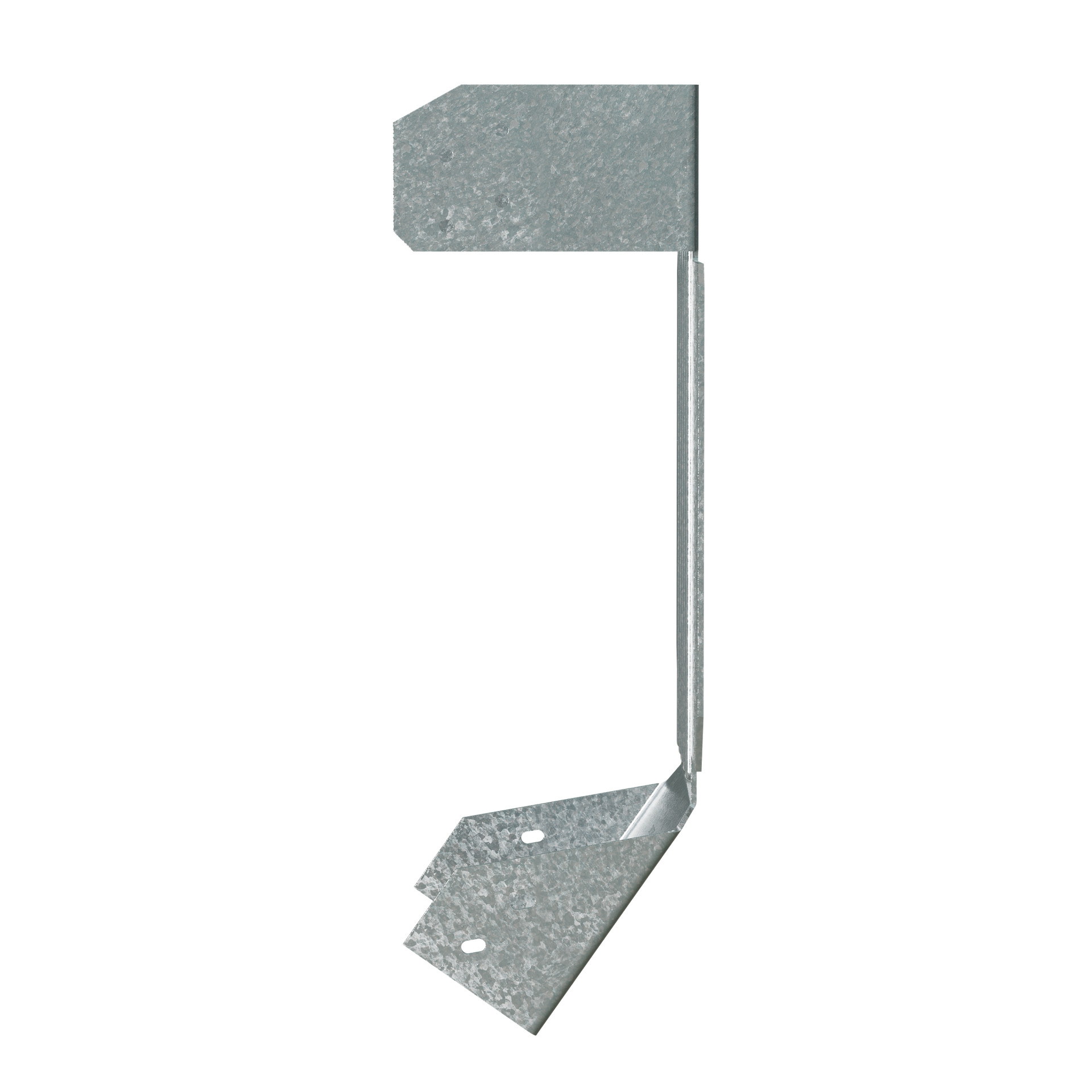

Simpson Strong-Tie LSU5.12 LSU Galvanized Adjustable Light Slopeable/Skewable U Hanger for 5x

Simpson Strong-Tie LSU5.12 LSU Galvanized Adjustable Light Slopeable/Skewable U Hanger for 5x

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LSU series of hangers may be sloped and skewed in the field, offering a versatile solution for attaching joists and rafters. These hangers may be sloped up or down and skewed left or right, up to 45°.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
• Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
• Adjustments can be made in the field
• Web stiffeners required for I-joist applications
• Joist width: 5 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LSU5.12
• UPC: 707392642800
• GTIN: 707392642800
• Feature 01: This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
• Feature 02: Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
• Feature 03: Adjustments can be made in the field
• Feature 04: Web stiffeners required for I-joist applications
• Feature 05: Joist width: 5 in.
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common and 10d x 1-1/2 in. nails
• Assembled Depth - Imperial: 3.78875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.86703
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 9.8125
• Assembled Width UOM - Imperial: in.
• Base Product ID: LSU_Hanger
• Base Product Name: LSU
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 127995881146571151234172708681802559126
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.62
• Short Product Name: LIGHT SLOPE/SKEW U HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/lsu_hanger/p/lsu
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392642807
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
