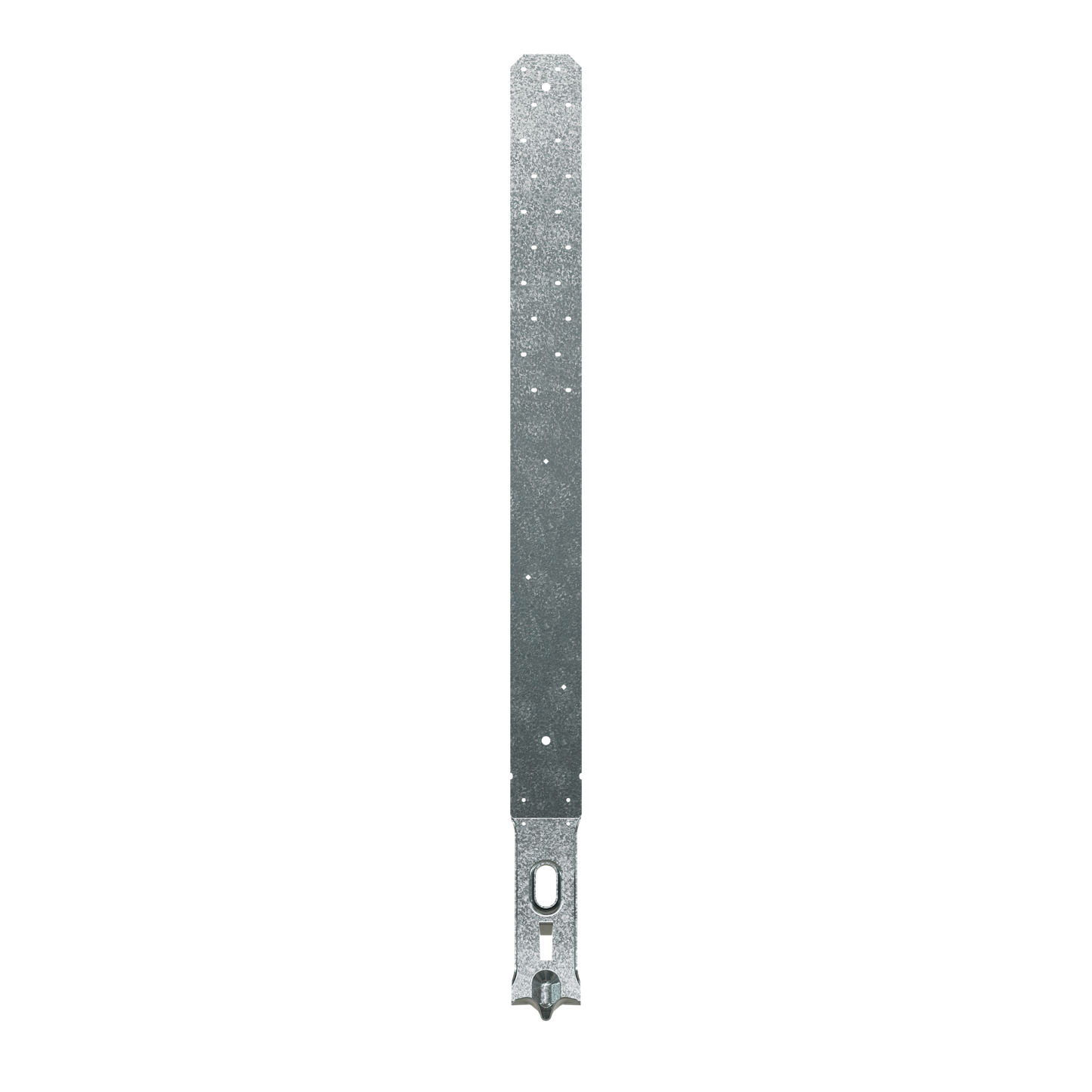

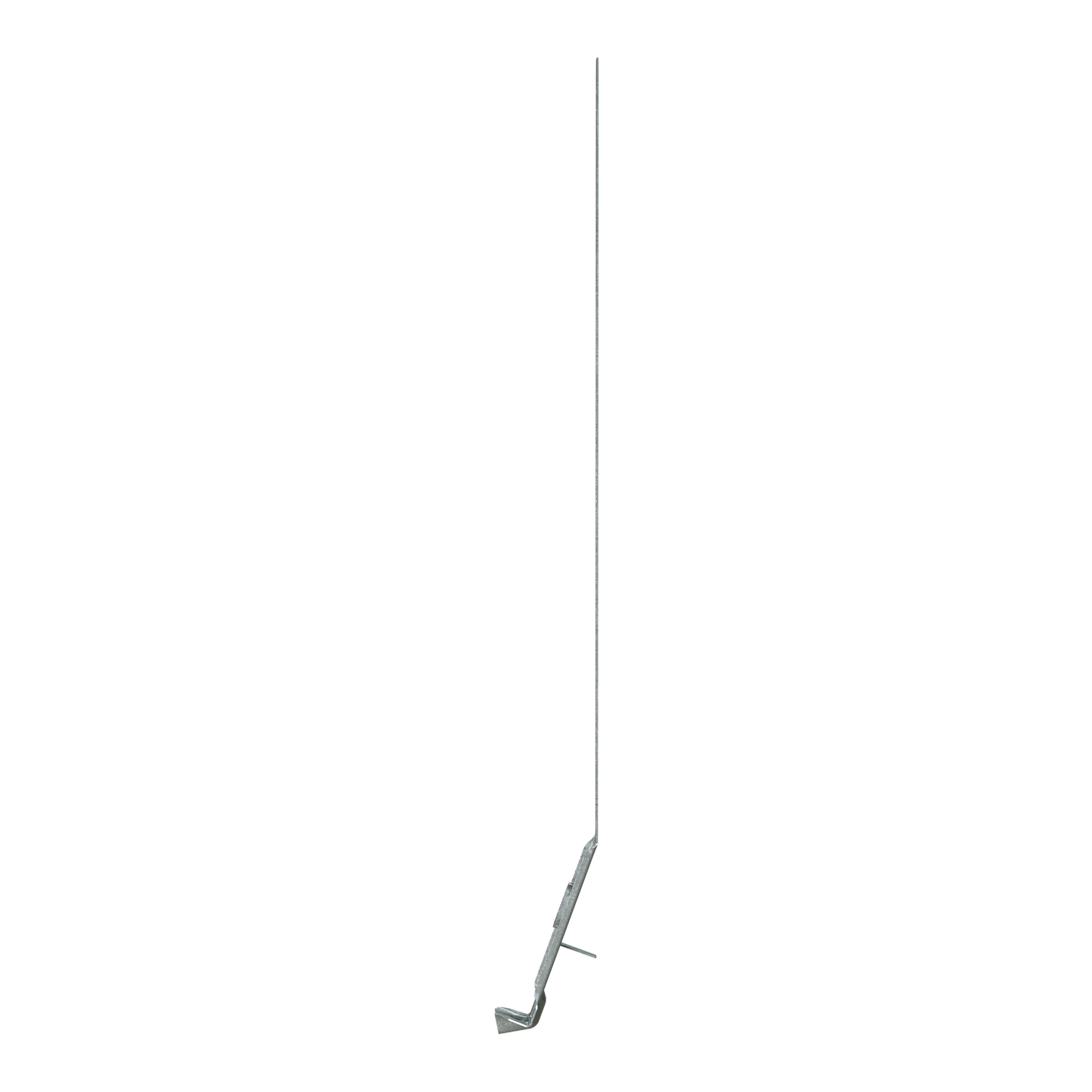

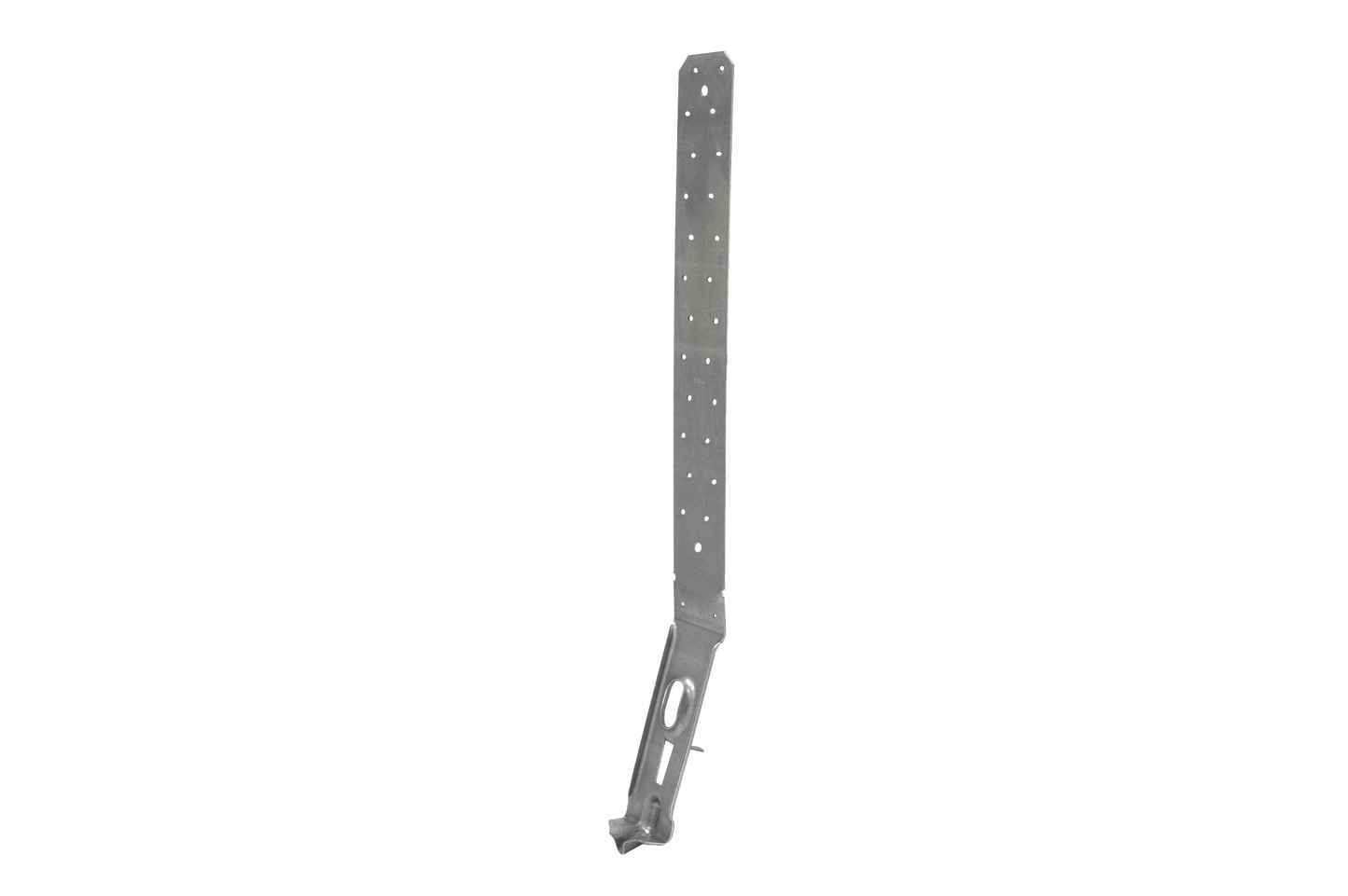

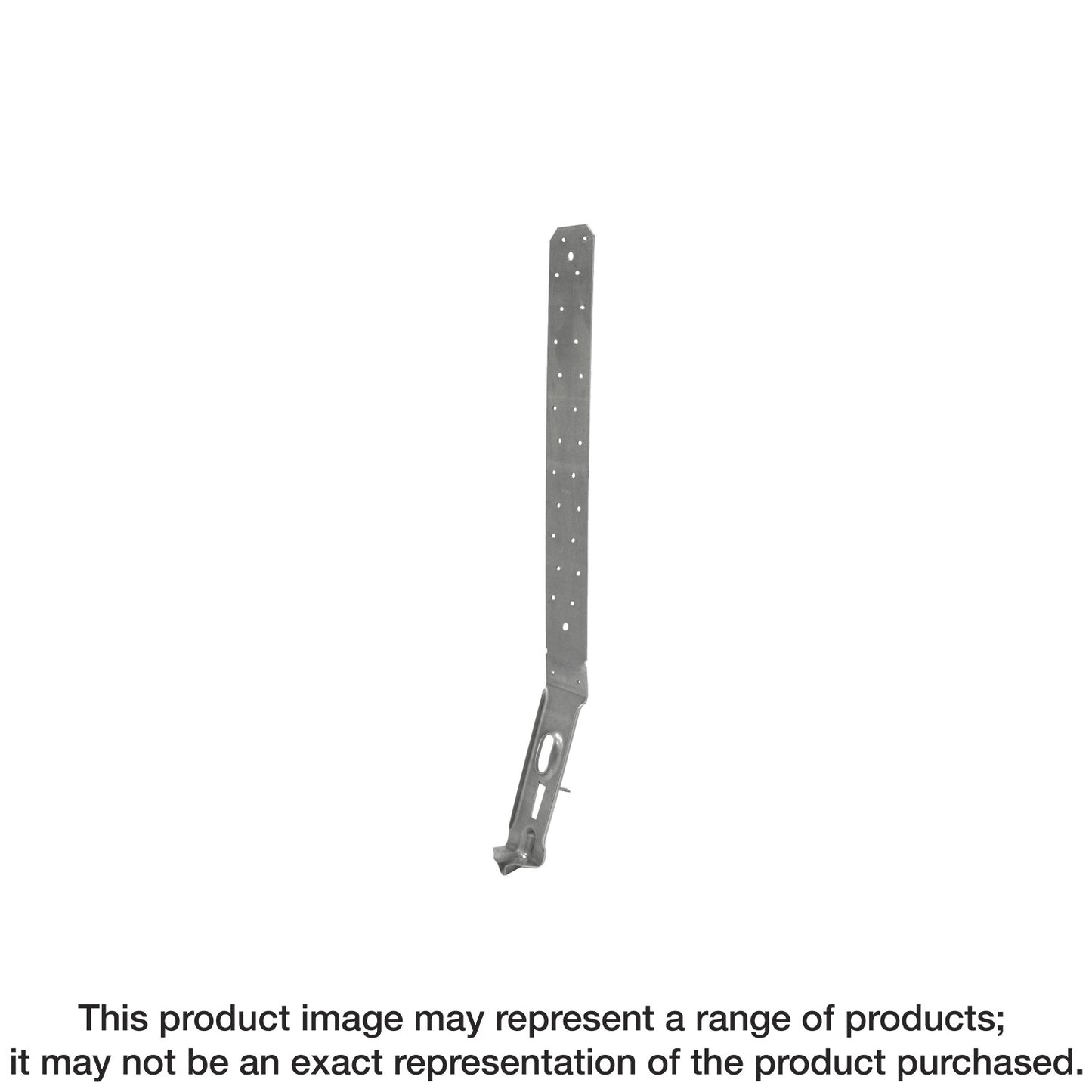

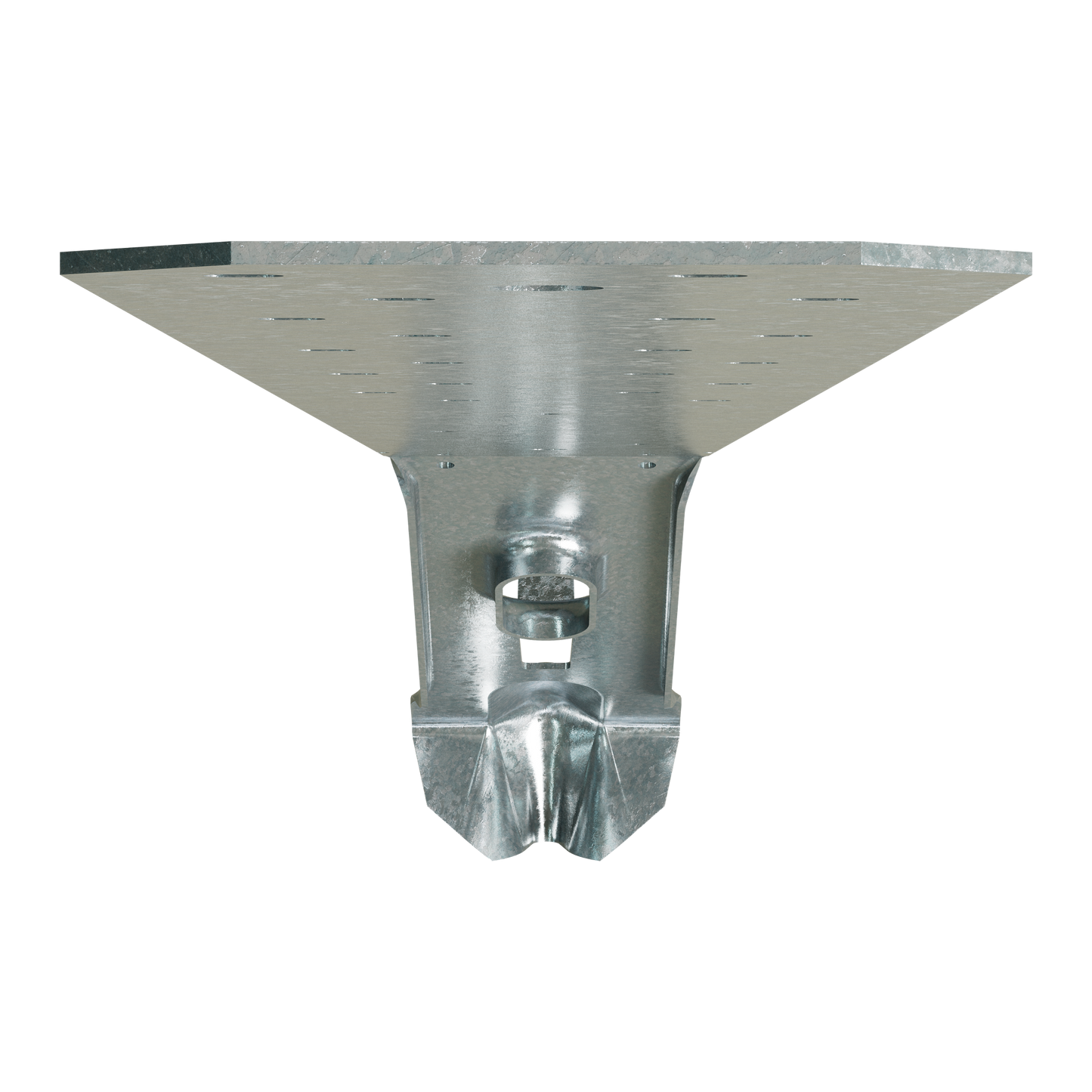

Simpson Strong-Tie LSTHD8RJ LSTHD 32-1/8 in. 14-Gauge Galvanized Rim-Joist Strap-Tie Holdown (Pack of 500)

Simpson Strong-Tie LSTHD8RJ LSTHD 32-1/8 in. 14-Gauge Galvanized Rim-Joist Strap-Tie Holdown (Pack of 500)

The LSTHD is an embedded strap-tie holdown with features that aid correct installation and improve performance in both wood and cold-formed steel construction. When installed on the forms with the StrapMate® strap holder or other holding device, the unique design of this light cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
• Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
• The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
• Rim joist models accommodate up to a 17-in. clear span without any loss of strap nailing
• Strap length: 32-1/8 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LSTHD8RJ
• UPC: 50044315881607
• GTIN: 50044315881607
• Feature 01: Staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
• Feature 02: Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
• Feature 03: The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
• Feature 04: Rim joist models accommodate up to a 17-in. clear span without any loss of strap nailing
• Feature 05: Strap length: 32-1/8 in.
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Assembled Depth - Imperial: 4.26055
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 40.26267
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.00
• Assembled Width UOM - Imperial: in.
• Base Product ID: LSTHD_Holdown
• Base Product Name: LSTHD
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Holdown
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 225937031251201376485748515133408272910
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Holdown
• Prop 65 Warning: No
• Quantity: 500
• Shipping Weight: 1242
• Short Product Name: 32-1/8IN STRAP TIE HOLDOWN RIM JOIST
• Strongtie.com URL: https://www.strongtie.com/straptieholdowns_holdownsandtensionties/lsthd_holdown/p/lsthd
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 44315881602
