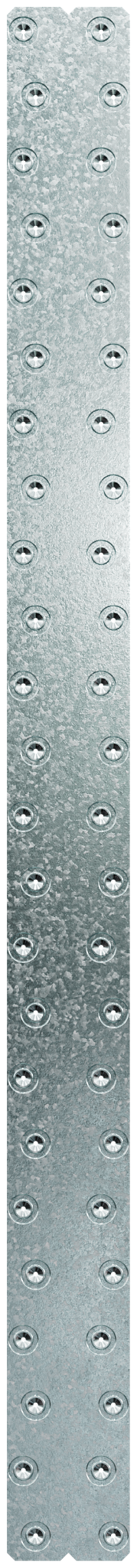

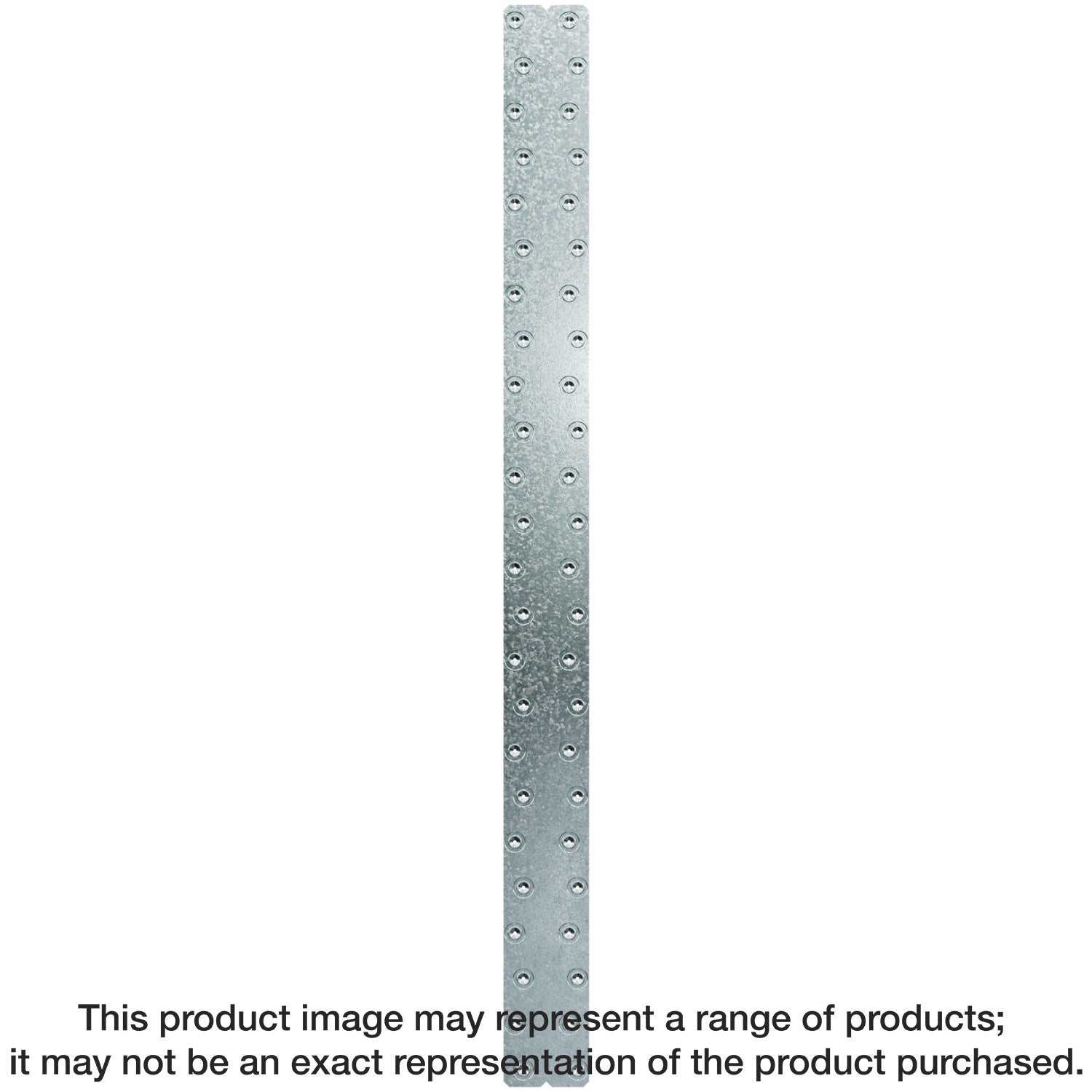

Simpson Strong-Tie LDSS48 LDSS® 3-3/4 in. x 47-1/2 in. 18-Gauge Galvanized Diaphragm Spline Strap

Simpson Strong-Tie LDSS48 LDSS® 3-3/4 in. x 47-1/2 in. 18-Gauge Galvanized Diaphragm Spline Strap

The LDSS® light diaphragm spline strap is designed to be placed directly on top of CLT (cross-laminated timber) and other mass timber panels to connect them together. Unlike plywood splines, the LDSS does not require routing. As part of the Simpson Strong-Tie® complete LDSS spline solution, the steel strap installs easily and safely using our PRO300SG2 Quik Drive® tool and collated Strong-Drive® WSV Subfloor screws. The LDSS features an innovative embossed hole design that helps guide the installation tool and increase fastener capacity.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• No routing required; the strap can be placed directly on top of mass timber panels, reducing manufacturing time and cost
• Less susceptible to moisture damage than plywood splines, reducing need for expensive repairs
• Embossed hole helps guide the installation tool into the hold and increases capacity per fastener
• Tested for in-plane shear values
• Can be used as part of a complete spline solution throughout a project for faster installation and to save on the total cost of spline connections
• Width: 3-3/4 in.
• Length: 47-1/2 in.
• Made from 18-gauge steel
• Galvanized

Application

• Mass Timber / Cross-Laminated Timber

Specifications

• ERP Part Number: LDSS48
• UPC: 707392020523
• GTIN: 707392020523
• Feature 01: No routing required; the strap can be placed directly on top of mass timber panels, reducing manufacturing time and cost
• Feature 02: Less susceptible to moisture damage than plywood splines, reducing need for expensive repairs
• Feature 03: Embossed hole helps guide the installation tool into the hold and increases capacity per fastener
• Feature 04: Tested for in-plane shear values
• Feature 05: Can be used as part of a complete spline solution throughout a project for faster installation and to save on the total cost of spline connections
• Feature 06: Width: 3-3/4 in.
• Feature 07: Length: 47-1/2 in.
• Feature 08: Made from 18-gauge steel
• Feature 09: Galvanized
• Install With: Install with #9 x 3 in. Simpson Strong-Tie® Strong-Drive® WSV Subfloor collated screws or 0.148 in. x 2-1/2 in. fasteners for 3-ply CLT layup
• Applications List: Mass Timber / Cross-Laminated Timber
• Assembled Depth - Imperial: 0.125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 47.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: LDSS_Strap
• Base Product Name: LDSS®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Strap
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 155259606740119569616222007334238179782
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Strap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.47
• Short Product Name: DIAPHRAGM SPLINE STRAP 3.75X47.5X18GA
• Strongtie.com URL: https://www.strongtie.com/straightstraps_strapsandties/ldss_strap/p/ldss
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392020520
• PAL Reference: 50707392020528
