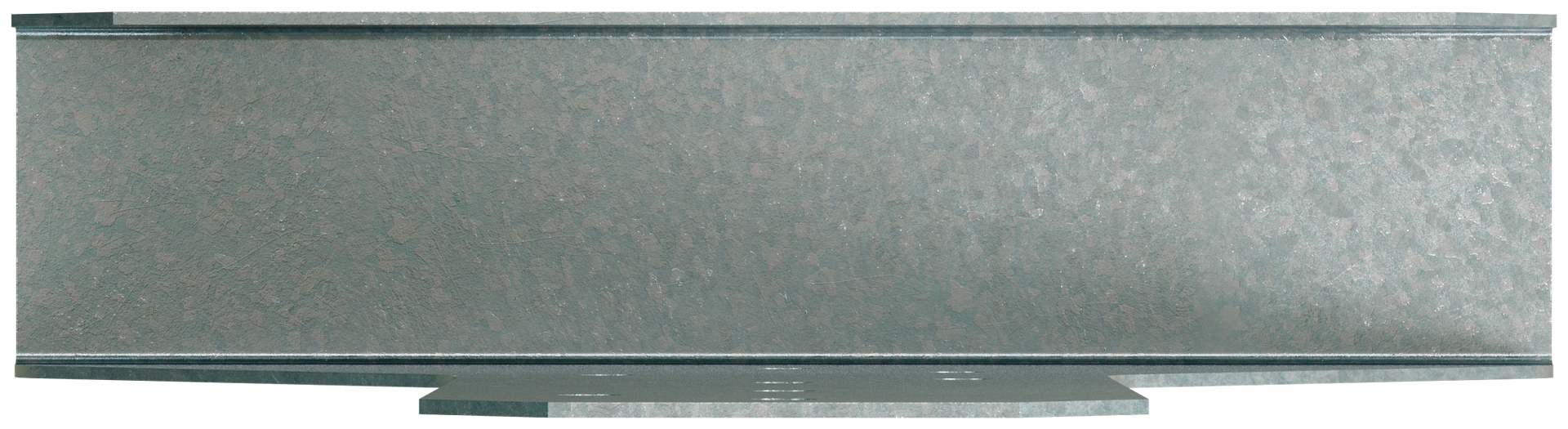

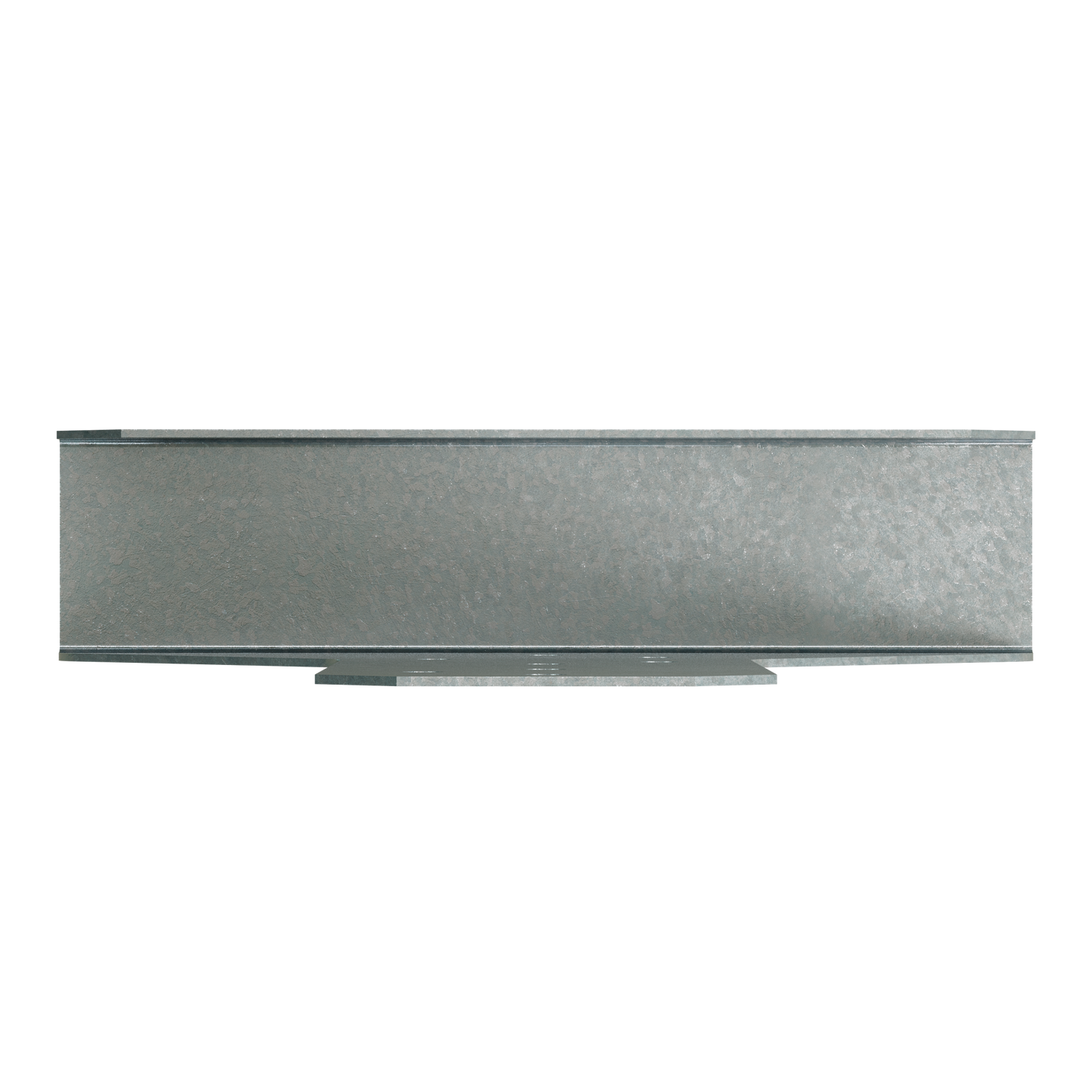

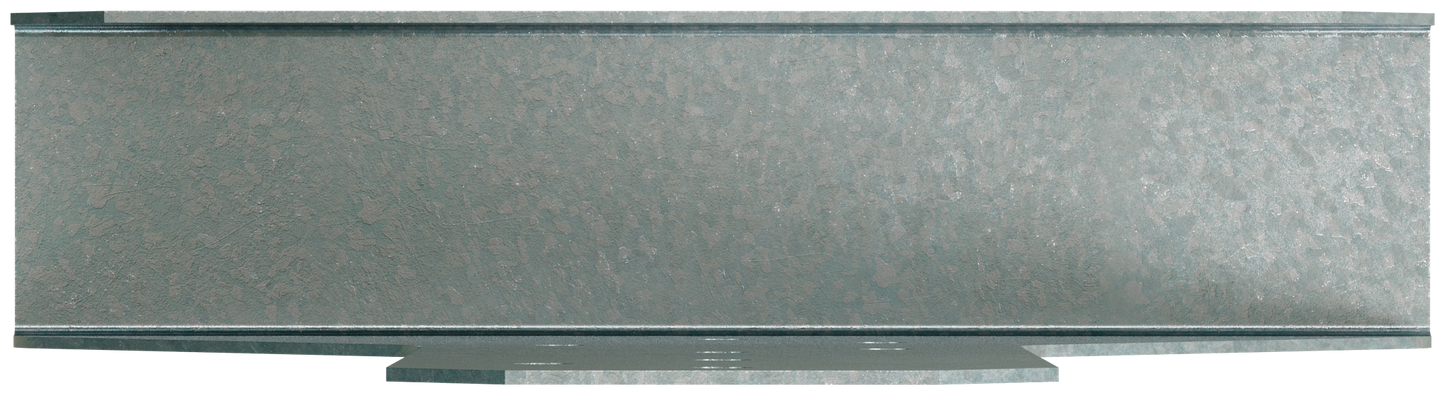

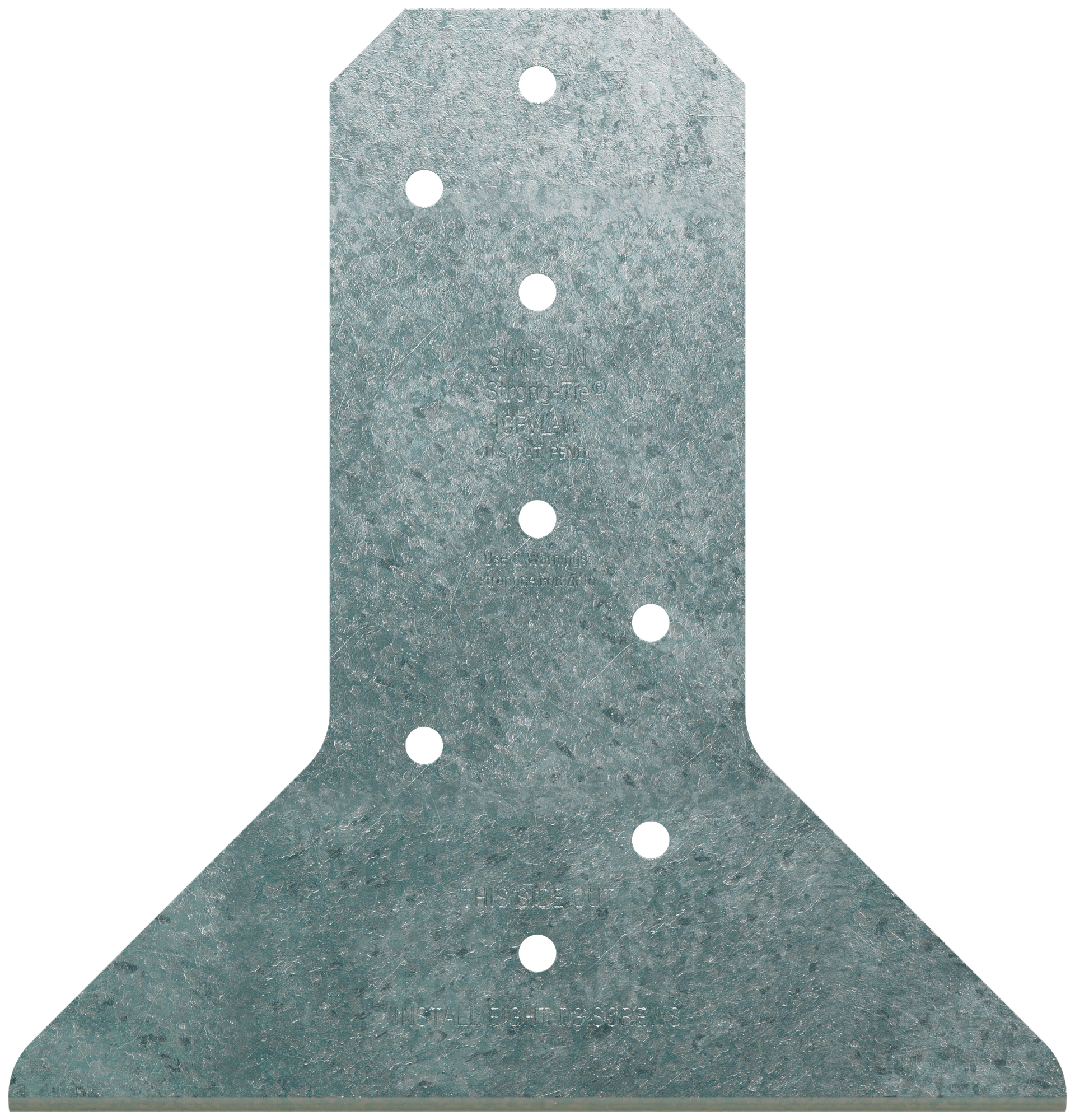

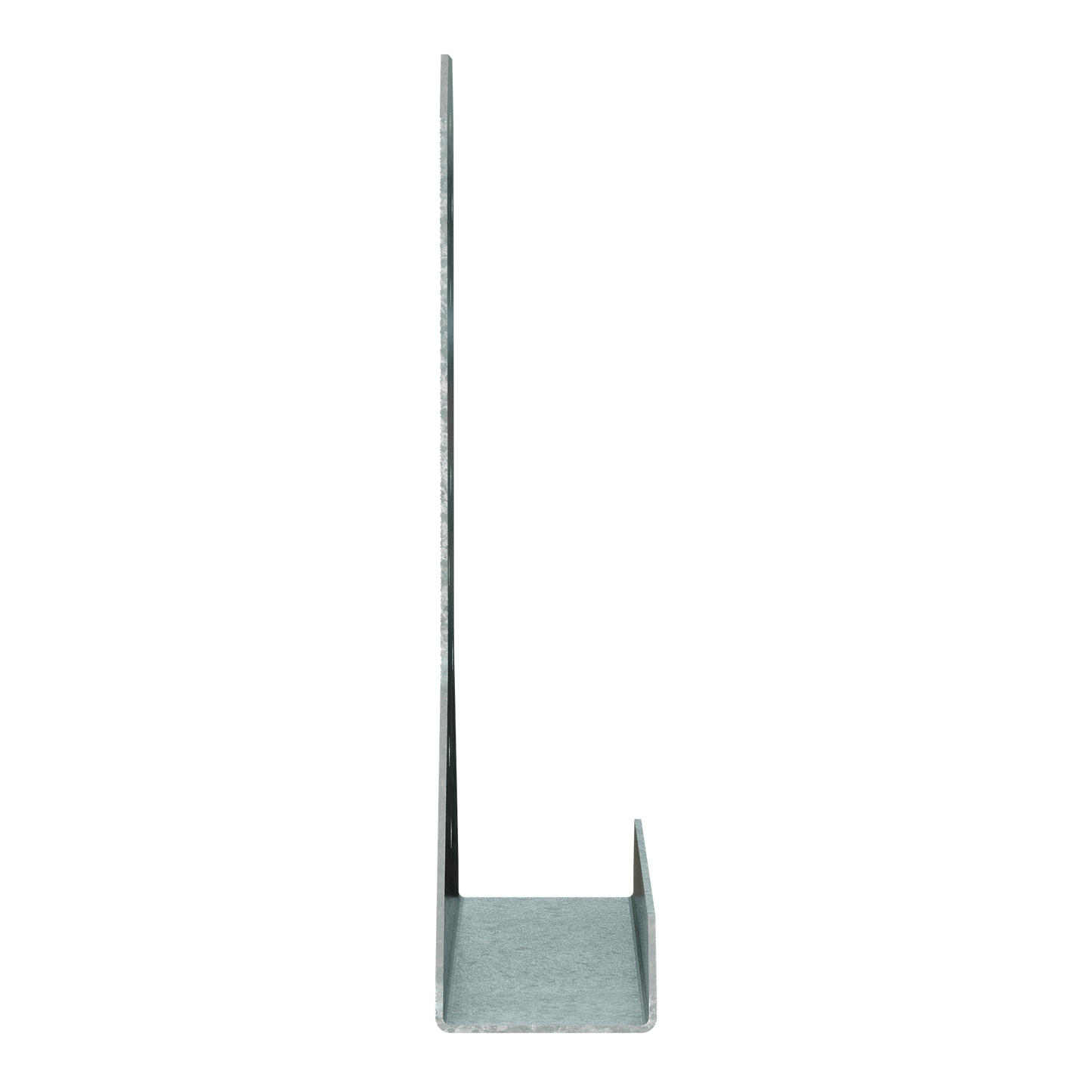

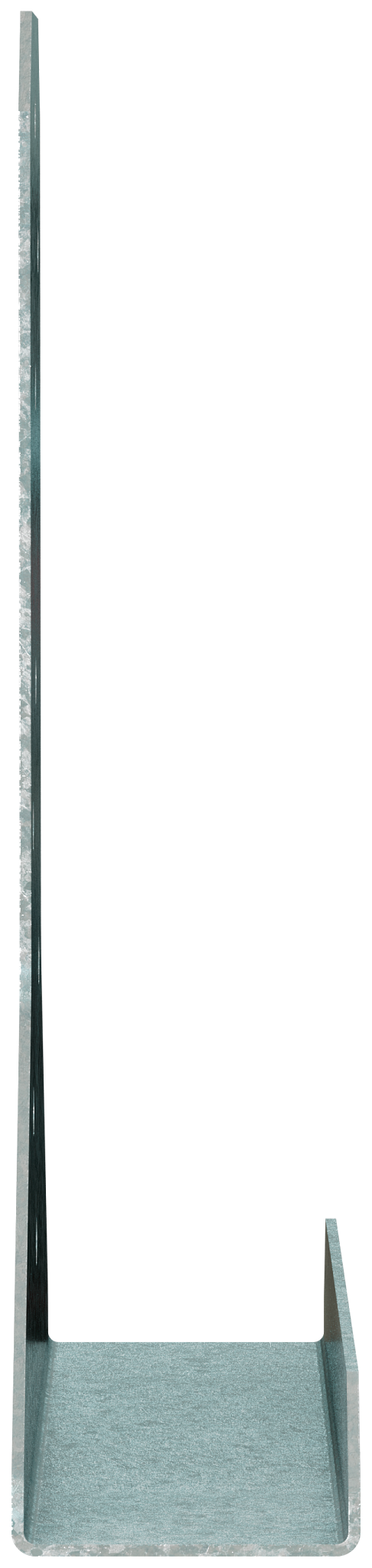

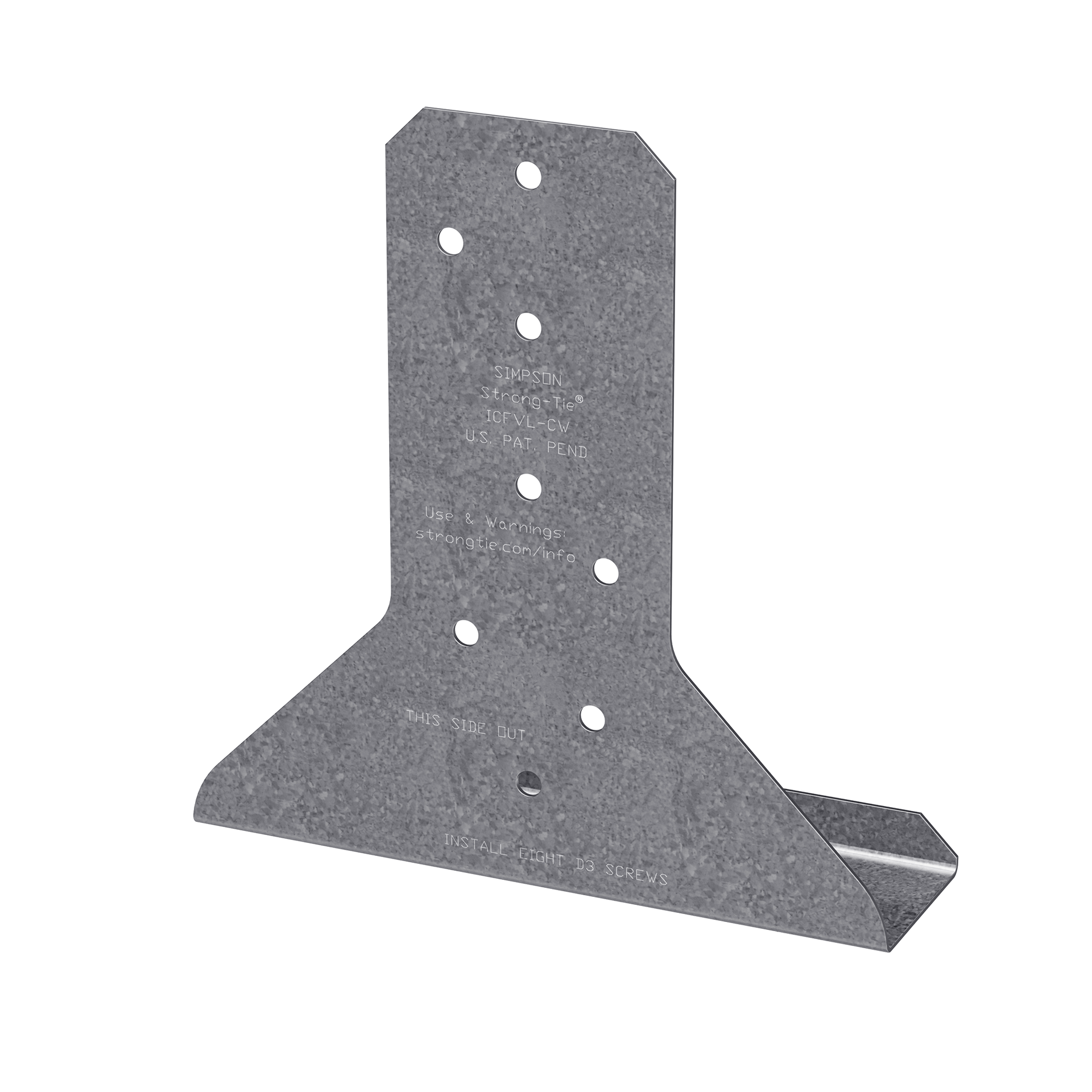

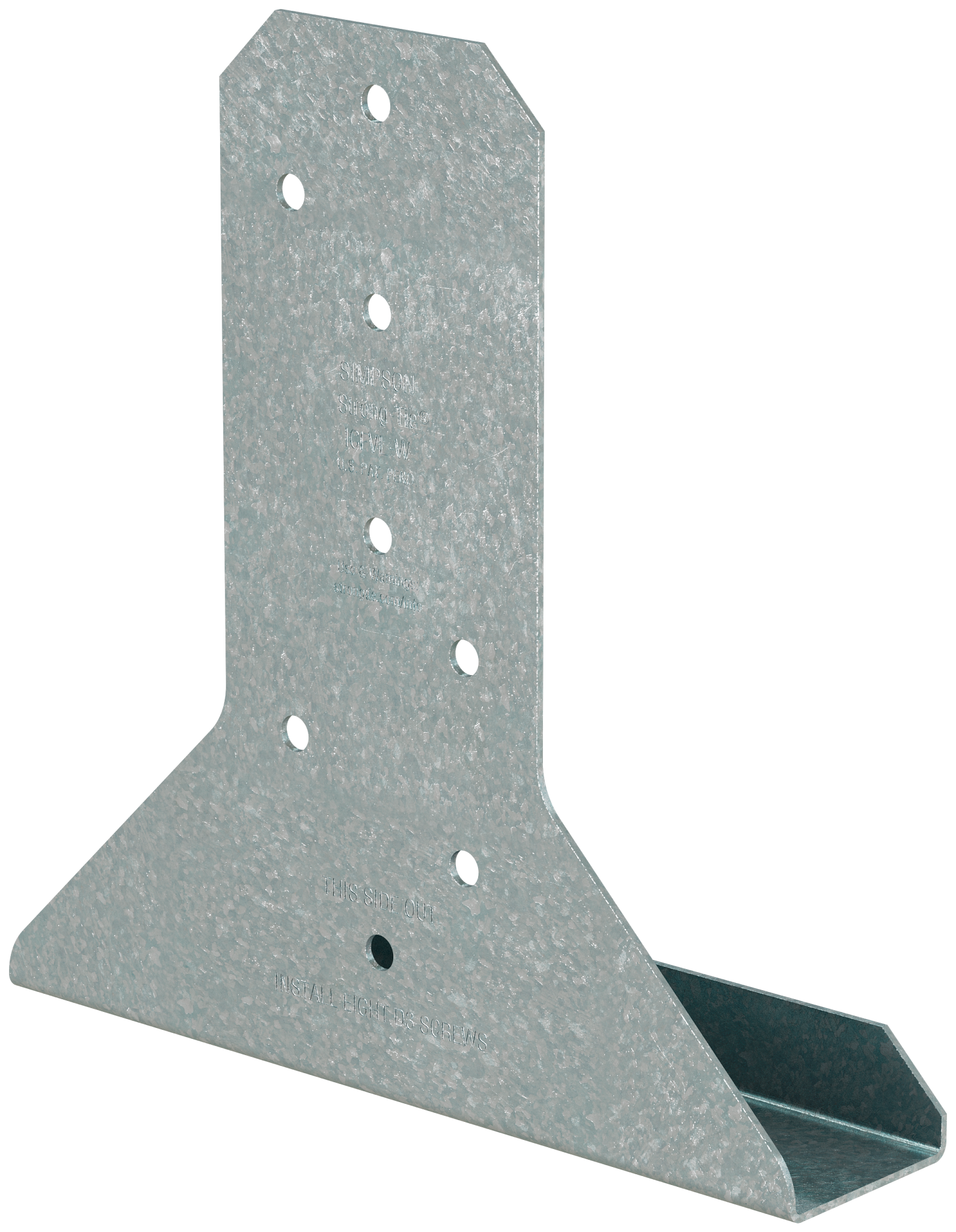

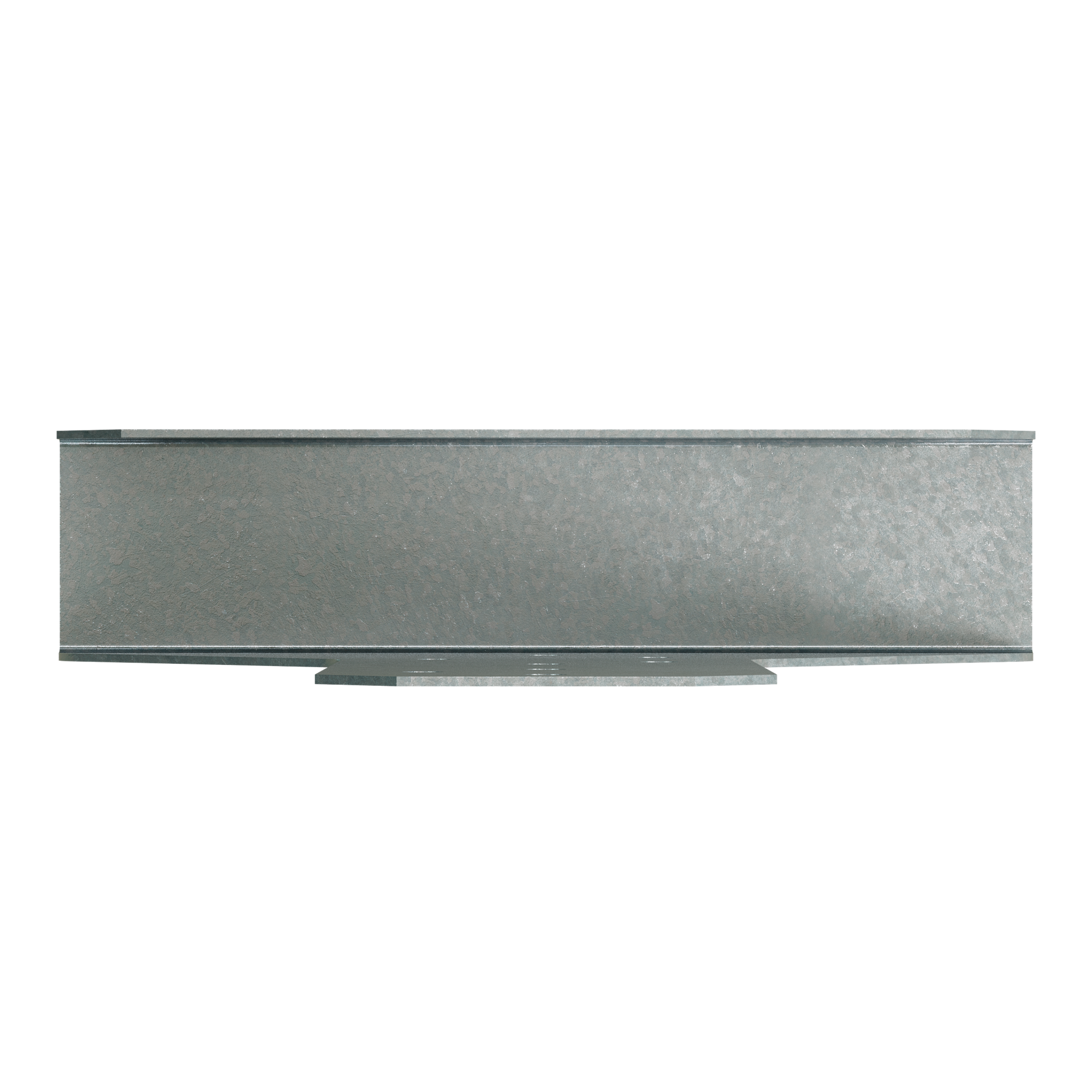

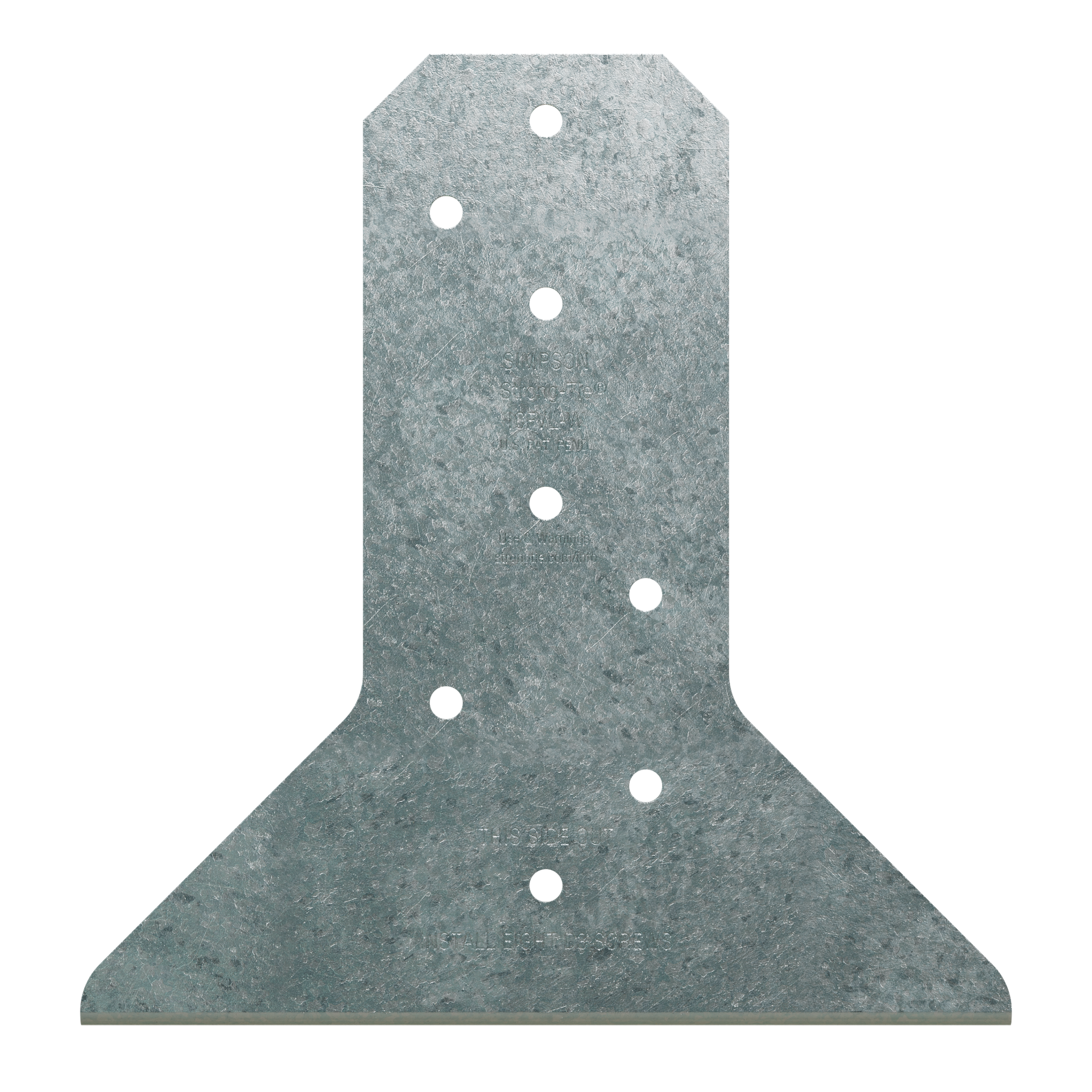

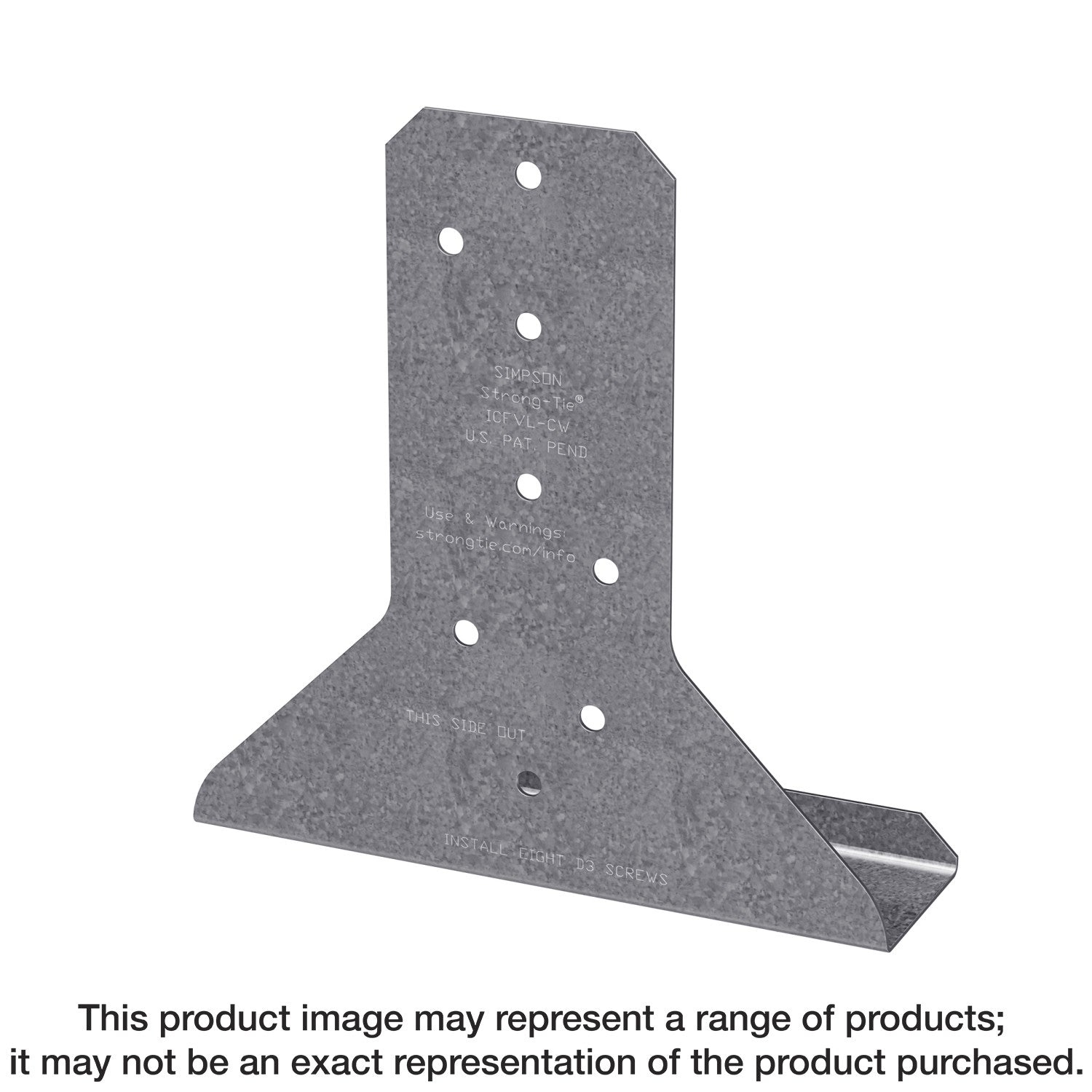

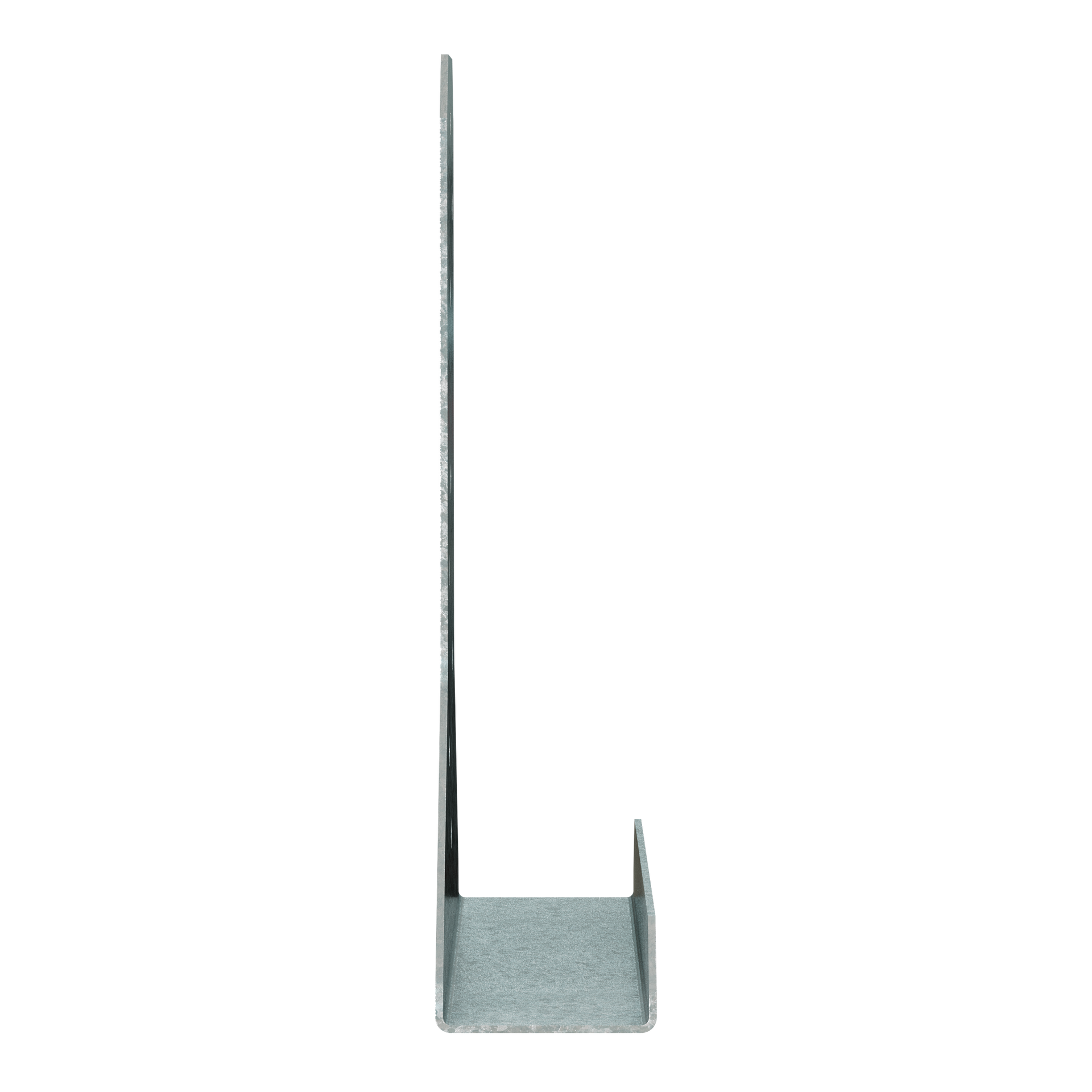

Simpson Strong-Tie ICFVL-W ICFVL® Ledger Connector System to Connect Wood Ledger to ICF (15-Qty)

Simpson Strong-Tie ICFVL-W ICFVL® Ledger Connector System to Connect Wood Ledger to ICF (15-Qty)

The ICFVL ledger connector system is engineered to solve the challenges of mounting wood or steel ledgers to insulated concrete form (ICF) walls. The ICFVL is designed to provide both vertical and lateral, in-plane performance. There are many benefits over traditional anchor bolting, including better on center spacing in most cases, faster installation and no protrusions.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The embedded legs of the ICFVL are embossed for additional stiffness
• The hole allows for concrete to flow through and around the connector
• The exposed flange on the face of the ICF provides a structural surface for mounting either a wood or steel ledger
• Use ICFVL-W for solid sawn lumber ledger
• Use with Simpson Strong-Tie® ICFVL to attach ledger to ICF
• Made from 16-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 15

Specifications

• ERP Part Number: ICFVL-W
• UPC: 10707392881107
• GTIN: 10707392881107
• Feature 01: The embedded legs of the ICFVL are embossed for additional stiffness
• Feature 02: The hole allows for concrete to flow through and around the connector
• Feature 03: The exposed flange on the face of the ICF provides a structural surface for mounting either a wood or steel ledger
• Feature 04: Use ICFVL-W for solid sawn lumber ledger
• Feature 05: Use with Simpson Strong-Tie® ICFVL to attach ledger to ICF
• Feature 06: Made from 16-gauge steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Quantity: 15
• Install With: Installs with ICF-D3.62 screws (included) into the ledger
• Assembled Depth - Imperial: 1.64525
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7
• Assembled Width UOM - Imperial: in.
• Base Product ID: ICFVL-W_System
• Base Product Name: ICFVL®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Masonry and Concrete Connectors > Ledger Plate
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: CAR
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 102826006845017364510404700047485326043
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• Member Size: 2x ledger
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.56
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.81
• Package Width UOM - Imperial: in.
• Packaging Quantity: 15
• Packaging Type: Carton
• Product Class: Ledger Plate
• Product Includes: <p>Includes (8) ICF-D3.25 screws per connector</p>
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 15.3
• Short Product Name: STEEL LEDGER CONNECTOR WOOD TO ICF
• Strongtie.com URL: https://www.strongtie.com/concrete_miscellaneousconnectors/icfvl-w_system/p/icfvl
• Subcategory: Wood Construction Connectors
• Subcategory 2: Masonry and Concrete Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392881105
