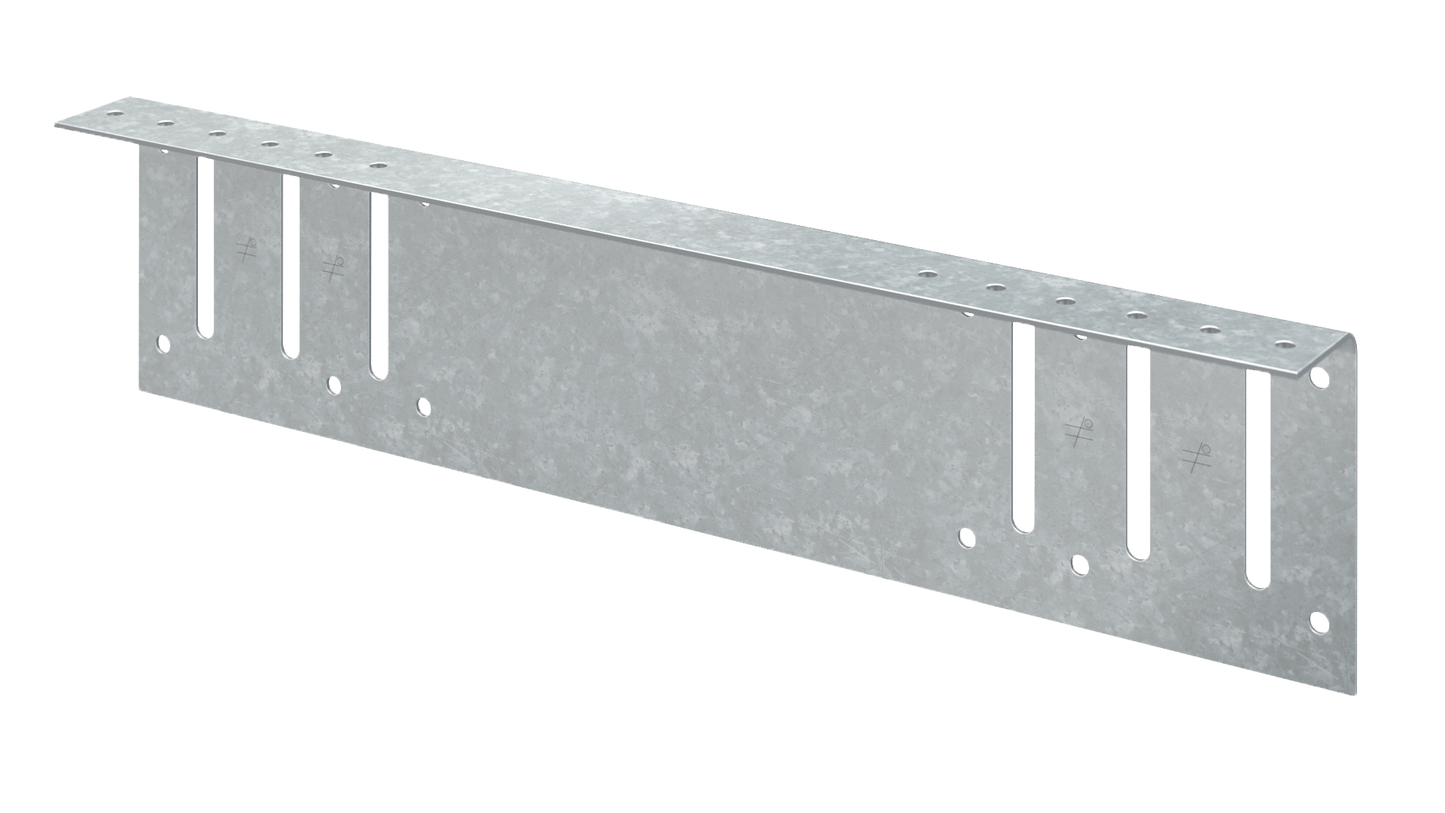

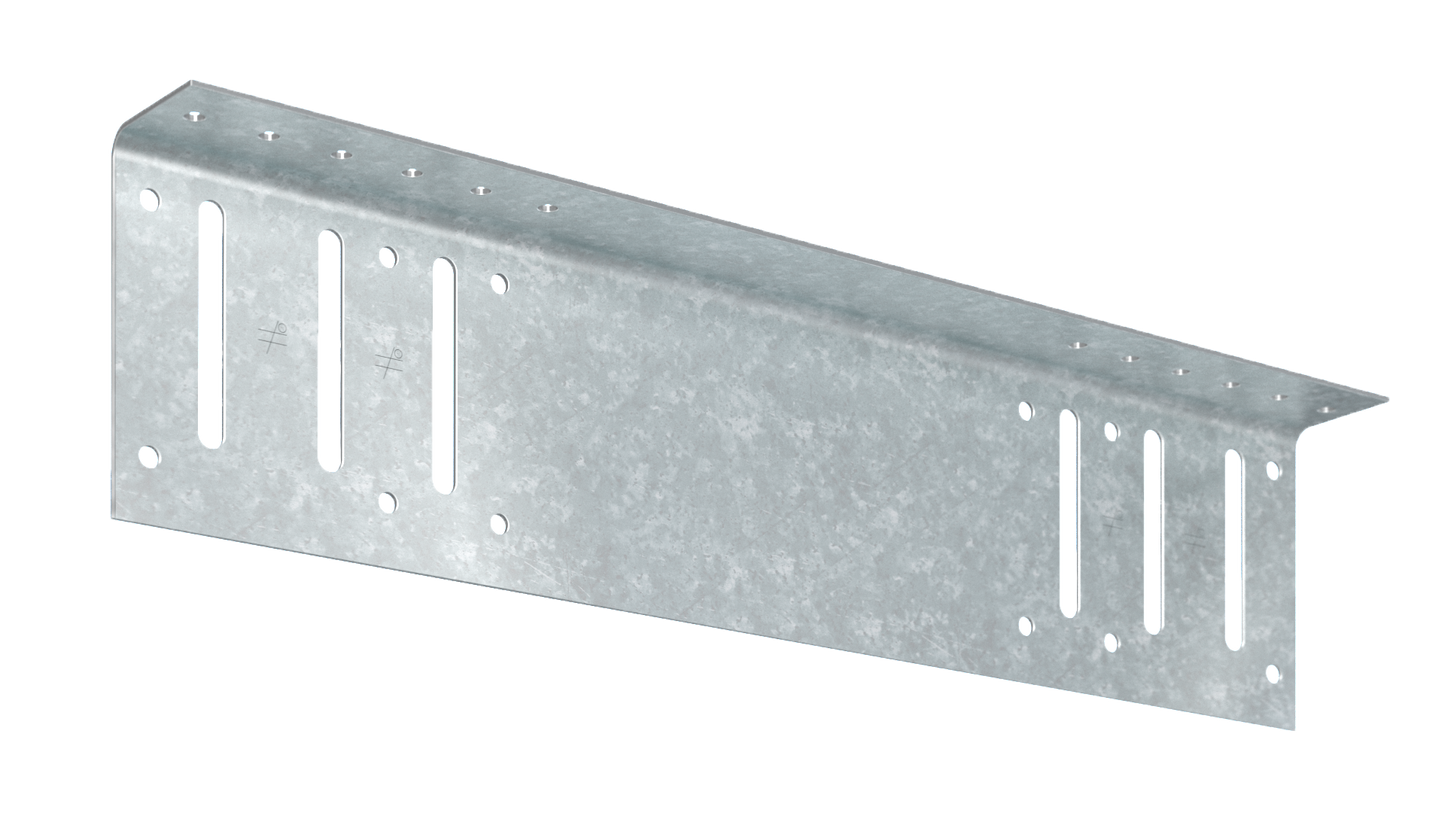

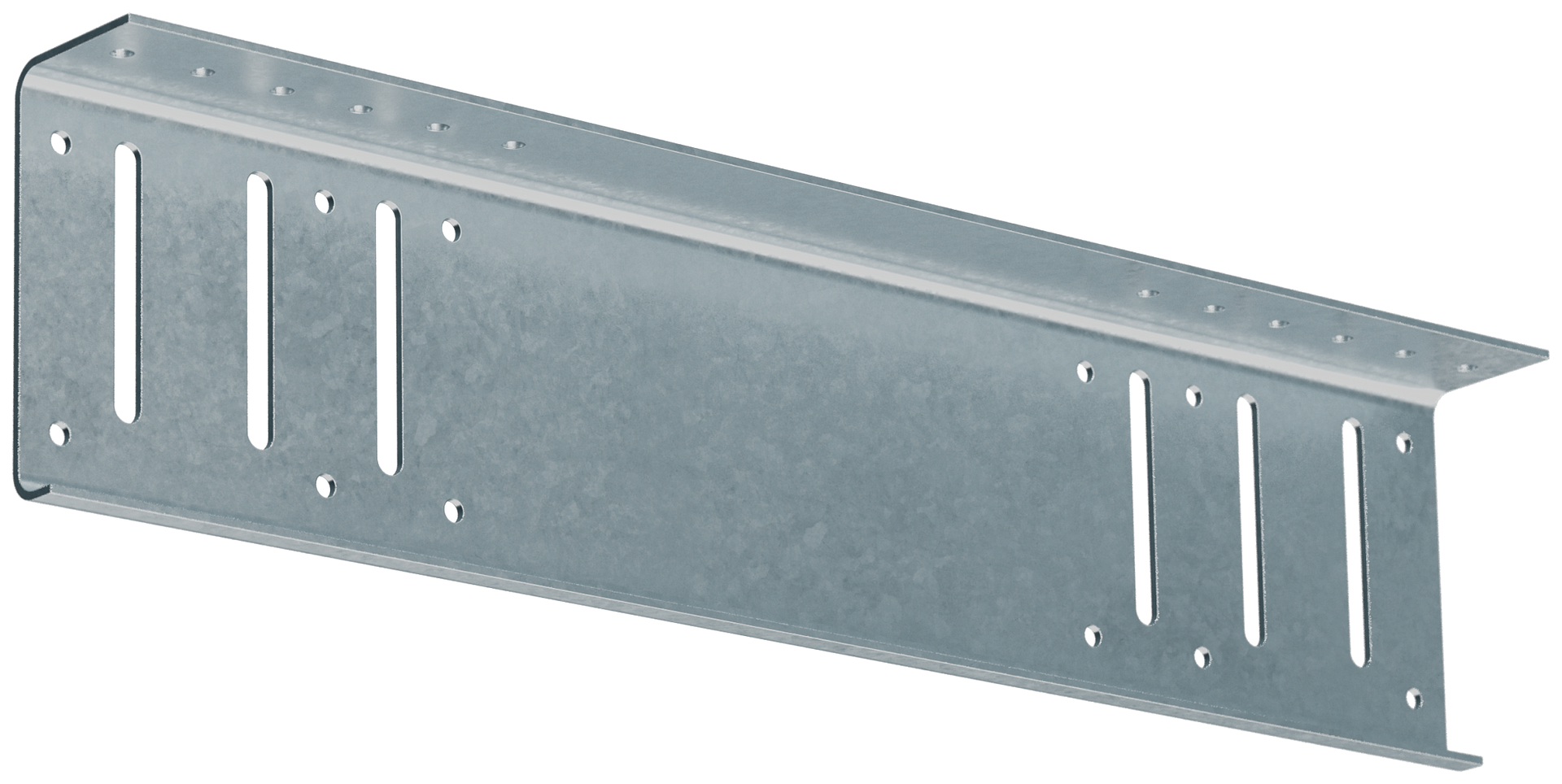

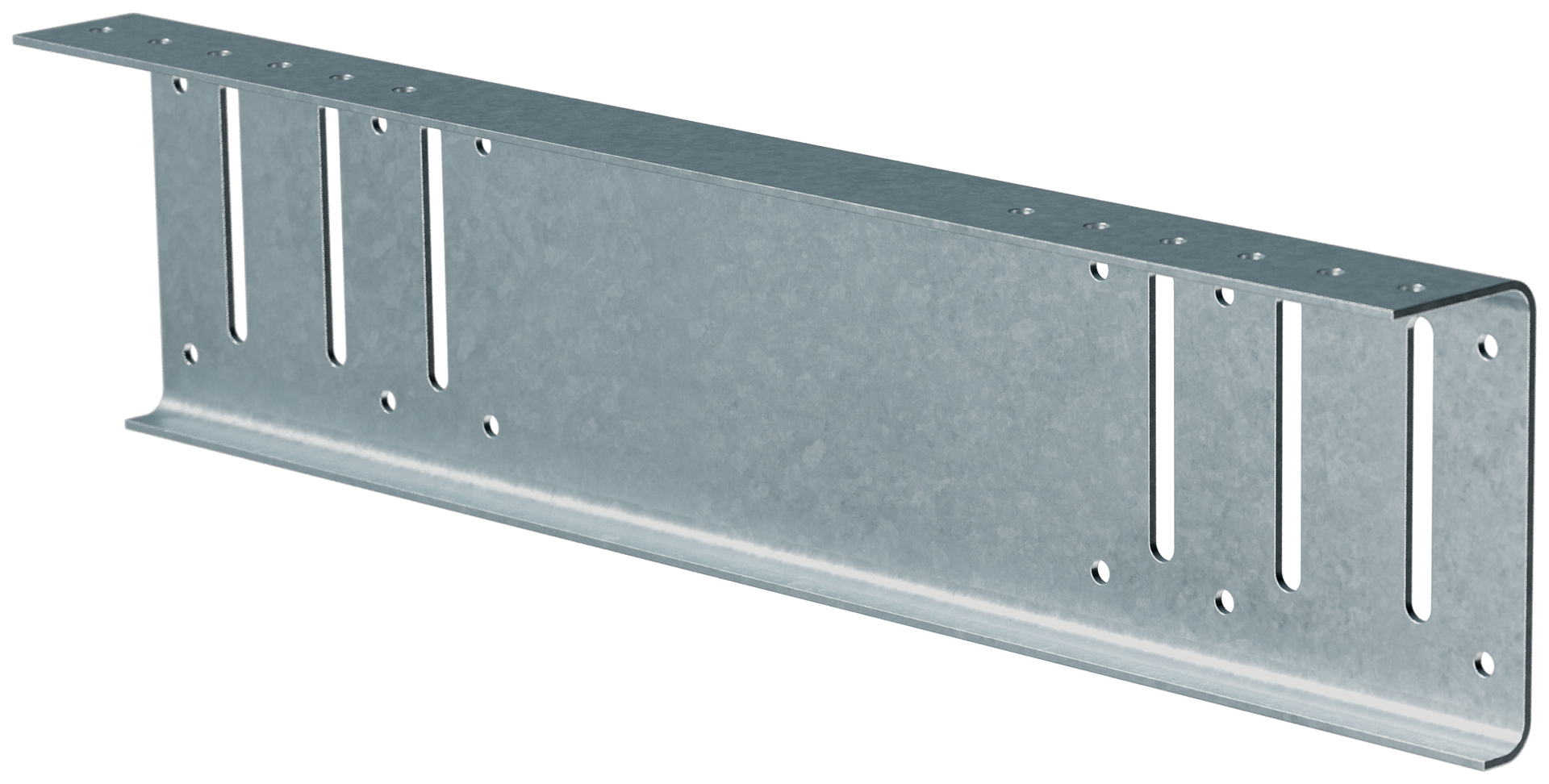

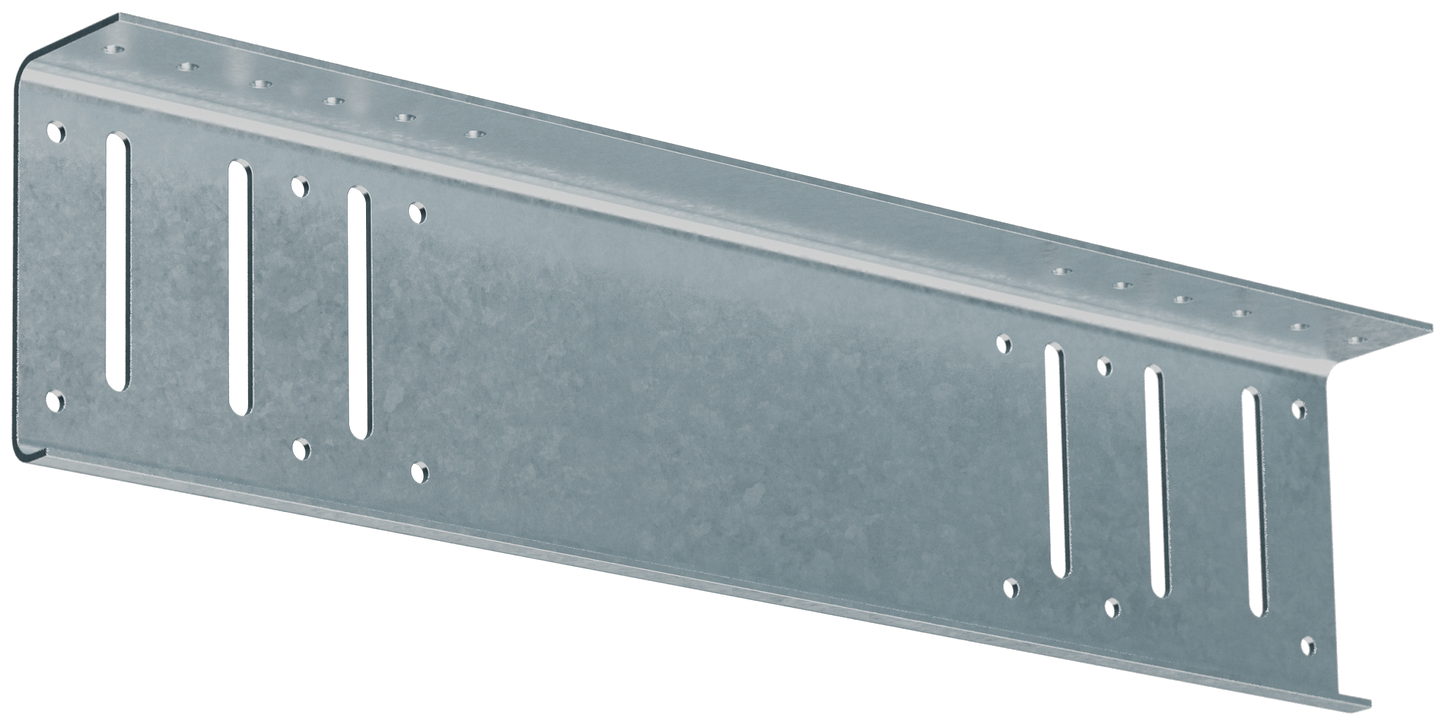

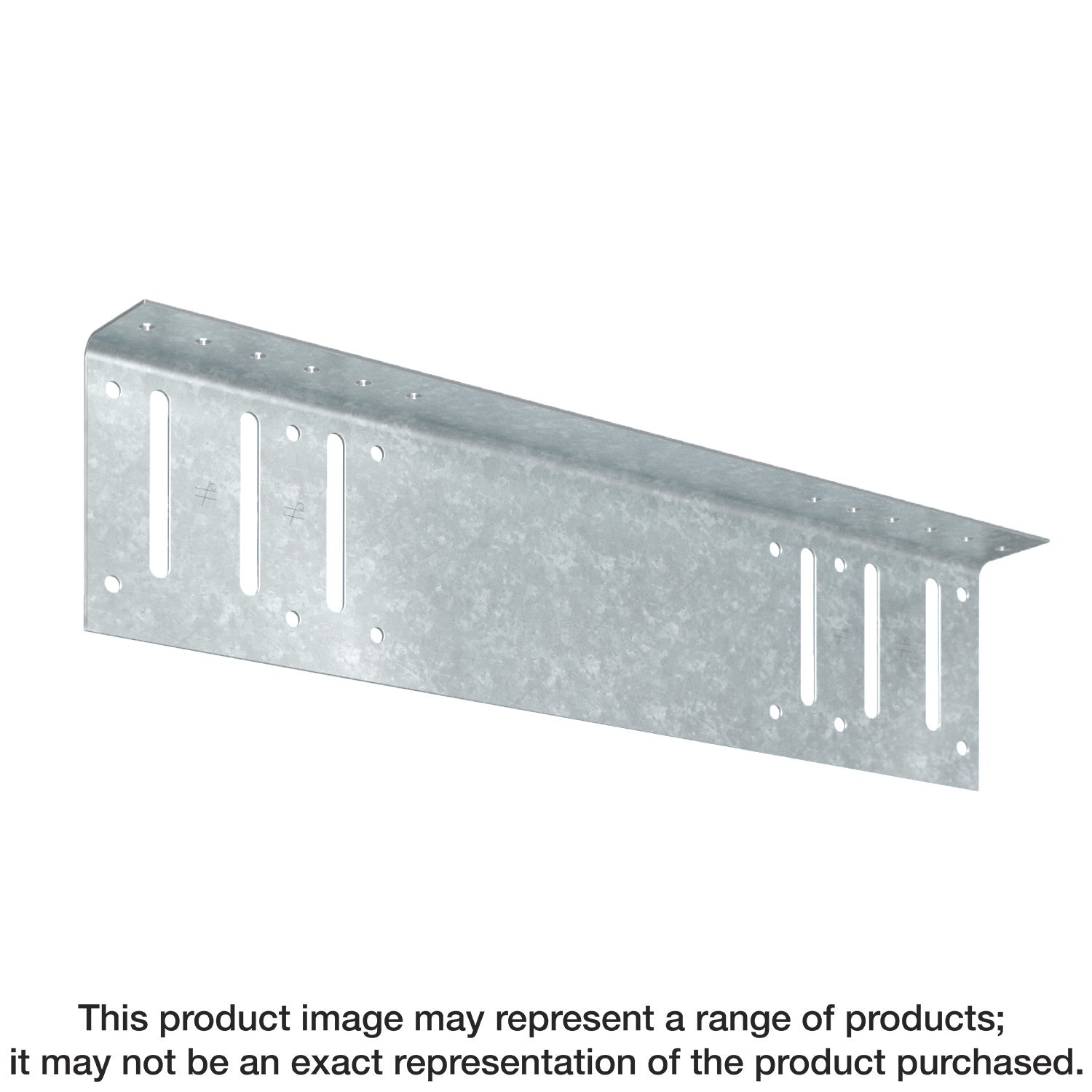

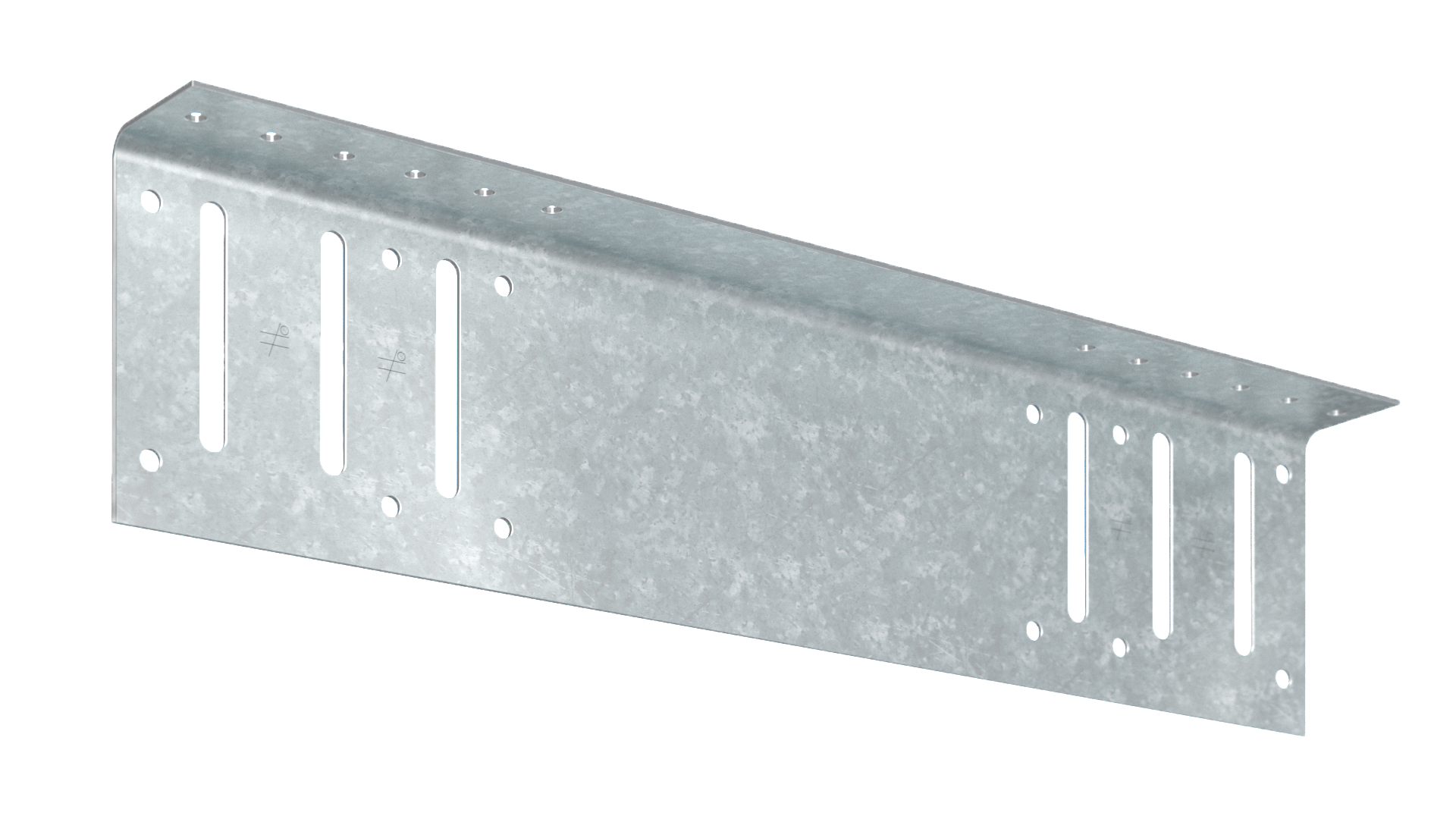

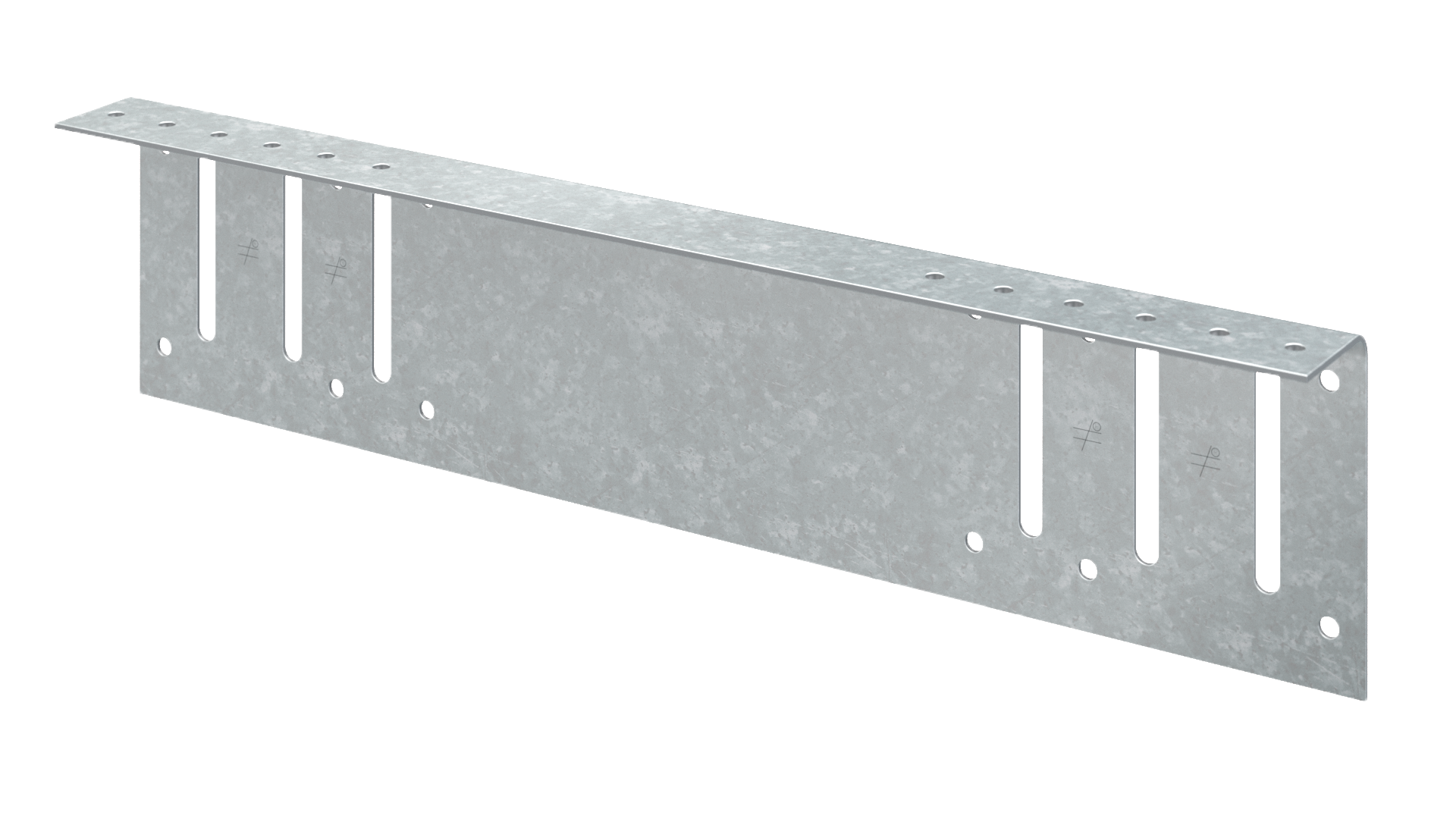

Simpson Strong-Tie HYS15/68-KT25 HYS 15 in. 14-Gauge Bypass Hybrid Strut (25-Qty)

Simpson Strong-Tie HYS15/68-KT25 HYS 15 in. 14-Gauge Bypass Hybrid Strut (25-Qty)

The HYS hybrid strut is designed and tested for use as either a slide or a rigid clip. Commonly used at the bottom of a steel beam to accommodate large standoff conditions, the HYS strut attaches to the structure with screws, power-actuated fasteners or welds. The HYS has undergone comprehensive component, assembly and anchor testing. Tabulated loads were developed from these tests and include capacities based on strength and deflection to assist in mitigating design risk. You can count on the HYS dual-application strut for its versatility and test-verified performance.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Slots are positioned to minimize eccentric load and maximize capacity
• Slide application allows up to 1" of vertical moment in each direction when shouldered screws are used through the center of the slot
• Simpson Strong-Tie® No-Equal® stamps mark the center of the slots to help ensure correct placement of shouldered screws
• Supports gravity and lateral loads when using #10 screws through small predrilled holes
• Length: 15 in.
• Made from 14-gauge (68 mil) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25 per package

Specifications

• ERP Part Number: HYS15/68-KT25
• UPC: 707392006589
• GTIN: 707392006589
• Feature 01: Slots are positioned to minimize eccentric load and maximize capacity
• Feature 02: Slide application allows up to 1" of vertical moment in each direction when shouldered screws are used through the center of the slot
• Feature 03: Simpson Strong-Tie® No-Equal® stamps mark the center of the slots to help ensure correct placement of shouldered screws
• Feature 04: Supports gravity and lateral loads when using #10 screws through small predrilled holes
• Feature 05: Length: 15 in.
• Feature 06: Made from 14-gauge (68 mil) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Quantity: 25 per package
• Install With: Installs with XLSH78B1414 #14 shouldered screws (included)
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 15
• Assembled Width UOM - Imperial: in.
• Base Product ID: HYS_Strut
• Base Product Name: HYS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid and Deflection Hybrid Connectors > Strut
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 248341192126347514499547556685420117201
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.75
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.50
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Strut
• Product Includes: (25) connectors; (83) XLSH78B1414 #14 shouldered screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 35
• Short Product Name: BYPASS HYBRID STRUT 14GA X 15" LONG
