Simpson Strong-Tie HWDC3.37-KT25 HWDC 3-3/8 in. Head-of-Wall Drift-Clip Connector (25-Qty)

Simpson Strong-Tie HWDC3.37-KT25 HWDC 3-3/8 in. Head-of-Wall Drift-Clip Connector (25-Qty)

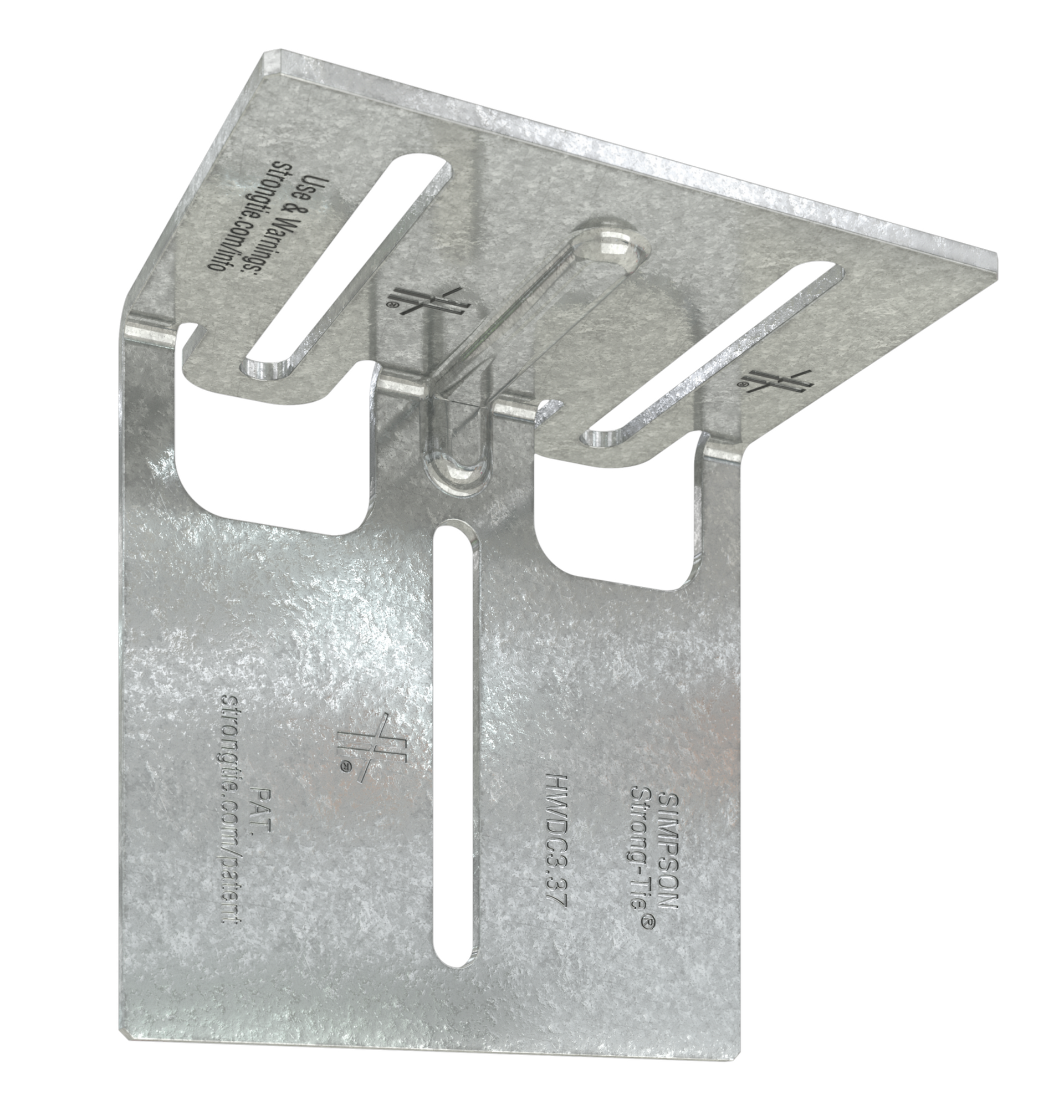

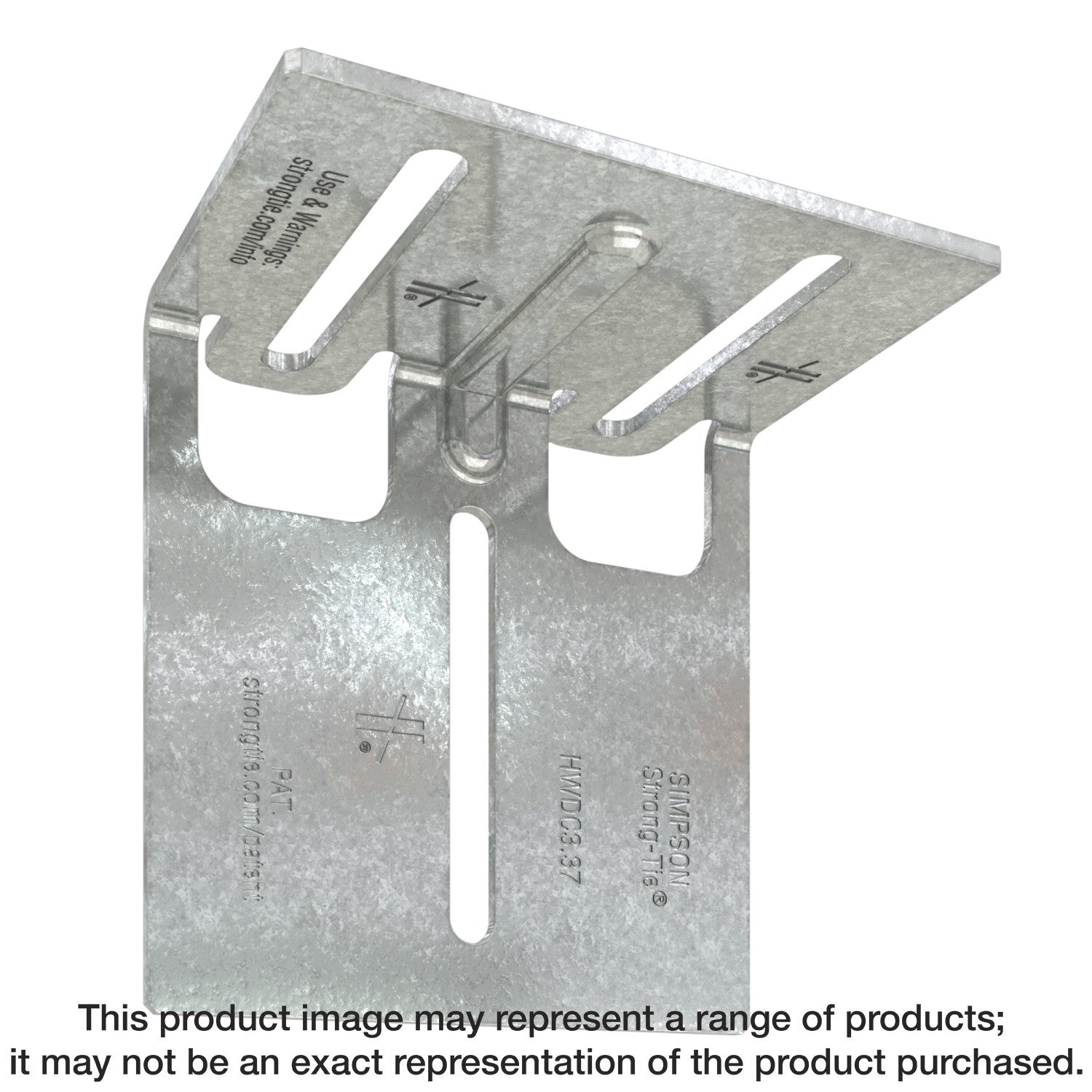

The Simpson Strong-Tie® head-of-wall drift-clip connector (HWDC) is used to secure the head of a wall to the bottom of a slab or beam. The unique design allows anchor screws to be installed closer to the bend, providing a stronger and stiffer connection while also allowing horizontal and vertical movement during seismic and high-wind events. HWDC5.25 provides anchorage location options with a third slot providing a solution for clips overhanging beam flanges. HWDC connectors are an optimal solution for adding strength to window or door jambs at head-of-wall connections.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Accommodates 1 in. of lateral drift in each direction, and 1 in. of upward and downward vertical deflection
• Unique design placement of the anchorage slots allows for closer attachment of anchorage to the clip bend, providing increased load capacity
• Stiffening ribs are placed in between anchorage slots through the bend to provide additional strength and stiffness
• Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure proper shouldered screw and anchor placement
• Made from 12-gauge (97 mil) steel
• Galvanized (G90) for corrosion resistance
• Width: 3-3/8 inches
• Quantity: 25 per package

Specifications

• ERP Part Number: HWDC3.37-KT25
• UPC: 707392015345
• GTIN: 707392015345
• Feature 01: Accommodates 1 in. of lateral drift in each direction, and 1 in. of upward and downward vertical deflection
• Feature 02: Unique design placement of the anchorage slots allows for closer attachment of anchorage to the clip bend, providing increased load capacity
• Feature 03: Stiffening ribs are placed in between anchorage slots through the bend to provide additional strength and stiffness
• Feature 04: Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure proper shouldered screw and anchor placement
• Feature 05: Made from 12-gauge (97 mil) steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Feature 07: Width: 3-3/8 inches
• Feature 08: Quantity: 25 per package
• Install With: Install with #14 shoulder screws (included)
• Assembled Depth - Imperial: 2.75
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.474
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: HWDC_Clip
• Base Product Name: HWDC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Drift Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 333158480339584426492046744057241619583
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.5
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Clip
• Product Includes: (25) connectors; (55) XLSH78B1414 #14 shouldered screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 12.5
• Short Product Name: Head of Wall Drift Clip 3.37" Kit
• Strongtie.com URL: https://www.strongtie.com/driftconnectors_coldformedsteelconstruction/hwdc_clip/p/hwdc
