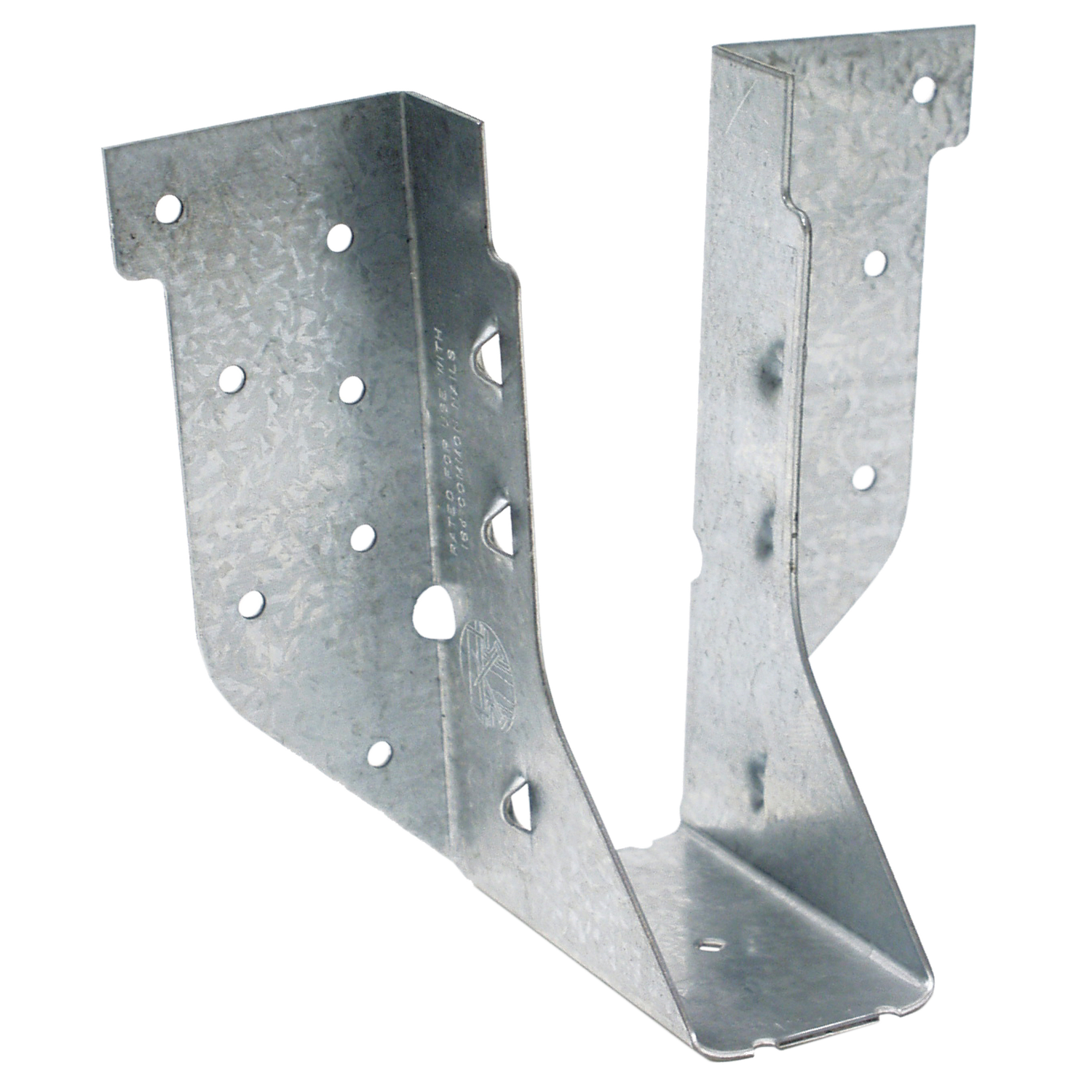

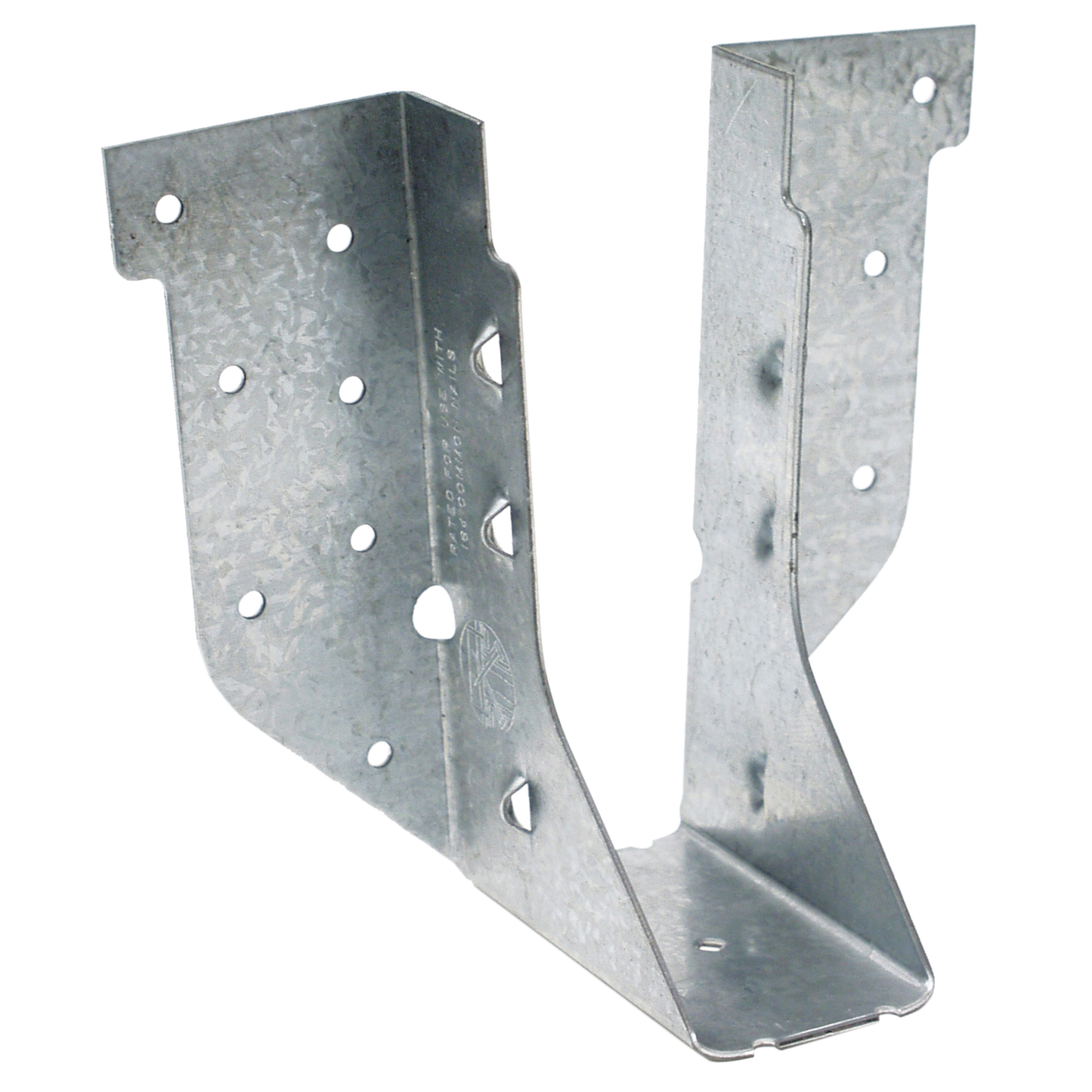

Simpson Strong-Tie HUS26 HUS Galvanized Face-Mount Joist Hanger for 2x6

Simpson Strong-Tie HUS26 HUS Galvanized Face-Mount Joist Hanger for 2x6

The HUS is designed for applications where higher loads are needed. This hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed after the beam is secured in place
• Cannot be modified
• HUS-series hangers are tested, load rated and code compliant
• Seat width: 1-5/8 in.
• Nominal joist size: 2x6
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HUS26
• UPC: 44315443008
• GTIN: 44315443008
• Feature 01: Can be installed after the beam is secured in place
• Feature 02: Cannot be modified
• Feature 03: HUS-series hangers are tested, load rated and code compliant
• Feature 04: Seat width: 1-5/8 in.
• Feature 05: Nominal joist size: 2x6
• Feature 06: Made from 16-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.162 in. x 3-1/2 in. nails or #10 x 2-1/2 in. Strong-Drive® SD screws
• Assembled Depth - Imperial: 3.1875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.432
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.739
• Assembled Width UOM - Imperial: in.
• Base Product ID: HUS_Hanger
• Base Product Name: HUS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 263233385315550564516731520555831660622
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.634
• Short Product Name: 2 X 6 FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/hus_hanger/p/hus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315443005
• PAL Reference: 50044315443003
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
