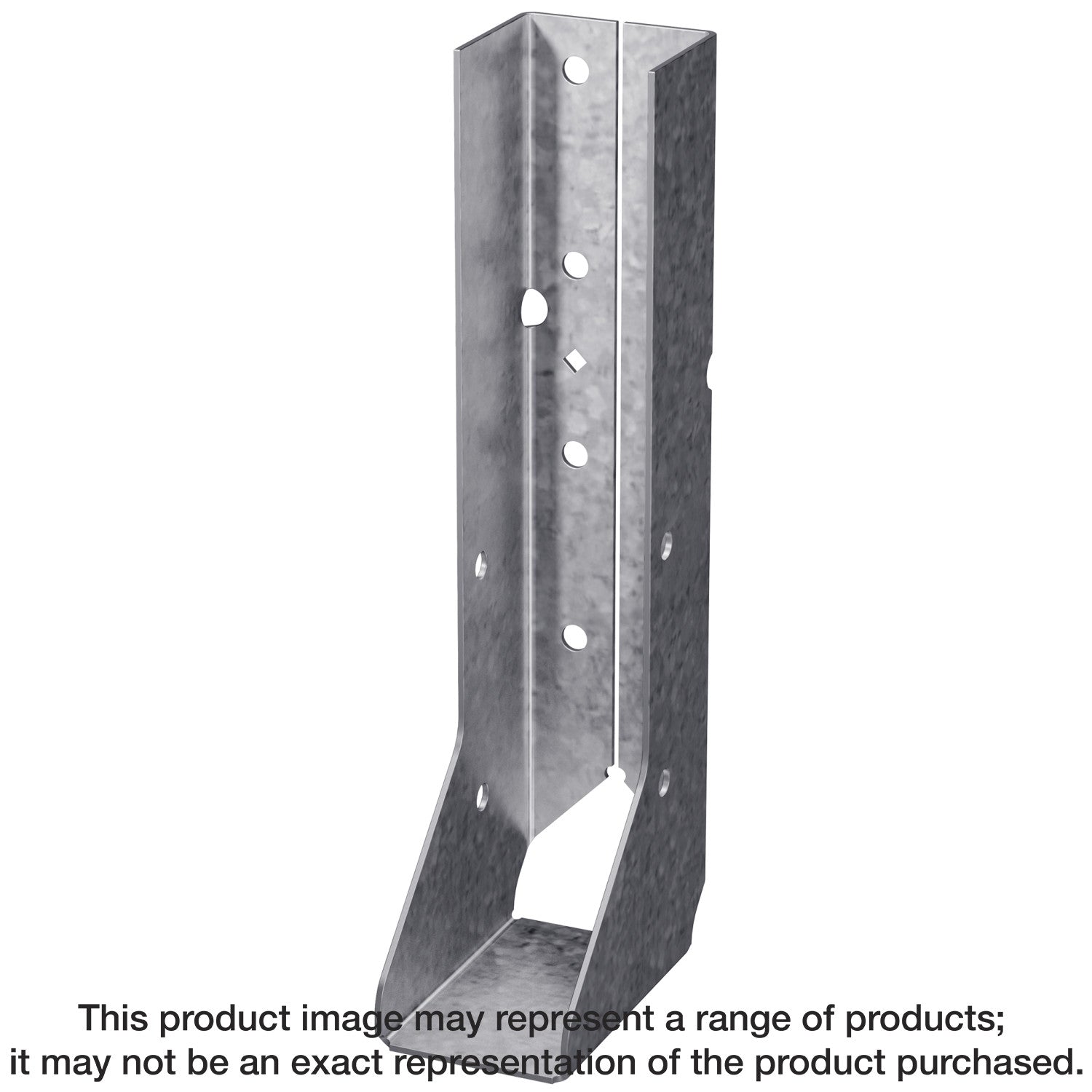

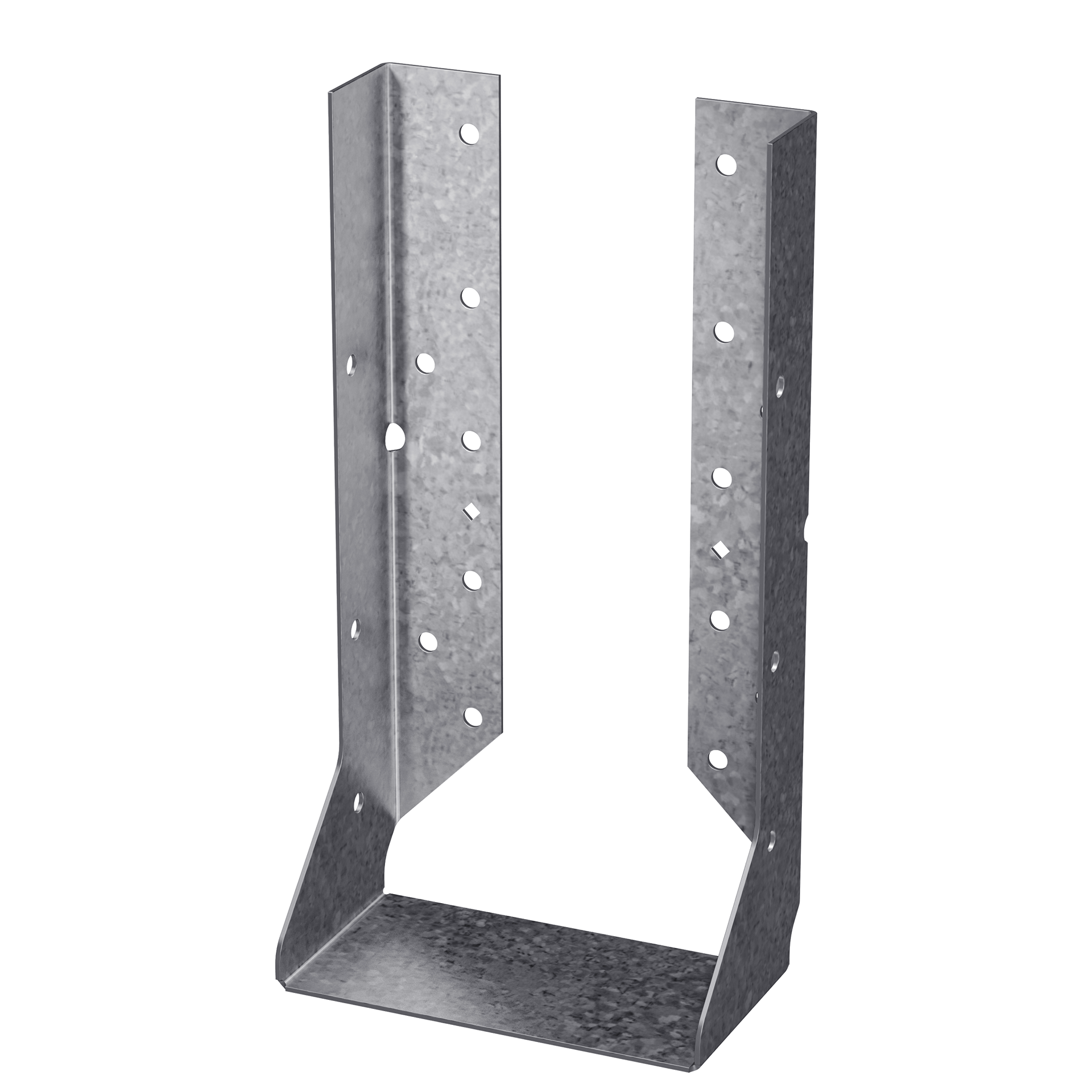

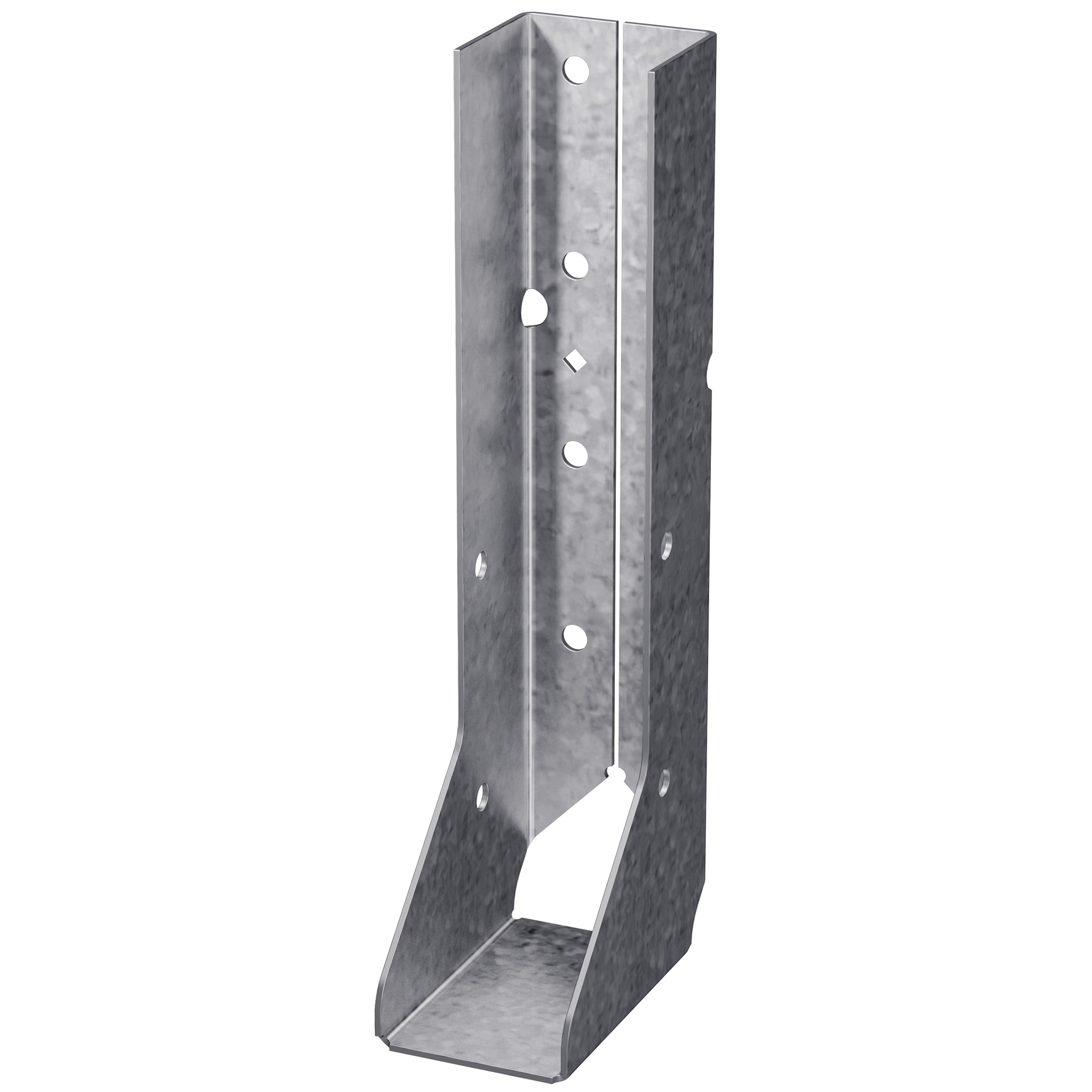

Simpson Strong-Tie HUCQ612-SDS HUCQ Heavy Face-Mount Concealed-Flange Joist Hanger for 6x12 with SDS Screws

Simpson Strong-Tie HUCQ612-SDS HUCQ Heavy Face-Mount Concealed-Flange Joist Hanger for 6x12 with SDS Screws

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Concealed flanges provide cleaner lines for exposed conditions
• HUCQ-series hangers are tested, load rated and code compliant
• Strong-Drive SDS Heavy-Duty Connector screws are included
• Install wood joists to wood, masonry and concrete
• Seat width: 5-1/2 in.
• Nominal joist size: 6x12
• Made from 14-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: HUCQ612-SDS
• UPC: 707392522508
• GTIN: 707392522508
• Feature 01: Concealed flanges provide cleaner lines for exposed conditions
• Feature 02: HUCQ-series hangers are tested, load rated and code compliant
• Feature 03: Strong-Drive SDS Heavy-Duty Connector screws are included
• Feature 04: Install wood joists to wood, masonry and concrete
• Feature 05: Seat width: 5-1/2 in.
• Feature 06: Nominal joist size: 6x12
• Feature 07: Made from 14-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: Install with (14) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
• Assembled Depth - Imperial: 3.445
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.07
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.7025
• Assembled Width UOM - Imperial: in.
• Base Product ID: HUCQ_Hanger
• Base Product Name: HUCQ
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 320483664183582143280367143614047690612
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x12
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Product Includes: (20) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.2
• Short Product Name: 6X12 HVY JOIST HGR W/SDS 1/4X2-1/2
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/hucq_hanger/p/hucq
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392522505
• PAL Reference: 50707392522503
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
