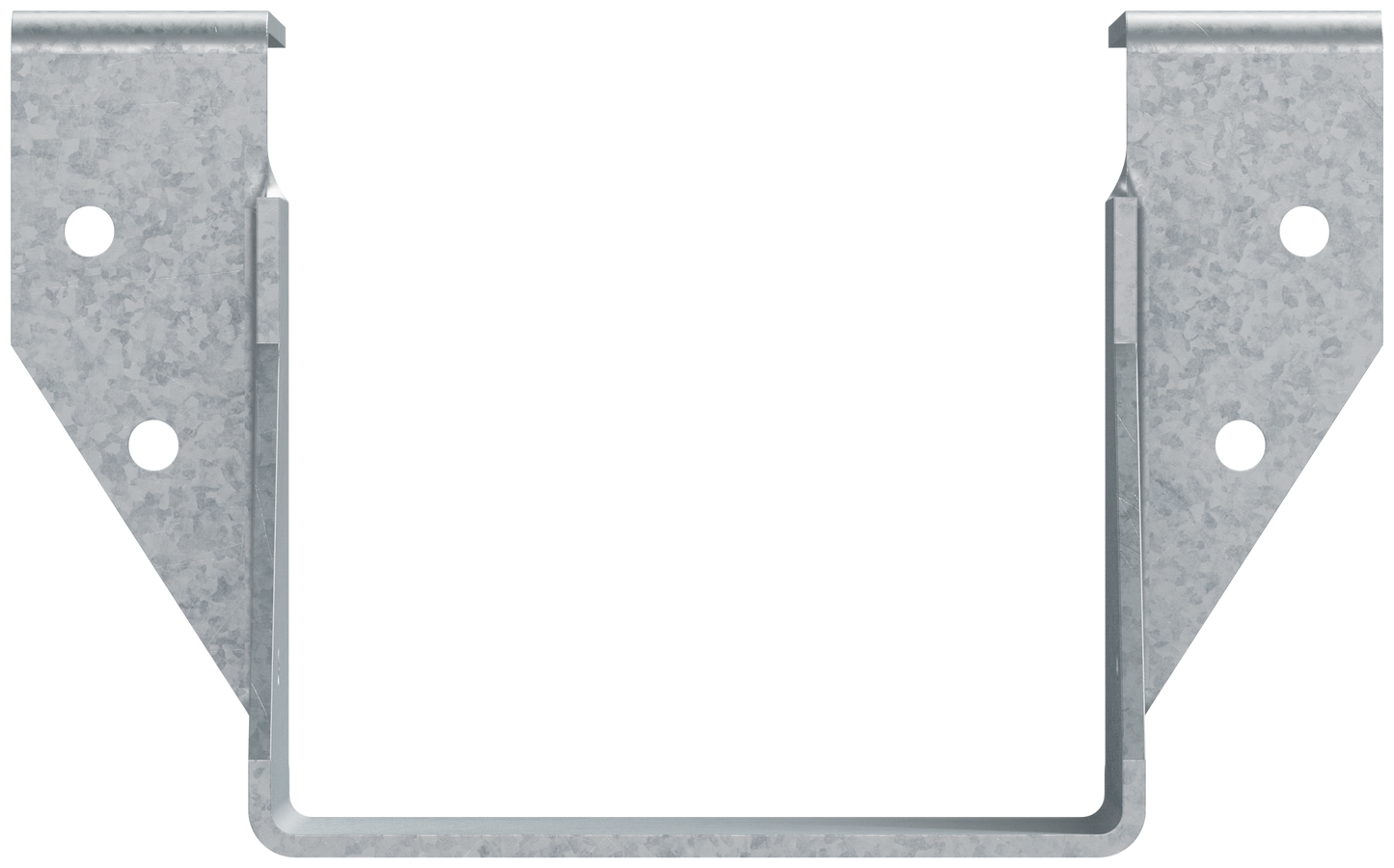

Simpson Strong-Tie HU44TF HUTF Galvanized Top-Flange Joist Hanger for 4x4

Simpson Strong-Tie HU44TF HUTF Galvanized Top-Flange Joist Hanger for 4x4

Simpson Strong-Tie® top-flange hangers are an integral component for providing maximum down loads with a minimum number of fasteners. The HUTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger features face-nailing that allows the hanger to be securely attached to the member.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Rough beam sizes are available by special order
• The hanger can be skewed a maximum of 45° or sloped downward to a maximum of 45°
• HUTF-series hangers are tested, load rated and code compliant
• Seat width: 3-9/16 in.
• Nominal joist size: 4x4
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HU44TF
• UPC: 44315409103
• GTIN: 44315409103
• Feature 01: Rough beam sizes are available by special order
• Feature 02: The hanger can be skewed a maximum of 45° or sloped downward to a maximum of 45°
• Feature 03: HUTF-series hangers are tested, load rated and code compliant
• Feature 04: Seat width: 3-9/16 in.
• Feature 05: Nominal joist size: 4x4
• Feature 06: Made from 12-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with (8) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 3 in. nails in the joist
• Assembled Depth - Imperial: 5.099
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.6355
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6.0105
• Assembled Width UOM - Imperial: in.
• Base Product ID: HUTF_Hanger
• Base Product Name: HUTF
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 36362471550454851260097759020311918033
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.93
• Short Product Name: 4 X 4 TOP FLANGE FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/topflangehangersssl_solidsawnlumberconnectors/hutf_hanger/p/hutf
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315409100
• PAL Reference: 50044315409108
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
