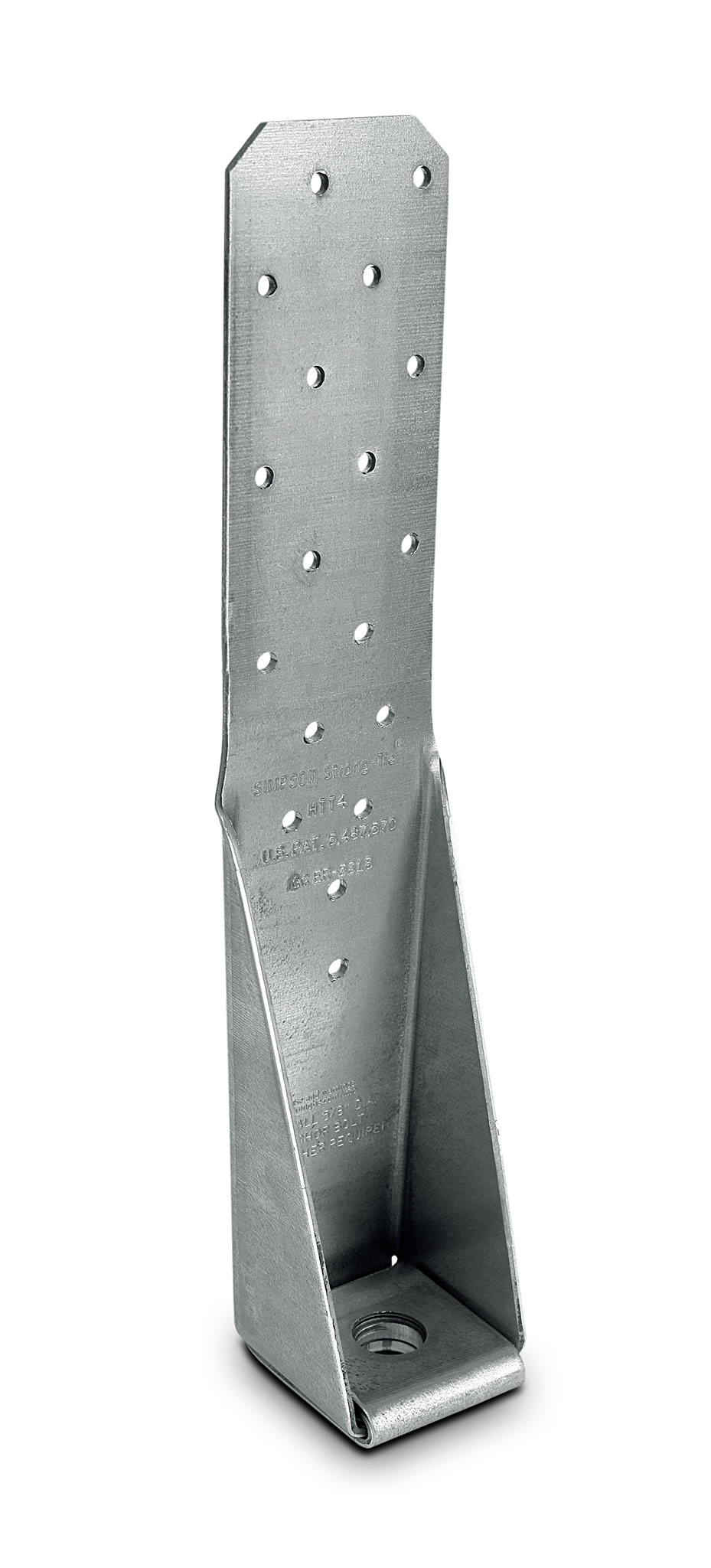

Simpson Strong-Tie HTT5KT HTT 16-in. Heavy Tension Tie for 5/8-in. Anchor with Bearing Plate and Screws

Simpson Strong-Tie HTT5KT HTT 16-in. Heavy Tension Tie for 5/8-in. Anchor with Bearing Plate and Screws

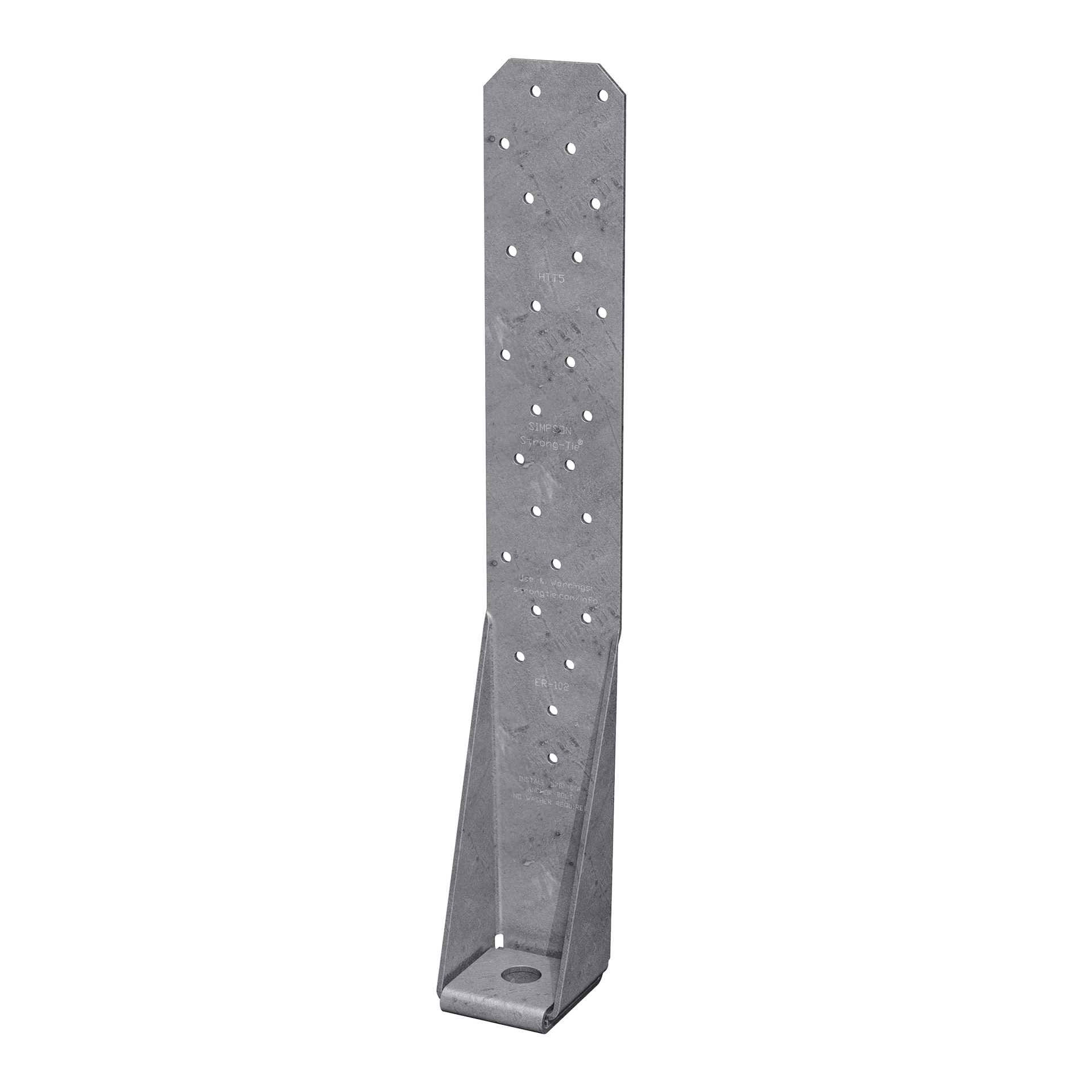

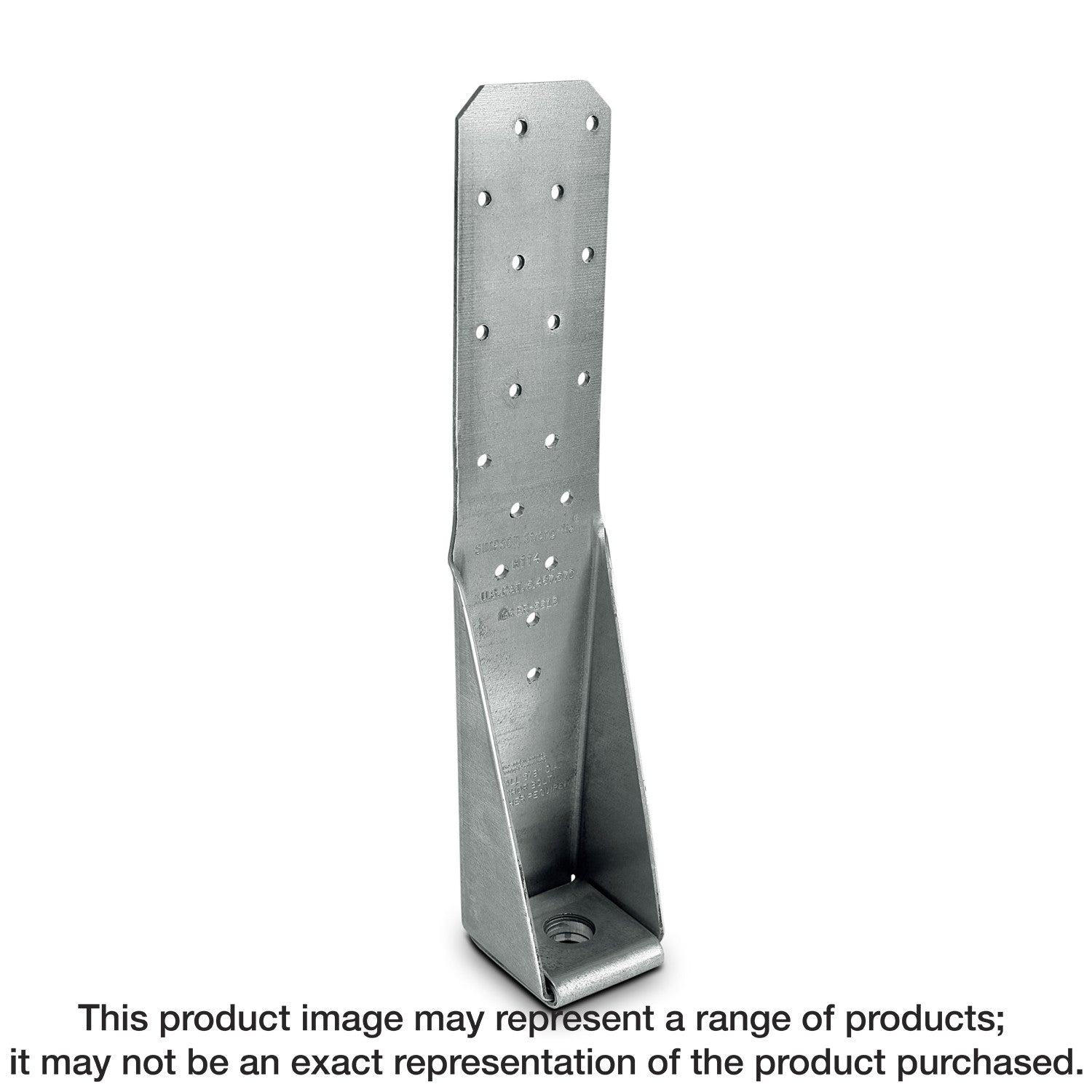

The Simpson Strong-Tie® HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Ideal for retrofit or new construction projects
• Can be installed with cast-in-place or post-installed anchor bolts
• Four-ply formed steel provides increased tension capacity
• Anchor bolt washers not required
• 2-1/2-in. width x 16-in. length
• Anchor rod diameter: 5/8 inch

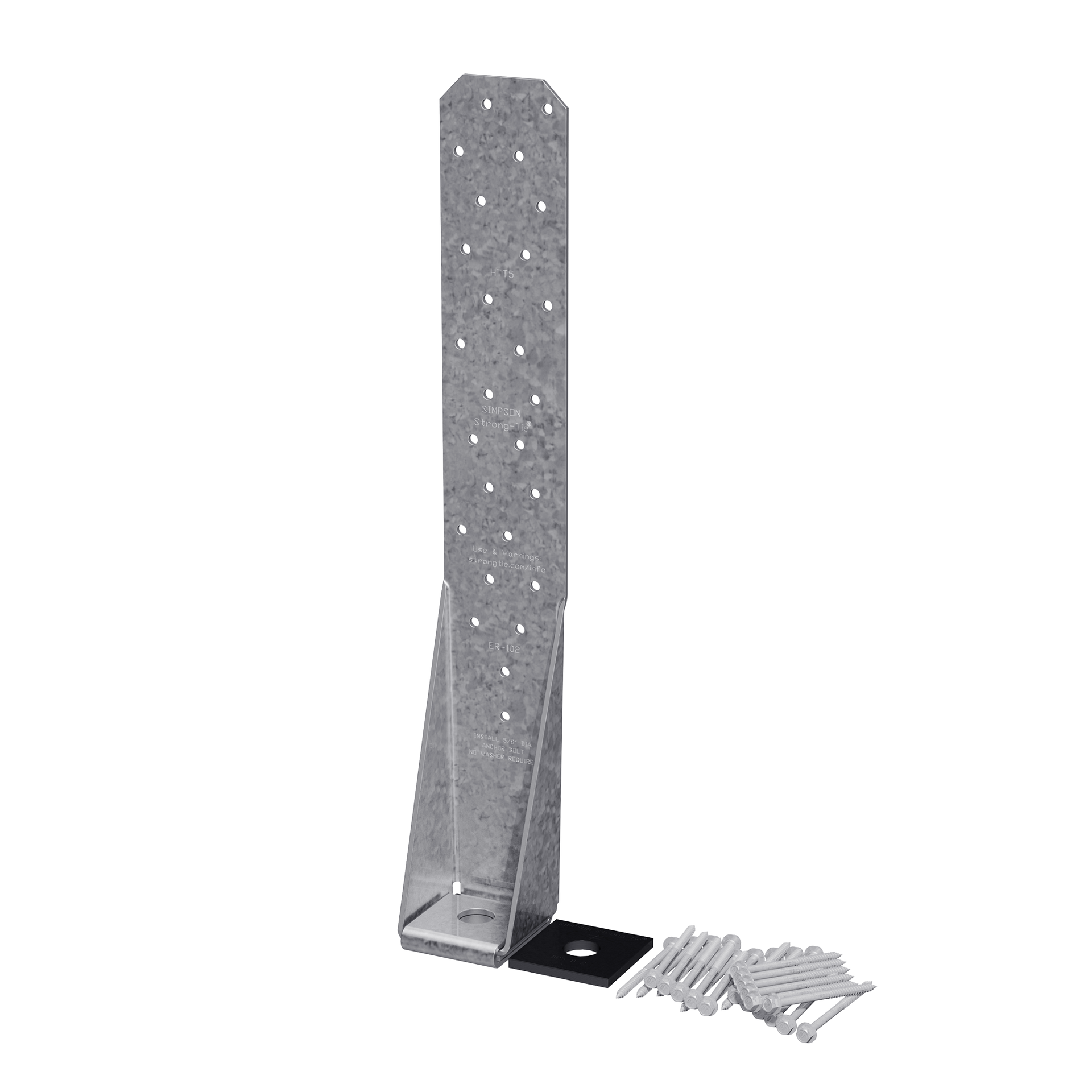

• HTT5KT is sold as a kit with the holdown, BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive® SD Connector screws
• Made from 11-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: HTT5KT
• UPC: 707392357803
• GTIN: 707392357803
• Feature 01: Ideal for retrofit or new construction projects
• Feature 02: Can be installed with cast-in-place or post-installed anchor bolts
• Feature 03: Four-ply formed steel provides increased tension capacity
• Feature 04: Anchor bolt washers not required
• Feature 05: 2-1/2-in. width x 16-in. length
• Feature 06: Anchor rod diameter: 5/8 inch
• Feature 07: HTT5KT is sold as a kit with the holdown, BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive® SD Connector screws
• Feature 08: Made from 11-gauge steel
• Feature 09: Galvanized (G90) for corrosion resistance
• Install With: (1) BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive SD Connector screws (included)
• Assembled Depth - Imperial: 2.461
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 15.875
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: HTT_Tie
• Base Product Name: HTT/HTTH™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 11
• GUID: 97271654028851118033589140572541258848
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Product Includes: (1) HTT5 holdown, (1) BP 5/8-2 bearing plate washer and (26) #10 x 2-1/2-in. Strong-Drive SD Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.68
• Short Product Name: 16IN TENSION TIE KIT
• Strongtie.com URL: https://www.strongtie.com/tensionties_holdownsandtensionties/htt_tie/p/htt
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392357800
• PAL Reference: 50707392357808
