Simpson Strong-Tie HSUR5.12/11 HSUR Galvanized Joist Hanger for 5 in. x 11-7/8 in. Engineered Wood, Skewed Right

Simpson Strong-Tie HSUR5.12/11 HSUR Galvanized Joist Hanger for 5 in. x 11-7/8 in. Engineered Wood, Skewed Right

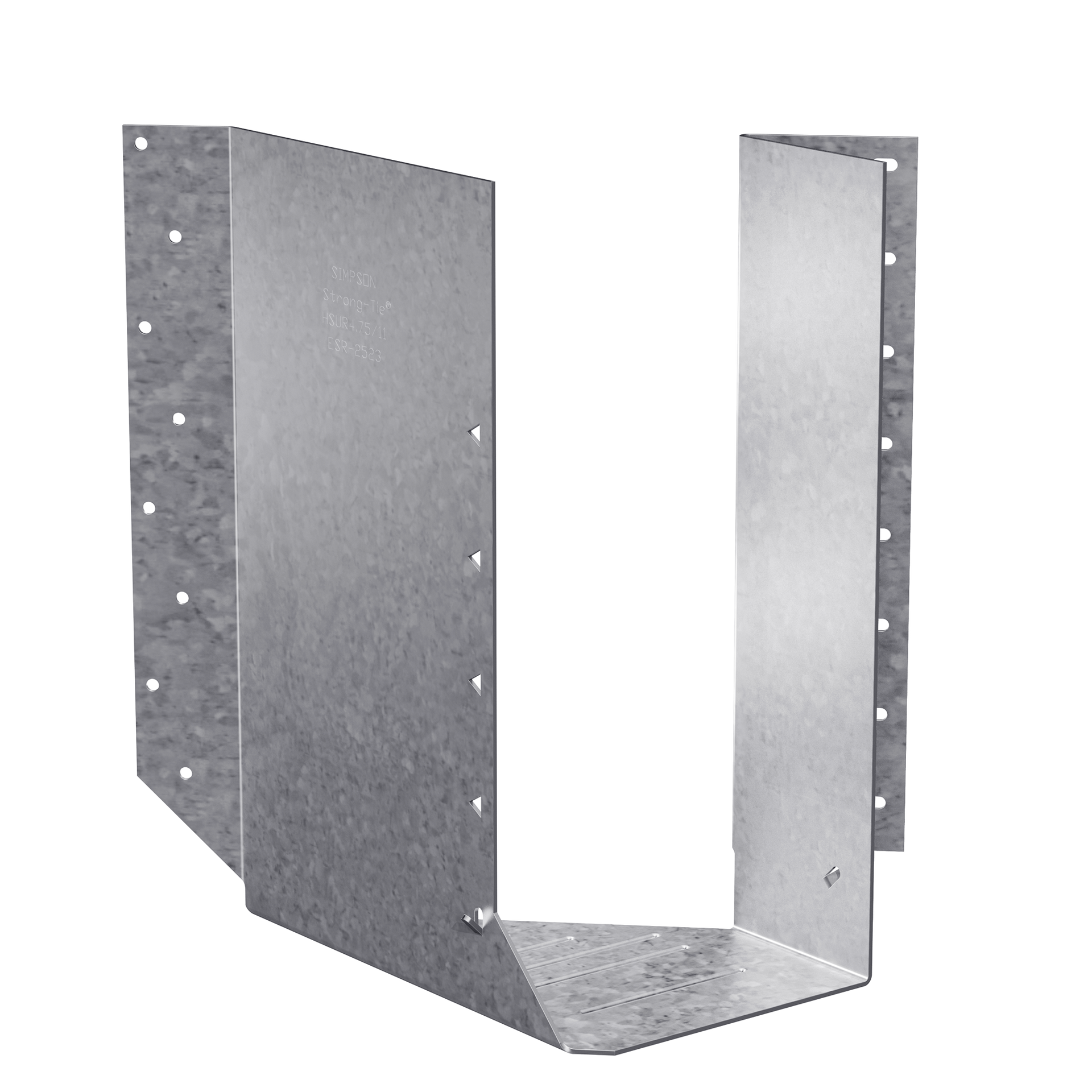

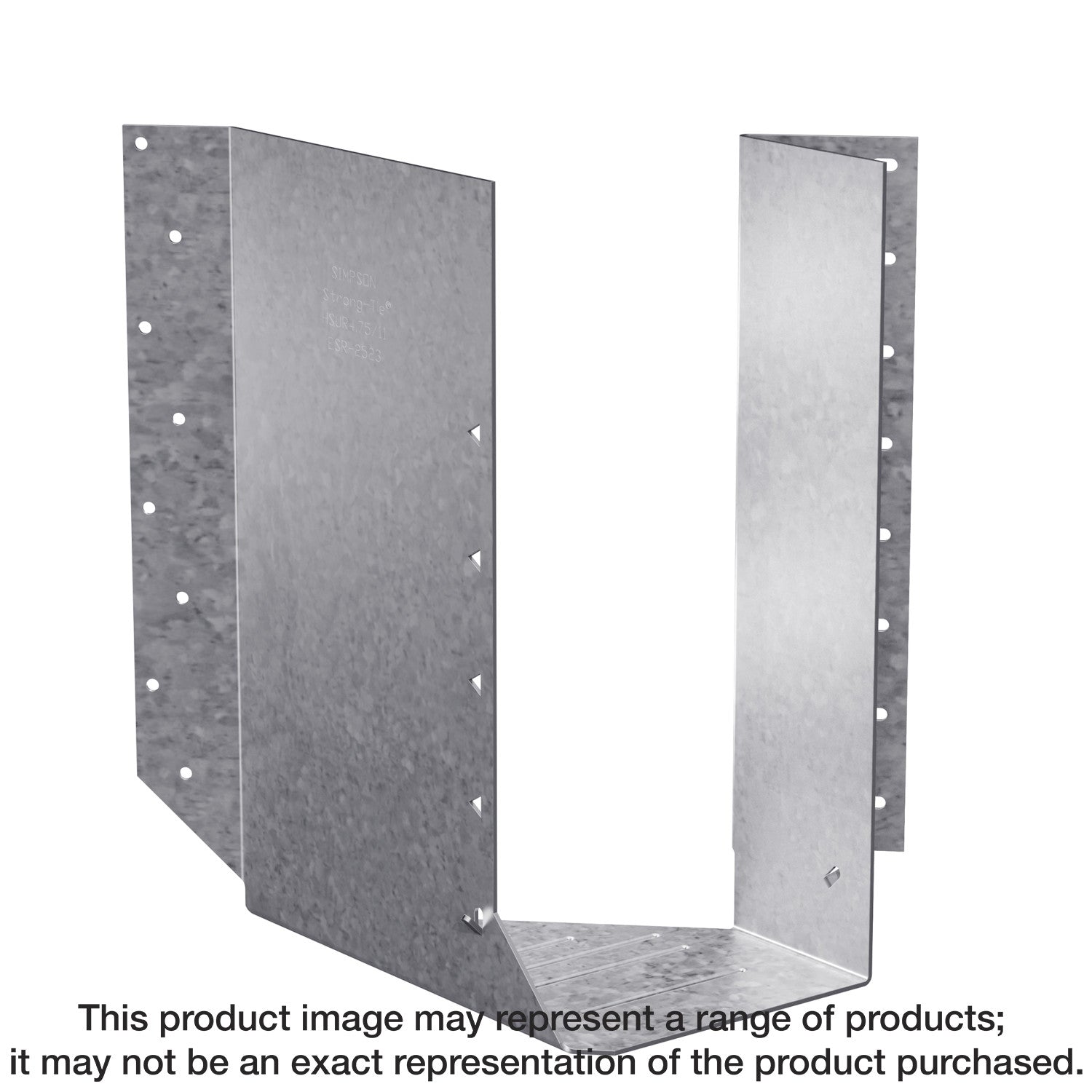

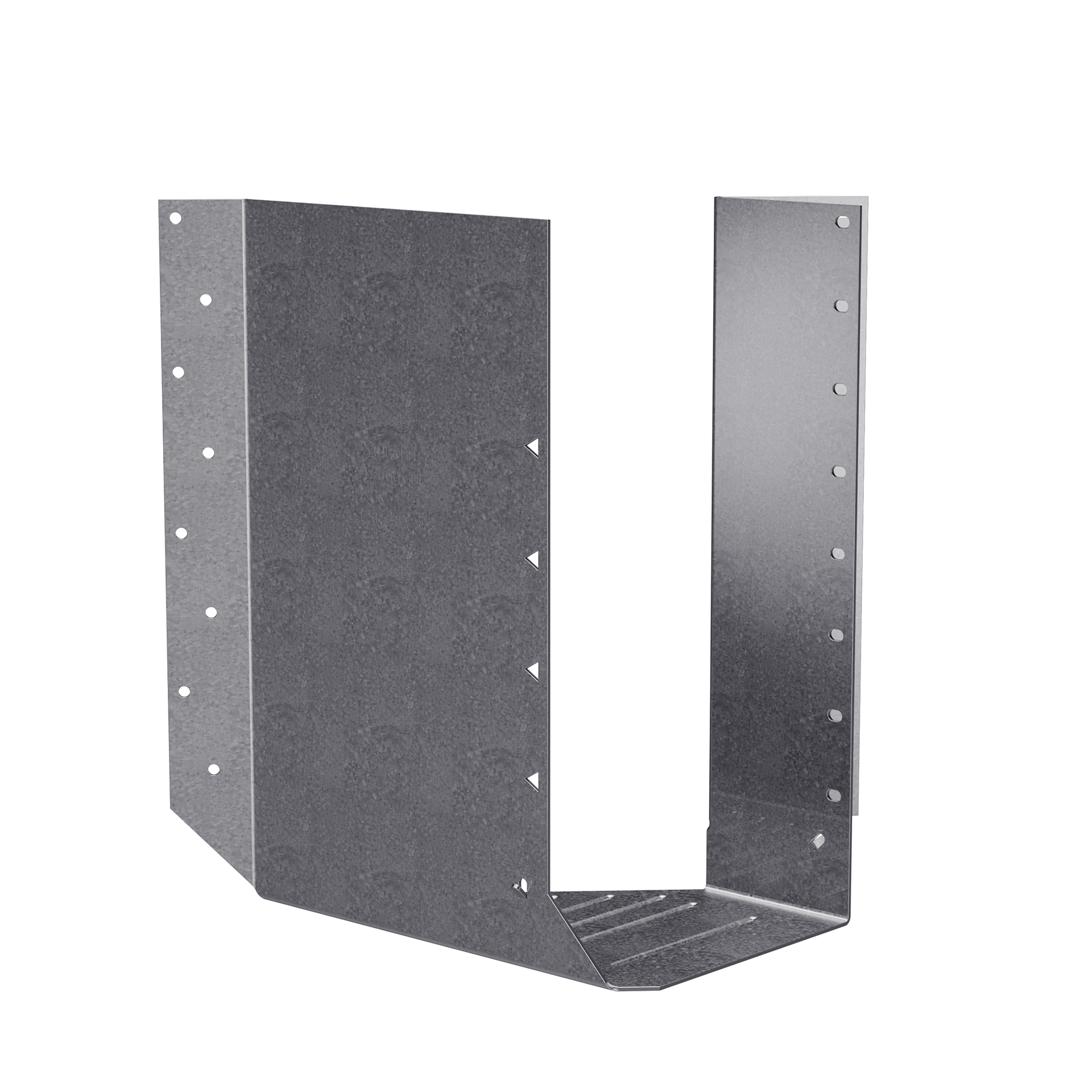

The HSUR/L are 45°-skewed hangers designed to support large joist members or double I-joists in wood construction. These heavy U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The HSUR and HSUL hangers are identical except that they are skewed 45° to the right (HSUR) and the left (HSUL), respectively.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• HSUR = skewed right
• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
• Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
• Actual joist size: 5 in. x 11-7/8 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HSUR5.12/11
• UPC: 707392444800
• GTIN: 707392444800
• Feature 01: HSUR = skewed right
• Feature 02: Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• Feature 03: These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
• Feature 04: Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
• Feature 05: Actual joist size: 5 in. x 11-7/8 in.
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: (16) 0.162 in. x 3-1/2 in. nails in the face and (2) 0.148 in. x 1-1/2 in. nails in the joist
• Assembled Depth - Imperial: 5.53875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.07
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.28125
• Assembled Width UOM - Imperial: in.
• Base Product ID: HSUR-L_Hanger
• Base Product Name: HSUR/HSUL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: ZZ
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 339692236142117252913473702806574308290
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 5 in. x 11-7/8 in
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3.39
• Short Product Name: JOIST HANGER SKEW RIGHT
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/hsur-l_hanger/p/hsur.hsul
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392444807
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
