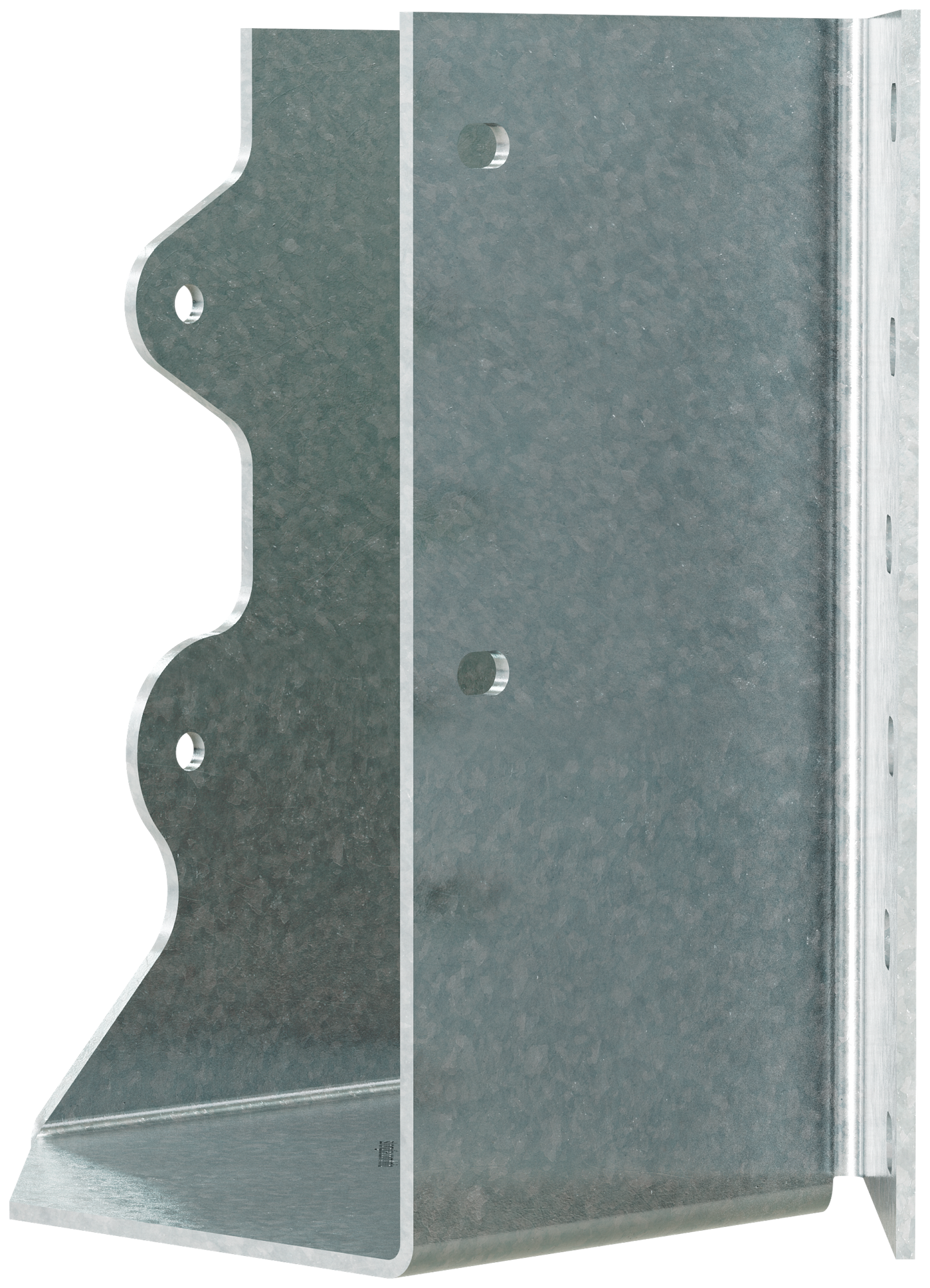

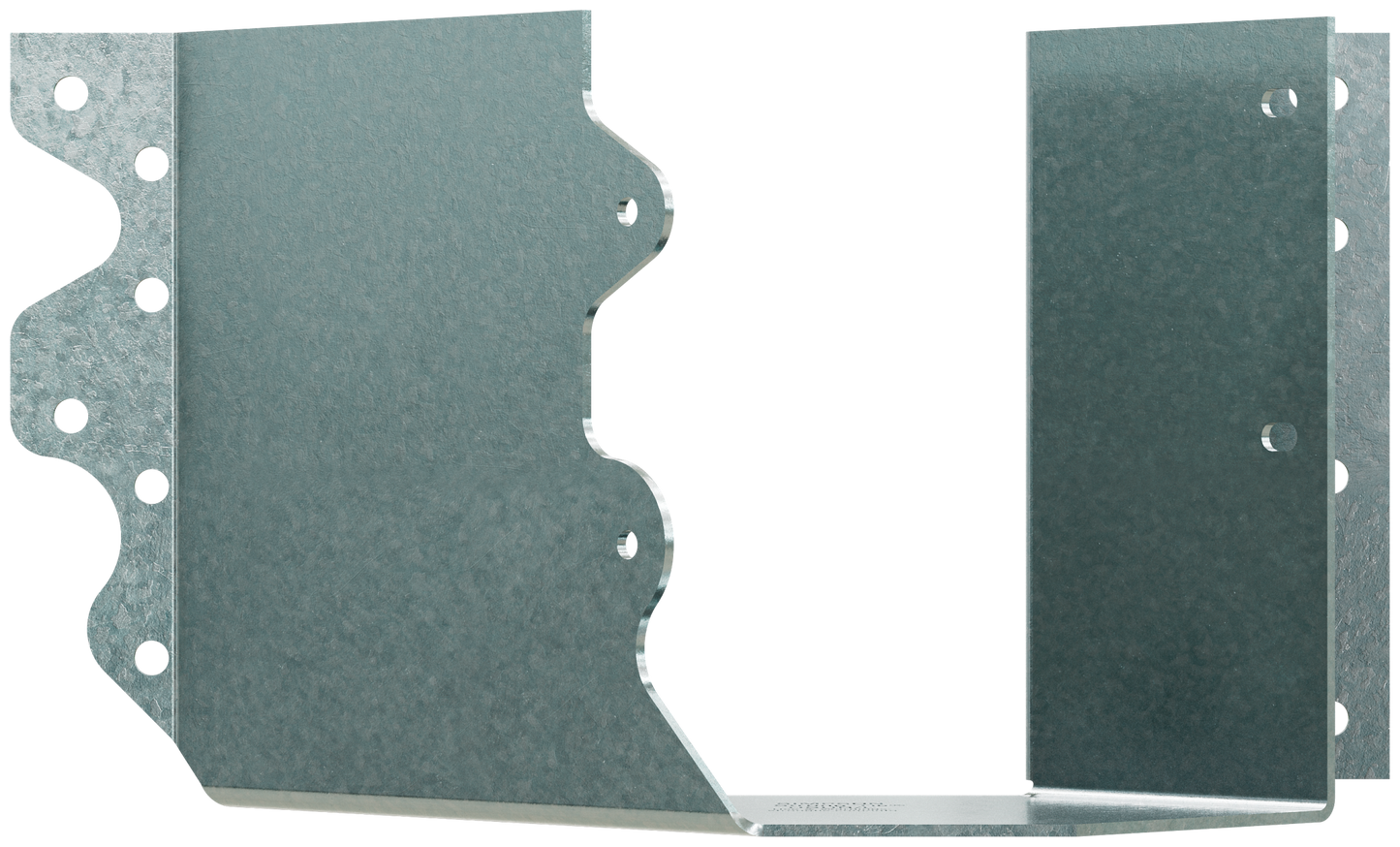

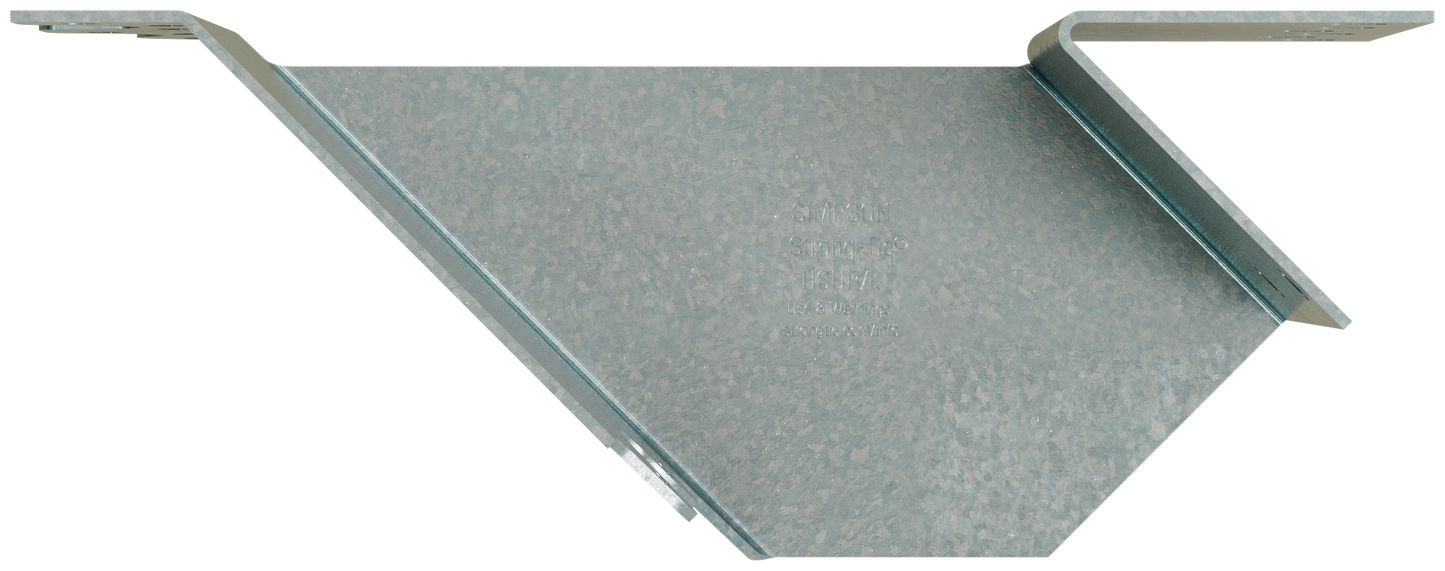

Simpson Strong-Tie HSUR46 HSUR Galvanized Joist Hanger for 4x6, Skewed Right

Simpson Strong-Tie HSUR46 HSUR Galvanized Joist Hanger for 4x6, Skewed Right

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HSUL/HSUR hangers provide a 45° connection between a joist and header.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• HSUR = skewed right
• Can accommodate joists skewed 40 to 50 degrees
• Angled nail slots direct nails for proper installation
• The joist end may be square cut or bevel cut
• Nominal joist size: 4x6
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HSUR46
• UPC: 44315123900
• GTIN: 44315123900
• Feature 01: HSUR = skewed right
• Feature 02: Can accommodate joists skewed 40 to 50 degrees
• Feature 03: Angled nail slots direct nails for proper installation
• Feature 04: The joist end may be square cut or bevel cut
• Feature 05: Nominal joist size: 4x6
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common nails
• Assembled Depth - Imperial: 3.450548
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.78875
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.301906
• Assembled Width UOM - Imperial: in.
• Base Product ID: HSUR-L_Hanger
• Base Product Name: HSUR/HSUL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 215251038883989789266482088558763334517
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4x6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.46
• Short Product Name: 4 X 6 JOIST HANGER SKEW RIGHT
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/hsur-l_hanger/p/hsur.hsul
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315123907
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
