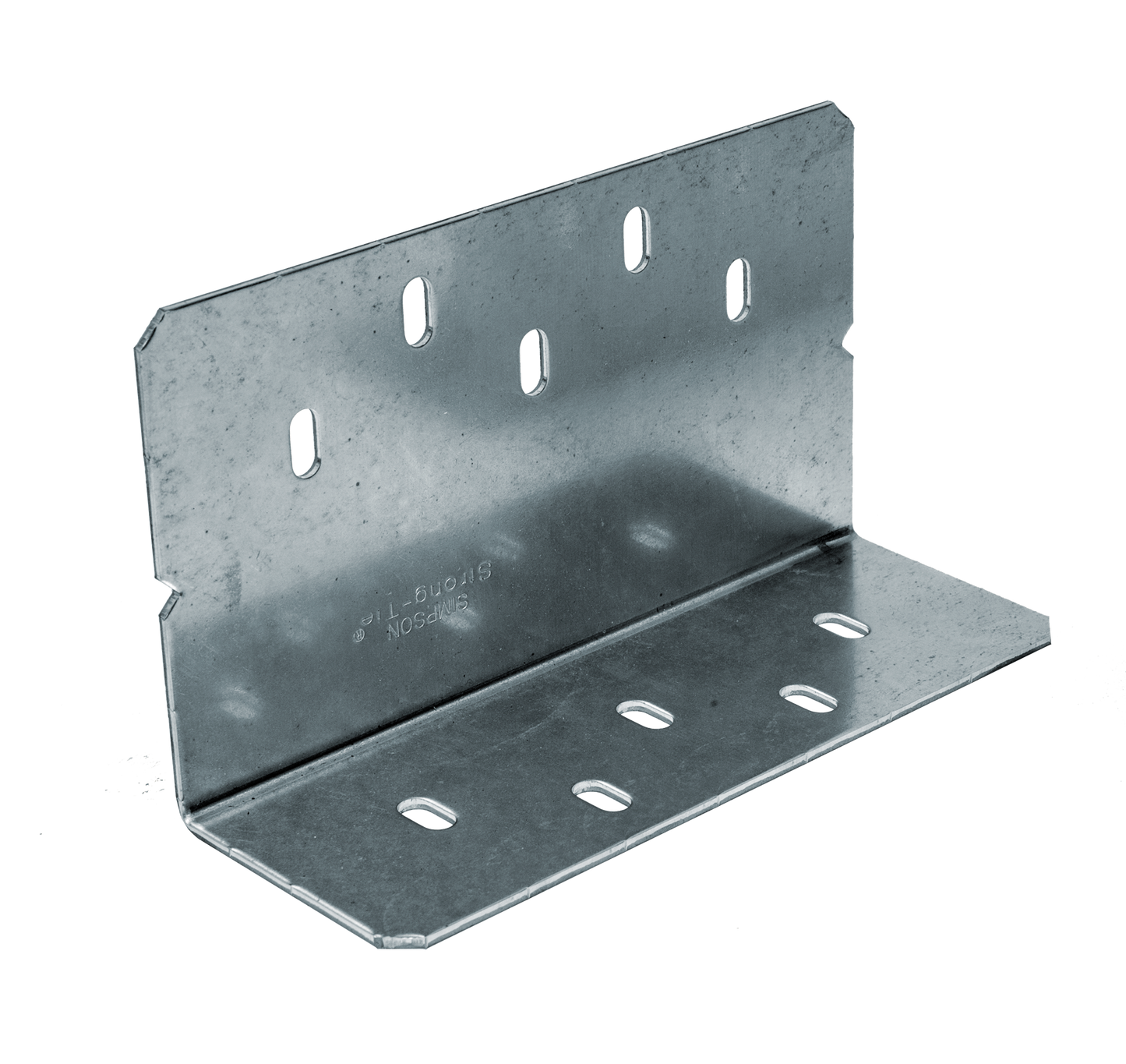

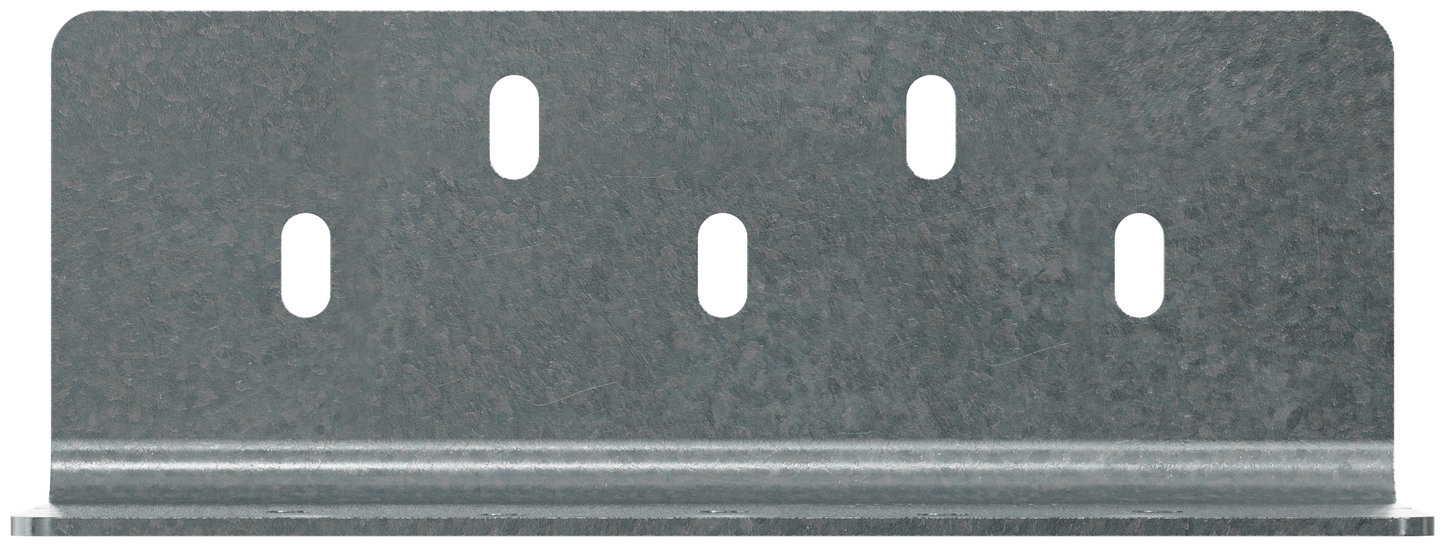

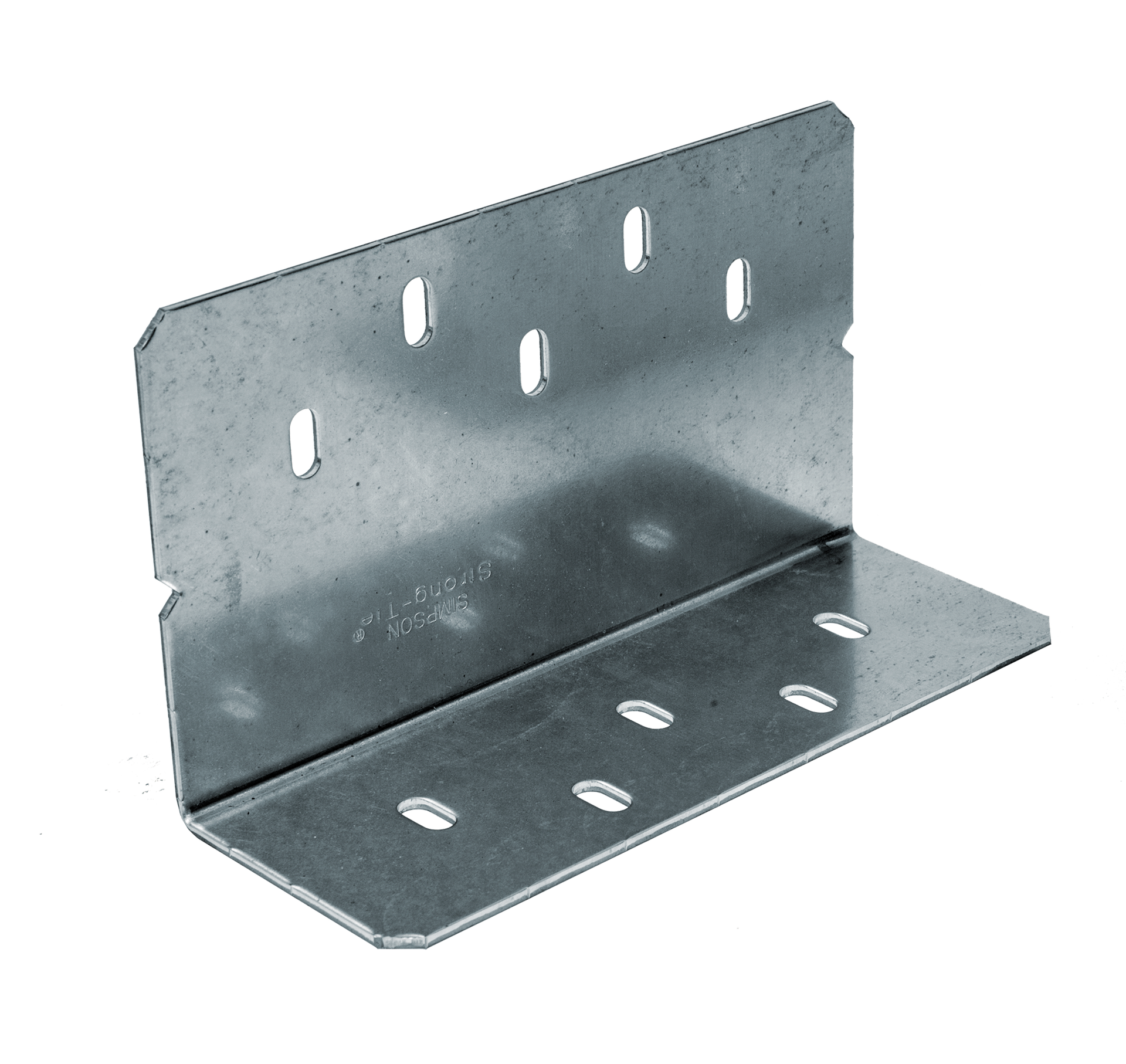

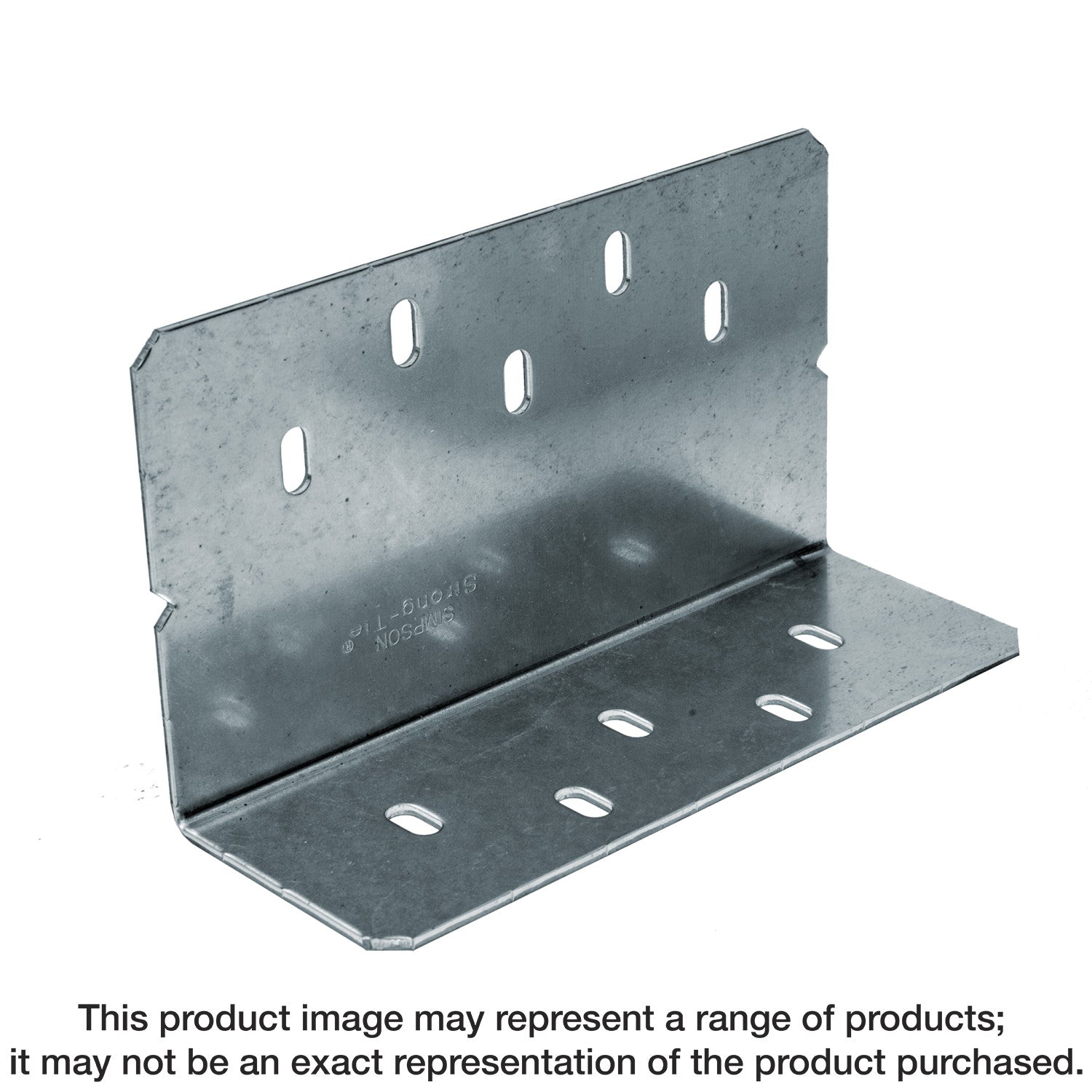

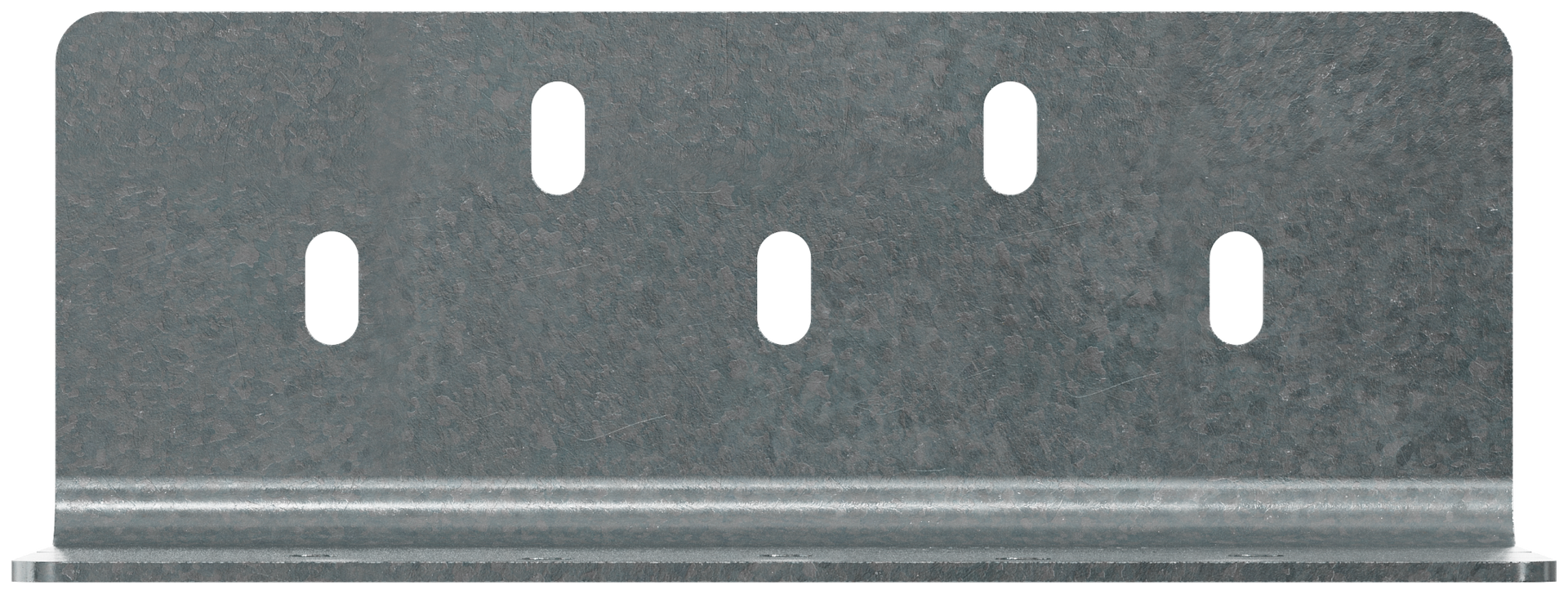

Simpson Strong-Tie HSLQ47-SDS2.5 HSLQ™ 4-1/4 in. x 7-1/4 in. Heavy Shear Transfer Angle

Simpson Strong-Tie HSLQ47-SDS2.5 HSLQ™ 4-1/4 in. x 7-1/4 in. Heavy Shear Transfer Angle

The Simpson Strong-Tie® HSLQ™ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer. The angle offers versatility by allowing up to a 2 in. gap between the structural members and easy installation with Strong-Drive® SDS Heavy-Duty Connector screws that are included with the HSLQ. The HSLQ is manufactured with a gap indication notch to make proper installation easy.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

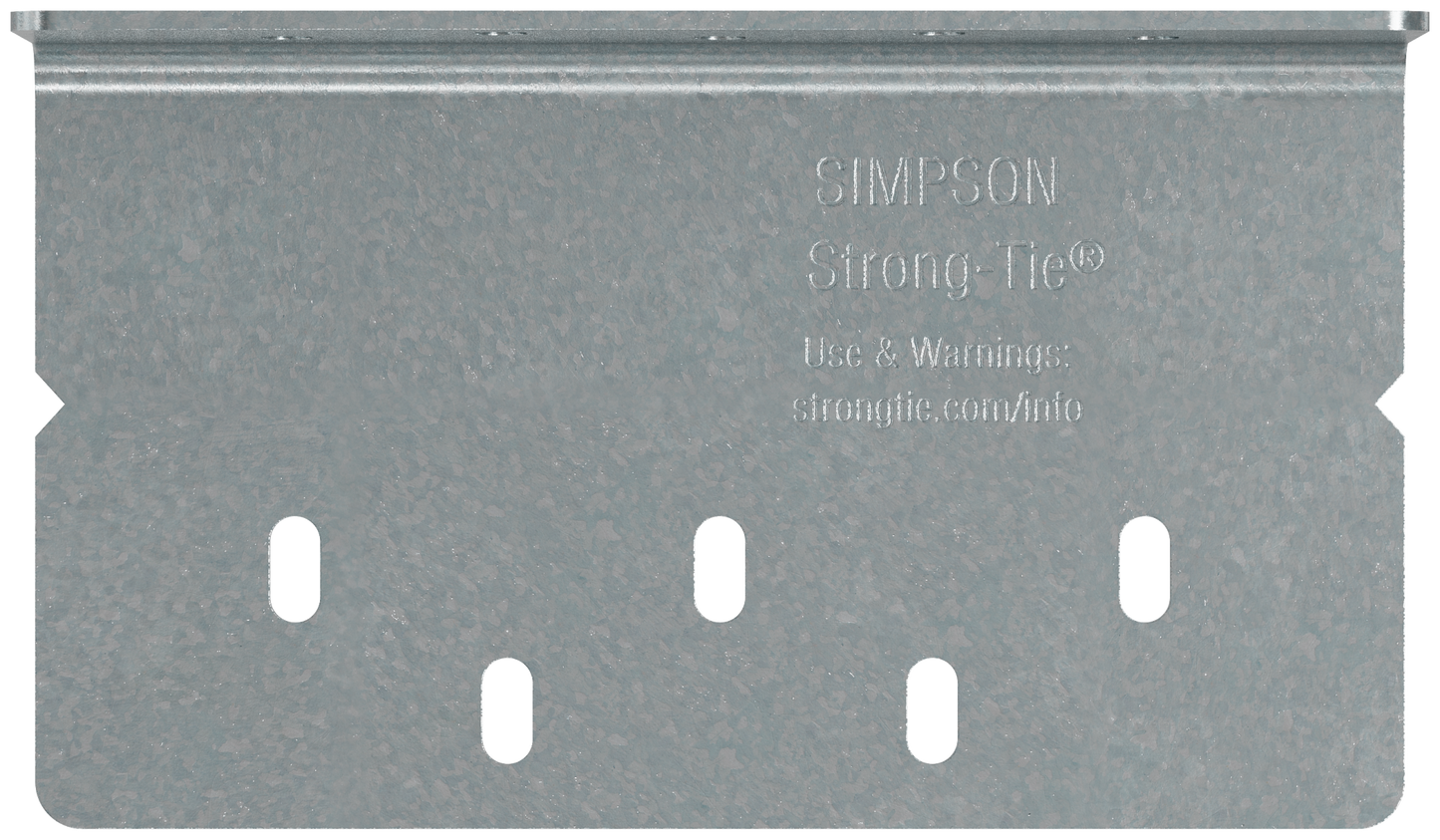

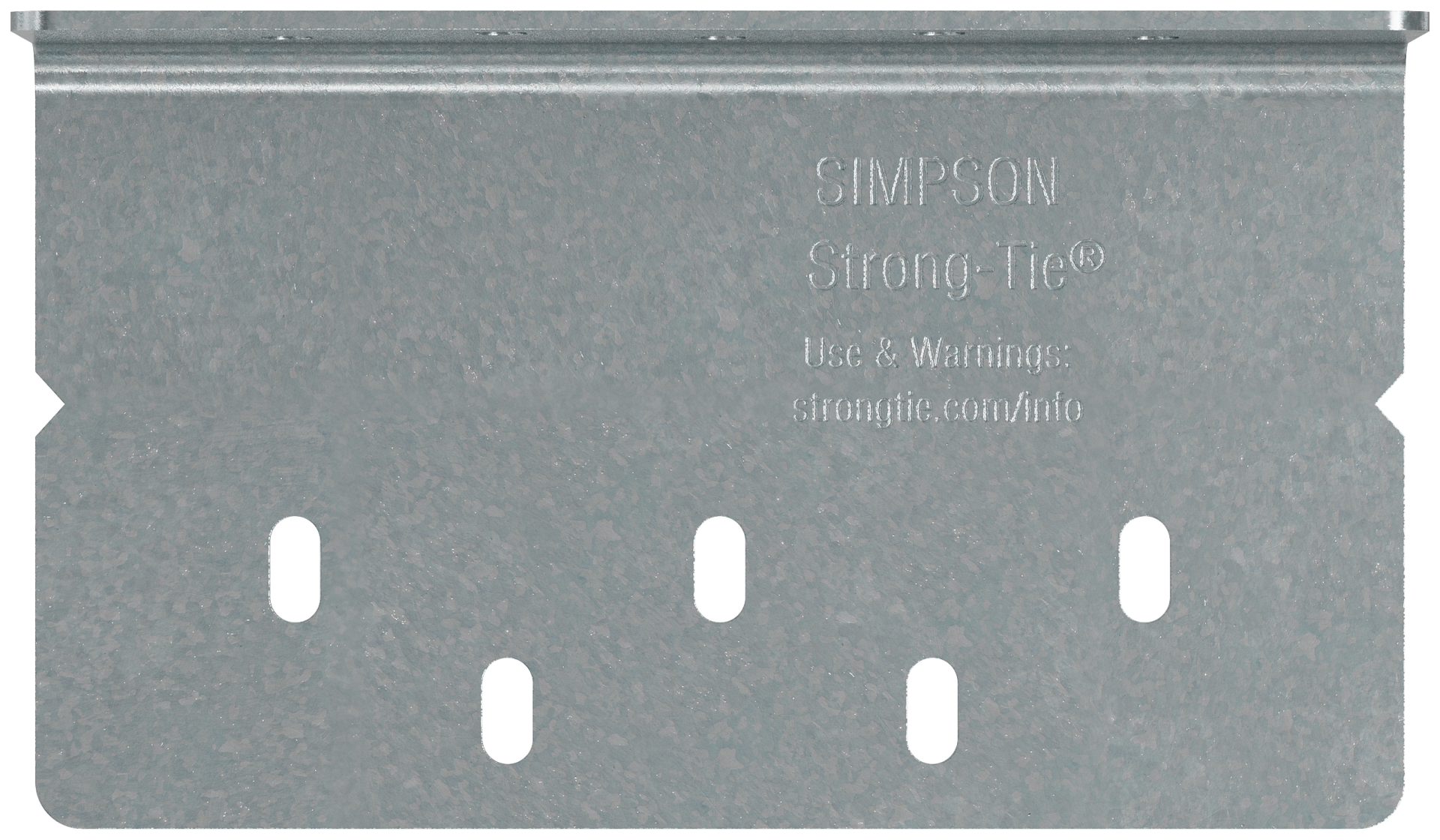

• Built-in notch ensures correct alignment
• Supports up to a 2 in. gap between framing members
• Resists in-plane lateral forces
• Simplified installation using Strong-Drive SDS Heavy-Duty Connector screws (included)

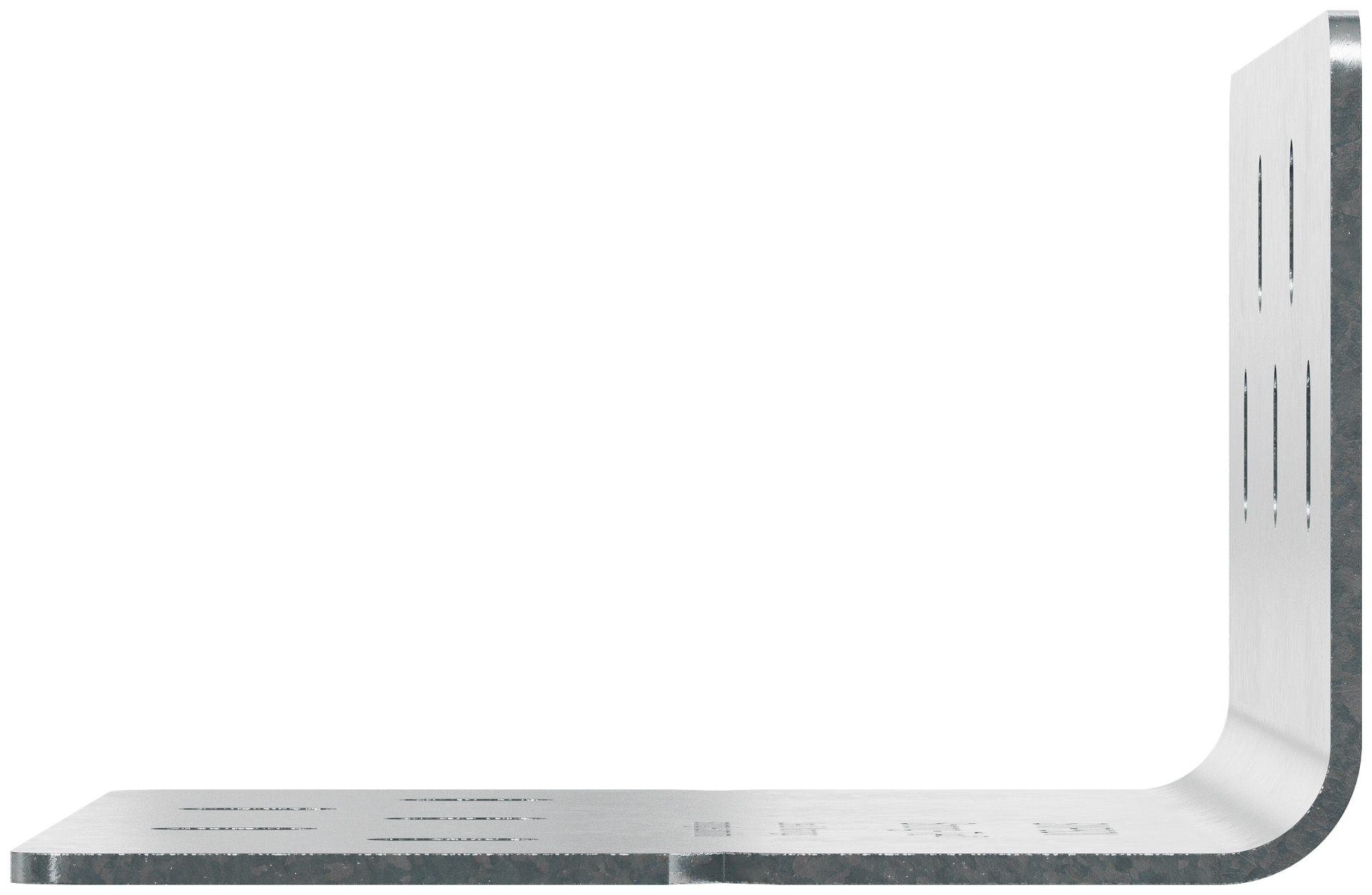

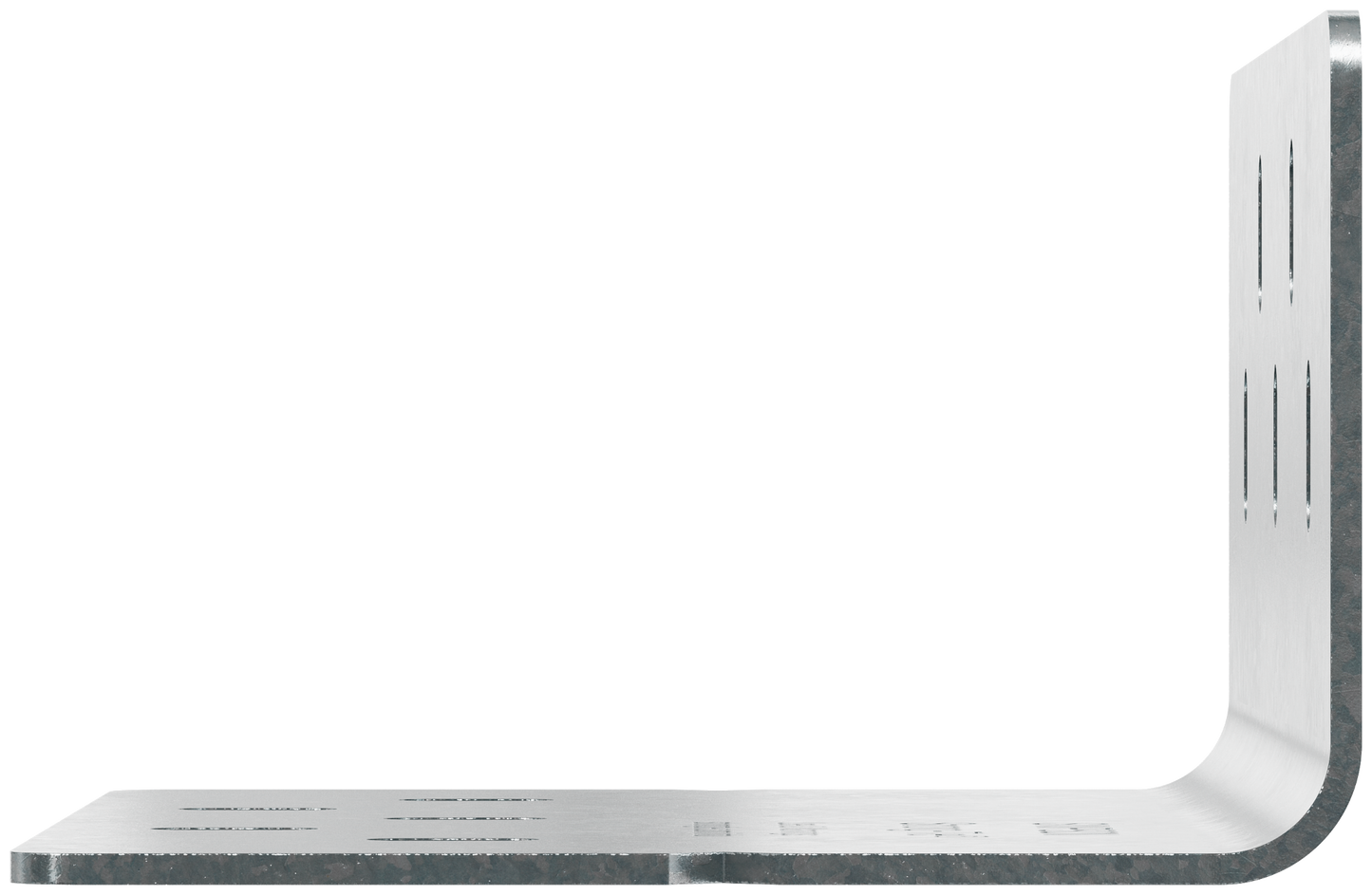

• Angle dimensions: 4-1/4 in. height x 7-1/4 in. length x 2-3/4 in. depth
• Made from 12-gauge steel
• Zinc Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: HSLQ47-SDS2.5
• UPC: 707392985495
• GTIN: 707392985495
• Feature 01: Built-in notch ensures correct alignment
• Feature 02: Supports up to a 2 in. gap between framing members
• Feature 03: Resists in-plane lateral forces
• Feature 04: Simplified installation using Strong-Drive SDS Heavy-Duty Connector screws (included)
• Feature 05: Angle dimensions: 4-1/4 in. height x 7-1/4 in. length x 2-3/4 in. depth
• Feature 06: Made from 12-gauge steel
• Feature 07: Zinc Galvanized (G90) for corrosion resistance
• Install With: Installs with (10) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included) (Model: SDS25212)
• Assembled Depth - Imperial: 2.75
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: HSLQ_Angle
• Base Product Name: HSLQ™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Angles and Plates > Angle
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 225598432424546574277239368855545104642
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Angle
• Product Includes: Includes 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 1.9
• Short Product Name: HEAVY SHEAR TRANSFER L ANGLE 4IN X 7IN
