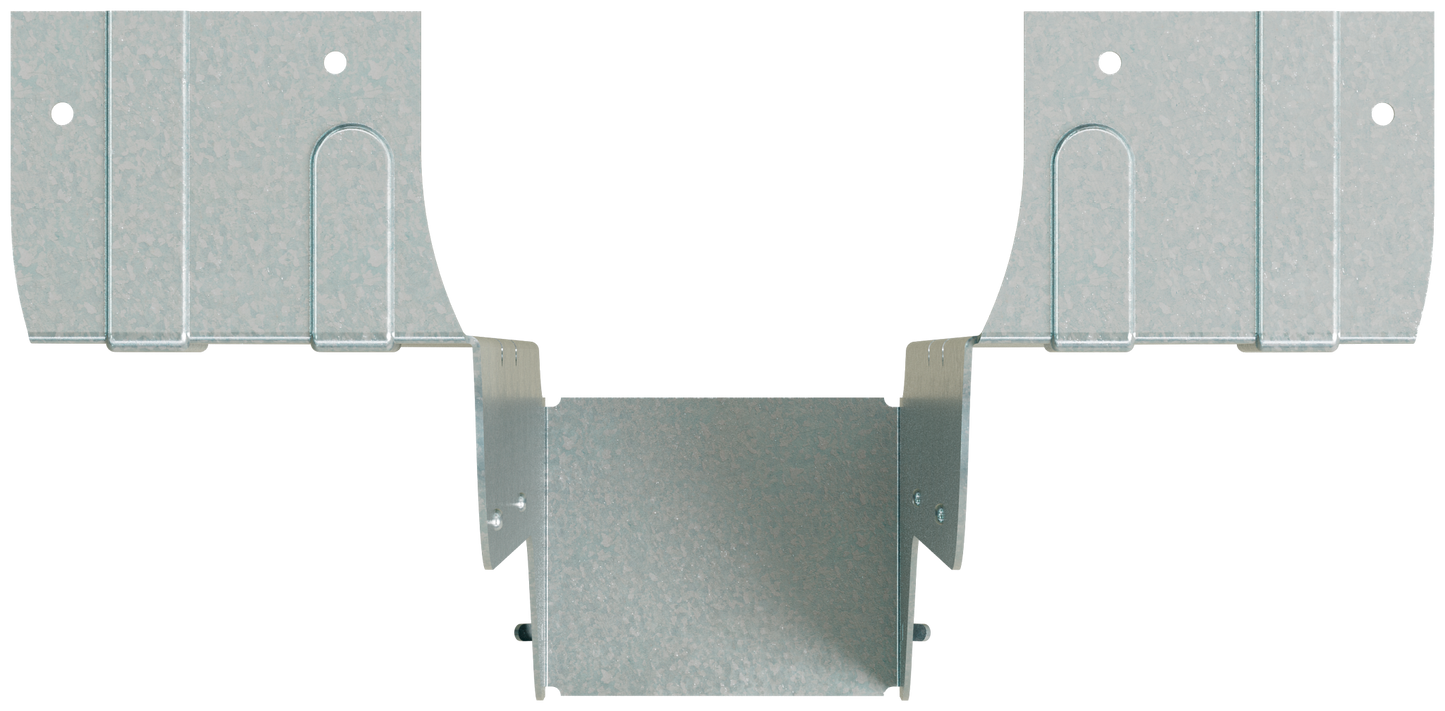

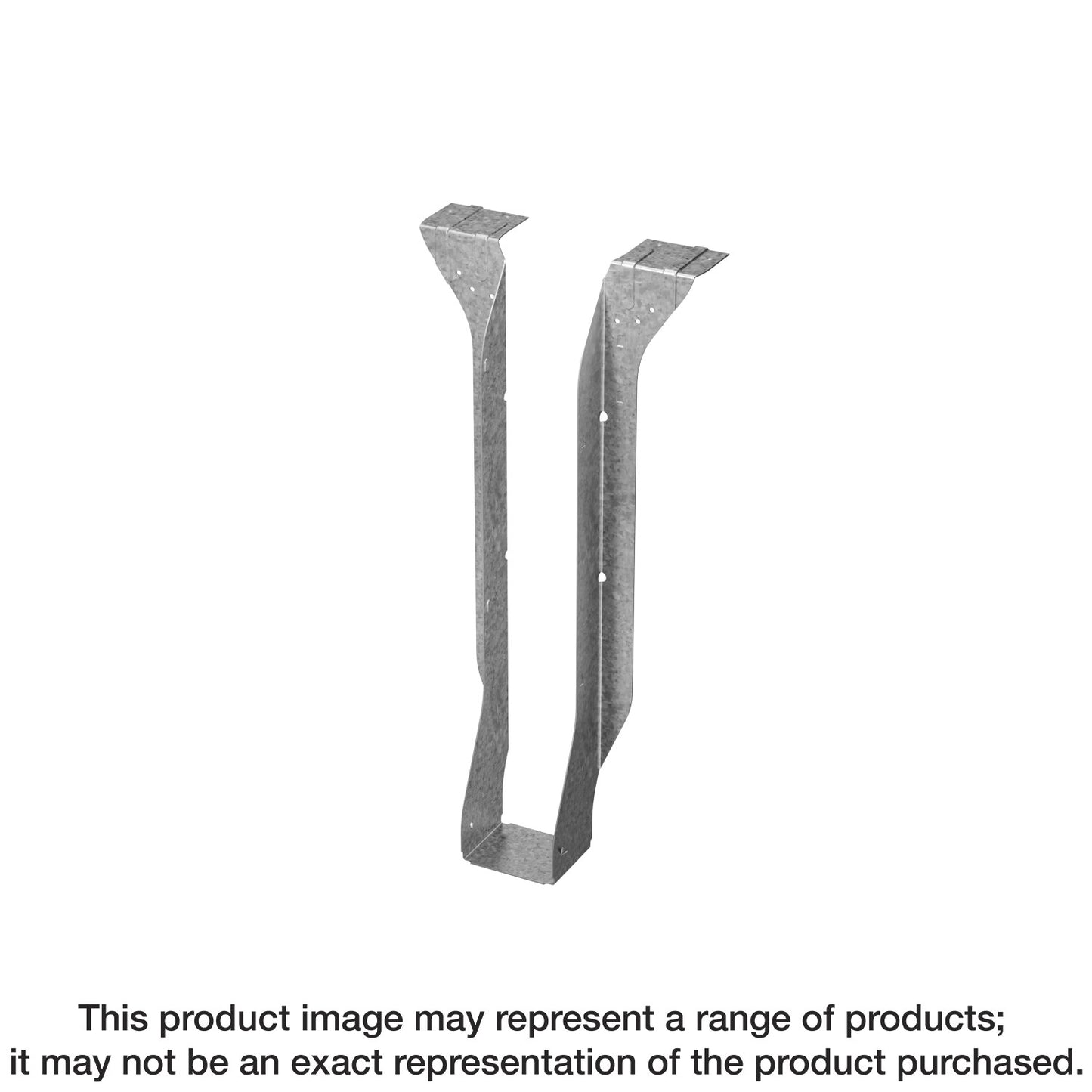

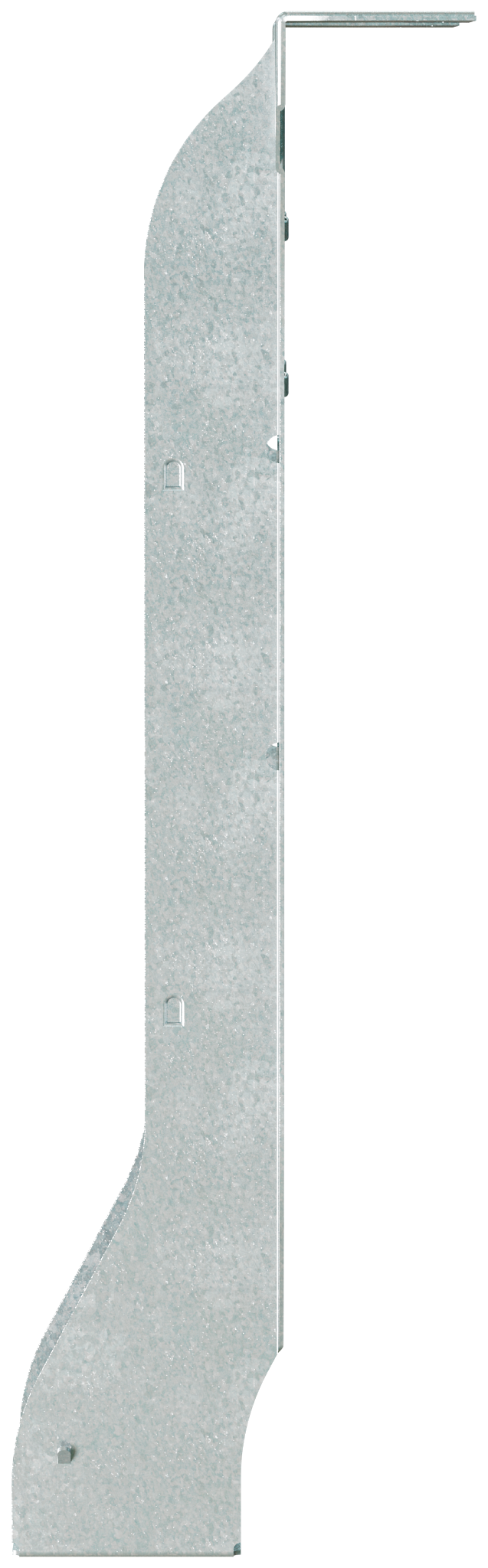

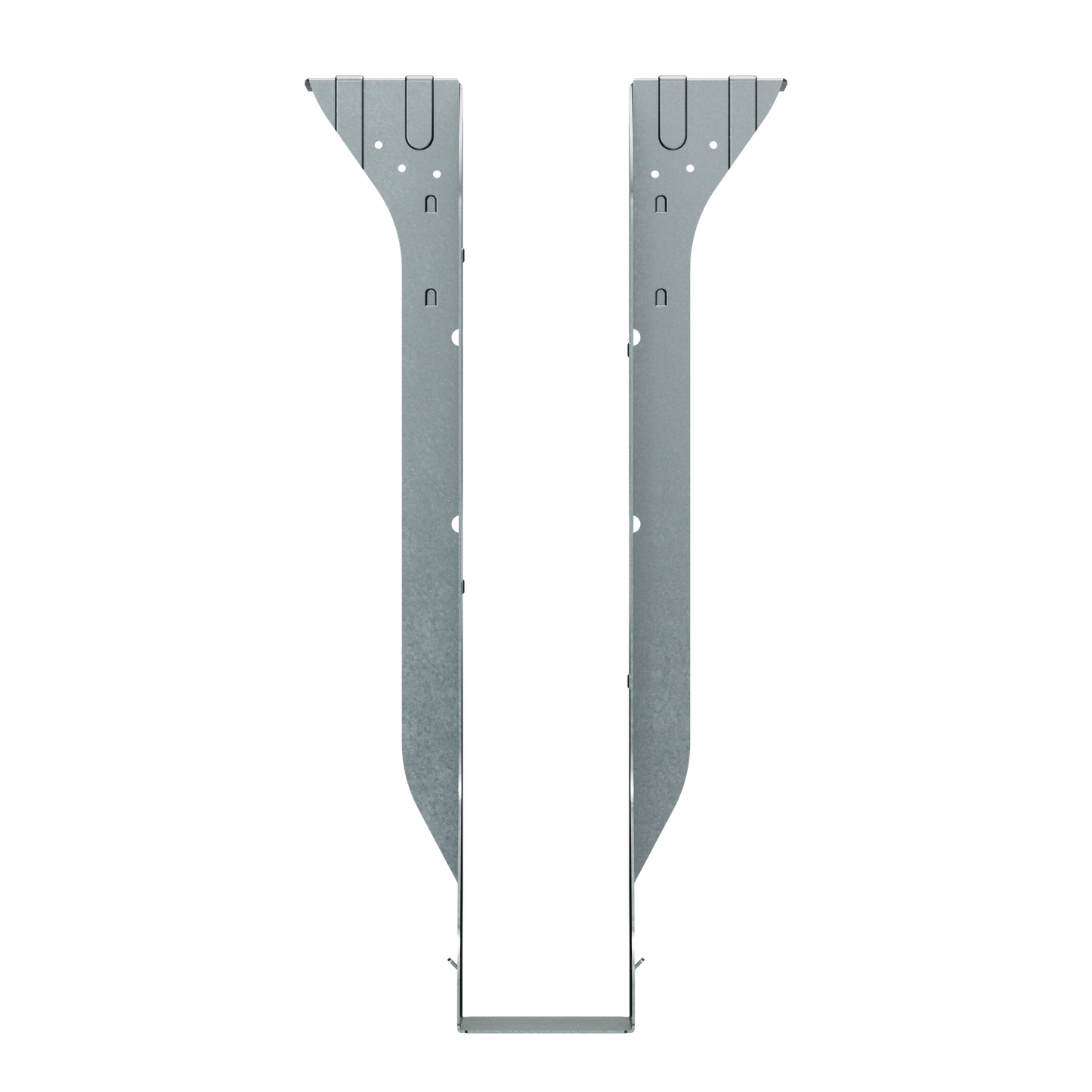

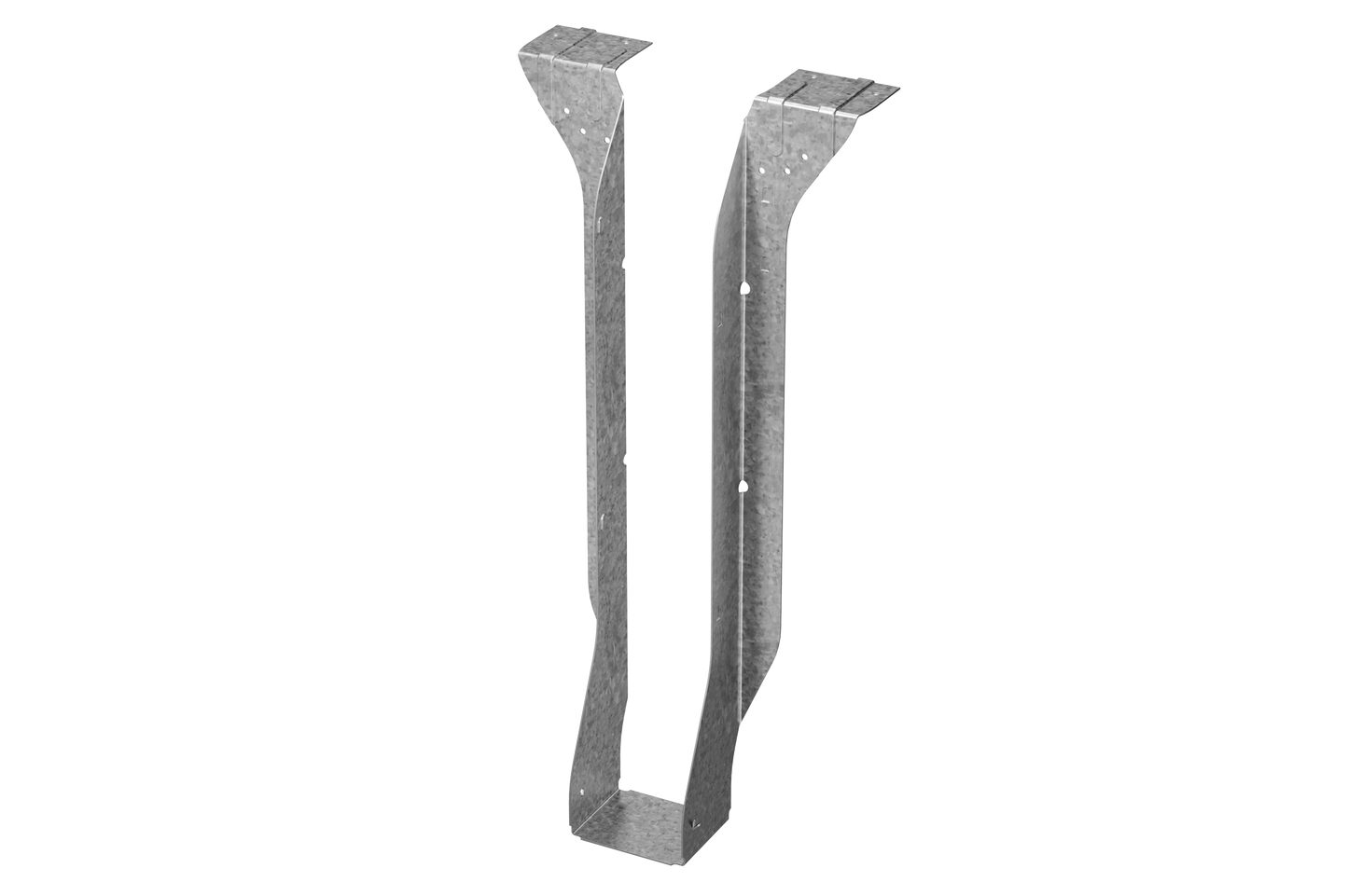

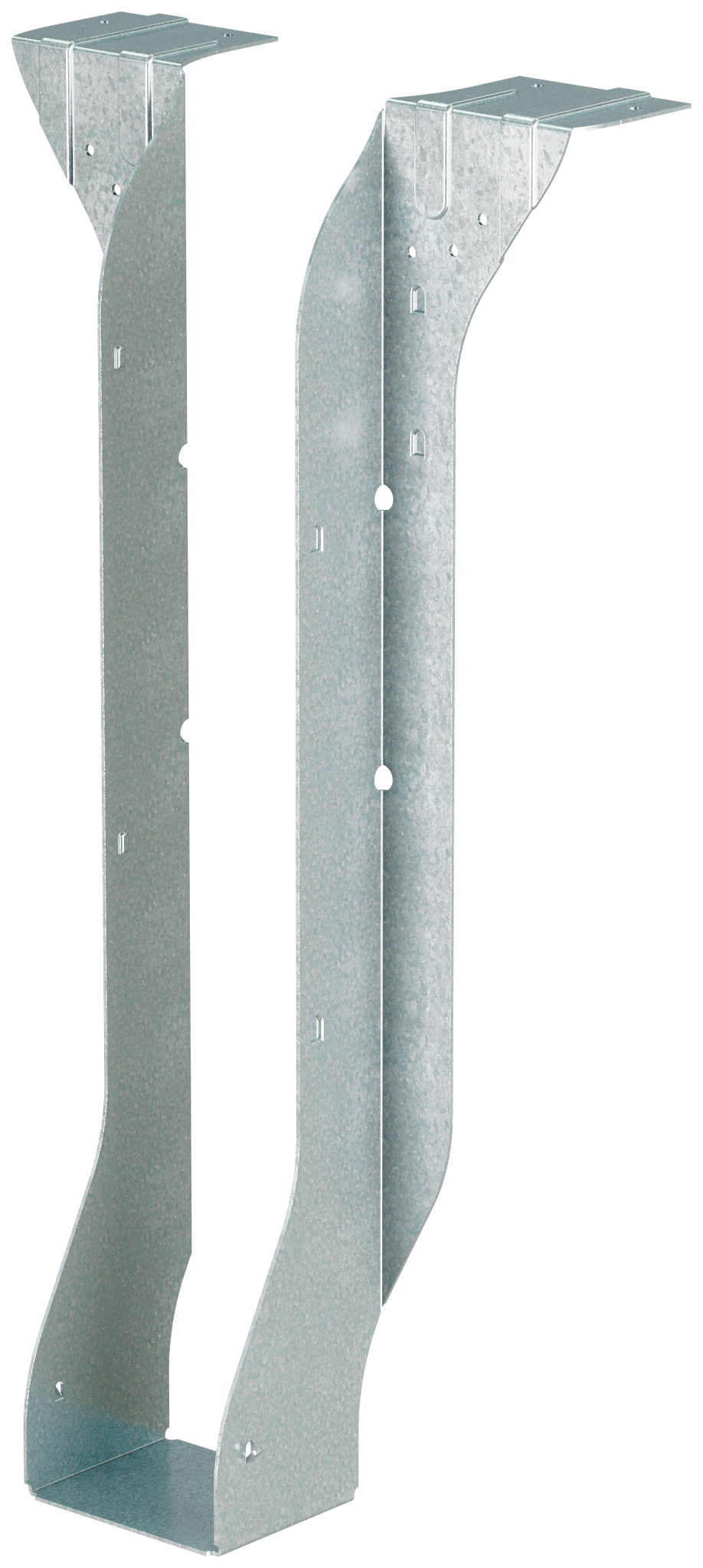

Simpson Strong-Tie HIT420 HIT Galvanized Top-Flange Joist Hanger for 3-1/2 in. x 20 in. Engineered Wood

Simpson Strong-Tie HIT420 HIT Galvanized Top-Flange Joist Hanger for 3-1/2 in. x 20 in. Engineered Wood

The HIT is designed for standard 90° connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting. The HIT also features extra triangle holes to allow higher uplift loads.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Time-saving PAN nailing
• Features two face nails to allow for a higher uplift
• Cost-effective solution for standard 90° connections in comparison to welded hangers
• Seat width: 3-9/16 in.
• Actual joist size: 3-1/2 in. x 20 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HIT420
• UPC: 44315687006
• GTIN: 44315687006
• Feature 01: Time-saving PAN nailing
• Feature 02: Features two face nails to allow for a higher uplift
• Feature 03: Cost-effective solution for standard 90° connections in comparison to welded hangers
• Feature 04: Seat width: 3-9/16 in.
• Feature 05: Actual joist size: 3-1/2 in. x 20 in.
• Feature 06: Made from 16-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
• Assembled Depth - Imperial: 5.932
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 20.1765
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.4375
• Assembled Width UOM - Imperial: in.
• Base Product ID: HIT_Hanger
• Base Product Name: HIT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 262446762613973061520851576200059820855
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 3-1/2 x 20
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.52
• Short Product Name: 3-1/2 X 20 TOP FLANGE I-JOIST HANGER
• Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/hit_hanger/p/hit
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315687003
• PAL Reference: 50044315687001
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
