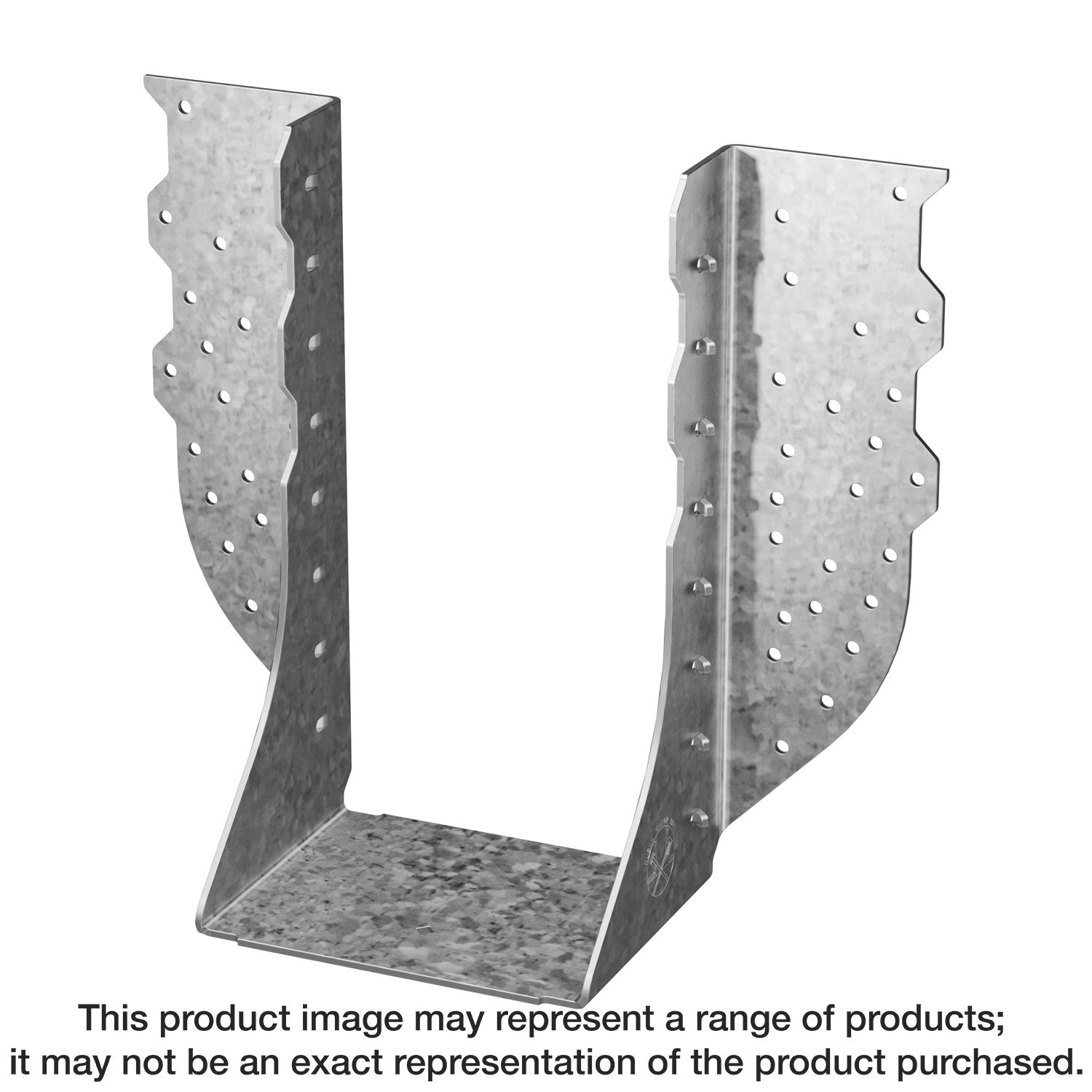

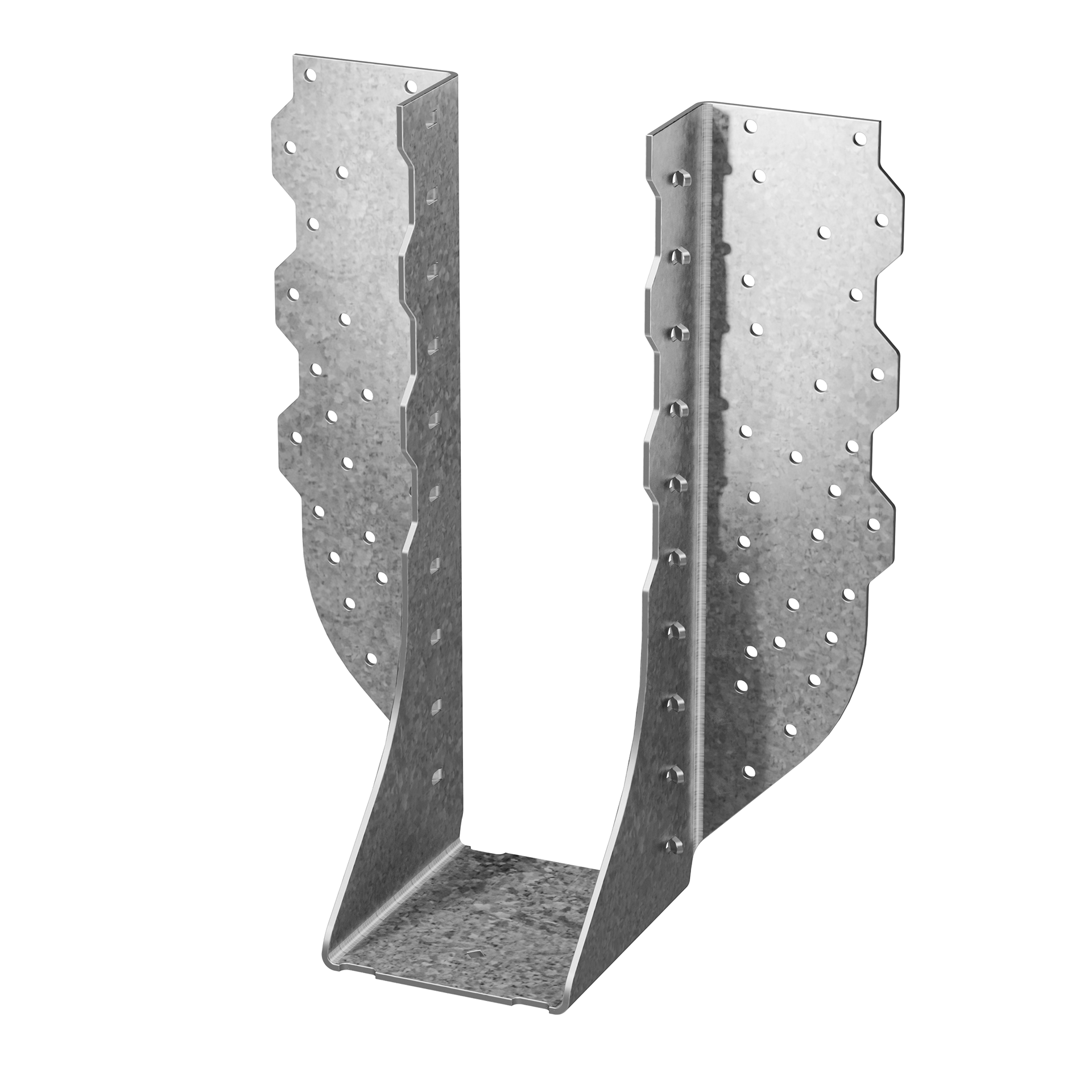

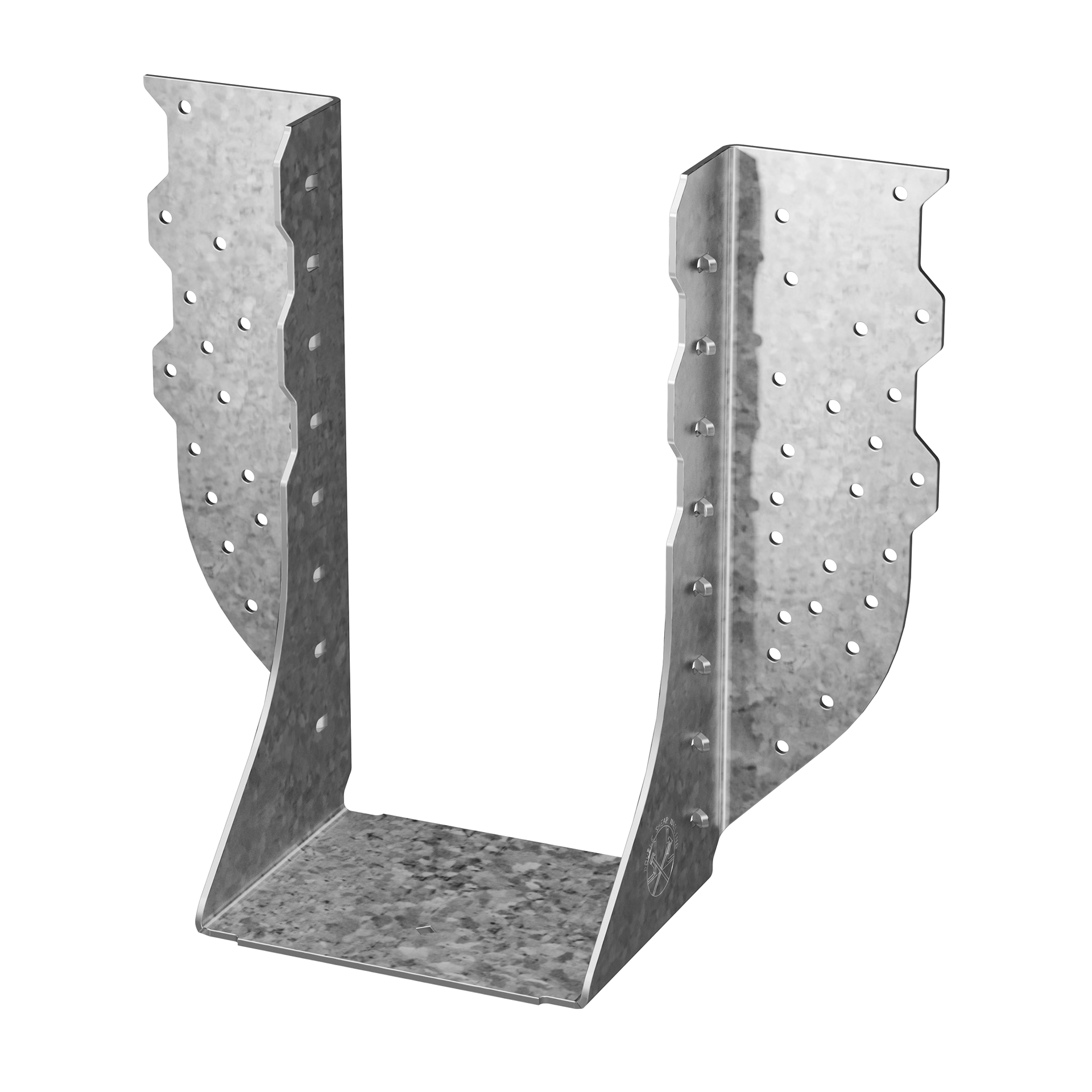

Simpson Strong-Tie HGUS3.25/12 HGUS® Galvanized Face-Mount Joist Hanger for 3-1/8 in. x 12 in. Glulam

Simpson Strong-Tie HGUS3.25/12 HGUS® Galvanized Face-Mount Joist Hanger for 3-1/8 in. x 12 in. Glulam

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS® hangers are designed for applications where higher load values are needed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Do not bend or remove tabs
• Joist size: 3-1/8 in. x 12 to 18 in. tall glulam
• Seat width: 3-1/4 in.
• Height: 10-5/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HGUS3.25/12
• UPC: 44315972102
• GTIN: 44315972102
• Feature 01: Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Feature 02: Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Feature 03: Do not bend or remove tabs
• Feature 04: Joist size: 3-1/8 in. x 12 to 18 in. tall glulam
• Feature 05: Seat width: 3-1/4 in.
• Feature 06: Height: 10-5/8 in.
• Feature 07: Made from 12-gauge steel
• Feature 08: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common nails
• Assembled Depth - Imperial: 4.224
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.724
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.698
• Assembled Width UOM - Imperial: in.
• Base Product ID: HGUS_Hanger
• Base Product Name: HGUS®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 276815229343501313243637104536780620122
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 3-1/8 in. x 12 to 18 in. tall glulam
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3.01
• Short Product Name: 3-1/4 X 12 FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/hgus_hanger/p/hgus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315972109
• PAL Reference: 50044315972107
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
