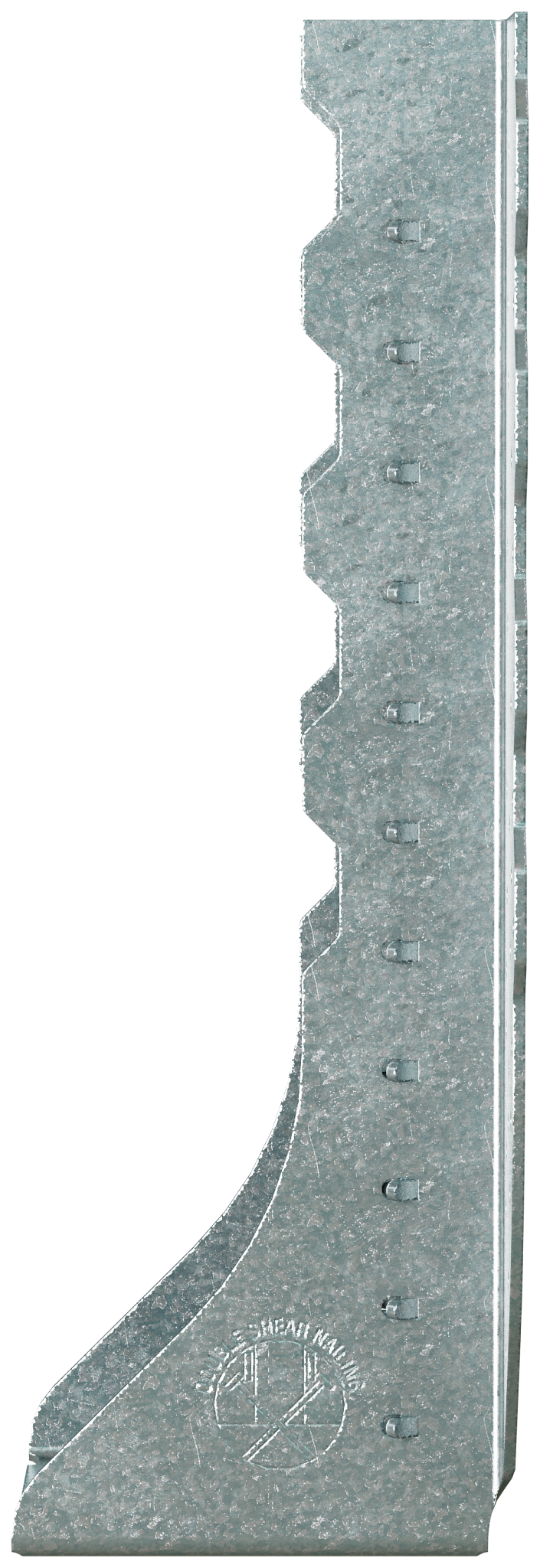

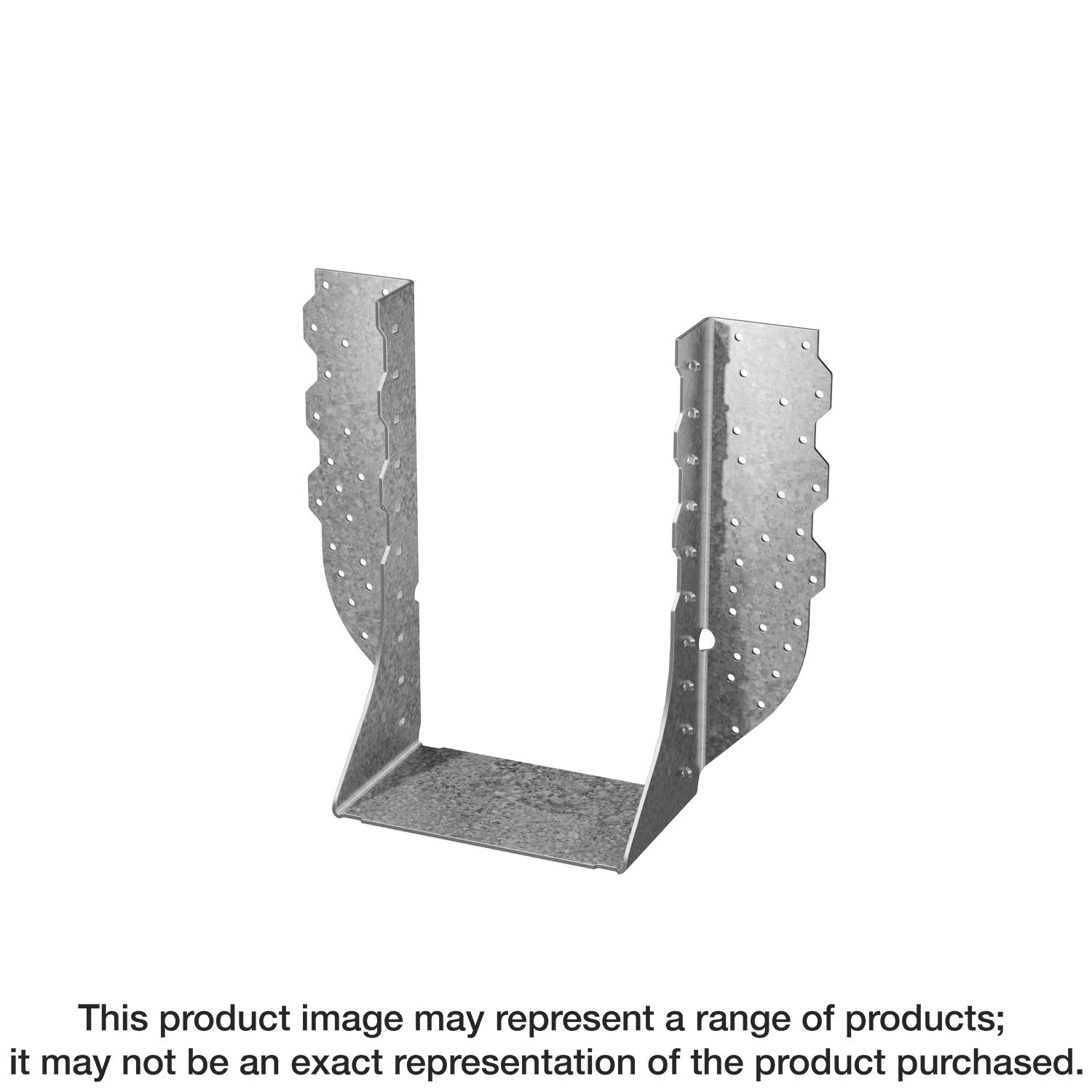

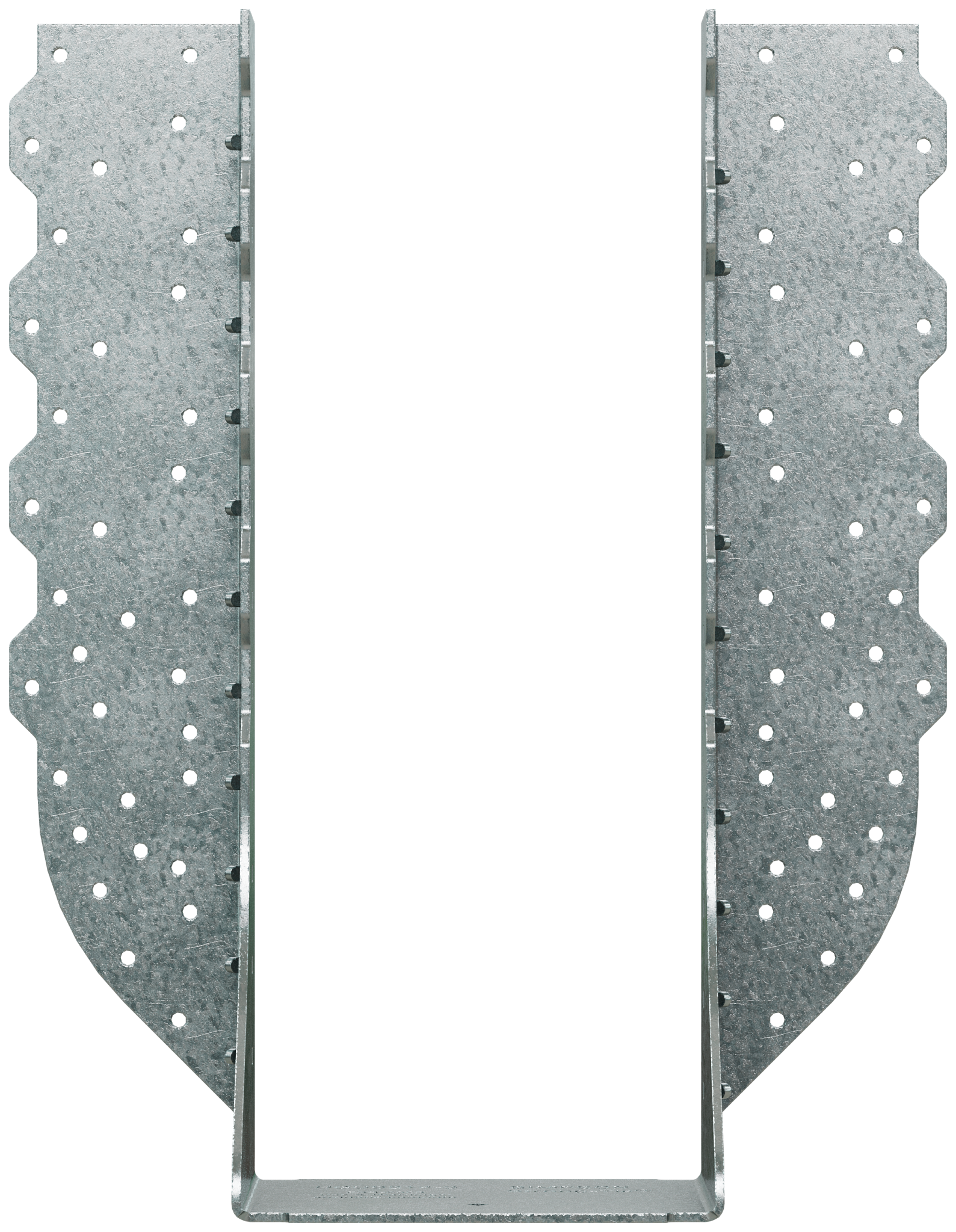

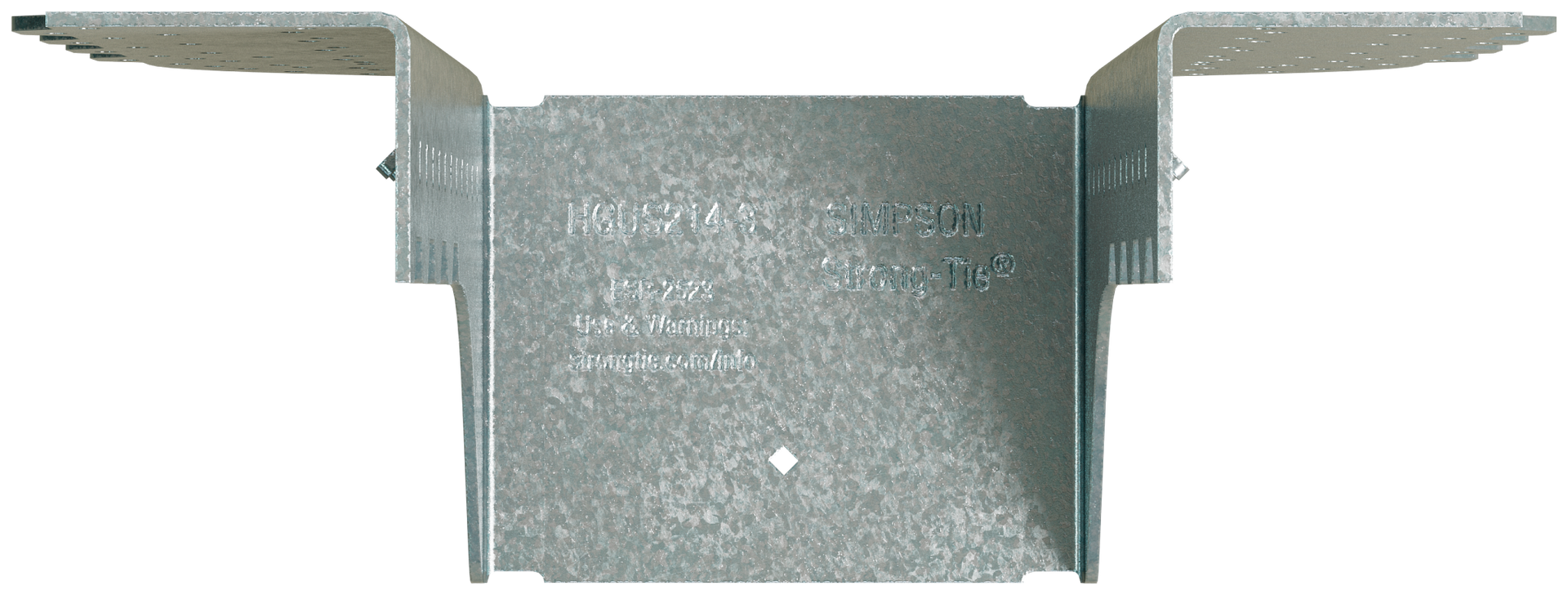

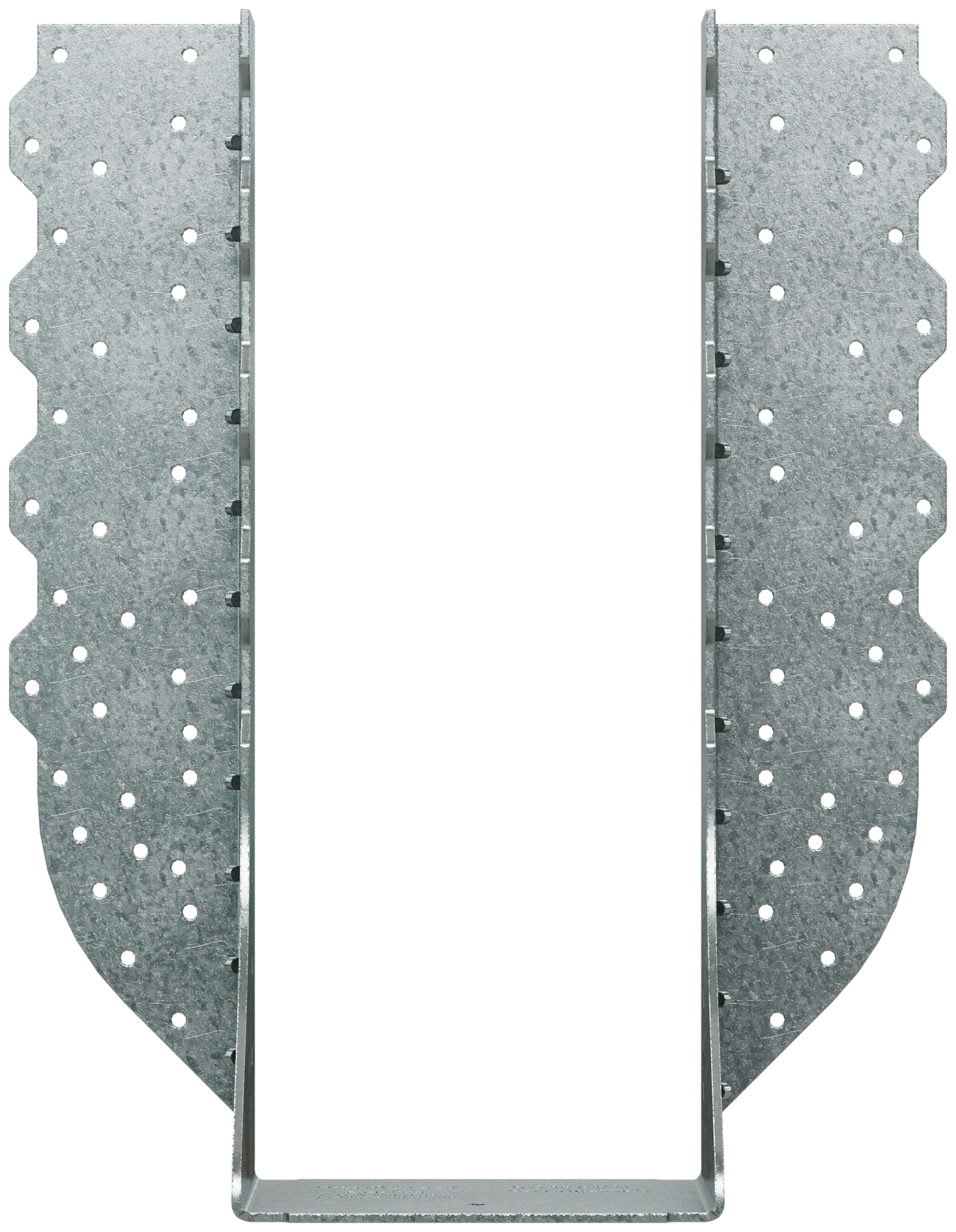

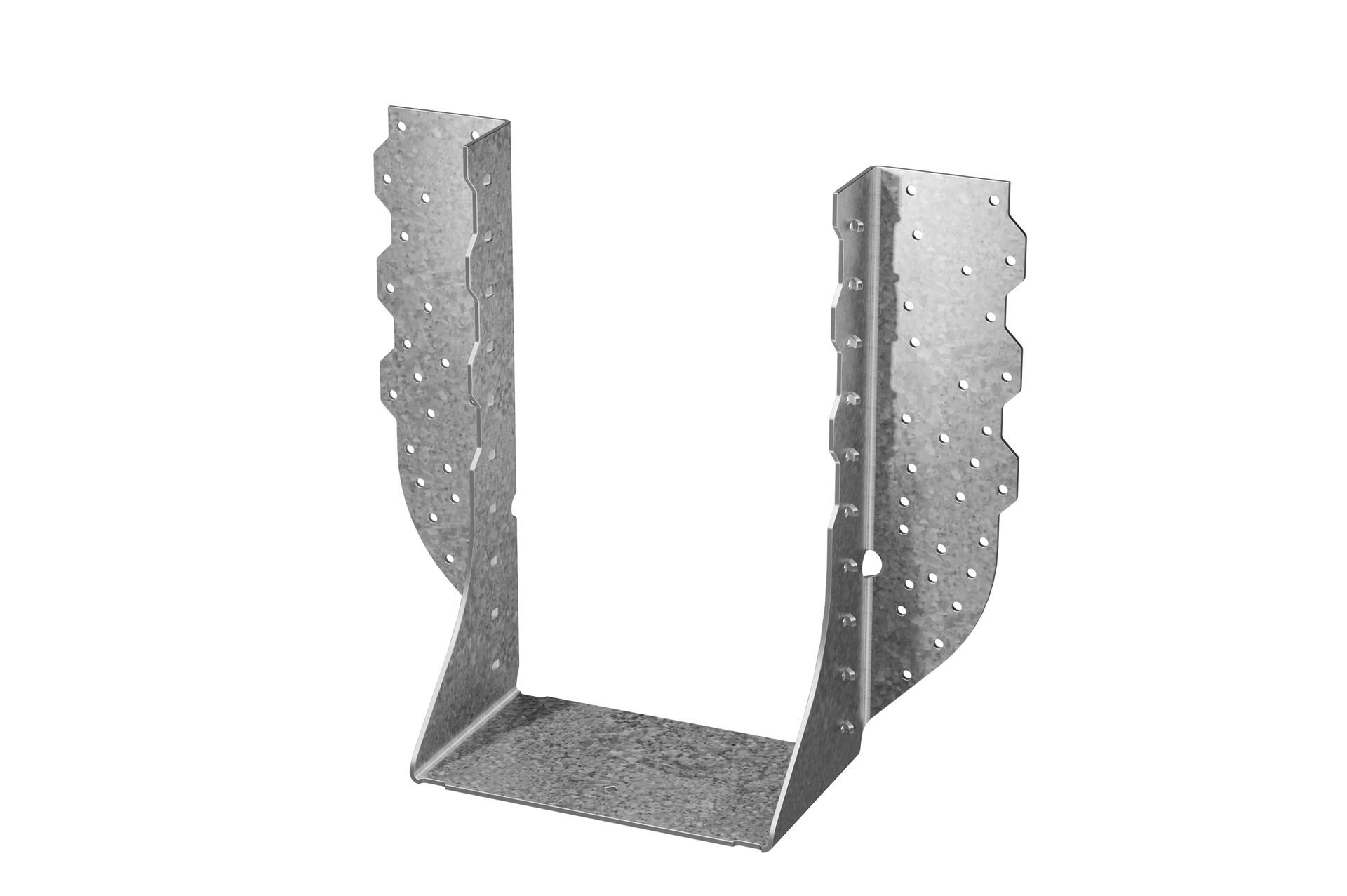

Simpson Strong-Tie HGUS214-3 HGUS® Galvanized Face-Mount Joist Hanger for Triple 2x14

Simpson Strong-Tie HGUS214-3 HGUS® Galvanized Face-Mount Joist Hanger for Triple 2x14

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS® hangers are designed for applications where higher load values are needed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Do not bend or remove tabs
• Nominal joist size: Triple 2x14
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HGUS214-3
• UPC: 44315842108
• GTIN: 44315842108
• Feature 01: Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Feature 02: Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Feature 03: Do not bend or remove tabs
• Feature 04: Nominal joist size: Triple 2x14
• Feature 05: Made from 12-gauge steel
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common nails
• Assembled Depth - Imperial: 4.224
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.88025
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.3855
• Assembled Width UOM - Imperial: in.
• Base Product ID: HGUS_Hanger
• Base Product Name: HGUS®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 121204711797032176314700930094922761514
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Triple 2x14
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3.72
• Short Product Name: 2 X 14 TPL FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/hgus_hanger/p/hgus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315842105
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
