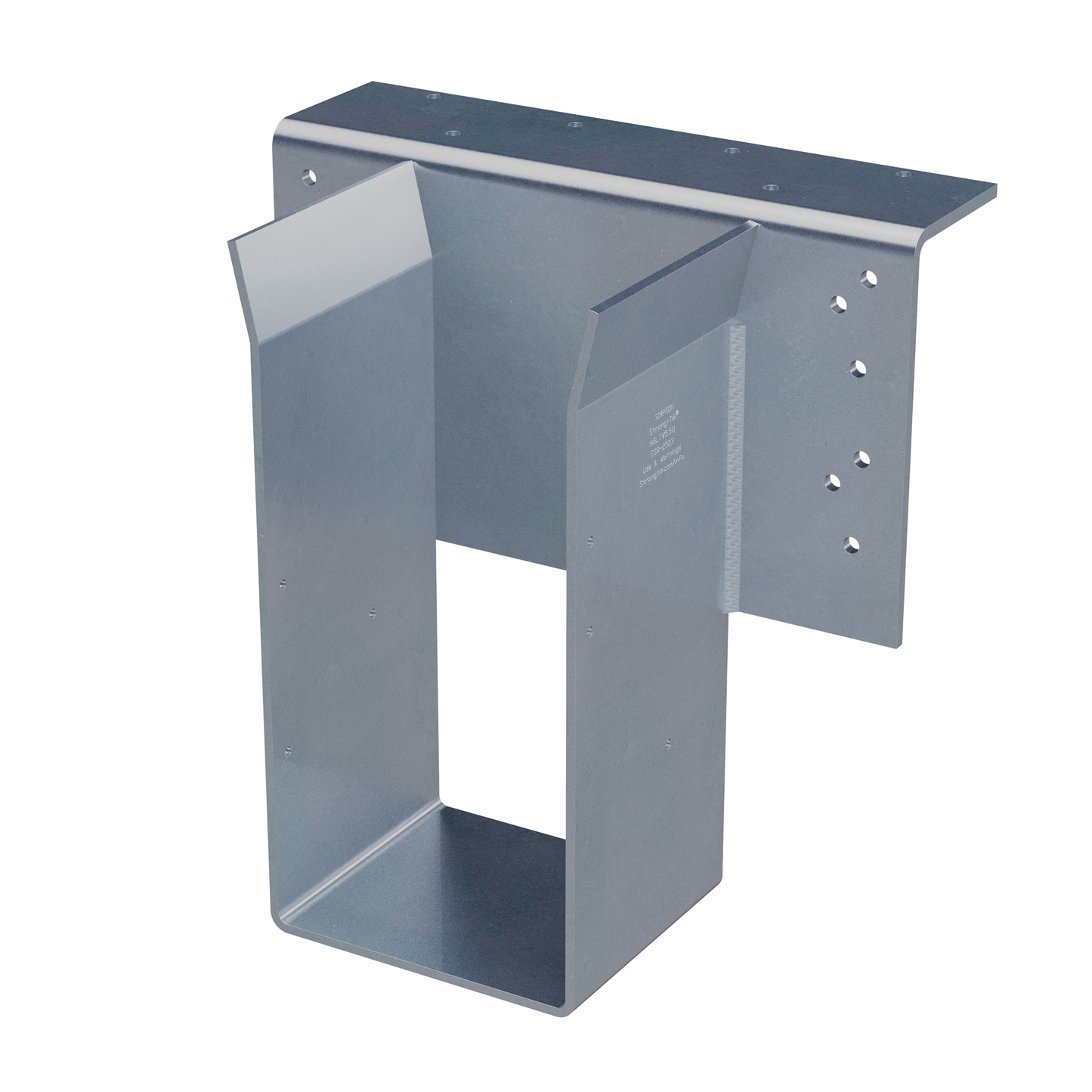

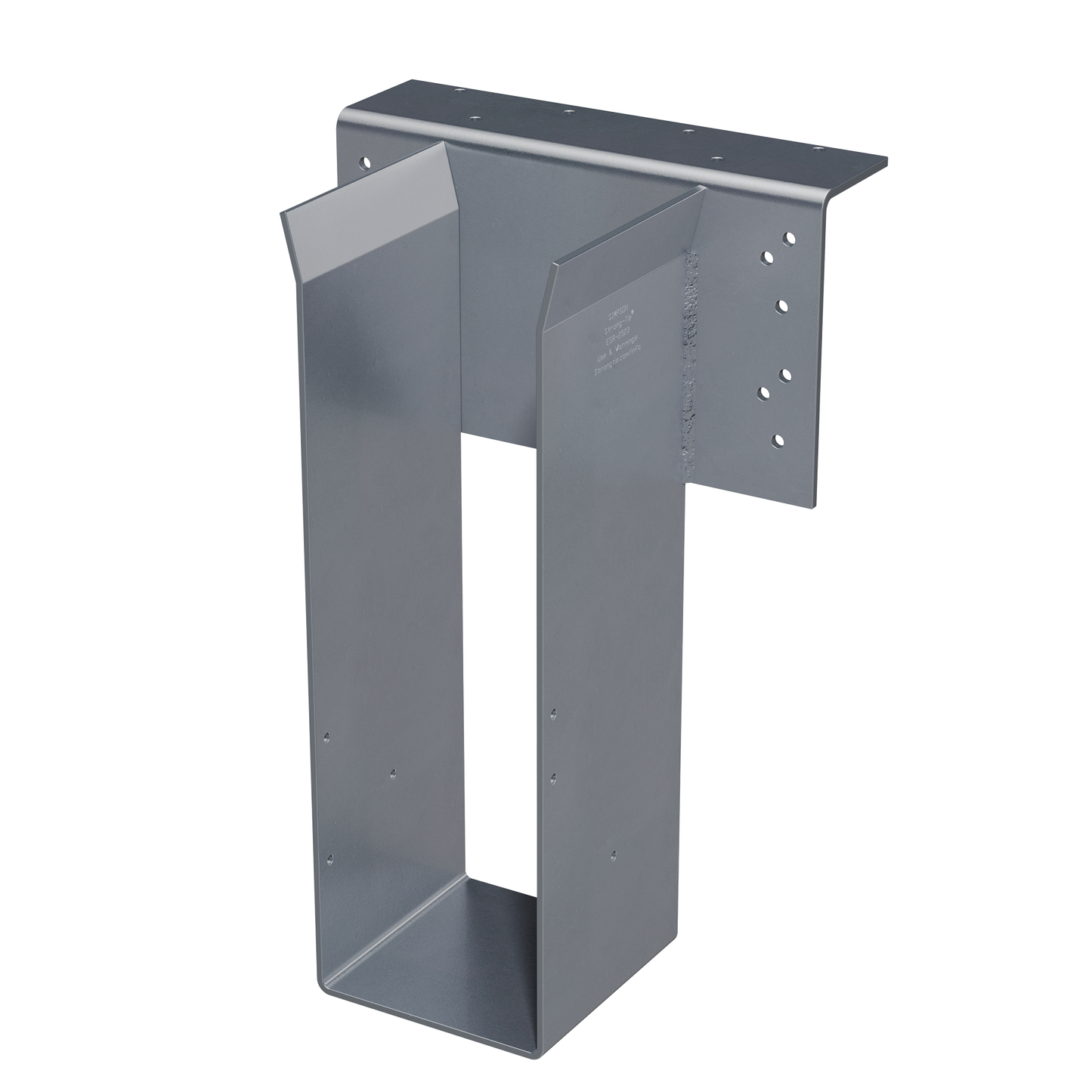

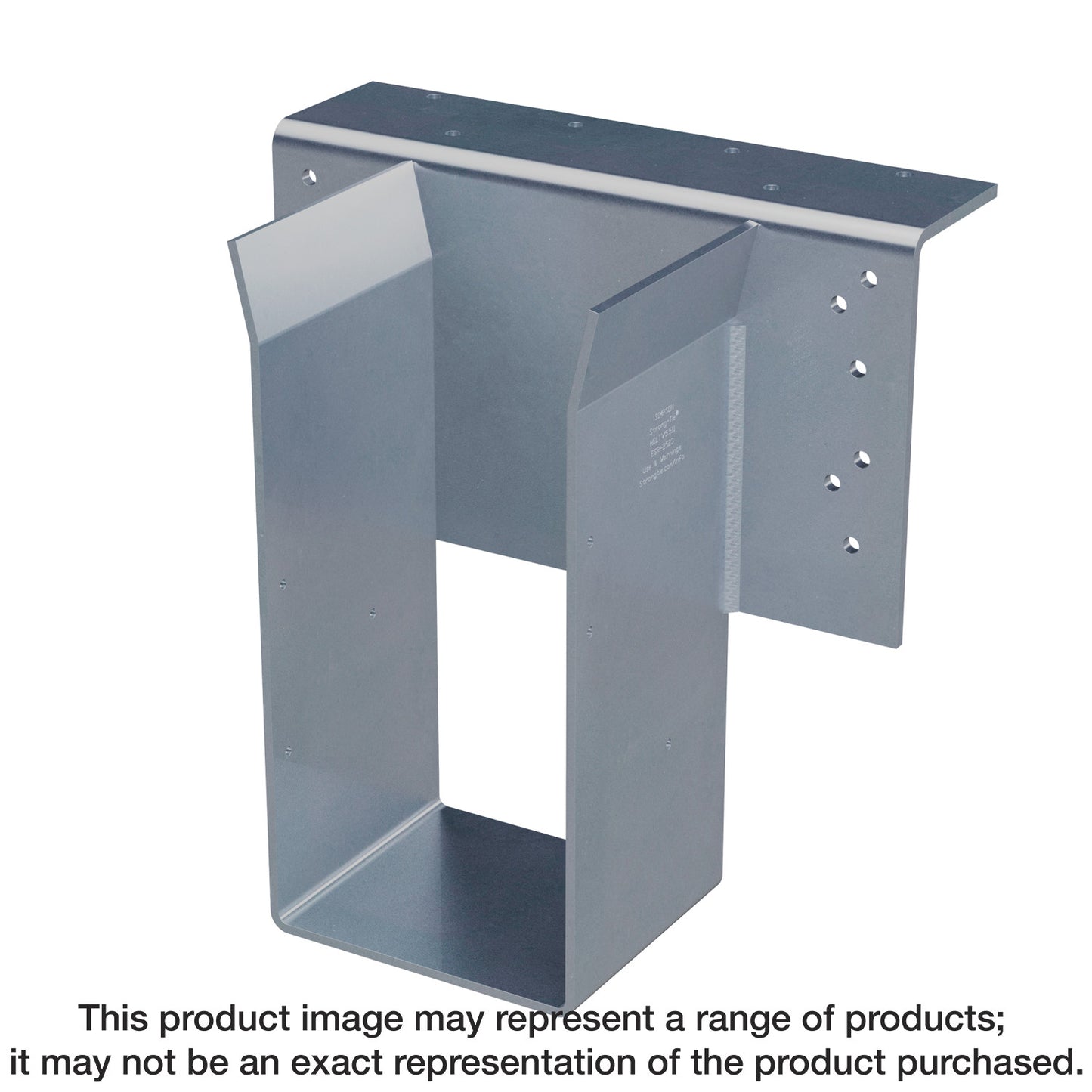

Simpson Strong-Tie HGLTV5.518 HGLTV Top-Flange Joist Hanger for 5-1/4 in. x 18 in. Engineered Wood
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGLTV hangers are designed for use with structural composite lumber header applications that require high loads. The top-flange nails are sized and specifically located to prevent degradation of the header due to splitting of laminations. The Funnel Flange™ design allows for easy installation of beams.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- This series may be used for weld-on applications
- Web stiffeners are required with I-joists using this hanger style
- Actual joist size: 5-1/4 in. x 18 in.
- Top flange made from 3-gauge steel
- Stirrup made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- ERP Part Number: HGLTV5.518
- UPC: 44315061103
- GTIN: 44315061103
- Feature 01: This series may be used for weld-on applications
- Feature 02: Web stiffeners are required with I-joists using this hanger style
- Feature 03: Actual joist size: 5-1/4 in. x 18 in.
- Feature 04: Top flange made from 3-gauge steel
- Feature 05: Stirrup made from 7-gauge steel
- Feature 06: Simpson Strong-Tie gray paint finish
- Install With: Install with (24) 0.162 in. x 3-1/2 in. Strong-Drive® SCN Smooth-Shank Connector nails (Model: 16DHDG)
- Assembled Depth - Imperial: 9.229
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 18.4
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 12
- Assembled Width UOM - Imperial: in.
- Base Product ID: HGLTV_Hanger
- Base Product Name: HGLTV
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
- Coating: Simpson Strong-Tie Gray Paint
- Color: Gray
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- EAN category: UC
- Fasteners Included: No
- Finish: Simpson Strong-Tie Gray Paint
- Gauge: Top flange — 3 gauge; stirrup — 7 gauge
- GUID: 283440327096062237632546432129772360603
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- Member Size: 5-1/4 in. x 18 in.
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Packaging Quantity: 1
- Packaging Type: Unpacked
- Product Class: Hanger
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 21.46
- Short Product Name: 5-1/4 X 18 TOP FLANGE I-JOIST HANGER
- Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/hgltv_hanger/p/hgltv
- Subcategory: Wood Construction Connectors
- Subcategory 2: Joist Hangers for Engineered Wood
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
