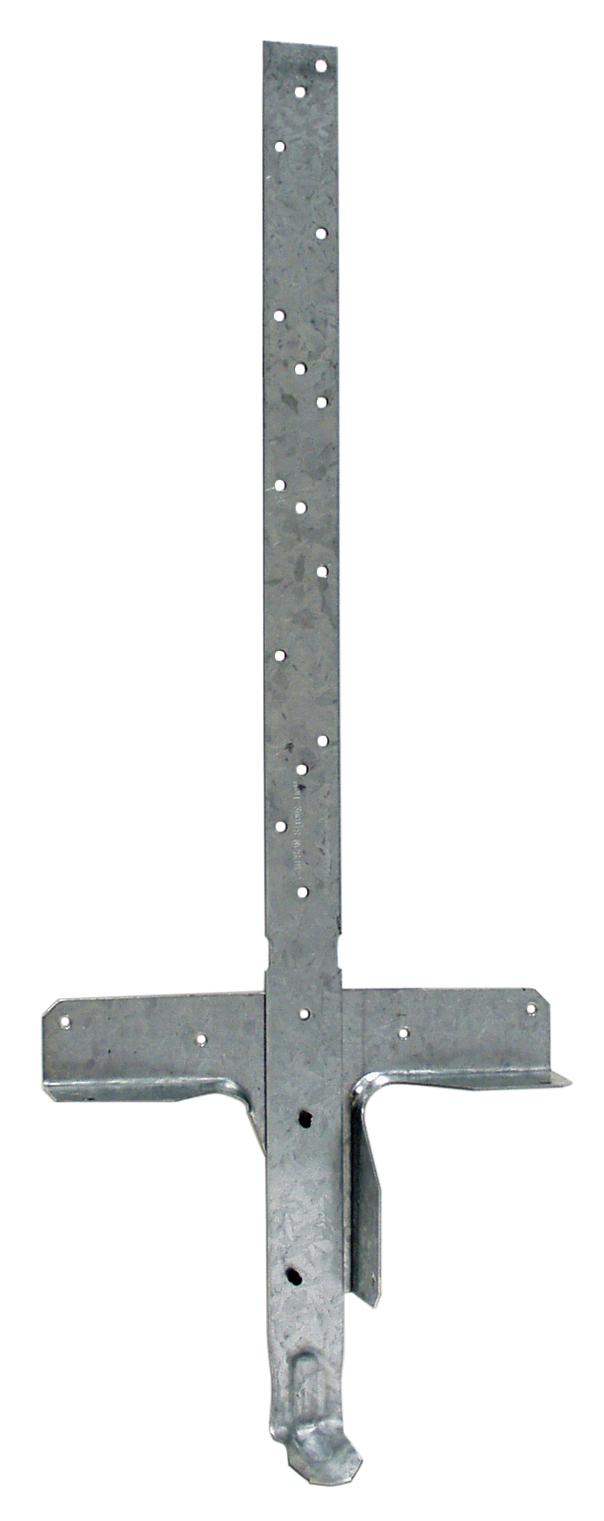

Simpson Strong-Tie HETAL20Z HETAL 20 in. ZMAX® Galvanized Heavy Embedded Truss Anchor

Simpson Strong-Tie HETAL20Z HETAL 20 in. ZMAX® Galvanized Heavy Embedded Truss Anchor

The HETAL provides an engineered method to attach roof trusses securely to concrete and masonry walls. This heavy embedded truss anchor works specifically to support lateral loads and features a staggered nail pattern to strengthen uplift resistance. The HETAL also features a built-in moisture plate that sits above the concrete or masonry wall.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed straight or field-bent around truss or rafter members
• Built-in moisture barrier
• Load rated for wind and seismic forces
• 15-in. exposed length

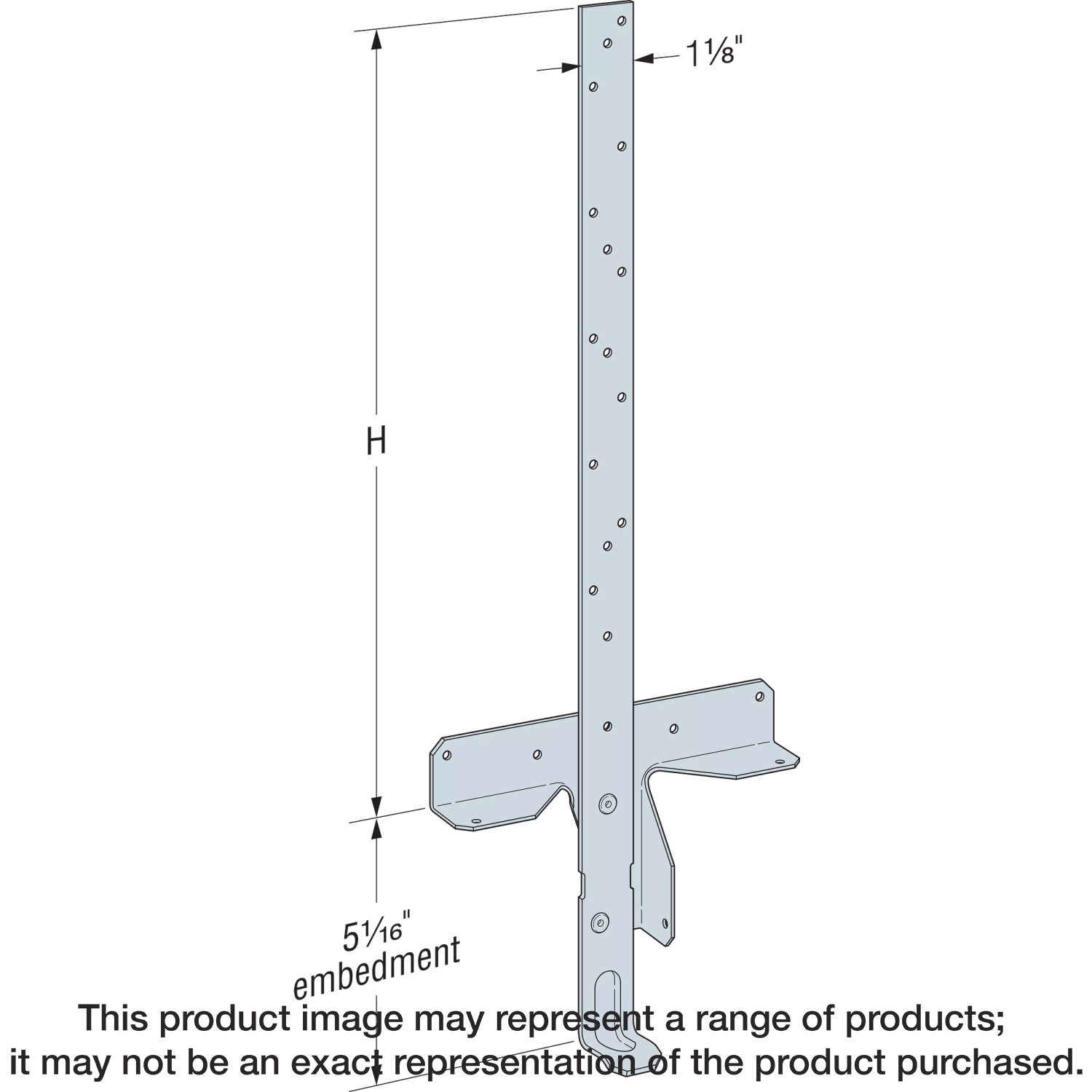

• Embed 5-1/16 in. into a poured concrete bond beam or grouted block wall
• Strap made from 16-ga. steel; truss seat made from 18-ga. steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: HETAL20Z
• UPC: 44315024405
• GTIN: 44315024405
• Feature 01: Can be installed straight or field-bent around truss or rafter members
• Feature 02: Built-in moisture barrier
• Feature 03: Load rated for wind and seismic forces
• Feature 04: 15-in. exposed length
• Feature 05: Embed 5-1/16 in. into a poured concrete bond beam or grouted block wall
• Feature 06: Strap made from 16-ga. steel; truss seat made from 18-ga. steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 10d x 1-1/2 in. nails or 16d common nails
• Assembled Depth - Imperial: 1.684
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 20.309
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: HETAL_Anchor
• Base Product Name: HETAL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Tiedowns for Masonry > Truss Anchor
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: ZMAX®
• Gauge: Seat 18; strap 16
• GUID: 339331574620452472434697965554963088707
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Truss Anchor
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.88
• Short Product Name: 15IN W/5-1/16IN EMBED TRUSS ANCHOR ZMAX
• Strongtie.com URL: https://www.strongtie.com/girdertiedownsformasonry_trusstiedownsformasonry/hetal_anchor/p/hetal
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Tiedowns for Masonry
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315024402
• PAL Reference: 50044315024400
