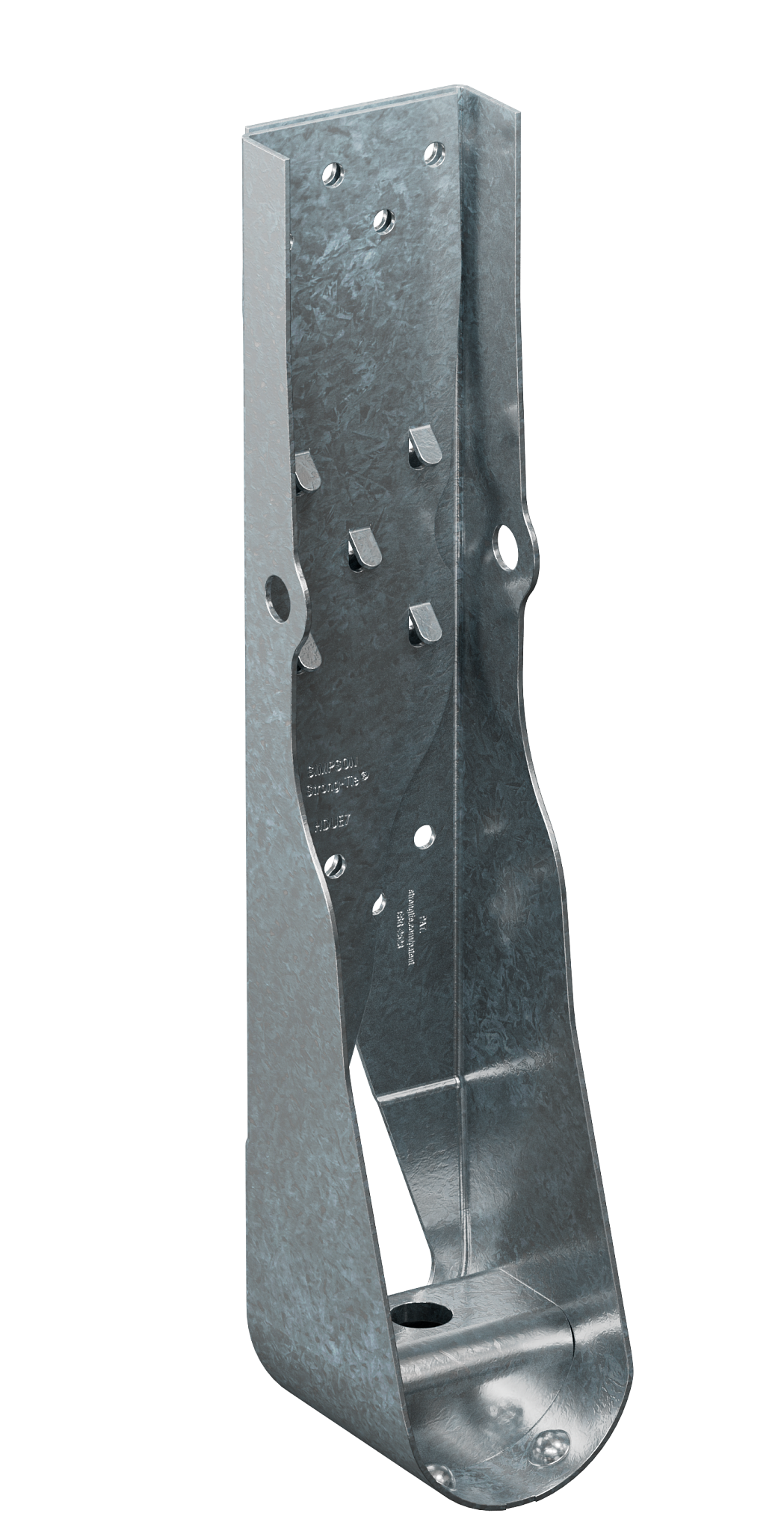

Simpson Strong-Tie HDUE7-SDS3 HDUE™ 14-11/16 in. Galvanized Predeflected Holdown with Strong-Drive® SDS Screws (Pack of 12)

Simpson Strong-Tie HDUE7-SDS3 HDUE™ 14-11/16 in. Galvanized Predeflected Holdown with Strong-Drive® SDS Screws (Pack of 12)

The Simpson Strong-Tie® HDUE™ holdown delivers exceptional strength and reliability for securing shearwalls, braced wall panels and other lateral-force-resisting applications in wood construction. It features a predeflected seat that reduces deflection under load, an overlapping back plate for increased strength and optimized screw patterns to prevent splitting, ensuring superior performance. Installation is fast and efficient with Simpson Strong-Tie Strong‑Drive® SDS Heavy‑Duty Connector screws, making it a dependable choice for modern residential construction.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Predeflected seat reduces deflection under load
• Angled fastening engages the screws in tension for higher load capacity, reducing the number of screws required
• Angled fastening tabs help drive the fastener at a 45° angle, and offset holes on the second back plate block the fastener from being driven straight
• Overlapping back plate increases fastener strength and shear values, helping prevent post splitting
• Optimized screw patterns reduce splitting at the end of the post and maximize individual fastener capacity
• Extruded seat adds a greater cross-sectional steel section for added strength
• Teardrop holes allow higher and more even distribution of load
• Height: 14-11/16 in.
• Made from 14-gauge steel; galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: HDUE7-SDS3
• UPC: 10707392030253
• GTIN: 10707392030253
• Feature 01: Predeflected seat reduces deflection under load
• Feature 02: Angled fastening engages the screws in tension for higher load capacity, reducing the number of screws required
• Feature 03: Angled fastening tabs help drive the fastener at a 45° angle, and offset holes on the second back plate block the fastener from being driven straight
• Feature 04: Overlapping back plate increases fastener strength and shear values, helping prevent post splitting
• Feature 05: Optimized screw patterns reduce splitting at the end of the post and maximize individual fastener capacity
• Feature 06: Extruded seat adds a greater cross-sectional steel section for added strength
• Feature 07: Teardrop holes allow higher and more even distribution of load
• Feature 08: Height: 14-11/16 in.
• Feature 09: Made from 14-gauge steel; galvanized (G90) for corrosion resistance
• Assembled Depth - Imperial: 3.32
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 14.78875
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.89
• Assembled Width UOM - Imperial: in.
• Base Product ID: HDUE_Holdown
• Base Product Name: HDUE™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Holdown
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• GUID: 86696431710058914645437650003879258675
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.81
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.56
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 15.81
• Package Width UOM - Imperial: in.
• Product Class: Holdown
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 12
• Shipping Weight: 38.88
• Short Product Name: 14-11/16IN PREDEFLECTED HOLDOWN W/SCREWS
• Strongtie.com URL: https://www.strongtie.com/sdsscrewholdowns_holdowns/hdue_holdown/p/hdue
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392030256
• PAL Reference: 50707392030251
