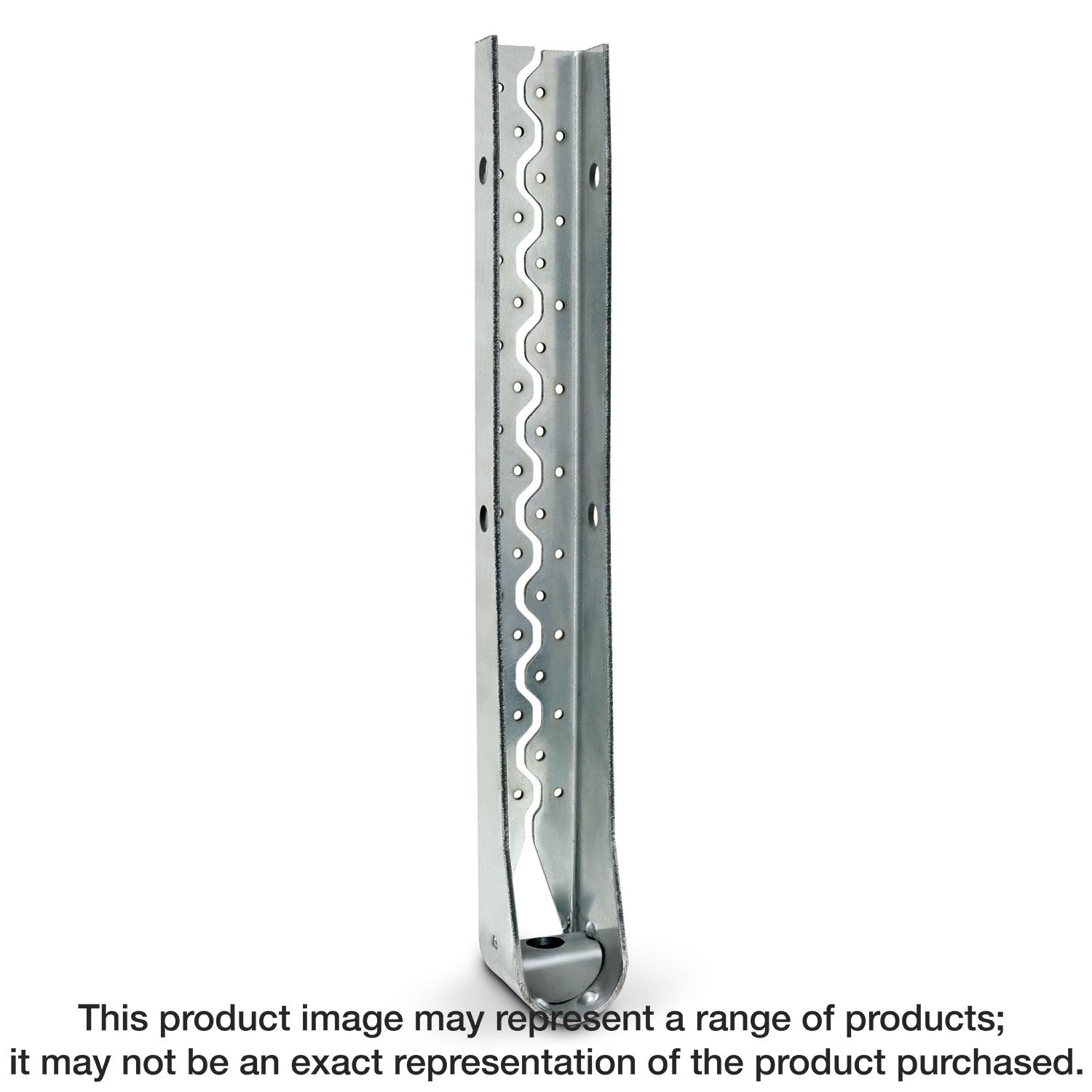

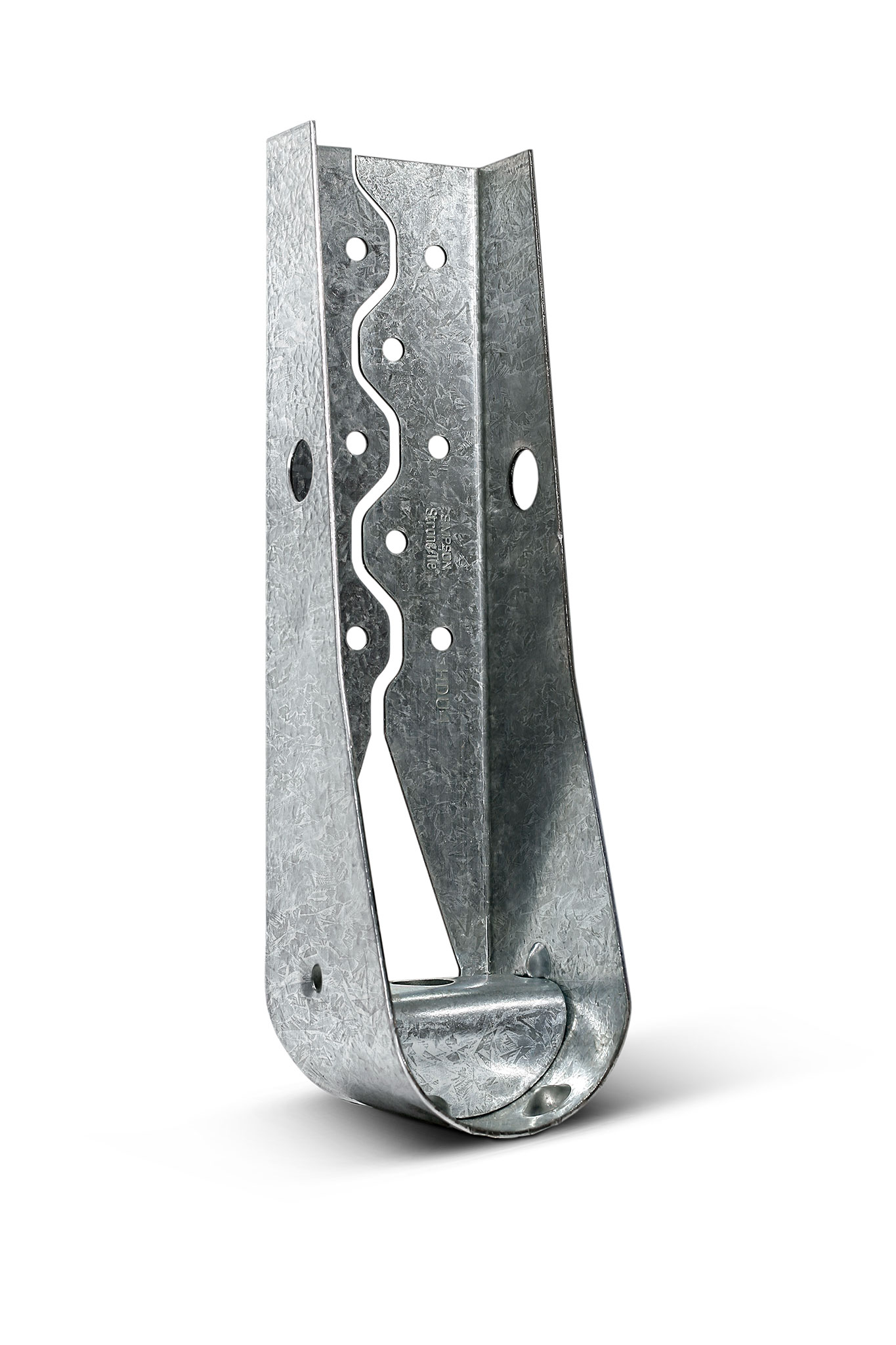

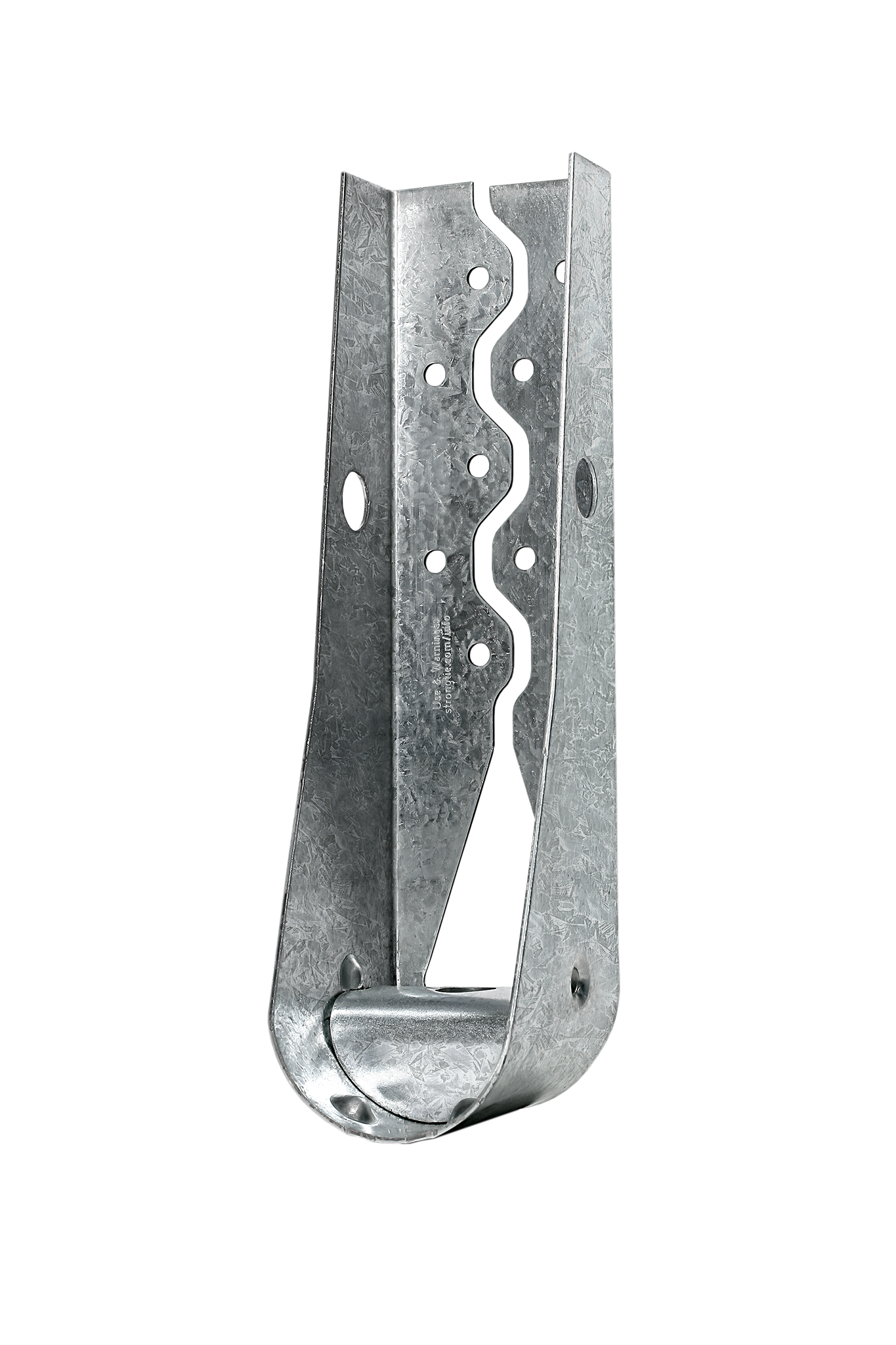

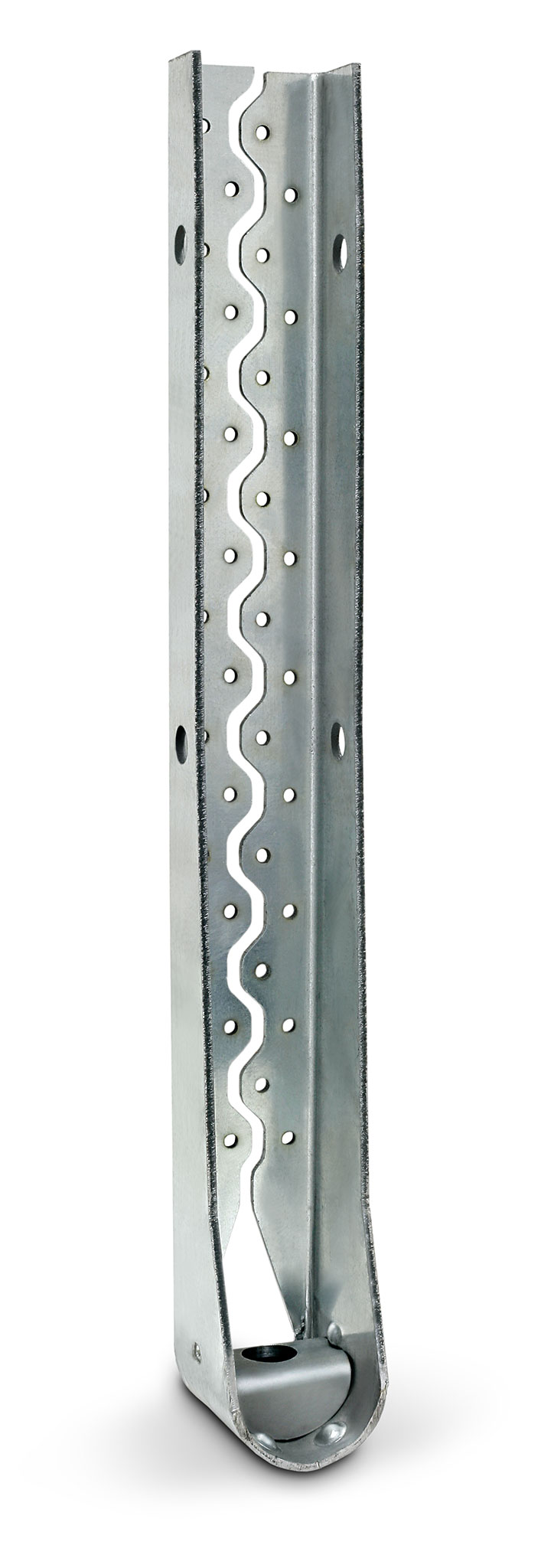

Simpson Strong-Tie HDU4-SDS2.5 HDU 10-15/16 in. Galvanized Predeflected Holdown with Strong-Drive® SDS Screws

Simpson Strong-Tie HDU4-SDS2.5 HDU 10-15/16 in. Galvanized Predeflected Holdown with Strong-Drive® SDS Screws

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer, engineered and tested to perform and manufactured to the highest quality standards. HDU holdowns are pre-deflected during the manufacturing process, virtually eliminating deflection under load due to material stretch. They use Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws (included), which install easily, reduce fastener slip and provide a greater net section when compared to bolts.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Predeflected body virtually eliminates deflection due to material stretch
• Uses SDS screws, which install easily, reduce fastener slip and provide a greater net section area of the post compared to bolts
• SDS screws are supplied with the holdowns to ensure proper fasteners are used
• No stud bolts to countersink at openings
• Height: 10-15/16 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HDU4-SDS2.5
• UPC: 707392207306
• GTIN: 707392207306
• Feature 01: Predeflected body virtually eliminates deflection due to material stretch
• Feature 02: Uses SDS screws, which install easily, reduce fastener slip and provide a greater net section area of the post compared to bolts
• Feature 03: SDS screws are supplied with the holdowns to ensure proper fasteners are used
• Feature 04: No stud bolts to countersink at openings
• Feature 05: Height: 10-15/16 in.
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 5/8 in. anchor bolt and 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
• Assembled Depth - Imperial: 3.3125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.89
• Assembled Width UOM - Imperial: in.
• Base Product ID: HDU_Holdown
• Base Product Name: HDU
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Holdown
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 54220332908823012863300826625956523573
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Holdown

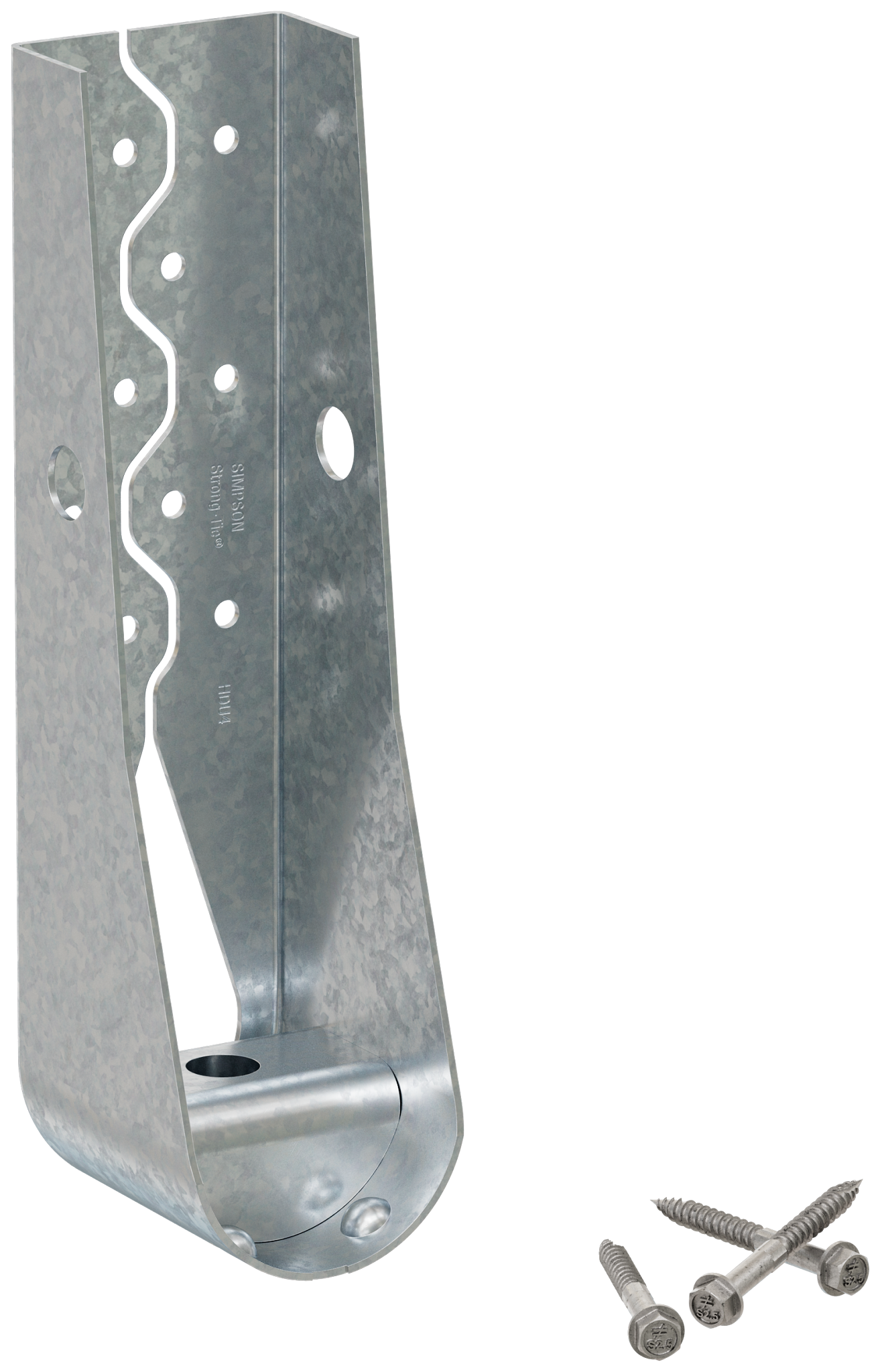

• Product Includes: (10) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws and (1) crescent washer
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.4
• Short Product Name: 10-15/16IN PREDEFLECTED HOLDOWN W/SCREWS
• Strongtie.com URL: https://www.strongtie.com/sdsscrewholdowns_holdowns/hdu_holdown/p/hdu
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392207303
• PAL Reference: 50707392207301
