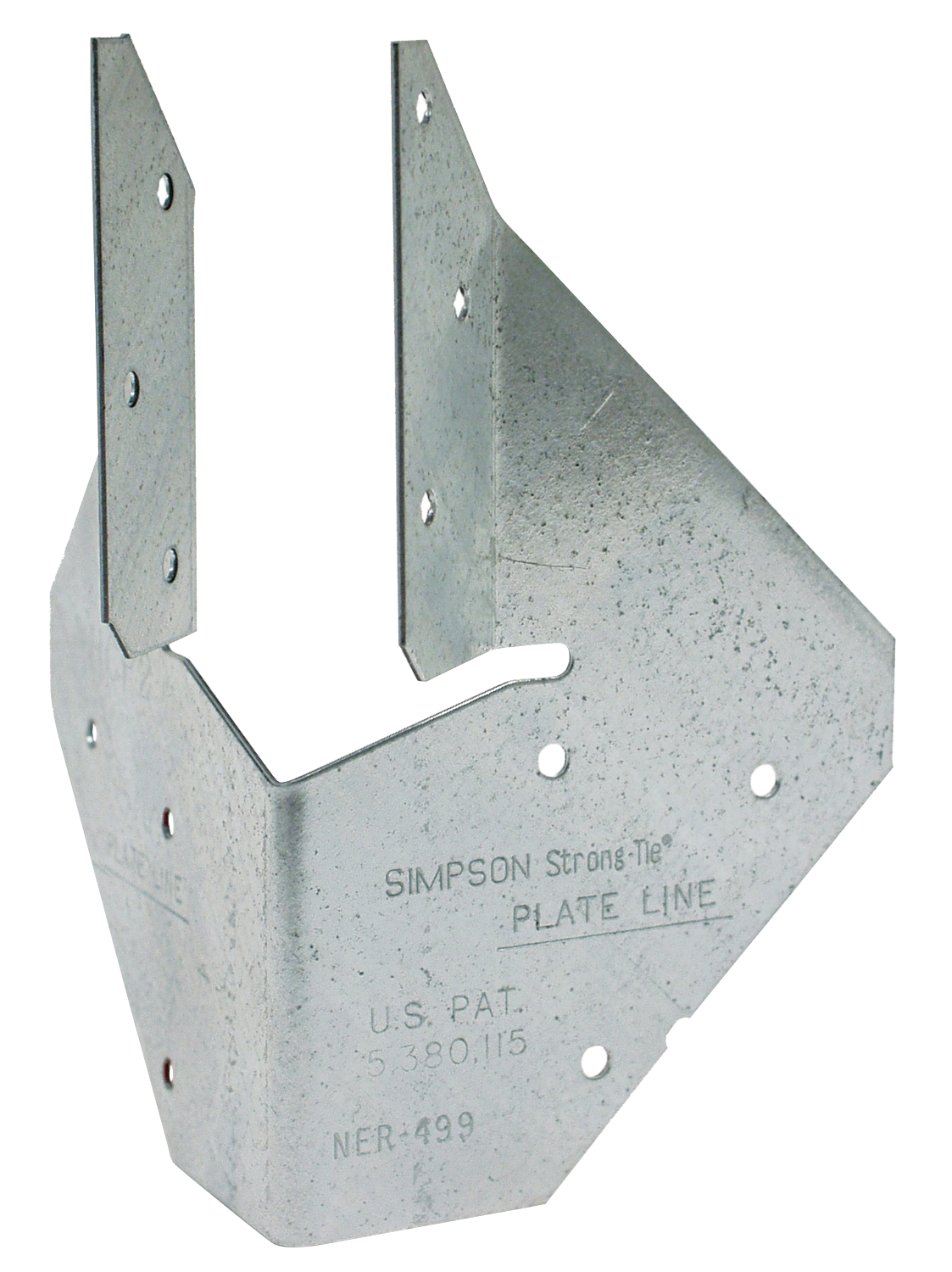

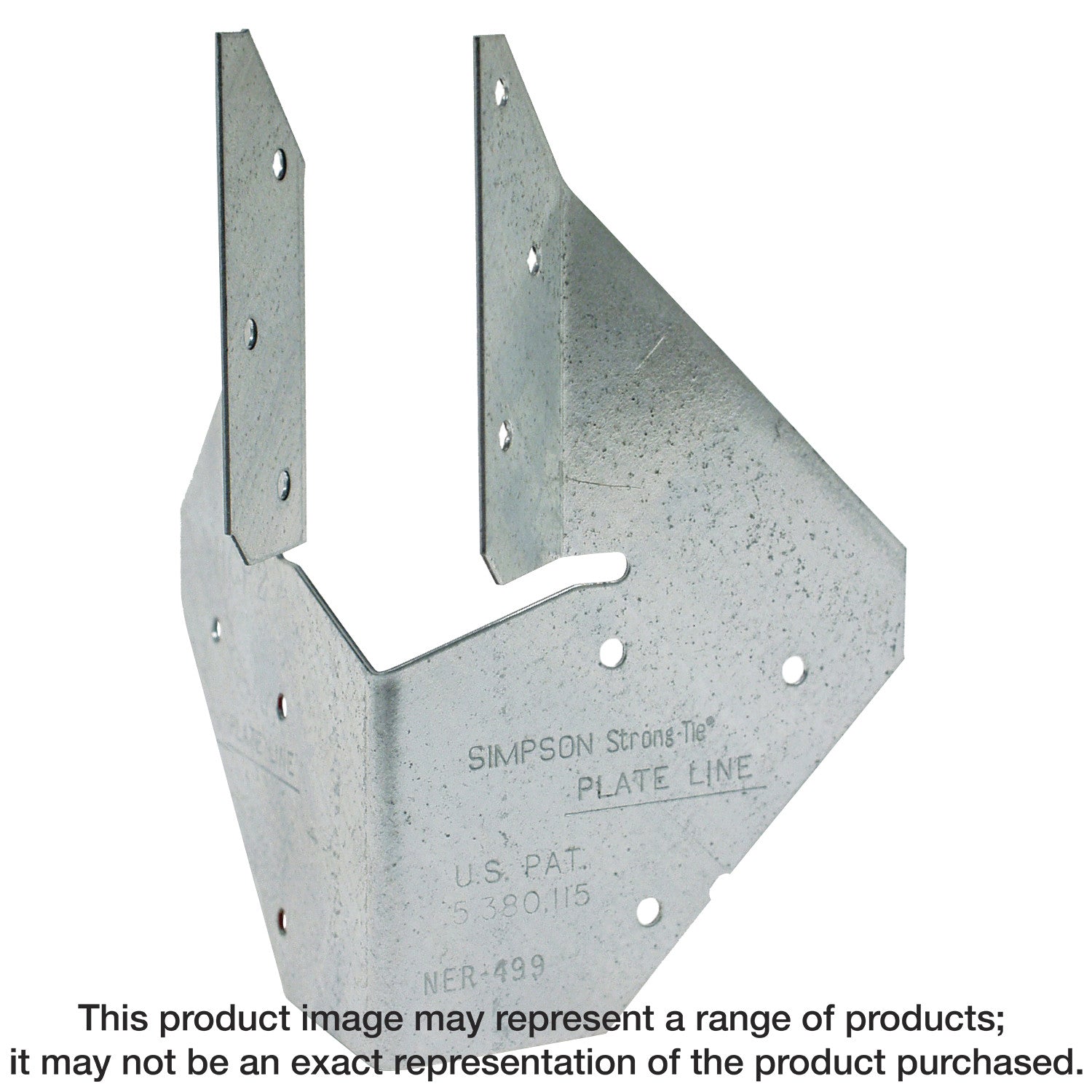

Simpson Strong-Tie HCP1.81 HCP 18-Gauge Galvanized Hip Corner Plate for 1-3/4 in. Engineered Wood

Simpson Strong-Tie HCP1.81 HCP 18-Gauge Galvanized Hip Corner Plate for 1-3/4 in. Engineered Wood

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Hip corner plates are designed for use on the hip of a roof. This corner plate connects LVL hip members to double top plates at a 45° angle. The HCPs provide resistance to uplift and download forces.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Attach HCP to double top plates
• Birdsmouth not required for table uplift loads but may be required for download
• Install rafter and complete nailing
• Rafter may be sloped to 45°
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HCP1.81
• UPC: 44315364600
• GTIN: 44315364600
• Feature 01: Attach HCP to double top plates
• Feature 02: Birdsmouth not required for table uplift loads but may be required for download
• Feature 03: Install rafter and complete nailing
• Feature 04: Rafter may be sloped to 45°
• Feature 05: Made from 18-gauge steel
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Install With: (6) 0.148 in. x 1-1/2 in. nails to the rafters and (6) 0.148 in. x 1-1/2 in. nails to the plate
• Assembled Depth - Imperial: 2.95855
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.13
• Assembled Width UOM - Imperial: in.
• Base Product ID: HCP_Plate
• Base Product Name: HCP
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 223605260928271565963393427023051915101
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 1 3/4 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.37
• Short Product Name: HIP CORNER PLATE
• Strongtie.com URL: https://www.strongtie.com/miscconnectorsforengineeredwood_engineeredwood/hcp_plate/p/hcp
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315364607
• PAL Reference: 50044315364605
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
