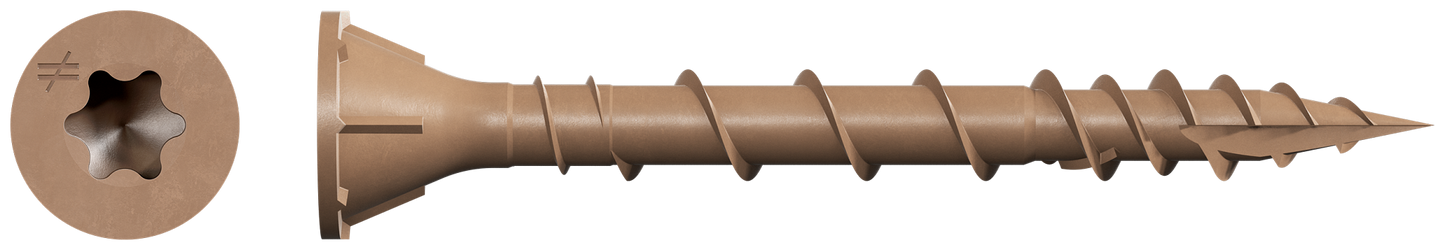

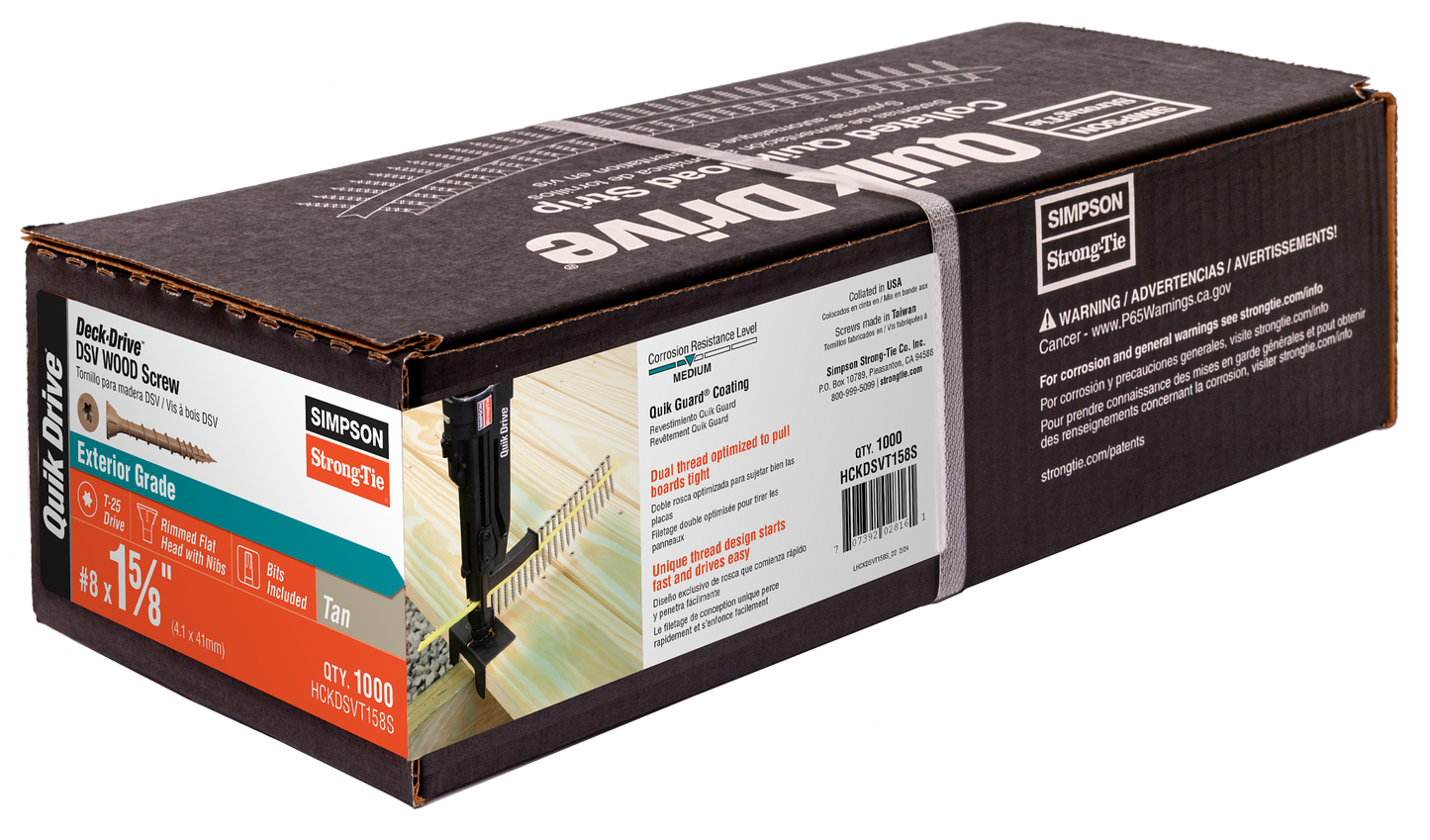

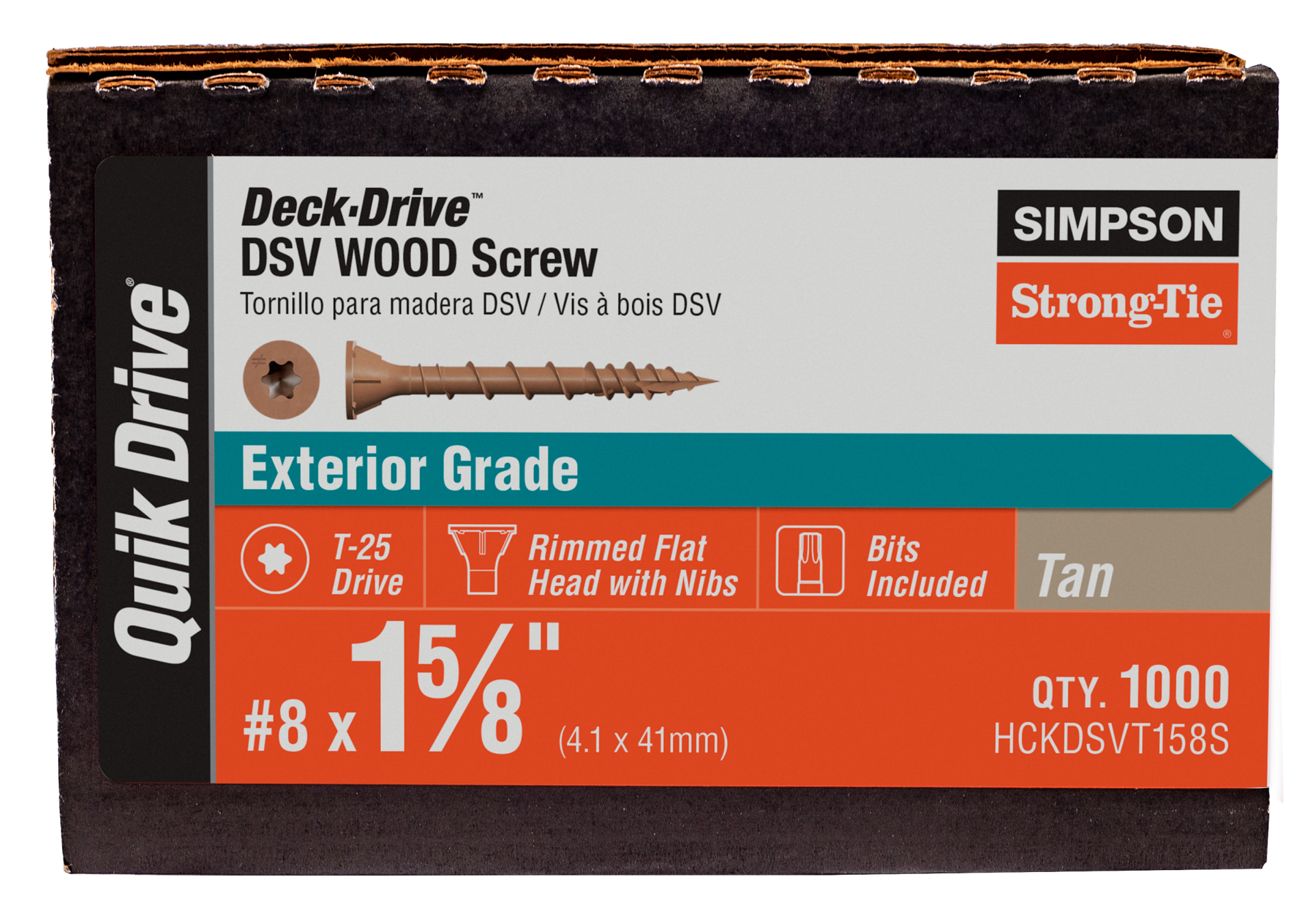

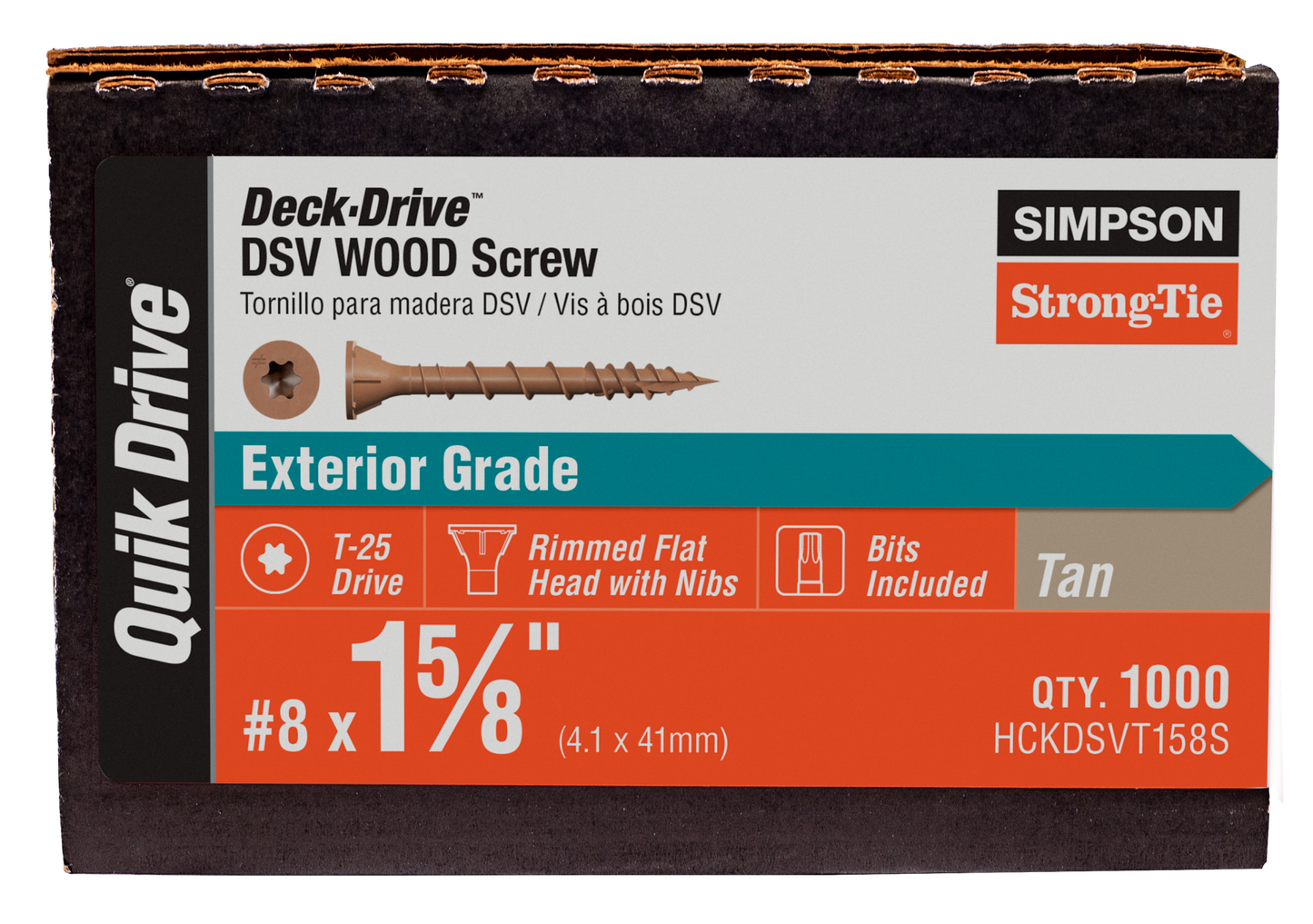

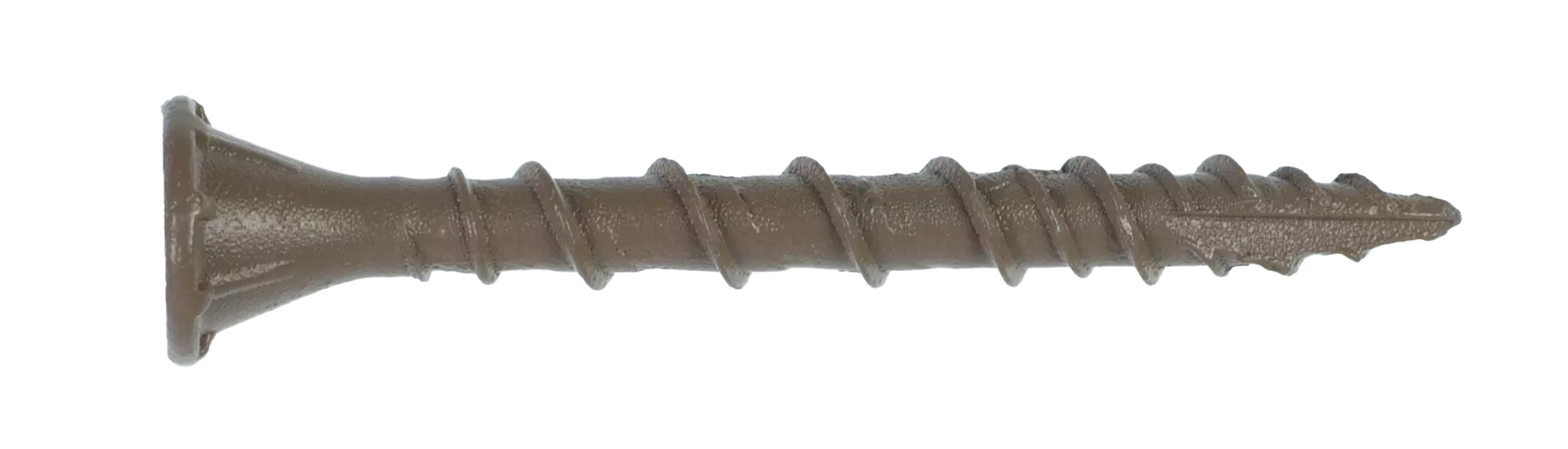

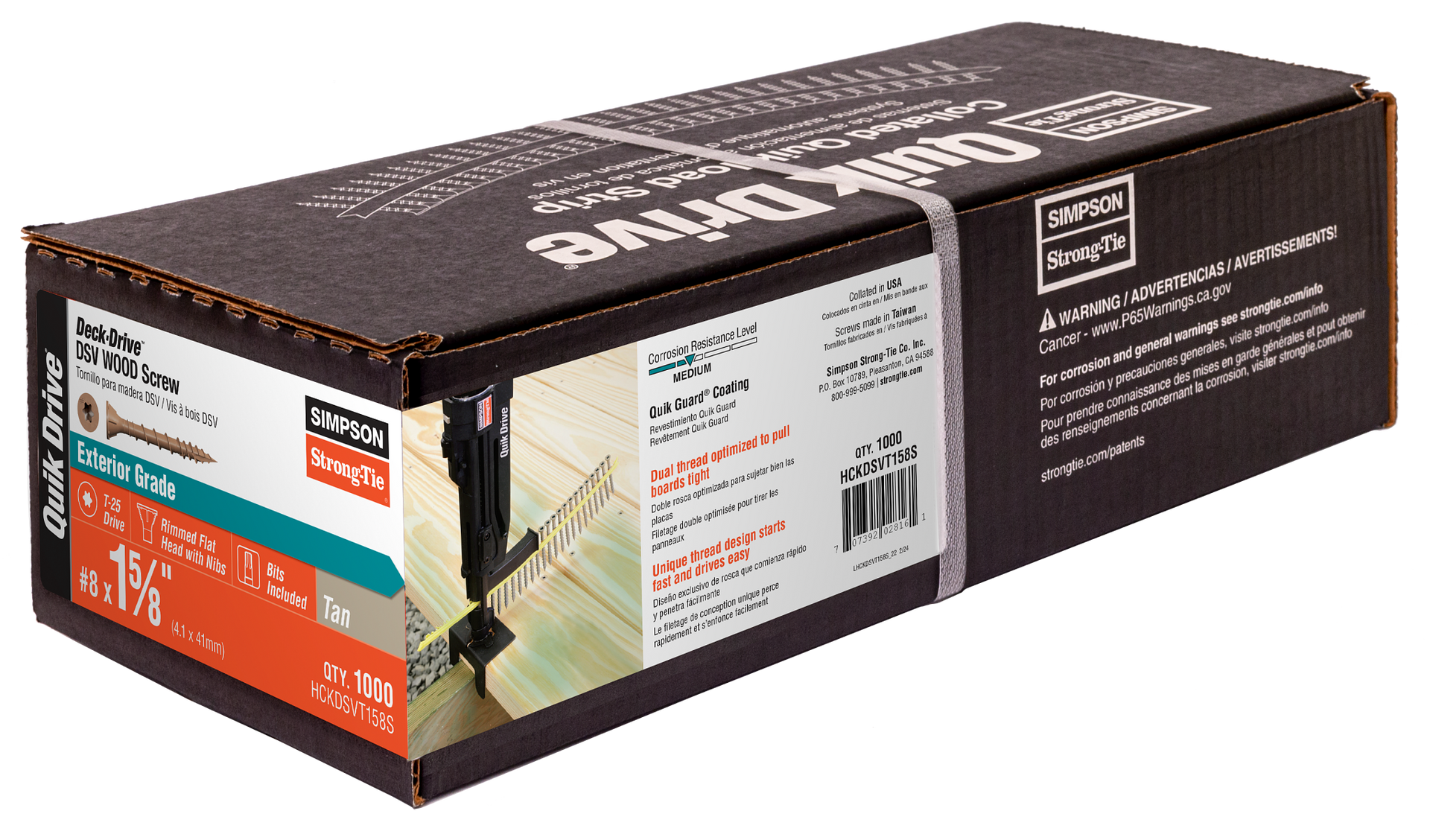

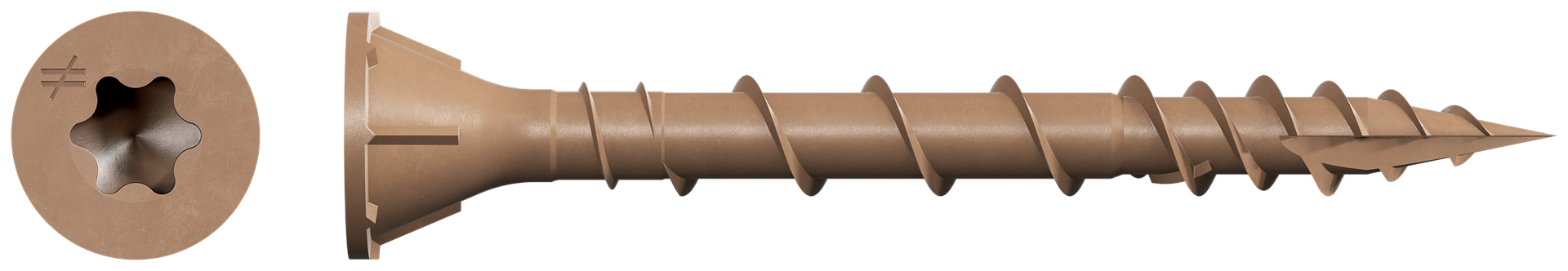

Simpson Strong-Tie HCKDSVT158S Deck-Drive™ DSV WOOD Screw (Collated) — #8 x 1-5/8 in. T25 6-Lobe, Tan (1000-Qty)

Simpson Strong-Tie HCKDSVT158S Deck-Drive™ DSV WOOD Screw (Collated) — #8 x 1-5/8 in. T25 6-Lobe, Tan (1000-Qty)

The Simpson Strong-Tie® Deck-Drive™ DSV Wood screw is a powerful fastening solution for preservative-treated decking applications. With its under-head nibs and fast-start tip, the DSV is ideally suited to be driven and countersunk into today’s wood deck boards. The shank is designed to withstand the swelling and shrinkage that is common with fast-growth lumber. DSV screws are also offered in a variety of sizes to fasten fascia and trim.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Low-torque threads
• Rimmed flat head with nibs design countersinks easily and provides a clean, finished appearance
• High-low threaded tip provides fast starts
• Optimized threads for dimensional lumber
• Quik Guard® coating provides corrosion resistance for exterior and certain preservative-treated wood applications
• Meets the performance requirements of AC257 exposure conditions 1 and 3
• T25 6-lobe drive (driver bit included)
• Dimensions: #8 x 1-5/8 in.
• Color: Tan
• Quantity: 1,000 per package

Application

• Fastening Wood-to-Wood
• Decks — Guard Rail Post to Deck
• Decks — Guard Rail Infill
• Fencing

Specifications

• ERP Part Number: HCKDSVT158S
• UPC: 707392028161
• GTIN: 707392028161
• Feature 01: Low-torque threads
• Feature 02: Rimmed flat head with nibs design countersinks easily and provides a clean, finished appearance
• Feature 03: High-low threaded tip provides fast starts
• Feature 04: Optimized threads for dimensional lumber
• Feature 05: Quik Guard® coating provides corrosion resistance for exterior and certain preservative-treated wood applications
• Feature 06: Meets the performance requirements of AC257 exposure conditions 1 and 3
• Feature 07: T25 6-lobe drive (driver bit included)
• Feature 08: Dimensions: #8 x 1-5/8 in.
• Feature 09: Color: Tan
• Feature 10: Quantity: 1,000 per package
• Install With: Installs with Simpson Strong-Tie® Quik Drive® PRO200SG2, PRO250G2 and Project Pro™ auto-feed screw driving systems and attachments
• Applications List: Fastening Wood-to-Wood
• Applications List.1: Decks — Guard Rail Post to Deck
• Applications List.2: Decks — Guard Rail Infill
• Applications List.3: Fencing
• Assembled Depth - Imperial: 0.333
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.333
• Assembled Width UOM - Imperial: in.
• Base Product ID: DSV_CScrew
• Base Product Name: Deck-Drive™ DSV WOOD Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Collated Screw
• Coating: Quik Guard® Coating
• Collation Type: Curved
• Color: Tan
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• EAN category: UC
• Finish: Quik Guard® Coating
• GUID: 165339013538983011892289553290534553389
• Head Diameter (in.): 0.333
• Head Type: Rimmed Flat Head with Nibs
• Length (in.): 1 5/8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 14
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 6
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1000
• Packaging Type: Box
• Point Type: High-Low Threaded Point
• Product Class: Collated Screw
• Product Includes: (1) T25 driver bit (model BITTX25)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #8
• Shipping Weight: 6.95
• Short Product Name: 8X1-5/8 DSVT QUIKGUARD TAN T25 1000CNT
• Strongtie.com URL: https://www.strongtie.com/deckdrive_collatedexteriorwoodscrews/dsv_cscrew/p/deck-drive-dsv-wood-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Variable Thread Design
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392028166
