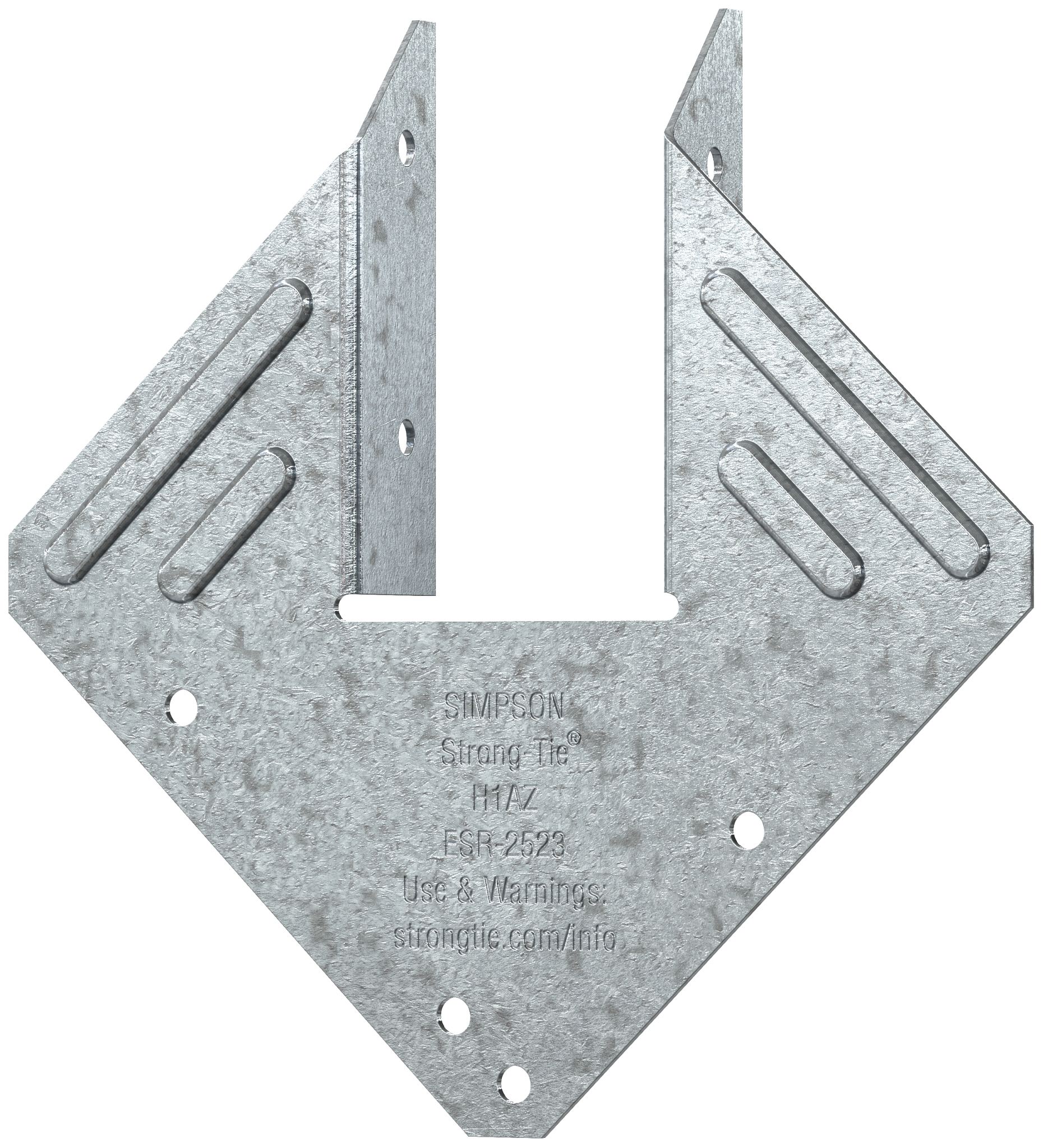

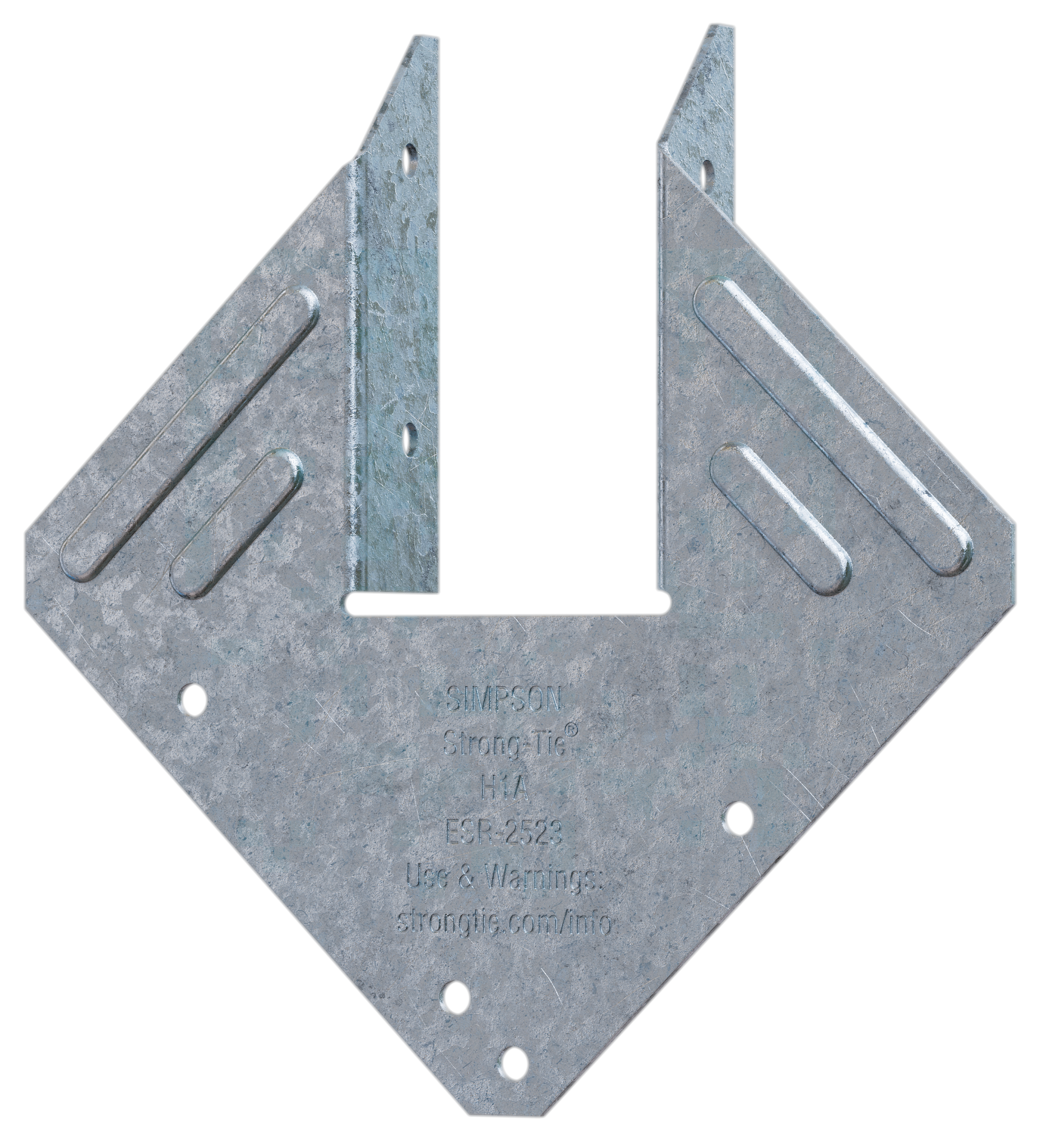

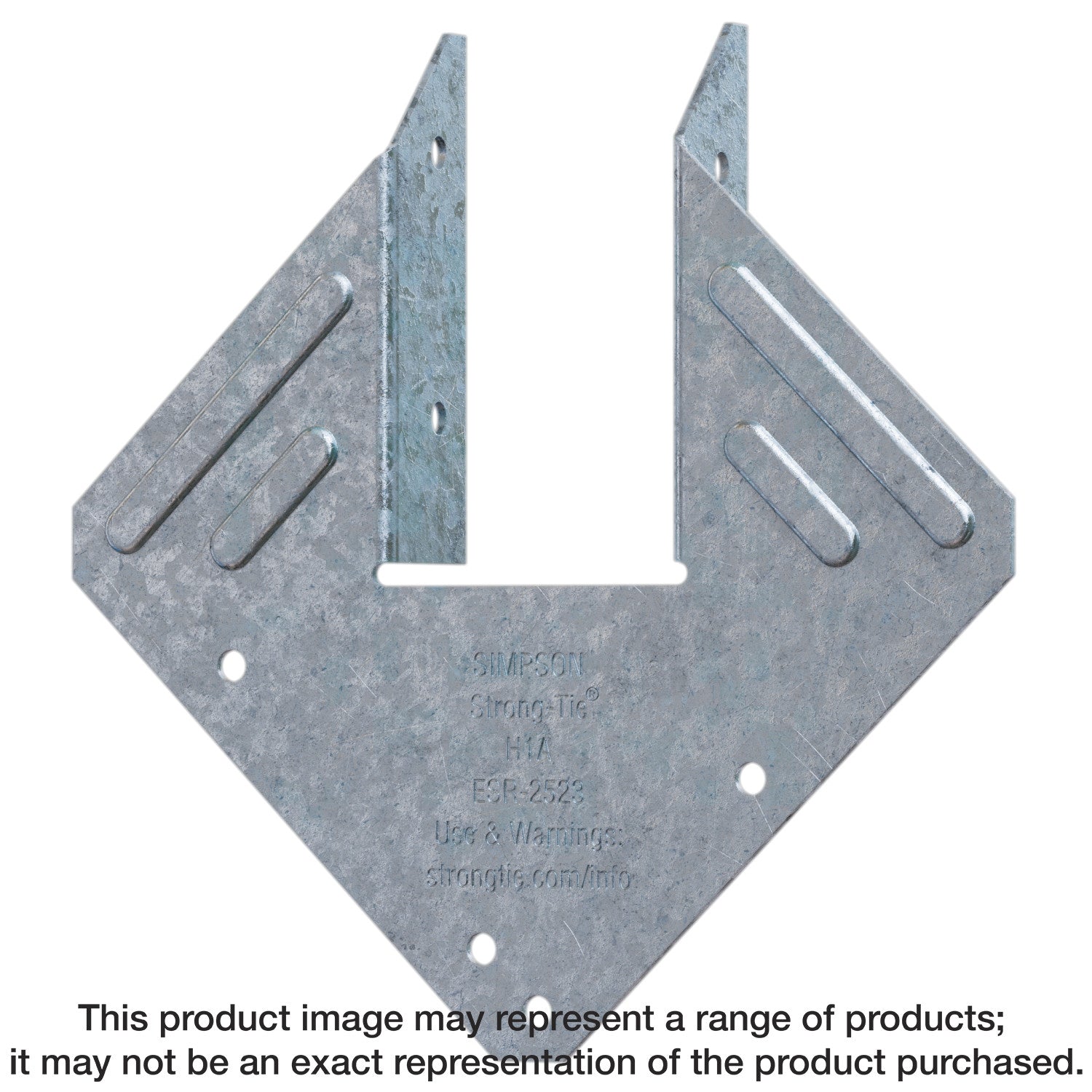

Simpson Strong-Tie H1AZ H1A 18-Gauge ZMAX® Galvanized Hurricane Tie

Simpson Strong-Tie H1AZ H1A 18-Gauge ZMAX® Galvanized Hurricane Tie

Simpson Strong-Tie® hurricane ties are designed to resist high winds and seismic forces by positively connecting trusses/rafters to the top of wall of the structure. The H1A is designed for nominal 2x lumber. This U-shaped hurricane tie provides faster installation than using two single-sided ties. The embossments add stiffness in crucial areas for improved performance.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Holds the rafter or truss on both sides for high lateral load resistance
• Can be installed on inside or outside of wall, or both sides
• Can be installed with flanges facing either inward or outward
• Provides faster installation than using two single-sided ties
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Application

• Decks — Joists Bearing on a Beam
• Fastening Wood-to-Wood
• General Framing
• High-Wind Construction
• Joists
• Rafter

Specifications

• ERP Part Number: H1AZ
• UPC: 707392019701
• GTIN: 707392019701
• Feature 01: Holds the rafter or truss on both sides for high lateral load resistance
• Feature 02: Can be installed on inside or outside of wall, or both sides
• Feature 03: Can be installed with flanges facing either inward or outward
• Feature 04: Provides faster installation than using two single-sided ties
• Feature 05: Made from 18-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: (8) 0.131 x 1-1/2 in. nails OR (8) #9 x 1-1/2 in. Strong-Drive® SD screws
• Applications List: Decks — Joists Bearing on a Beam
• Applications List.1: Fastening Wood-to-Wood
• Applications List.2: General Framing
• Applications List.3: High-Wind Construction
• Applications List.4: Joists
• Applications List.5: Rafter
• Assembled Depth - Imperial: 0.923
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.28125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.28125
• Assembled Width UOM - Imperial: in.
• Base Product ID: H1A_HTie
• Base Product Name: H1A
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Tie
• Coating: ZMAX®
• Country of Origin: ZZ
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: ZMAX®
• Gauge: 18
• GUID: 172438253623322508162981333086640068934
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.22
• Short Product Name: HURRICANE TIE ZMAX
• Strongtie.com URL: https://www.strongtie.com/seismicandhurricaneties_strapsandties/h1a_htie/p/h1a
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392019708
• PAL Reference: 50707392019706
