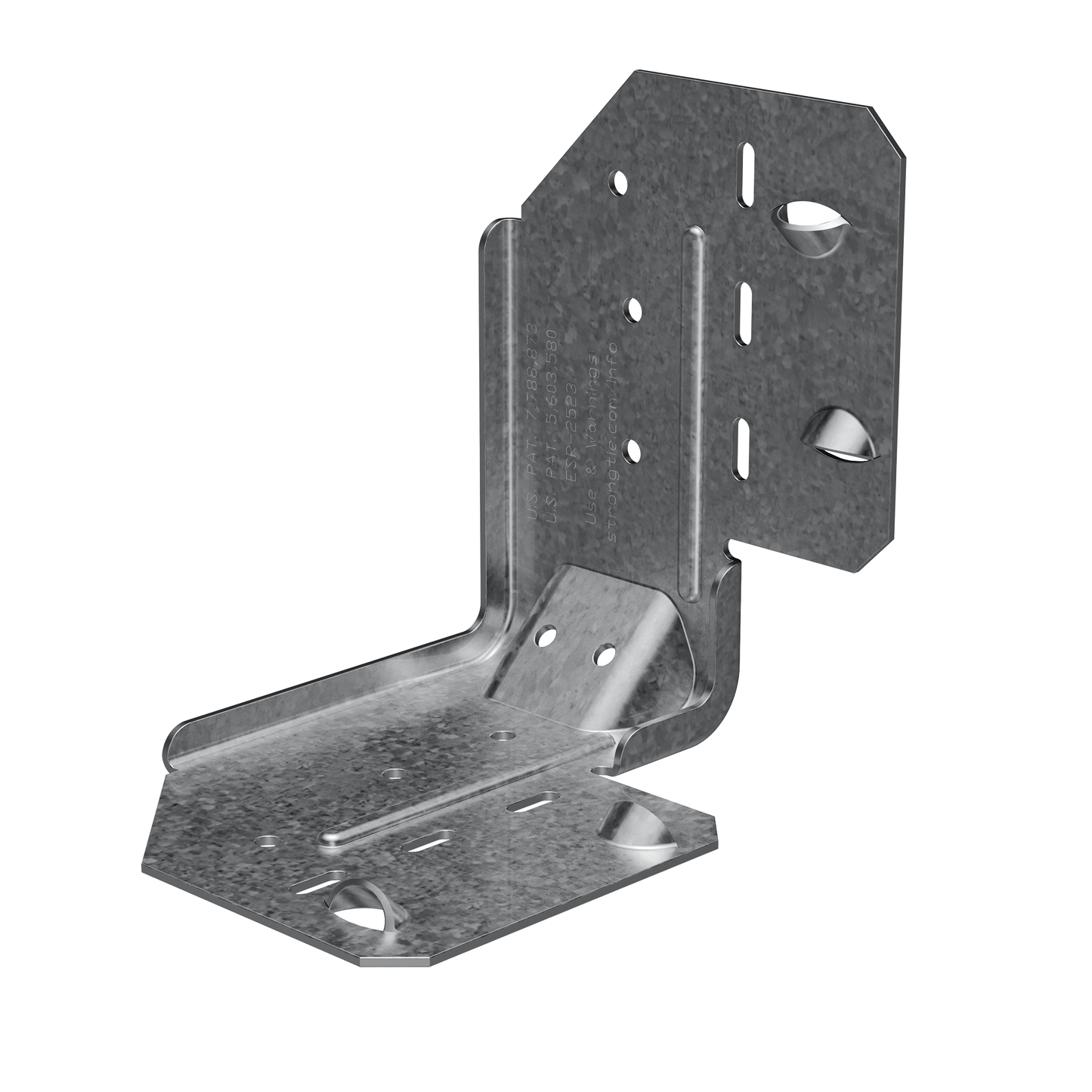

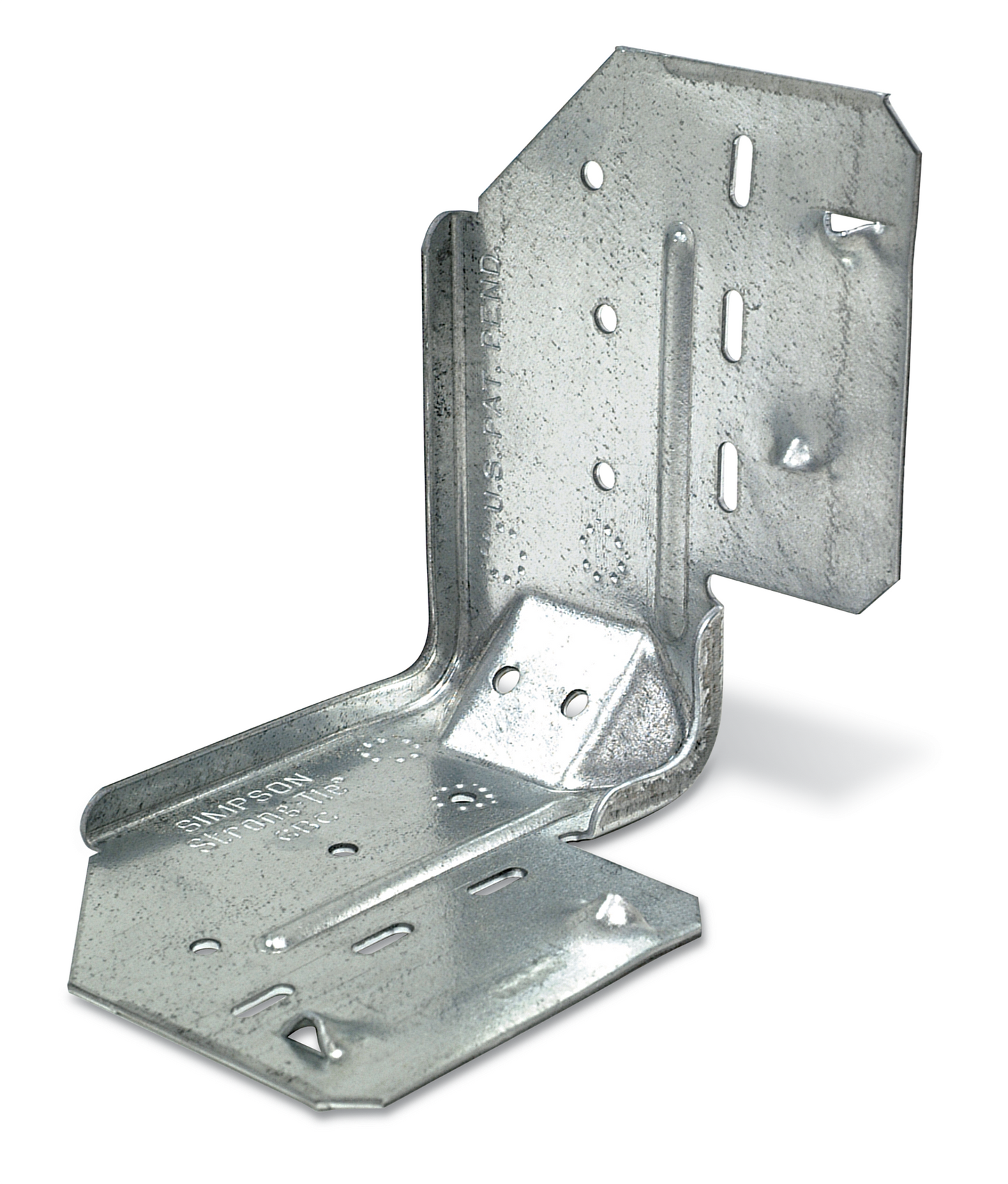

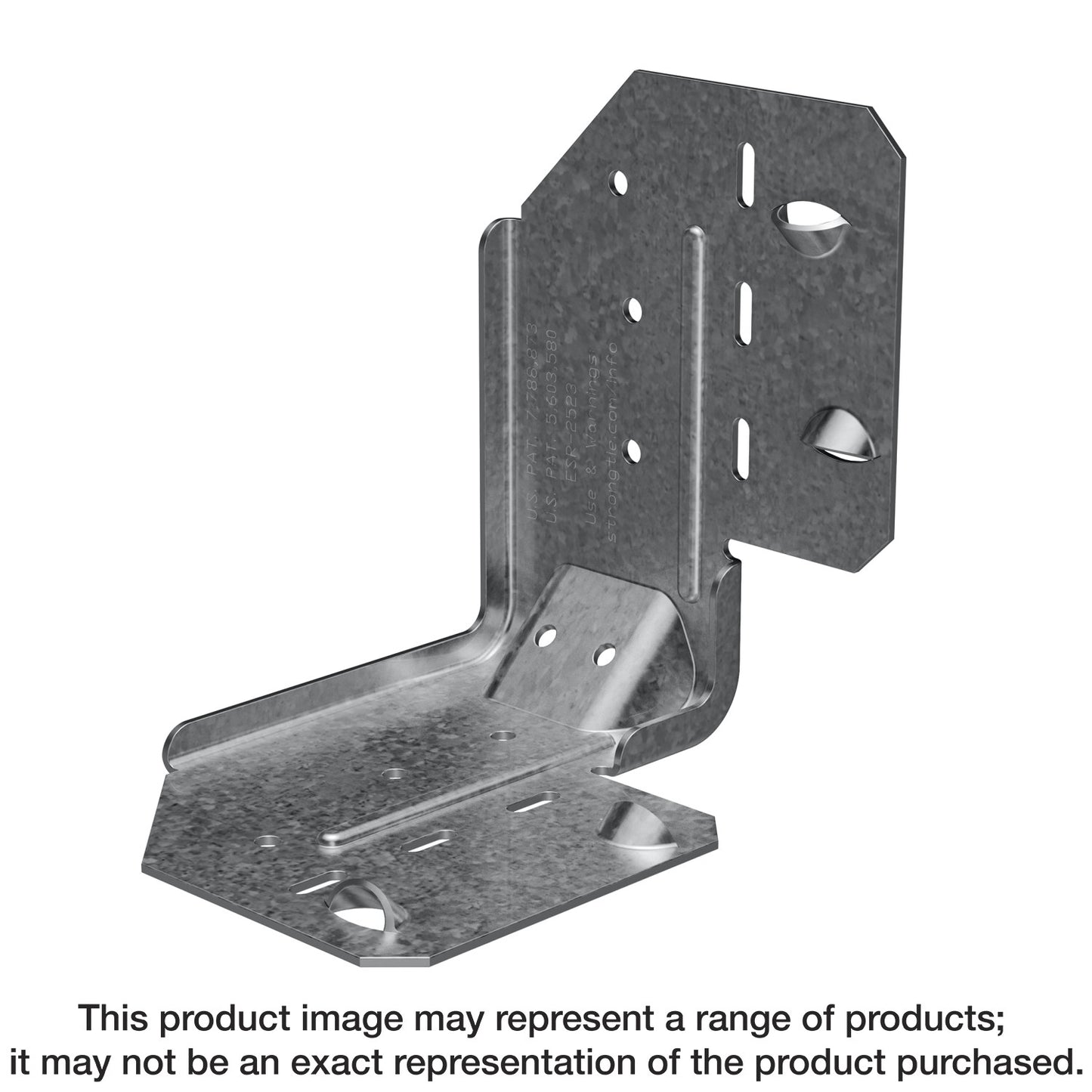

Simpson Strong-Tie GBC GBC 16-Gauge Galvanized Gable Brace Connector

Simpson Strong-Tie GBC GBC 16-Gauge Galvanized Gable Brace Connector

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. The GBC provides a proven, tested connection for the anchorage of building stability bracing to the top of the gable end wall.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Allowable bracing installation angles between 40 to 60 degrees
• Offers greater flexibility in a connector rated for both tension and compression loads
• Must be installed in pairs to achieve full load capacity
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: GBC
• UPC: 707392806301
• GTIN: 707392806301
• Feature 01: Allowable bracing installation angles between 40 to 60 degrees
• Feature 02: Offers greater flexibility in a connector rated for both tension and compression loads
• Feature 03: Must be installed in pairs to achieve full load capacity
• Feature 04: Made from 16-gauge steel
• Feature 05: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 8d common and 8d x 1-1/2 in. nails
• Assembled Depth - Imperial: 3.125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.90625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.90625
• Assembled Width UOM - Imperial: in.
• Base Product ID: GBC_Connect
• Base Product Name: GBC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 194461217203895091473825354501619473130
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.348
• Short Product Name: GABLE BRACE CONNECTOR
• Strongtie.com URL: https://www.strongtie.com/spacingrestraintandbracingproducts_platedtrussconnectors/gbc_connect/p/gbc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Connectors
• US Patents: 7,788,873
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392806308
• PAL Reference: 50707392806306
