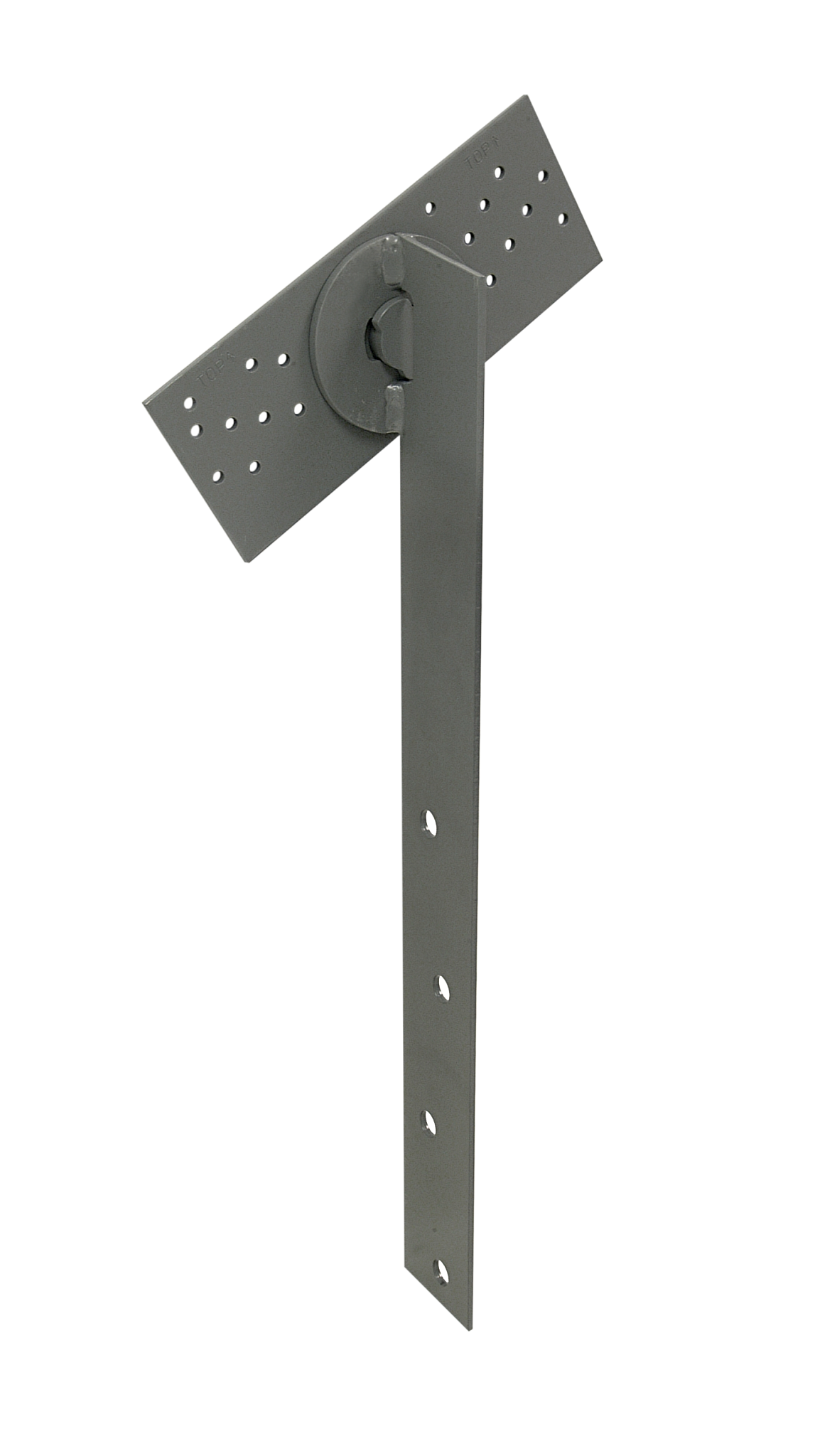

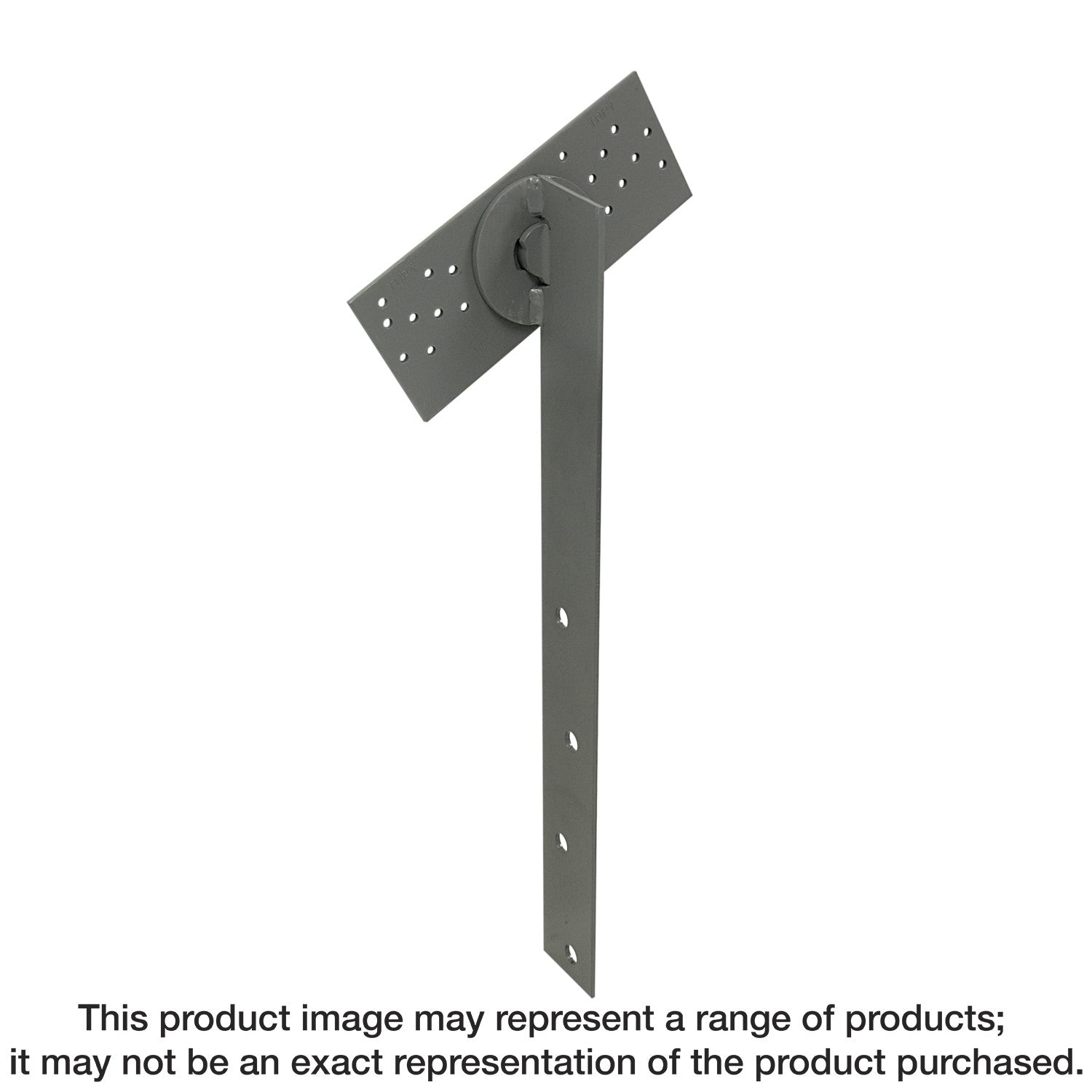

Simpson Strong-Tie FGTR FGTR Face-Mount Retrofit Girder Tiedown

Simpson Strong-Tie FGTR FGTR Face-Mount Retrofit Girder Tiedown

Simpson Strong-Tie connectors are engineered and tested to perform and are manufactured to the highest quality standards. FGTR products are moderate- to high-load capacity tiedowns for new or retrofit applications. The FGTR face-mount girder tiedown is a non-pitch-specific girder tiedown that offers the highest uplift capacity for retrofit applications. For corner hip applications, see FGTRHL/R.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed in a single application or in pairs to achieve a higher uplift capacity
• Simpson Strong-Tie Strong-Drive® SDS screws included
• Screw holes are configured to allow for double installation on a two-ply (minimum) truss
• Steel gauge: Strap 7, plate 3
• Powder-coated finish

Specifications

• ERP Part Number: FGTR
• UPC: 707392601005
• GTIN: 707392601005
• Feature 01: Can be installed in a single application or in pairs to achieve a higher uplift capacity
• Feature 02: Simpson Strong-Tie Strong-Drive® SDS screws included
• Feature 03: Screw holes are configured to allow for double installation on a two-ply (minimum) truss
• Feature 04: Steel gauge: Strap 7, plate 3
• Feature 05: Powder-coated finish
• Install With: (18) 1/4-in. x 3-in. Strong-Drive® SDS Heavy-Duty Connector screws and (2) 1/2-in. x 5-in. Titen HD® heavy-duty screw anchors (included)
• Assembled Depth - Imperial: 3.541
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 26.23875
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.875
• Assembled Width UOM - Imperial: in.
• Base Product ID: FGTR_Tiedown
• Base Product Name: FGTR
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Tie
• Coating: Powder Coating, Gray
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Powder Coating, Gray
• Gauge: Strap 7; plate 3
• GUID: 68163212434332443544248582139560146567
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Product Includes: (18) 1/4-in. x 3-in. Strong-Drive® SDS Heavy-Duty Connector screws and (2) 1/2-in. x 5-in. Titen HD® heavy-duty screw anchors
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 9.5
• Short Product Name: FACE MOUNT GIRDER TIEDOWN - RETROFIT
• Strongtie.com URL: https://www.strongtie.com/girdertiedownsformasonry_trusstiedownsformasonry/fgtr_tiedown/p/fgtr
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392601002
• PAL Reference: 50707392601000
