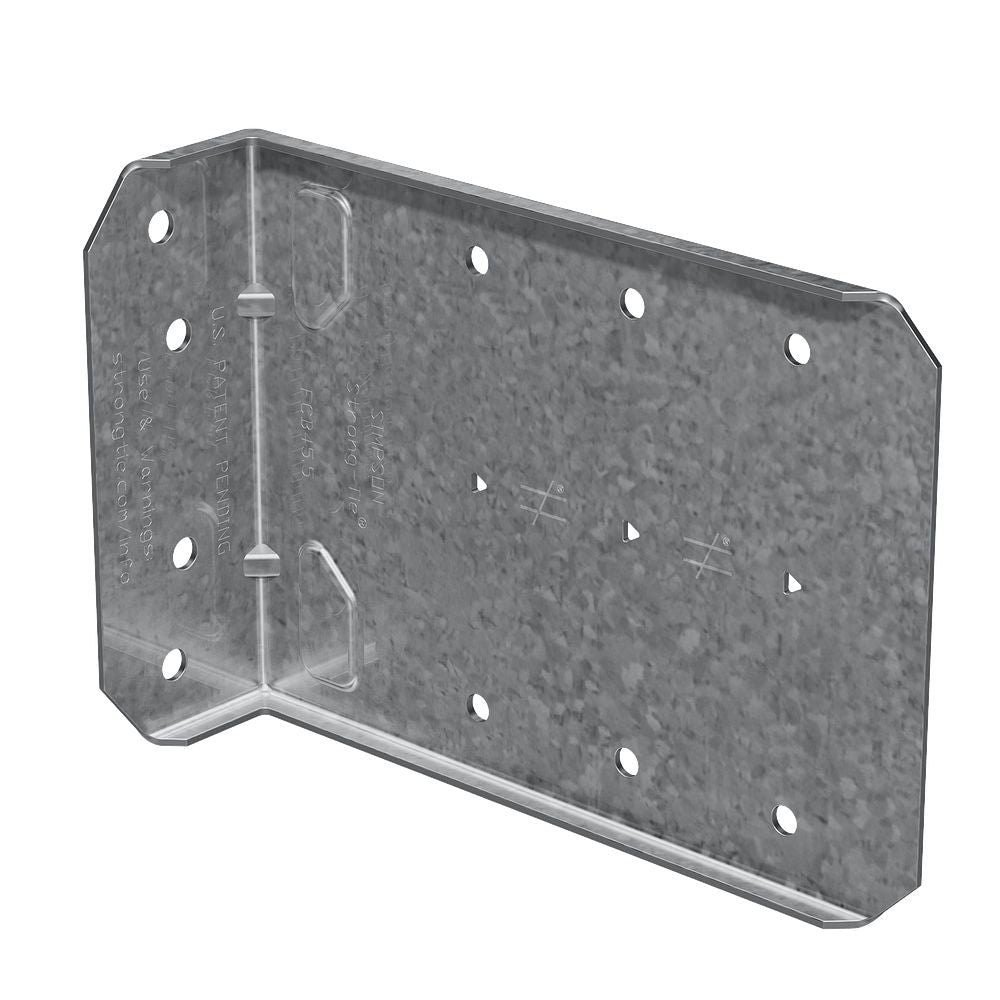

Simpson FCB45.5-R25 By-Pass Framing Fixed Clip Connector - 25/Pack

Simpson FCB45.5-R25 By-Pass Framing Fixed Clip Connector - 25/Pack

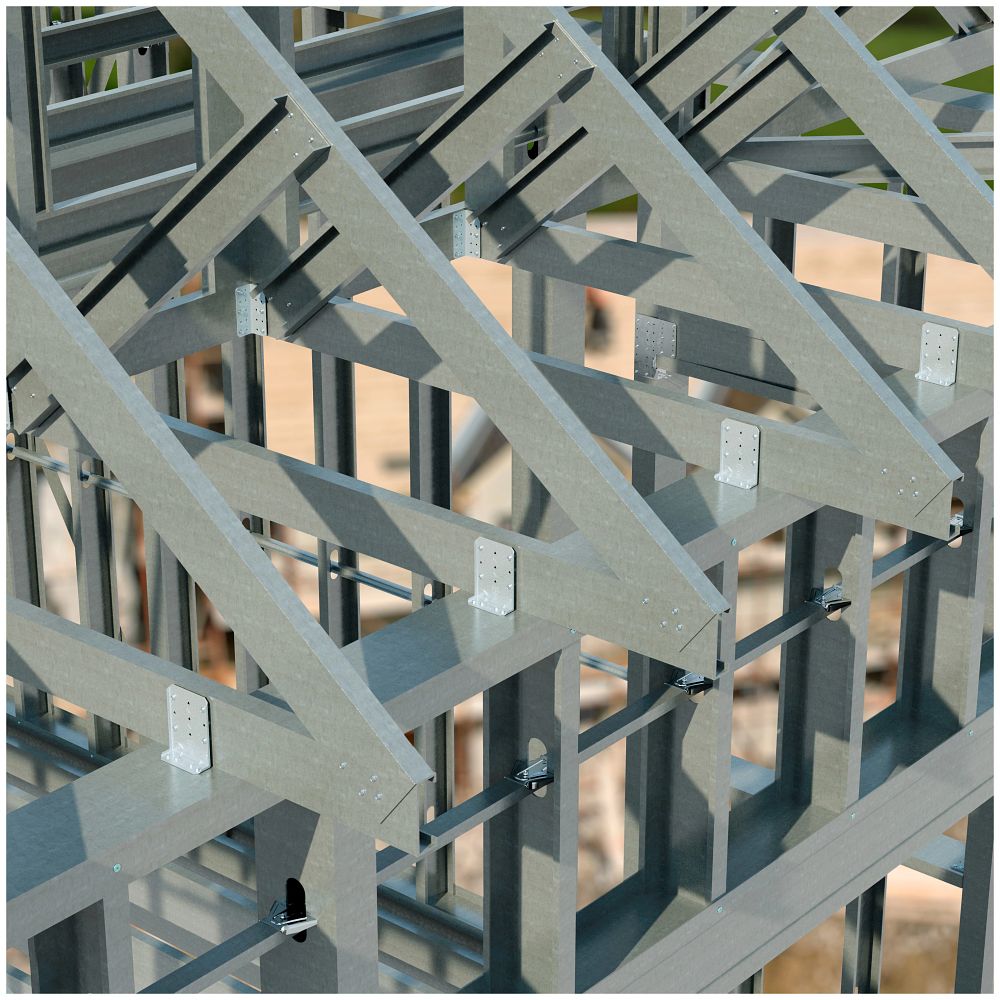

With more than 50 years of experience in product design, testing and manufacturing, Simpson Strong-Tie provides comprehensive structural solutions for cold-formed steel construction. From steel-to-steel connections to full-scale lateral solutions and curtain wall connectors, we remain committed to developing new technology that helps to advance the cold-formed steel industry. The FCB clip is an economical, high-performance fixed-clip connector that can be used for a variety of framing applications. It is rated for tension, compression and shear loads and offers the designer the flexibility of specifying different screw and anchorage patterns that conform to desired load levels.

This Simpson Strong-Tie product is designed for demanding construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation are important. It belongs to the Cold-Formed Steel Connectors product family. It includes a Zinc Galvanized, G90 finish for added durability. Use the information below to confirm the correct SKU, UPC, dimensions, finish, material, packaging, application, fastening details, code references, and other available Simpson product specifications before ordering.

Features

• Rated for tension, compression, shear and in-plane loads
• Provides design flexibility with varying screw and anchorage patterns that achieve different load levels
• Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Length: 5-1/2 inches
• Made from 54 mil (16-gauge) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25 per package

Specifications

• ERP Part Number: FCB45.5-R25
• UPC: 707392807100
• GTIN: 707392807100
• Feature 01: Rated for tension, compression, shear and in-plane loads
• Feature 02: Provides design flexibility with varying screw and anchorage patterns that achieve different load levels
• Feature 03: Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Feature 04: Length: 5-1/2 inches
• Feature 05: Made from 54 mil (16-gauge) steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Feature 07: Quantity: 25 per package
• Install With: Install with (4–9) #12 self-drilling screws to CFS framing
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: FCB_Clip
• Base Product Name: FCB/MFCB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 171415351813677275212466483946430231273
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.38
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.81
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 12.6
• Short Product Name: BY-PASS FIXED CLIP 4IN X 5.5IN 25PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/fcb_clip/p/fcb.mfcb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 8,555,592
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392807105
