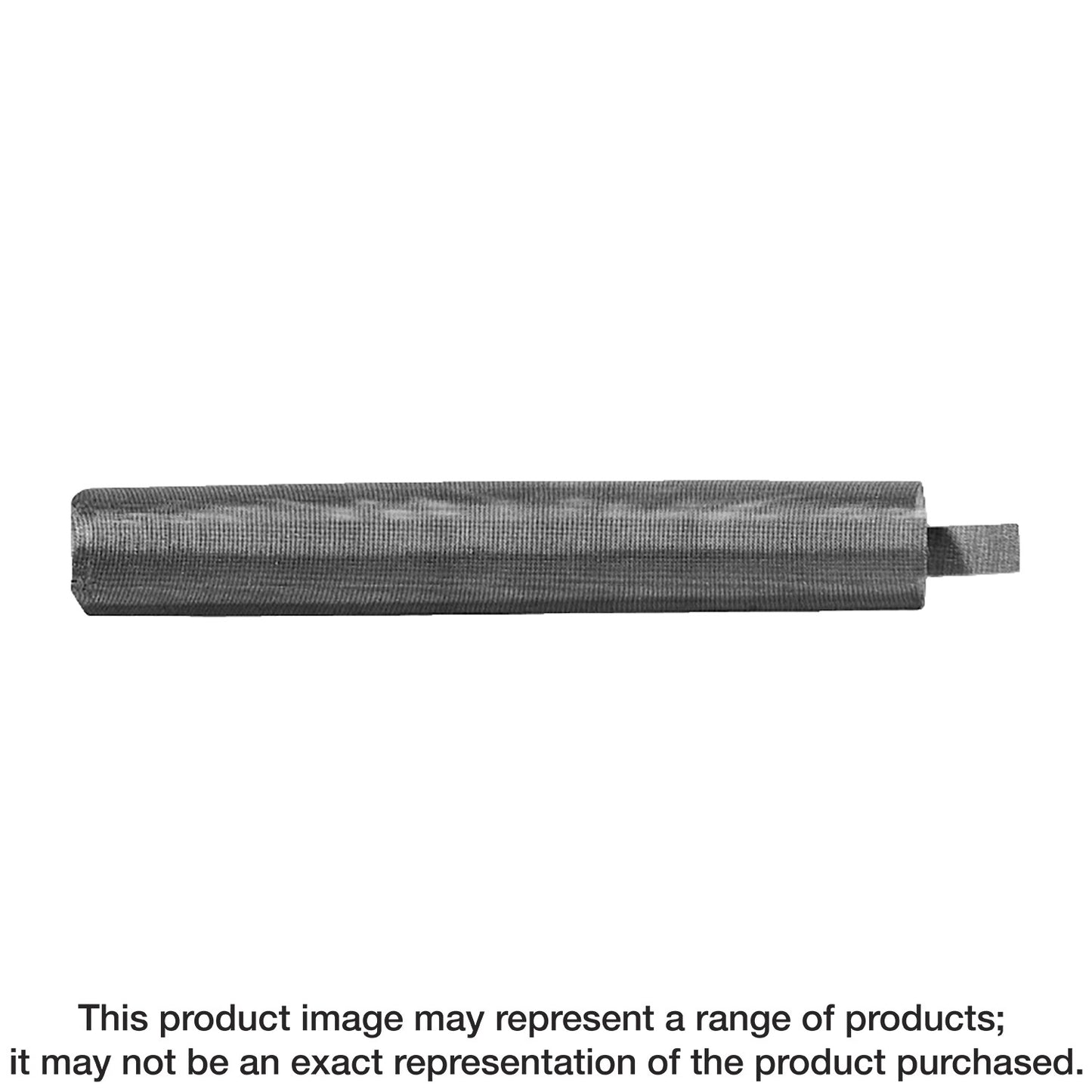

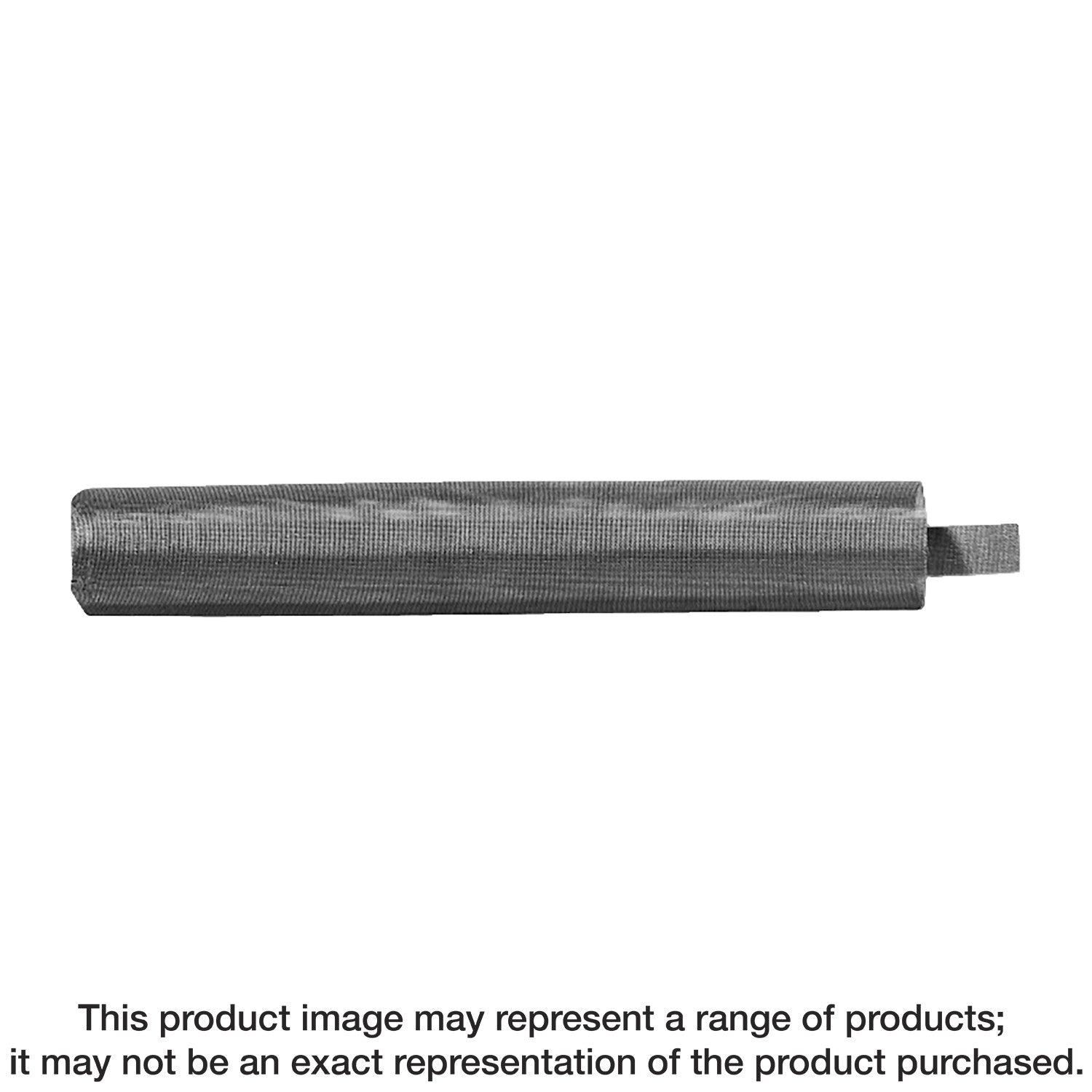

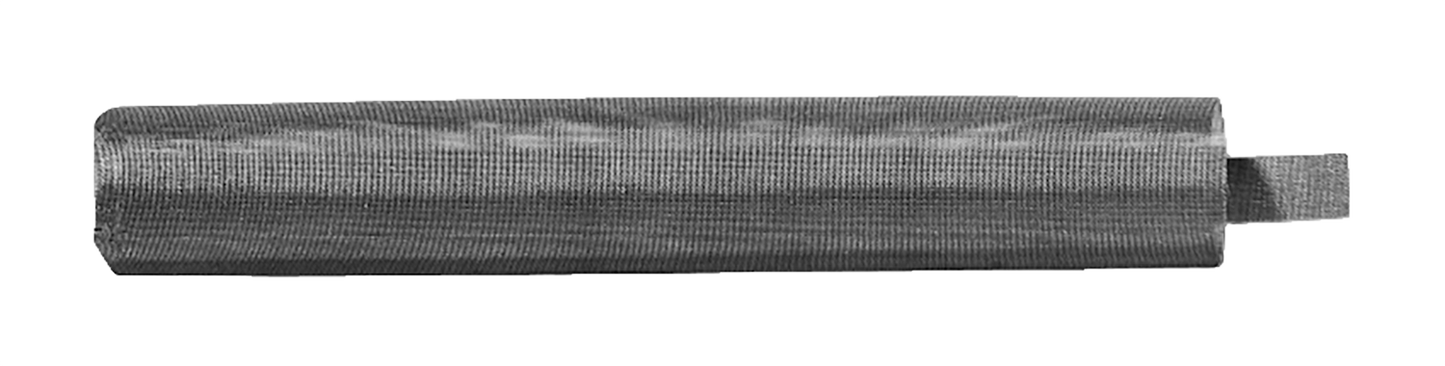

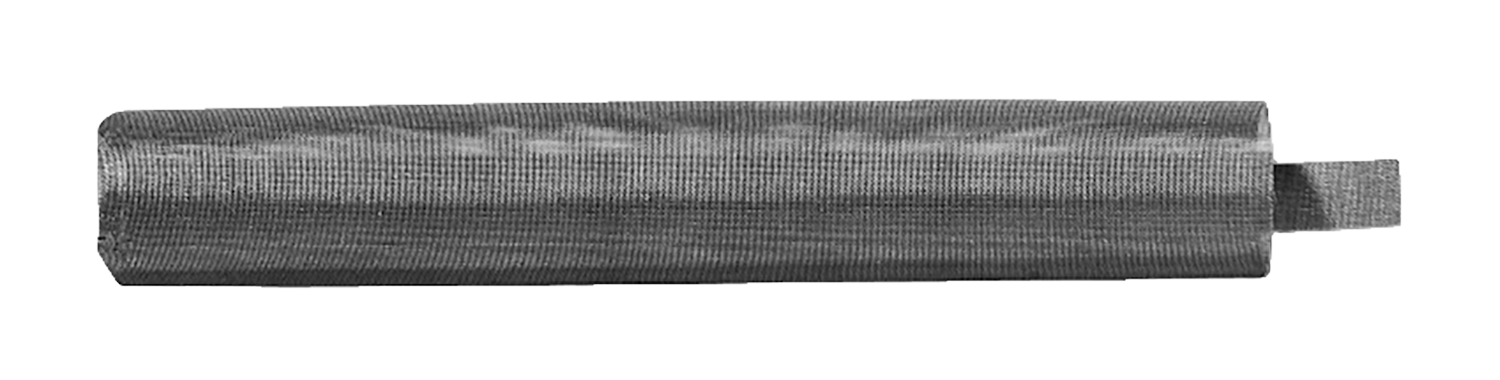

Simpson Strong-Tie ETS6213 13-in. Steel Epoxy-Adhesive Screen Tube for 5/8-in. Rod

Simpson Strong-Tie ETS6213 13-in. Steel Epoxy-Adhesive Screen Tube for 5/8-in. Rod

Simpson Strong-Tie makes dispensing adhesives easier than ever by providing a variety of manual and pneumatic tools as well as accessories designed to make dispensing adhesive as efficient as possible. Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. These epoxy-adhesive screen tubes are specifically designed to work with Simpson Strong-Tie® ET-3G™ adhesive in order to precisely control the amount of adhesive that passes through the mesh. This results in thorough coating and bonding of the rod to the screen tube and base material.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Caution: Screen tubes are designed for a specific adhesive type
• This epoxy screen tube must be used with ET-3G formulations
• For 5/8-in. rod diameter
• Hole size: 7/8 in.
• Length: 13 in.
• Made from 60 mesh carbon steel

Specifications

• ERP Part Number: ETS6213
• UPC: 44315955006
• GTIN: 44315955006
• Feature 01: Caution: Screen tubes are designed for a specific adhesive type
• Feature 02: This epoxy screen tube must be used with ET-3G formulations
• Feature 03: For 5/8-in. rod diameter
• Feature 04: Hole size: 7/8 in.
• Feature 05: Length: 13 in.
• Feature 06: Made from 60 mesh carbon steel
• Install With: For use with Simpson Strong-Tie ET-3G™ epoxy adhesive
• Assembled Depth - Imperial: 13
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.8535
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.8535
• Assembled Width UOM - Imperial: in.
• Base Product ID: Steel_ScreenTube
• Base Product Name: Steel Adhesive-Anchoring Screen Tubes
• Bolt/Rod Diameter (in.): 5/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Adhesive Anchoring Accessories > Screen Tube
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 25/32
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Carbon Steel
• GUID: 247377242971733035134054887461661887713
• Hole Diameter (in.): 7/8
• Length (in.): 13
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Screen Tube
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.018
• Short Product Name: SCREEN TUBE 13IN LONG 60 MESH FOR 5/8 RD
• Strongtie.com URL: https://www.strongtie.com/screentubes_adhesiveanchoringaccessories/steel_screentube/p/steel-adhesive-anchoring-screen-tubes
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Adhesive Anchoring Accessories
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315955003
