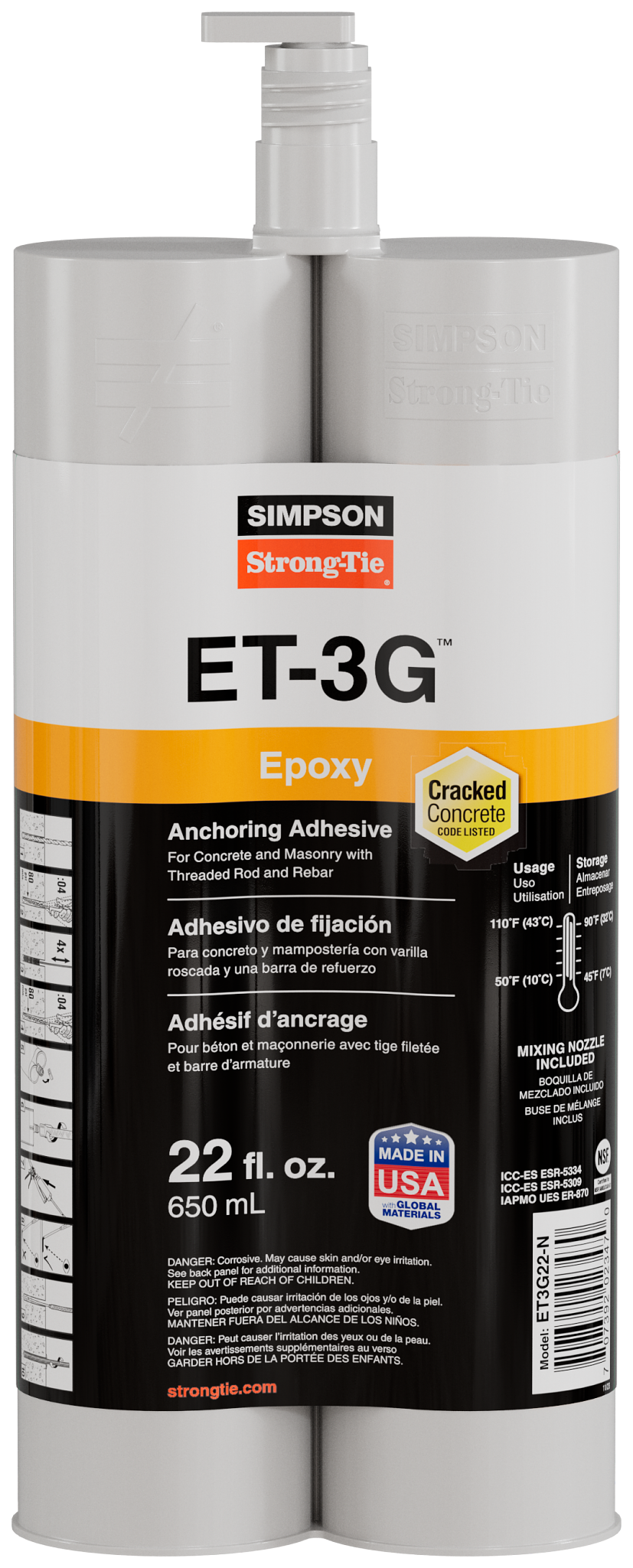

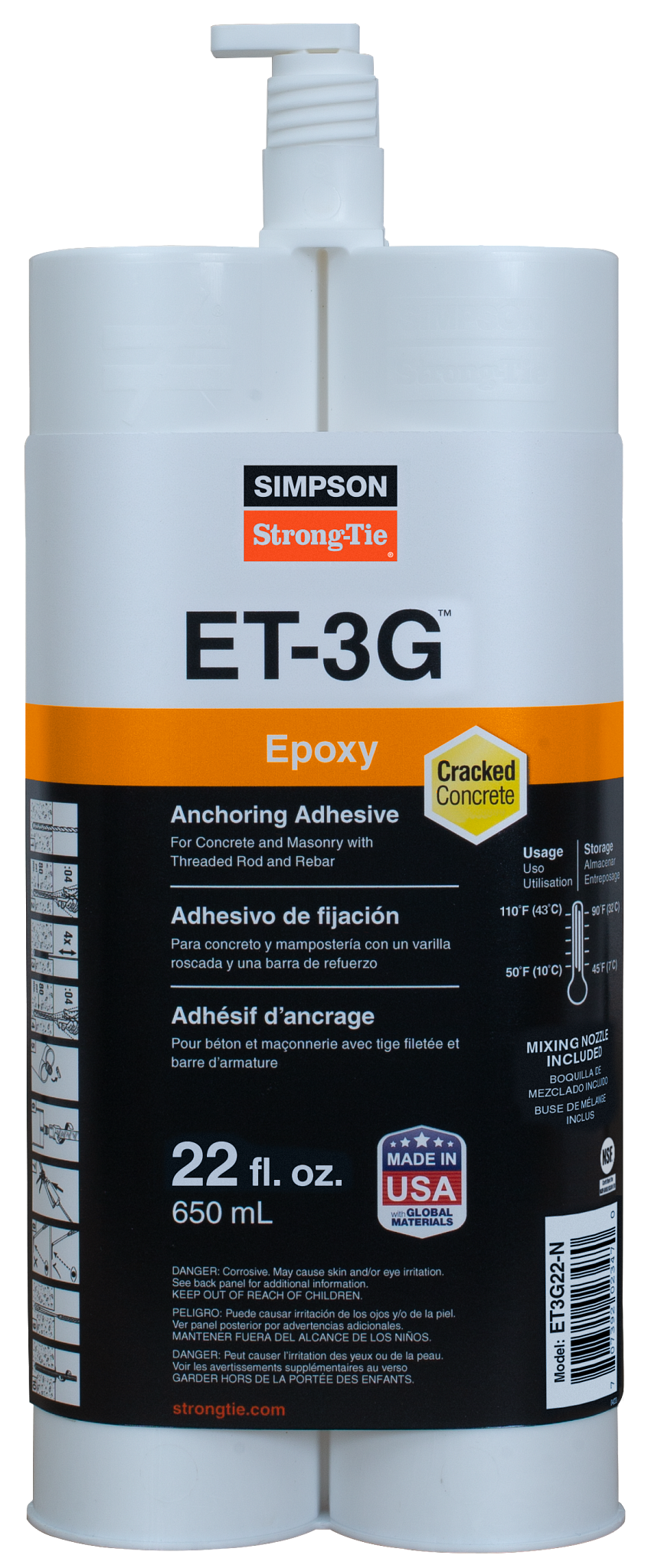

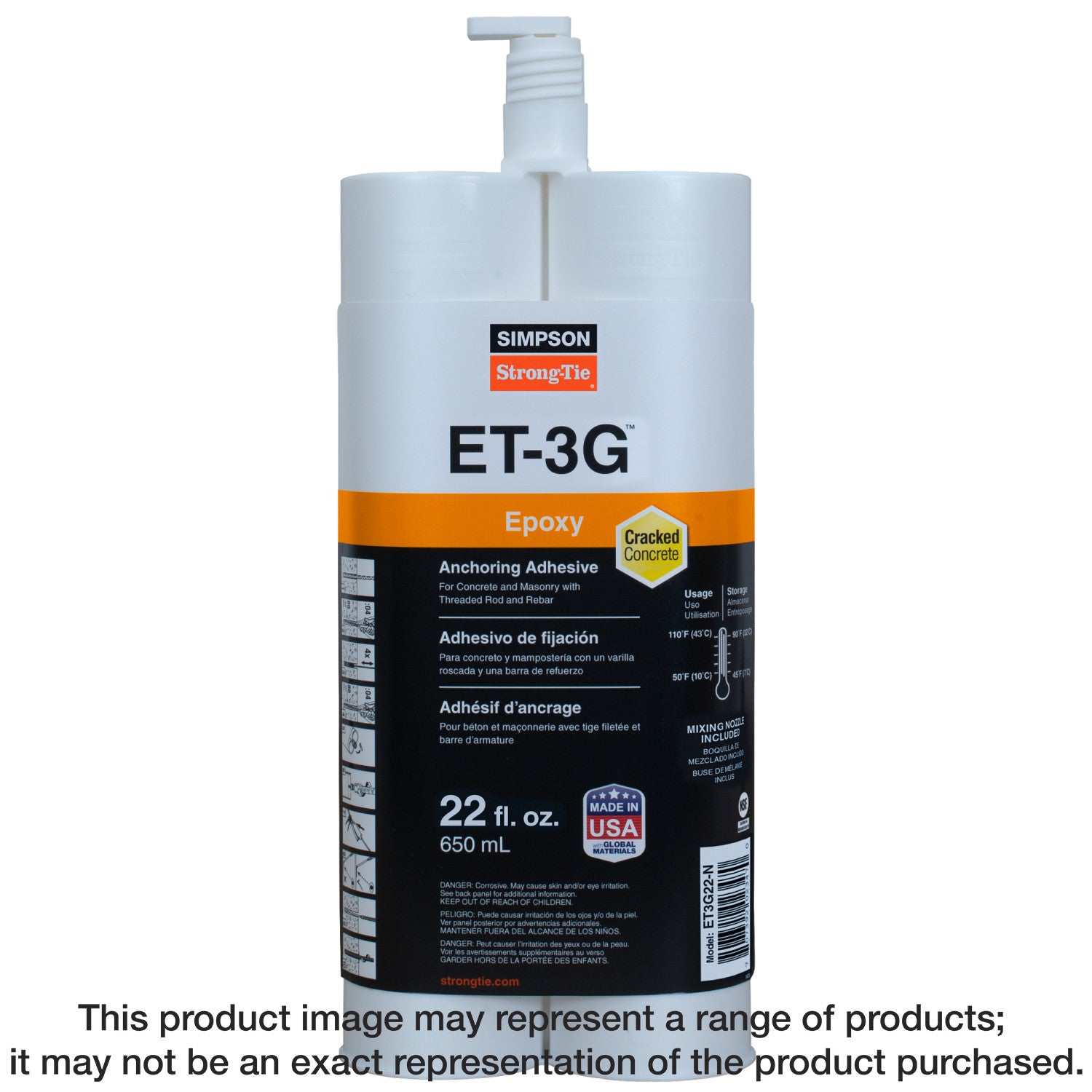

Simpson Strong-Tie ET3G22-N ET-3G™ 22 oz. Epoxy Adhesive Cartridge w/ Nozzle and Extension

Simpson Strong-Tie ET3G22-N ET-3G™ 22 oz. Epoxy Adhesive Cartridge w/ Nozzle and Extension

Simpson Strong-Tie® ET-3G™ is a two-component, high-solids, epoxy-based system ideal for general anchoring of threaded rod and rebar into concrete (cracked and uncracked) and masonry (cracked and uncracked). ET-3G has a long working time — 50 min at 70°F (21°C), and can be applied in dry or damp conditions. The adhesive is a teal color when mixed properly and has a substrate installation temperature range from 50°F (10°C) to 110°F (43°C). Simpson Strong-Tie epoxy anchors for concrete and masonry are rigorously tested to meet IBC requirements, including for both cracked and uncracked concrete applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Ideal for general doweling and threaded rod applications
• Extended working times at elevated temperatures
• Code listed under the IBC/IRC for cracked and uncracked concrete per ICC-ES ESR-5334
• Two-year shelf life for unopened cartridges stored between 45°F (7°C) and 90°F (32°C)
• Easy hole cleaning — no power-brushing required
• Suitable for use in dry or water-saturated concrete
• Manufactured in the USA using global materials
• 22-oz. side-by-side cartridge with (1) mixing nozzle and (1) extension
• Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions; modification or improper use of mixing nozzle may impair ET-3G adhesive performance

Specifications

• ERP Part Number: ET3G22-N
• UPC: 707392023470
• GTIN: 707392023470
• Feature 01: Ideal for general doweling and threaded rod applications
• Feature 02: Extended working times at elevated temperatures
• Feature 03: Code listed under the IBC/IRC for cracked and uncracked concrete per ICC-ES ESR-5334
• Feature 04: Two-year shelf life for unopened cartridges stored between 45°F (7°C) and 90°F (32°C)
• Feature 05: Easy hole cleaning — no power-brushing required
• Feature 06: Suitable for use in dry or water-saturated concrete
• Feature 07: Manufactured in the USA using global materials
• Feature 08: 22-oz. side-by-side cartridge with (1) mixing nozzle and (1) extension
• Feature 09: Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions; modification or improper use of mixing nozzle may impair ET-3G adhesive performance
• Install With: Install using the EDT22S, EDTA22P or EDTA22CKT dispensing tools and EMN22i mixing nozzle
• Assembled Depth - Imperial: 2.0625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 23.0625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: ET-3G_Adhesive
• Base Product Name: ET-3G™
• Brand Name: Simpson Strong-Tie®
• Capacity: 22 oz.
• Category Tree (Computed): Concrete Connectors and Anchors > Epoxy Anchoring Adhesives > Adhesive
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 101266326836752772579209862423373444699
• Hazardous Material Classification: 8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 2.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 10.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.0625
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Cartridge
• Product Class: Adhesive
• Product Includes: (1) EMN22i mixing nozzle and (1) nozzle extension are supplied with each cartridge
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including Crystalline Silica, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.4
• Short Product Name: 22 OZ ET-3G W/ 1 NOZZLE AND EXTENSION
• Strongtie.com URL: https://www.strongtie.com/epoxyanchoringadhesives_adhesives/et-3g_adhesive/p/et-3g
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Epoxy Anchoring Adhesives
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392023474
• PAL Reference: 70707392023479
• InfoGraphics: https://images.salsify.com/image/upload/s--XUP_CQYm--/613e678fcbf27d14940ef52ea915062f2d3e8a15.png
• InfoGraphics.1: https://images.salsify.com/image/upload/s--MSIJGdk2--/d062eca7d4140774dffeb30419ef045a5744e013.png
• InfoGraphics.2: https://images.salsify.com/image/upload/s--EgY3SDTZ--/c55c286f907047c4090c5861d52fd8f384751cd0.png
• InfoGraphics.3: https://images.salsify.com/image/upload/s--cEhd7Vdf--/dcdc228d502bd7e7b1248da856c11f64026b1509.png
