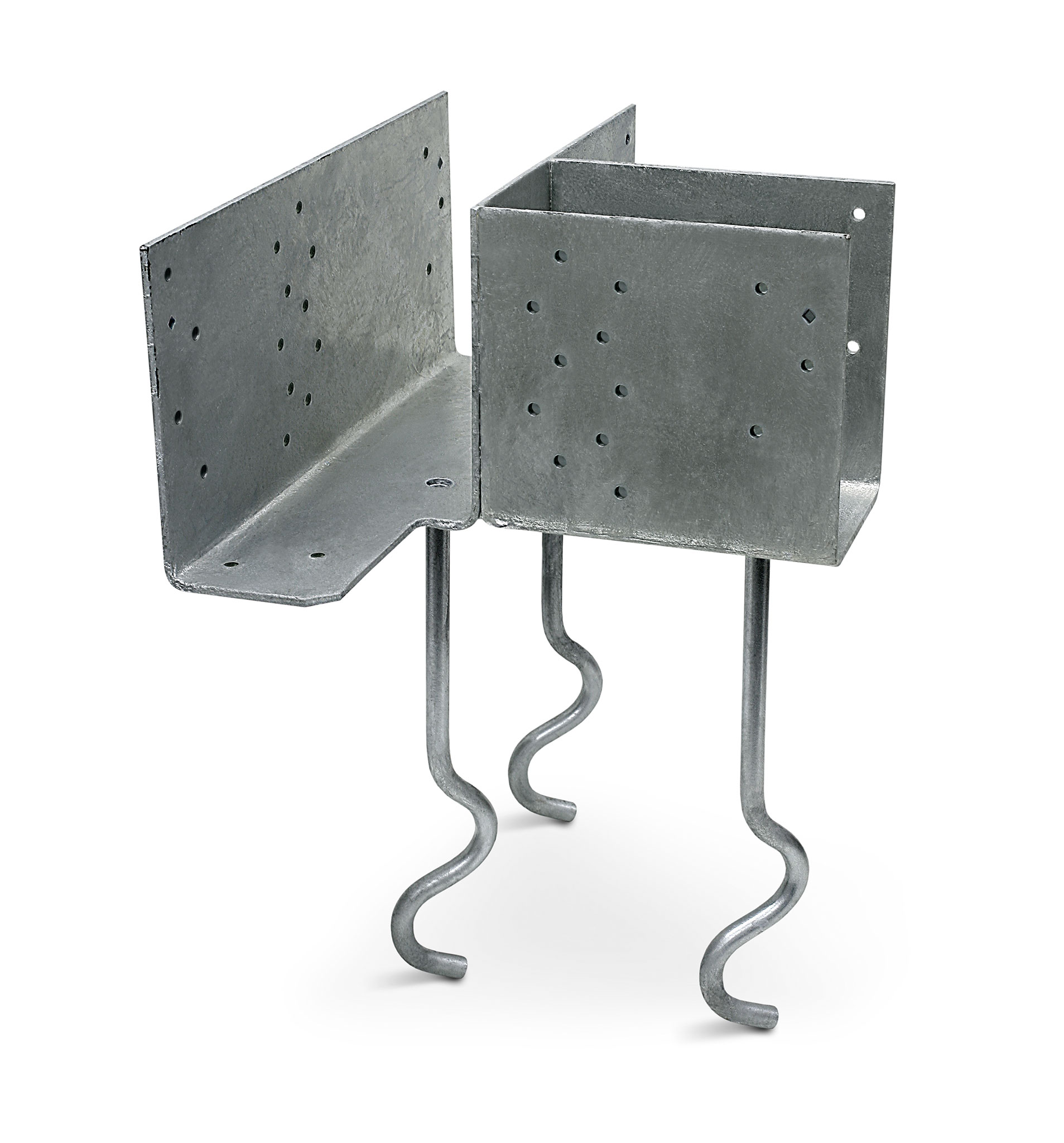

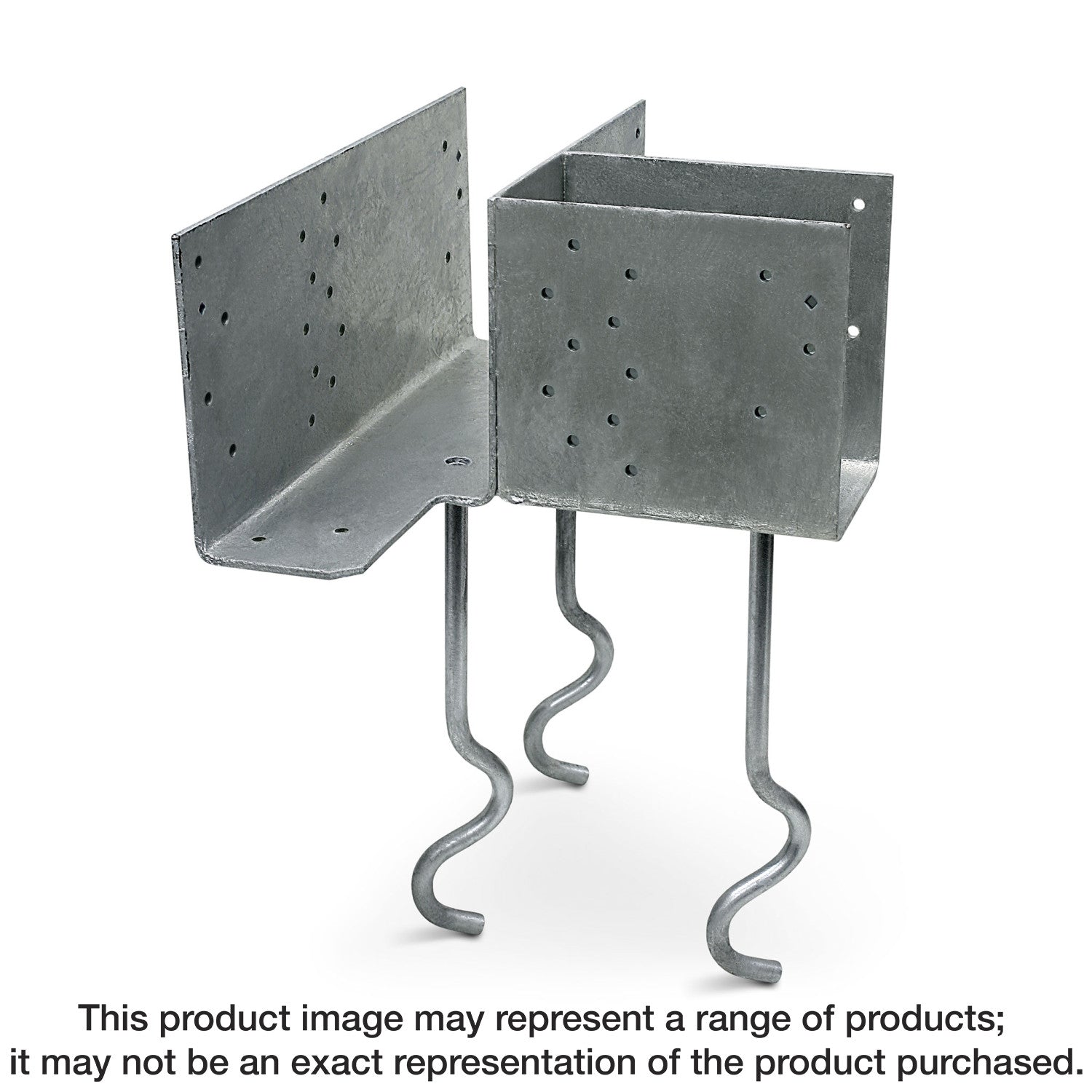

Simpson Strong-Tie ECCLLQMD3.62G-KT ECCLQMD™ Hot-Dip Galvanized L-Shape Embedded Column Cap for 3-5/8 in Beam, Skewed Left

Simpson Strong-Tie ECCLLQMD3.62G-KT ECCLQMD™ Hot-Dip Galvanized L-Shape Embedded Column Cap for 3-5/8 in Beam, Skewed Left

ECCLQM embedded column caps are designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seats and unique SSTB-style anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQMD is a variation that incorporates an additional seat to support a third member at the corner connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Ideal for applications where a member is needed off the corner of the structure, such as a deck joist/beam.
• Left direction. Order ECCLRQMD for right direction.
• Main channel width: 3-5/8 in.
• Main channel length: 16-1/2 in.
• Made from 7-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: ECCLLQMD3.62G-KT
• UPC: 707392733409
• GTIN: 707392733409
• Feature 01: Ideal for applications where a member is needed off the corner of the structure, such as a deck joist/beam.
• Feature 02: Left direction. Order ECCLRQMD for right direction.
• Feature 03: Main channel width: 3-5/8 in.
• Feature 04: Main channel length: 16-1/2 in.
• Feature 05: Made from 7-gauge steel
• Feature 06: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Base Product ID: ECCLQMD_Cap
• Base Product Name: ECCLQMD™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Hot-Dip Galvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Hot-Dip Galvanized
• Gauge: 7
• GUID: 16117280277774411349770212759743168298
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Product Class: Column Cap
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 33
• Short Product Name: L-SHAPE LEFT W/DECK TAB HDG
• Strongtie.com URL: https://www.strongtie.com/columncapsforcmuandconcretepiers_masonryconnectors/ecclqmd_cap/p/ecclqmd
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
