Simpson Strong-Tie EB316WDR275 EB-TY® EB316W Premium Hidden Deck Fastener™ w/ 2-1/4 in. Type 305 Screws (275-Qty) (Pack of 64)

Simpson Strong-Tie EB316WDR275 EB-TY® EB316W Premium Hidden Deck Fastener™ w/ 2-1/4 in. Type 305 Screws (275-Qty) (Pack of 64)

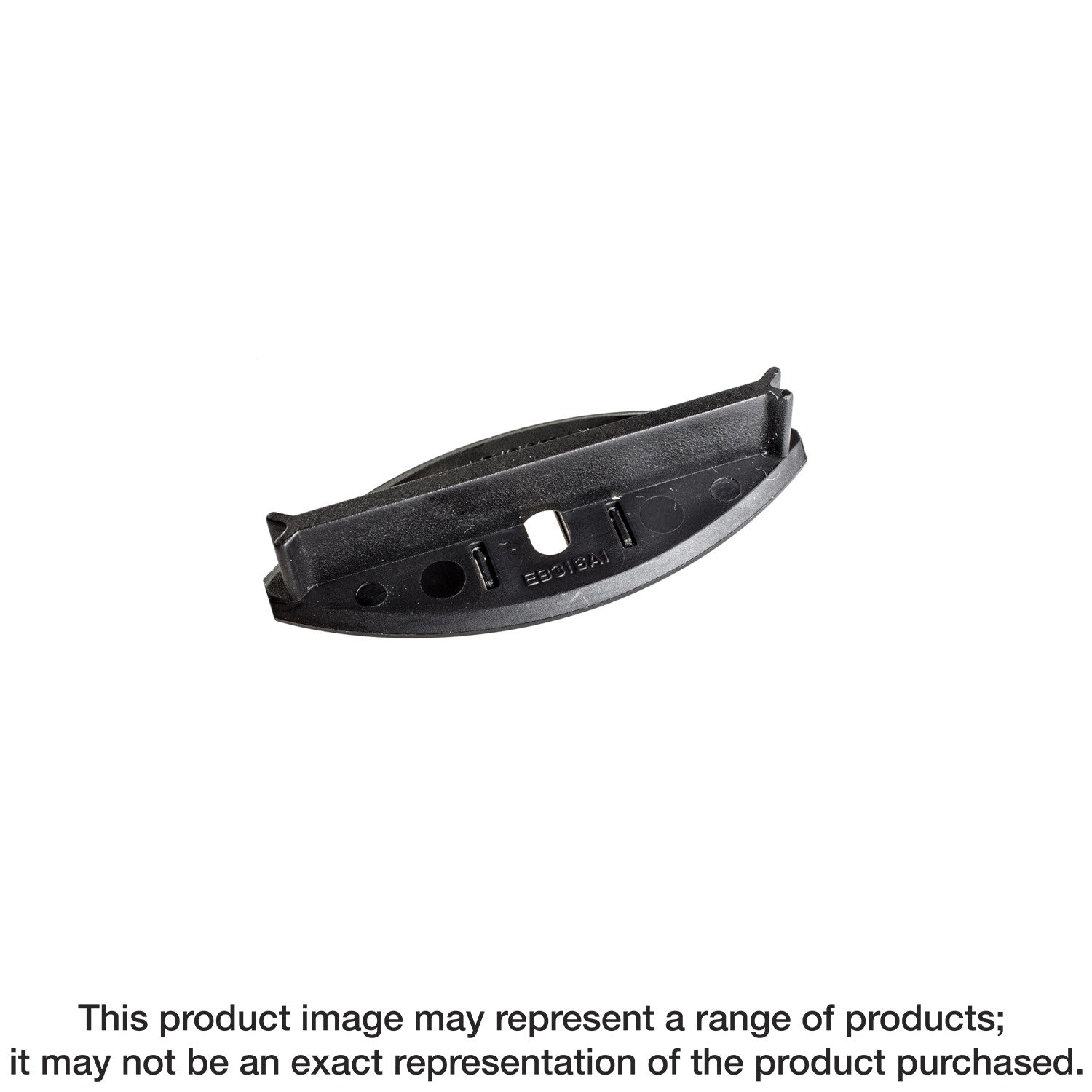

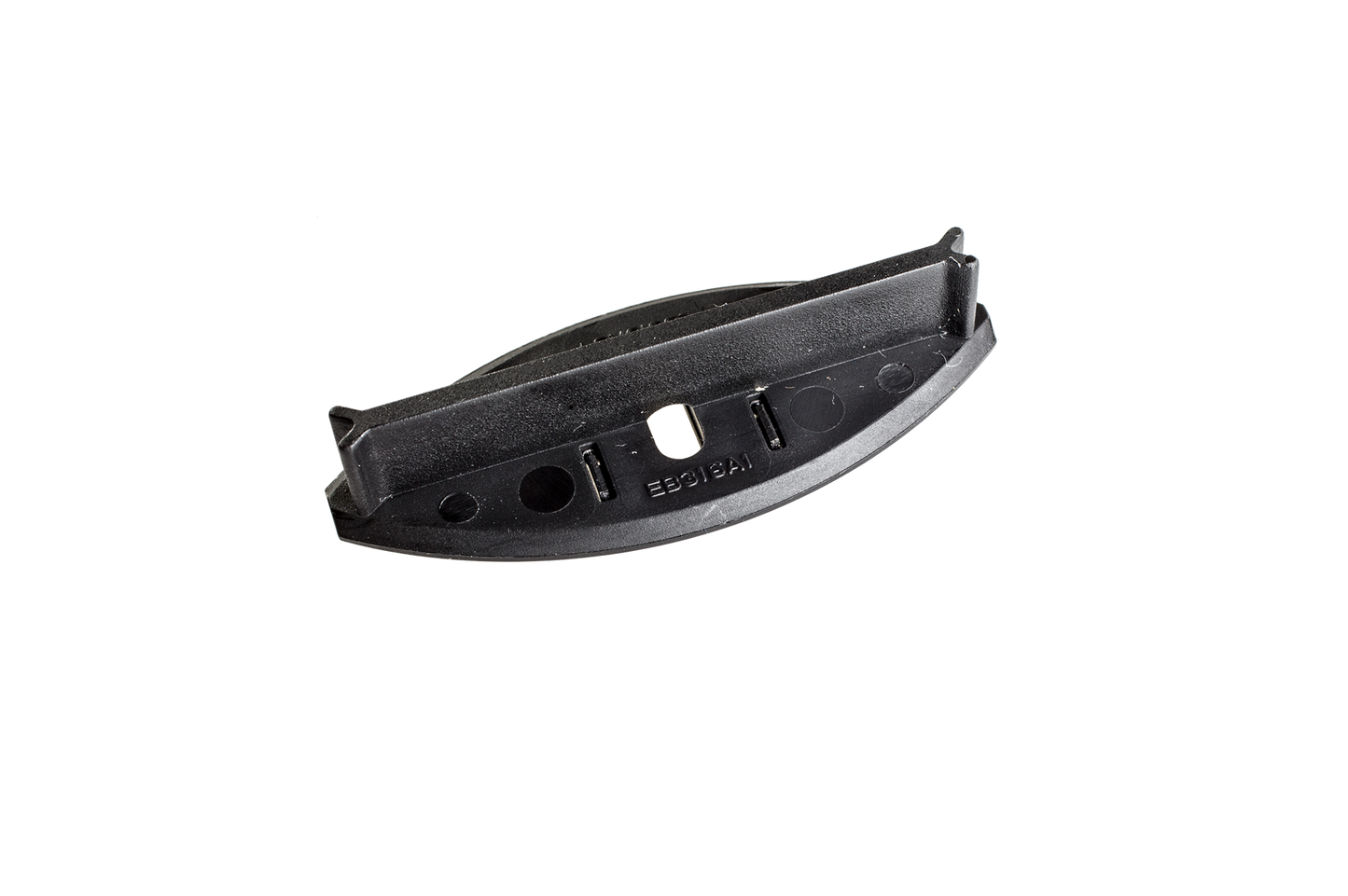

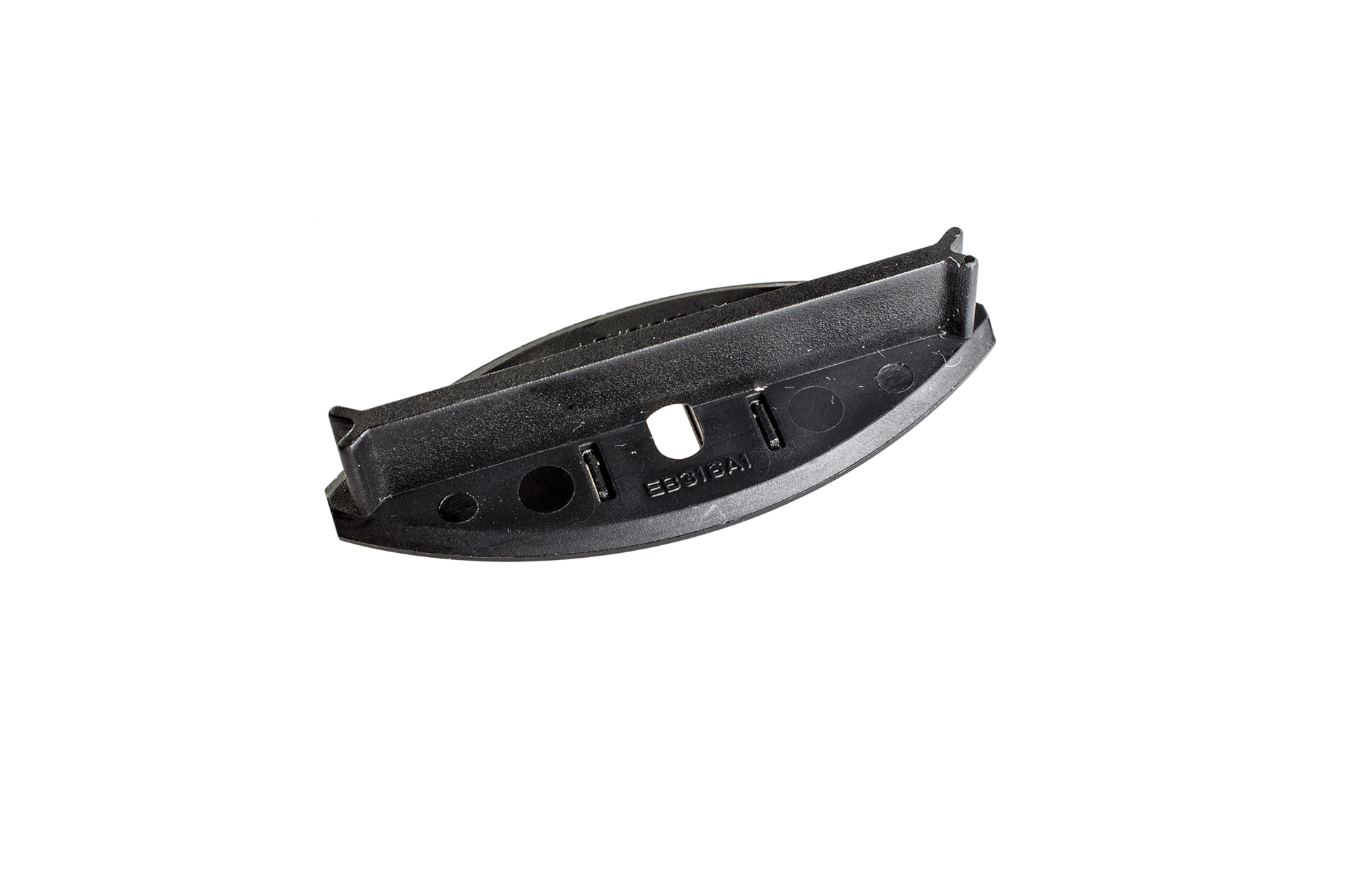

The EB-TY Premium Hidden Deck-Fastening System is the ideal solution that blends strength with ease of installation in a fastener that won't detract from the deck's finished appearance. Simpson Strong-Tie has redesigned the award-winning EB-TY Hidden Deck-Fastening System by integrating a Type 300 series stainless-steel reinforcing plate that adds stiffness to hold boards in place securely, yet maintains flexibility when seasonal contraction and expansion occur. Combine this innovative new design with our EB-GUIDE predrilling tool (included), and you have a system that not only provides hidden strength, but is also easy to install.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Patented EB-GUIDE predrill guide provides precise fastener angle alignment for consistent biscuit installations
• Stainless-steel reinforced biscuit provides strength and increased pullover resistance
• Underside keel provides consistent fastener positioning
• Radius sides and chamfered edges provide easier alignment and faster installation
• Type 305 stainless-steel trim-head, 6-lobe screws with black-painted heads provide a concealed finish and blend in with EB-TY biscuit
• Decking thickness: 3/4 in.
• Spacing requirement: 3/16 in.
• Use for 3/4-in. or greater kiln-dried decking with moisture content less than air dry (approx. 19%)
• Includes: EB-TY Premium biscuits, stainless-steel screws, Ipê plugs for first and last board installations, EB-GUIDE predrilling tool, 1/8 in. quick-release impact-ready drill bit, T-15 6-lobe driver bit for reduced cam outs
• Quantity: 275

Specifications

• ERP Part Number: EB316WDR275
• UPC: 60707392126432
• GTIN: 60707392126432
• Feature 01: Patented EB-GUIDE predrill guide provides precise fastener angle alignment for consistent biscuit installations
• Feature 02: Stainless-steel reinforced biscuit provides strength and increased pullover resistance
• Feature 03: Underside keel provides consistent fastener positioning
• Feature 04: Radius sides and chamfered edges provide easier alignment and faster installation
• Feature 05: Type 305 stainless-steel trim-head, 6-lobe screws with black-painted heads provide a concealed finish and blend in with EB-TY biscuit
• Feature 06: Decking thickness: 3/4 in.
• Feature 07: Spacing requirement: 3/16 in.
• Feature 08: Use for 3/4-in. or greater kiln-dried decking with moisture content less than air dry (approx. 19%)
• Feature 09: Includes: EB-TY Premium biscuits, stainless-steel screws, Ipê plugs for first and last board installations, EB-GUIDE predrilling tool, 1/8 in. quick-release impact-ready drill bit, T-15 6-lobe driver bit for reduced cam outs
• Feature 10: Quantity: 275
• Assembled Depth - Imperial: 0.964
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.402
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.300
• Assembled Width UOM - Imperial: in.
• Base Product ID: EBTY_Premium
• Base Product Name: EB-TY® Premium Hidden Deck Fasteners™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Hidden Deck Fasteners > Hidden Deck Fastener
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 330995095091162285209696049380965800496
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hidden Deck Fastener
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 64
• Shipping Weight: 465.92
• Short Product Name: 275 CT EB316 W/305SS 2-1/4IN T15 SCREWS
• Strongtie.com URL: https://www.strongtie.com/hiddendeckfasteners_screwsandnails/ebty_premium/p/eb-ty-premium-hidden-deck-fasteners
• Subcategory: Fasteners
• Subcategory 2: Hidden Deck Fasteners
• US Patents: 10,537,942
• US Patents.1: 10,309,099
• US Patents.2: 10,286,458
• US Patents.3: 10,113,306
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392126430
