Simpson Strong-Tie E1B1414R100 Self-Drilling E Metal Screw — #14 x 1 in. 3/8-Hex, Clear Zinc (100-Qty)

Simpson Strong-Tie E1B1414R100 Self-Drilling E Metal Screw — #14 x 1 in. 3/8-Hex, Clear Zinc (100-Qty)

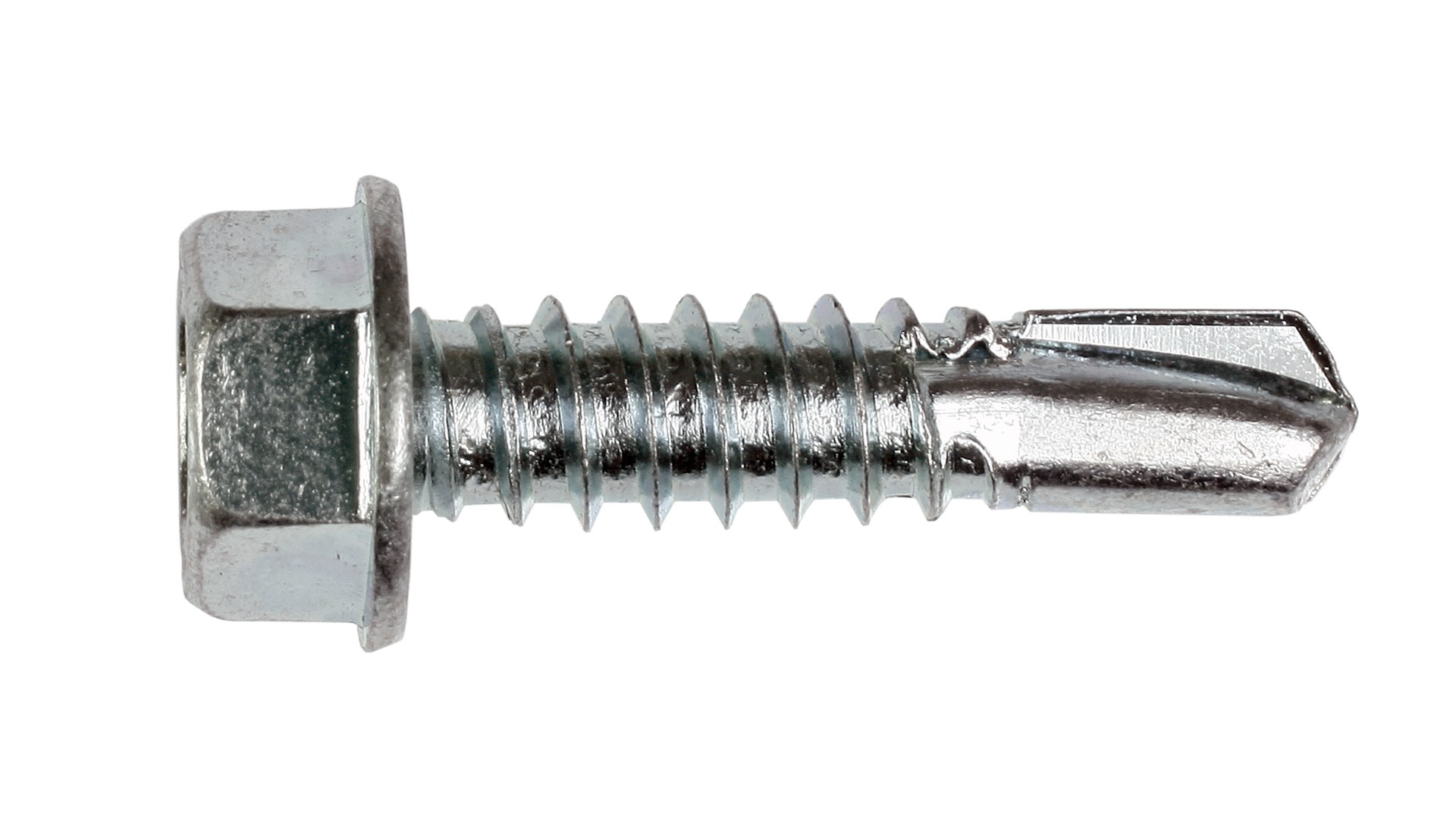

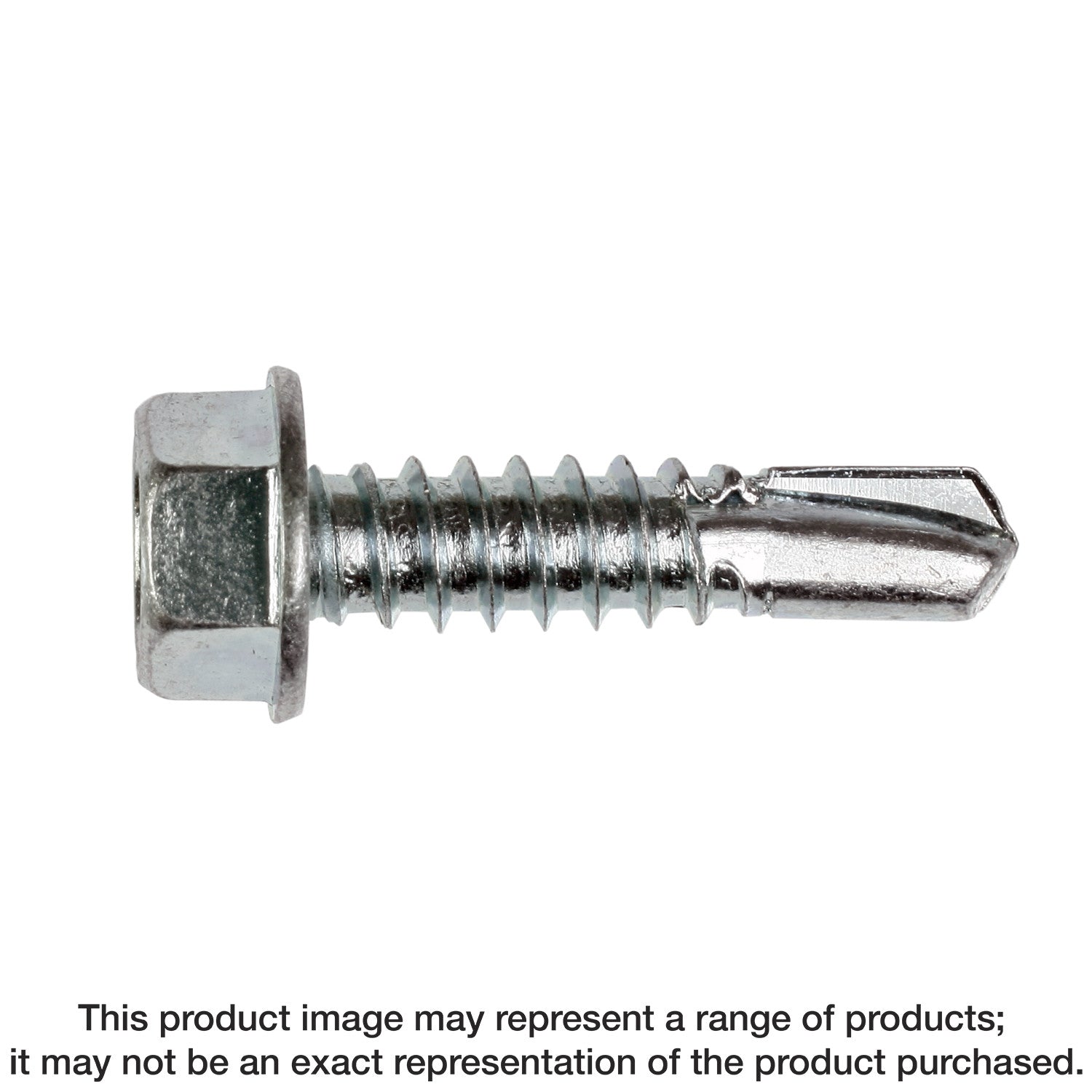

Metal screws are designed to provide strength and superior performance in steel and other metal applications. The Simpson Strong-Tie® self-drilling metal screw is ideal for fastening cold-formed steel (CFS) framing. This hand-drive screw features a hex-washer head design that provides a secure grip with the installation tool, allowing for quick and easy installation as well as the ability to distribute the load more easily with the integrated washer flange. The #3 drill point helps to penetrate thicker materials without the need for predrilling, saving time and labor, especially in high-volume or repetitive applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• 3/8 in. hex drive (driver bit included)
• Hex-washer head for easy installation and secure driving
• Clear zinc coatings are applied in accordance with ASTM F1941
• Recommended for use with certain Simpson Strong-Tie® connectors
• #3 drill point (max. total drilling thickness 0.35 in.)
• Designed for dry, interior and noncorrosive environments only
• Screw size: #14
• Screw length: 1 in.
• Quantity: 100 per package

Application

• Framing — Cold-Formed Steel
• Cold-Formed Steel
• Fastening for Cold-Formed Steel

Specifications

• ERP Part Number: E1B1414R100
• UPC: 746056119401
• GTIN: 746056119401
• Feature 01: 3/8 in. hex drive (driver bit included)
• Feature 02: Hex-washer head for easy installation and secure driving
• Feature 03: Clear zinc coatings are applied in accordance with ASTM F1941
• Feature 04: Recommended for use with certain Simpson Strong-Tie® connectors
• Feature 05: #3 drill point (max. total drilling thickness 0.35 in.)
• Feature 06: Designed for dry, interior and noncorrosive environments only
• Feature 07: Screw size: #14
• Feature 08: Screw length: 1 in.
• Feature 09: Quantity: 100 per package
• Applications List: Framing — Cold-Formed Steel
• Applications List.1: Cold-Formed Steel
• Applications List.2: Fastening for Cold-Formed Steel
• Assembled Depth - Imperial: 0.500
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.221
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.500
• Assembled Width UOM - Imperial: in.
• Base Product ID: E_Screw
• Base Product Name: Self-Drilling E Metal Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Hand-Drive Screw
• Coating: Clear Zinc Coating
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: 3/8 in. Hex
• Finish: Clear Zinc Coating
• GUID: 188015809517890779662968917303446746598
• Head Diameter (in.): 0.500
• Head Type: Hex Washer Head
• Length (in.): 1
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 0.326
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 3.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.88
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Tub
• Point Size: 3
• Point Type: Drill Point
• Product Class: Hand-Drive Screw
• Product Includes: Driver bit included (replacement driver bit BITHEXR38-R1)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #14
• Shipping Weight: 1.43
• Short Product Name: #14 X 1IN 3/8IN HEX #3DP 100/BX
• Strongtie.com URL: https://www.strongtie.com/metalscrews_screwsandnails/e_screw/p/self-drilling-e-metal-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Fine Threads
• TPI: 14
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10746056119408
• PAL Reference: 50746056119406
