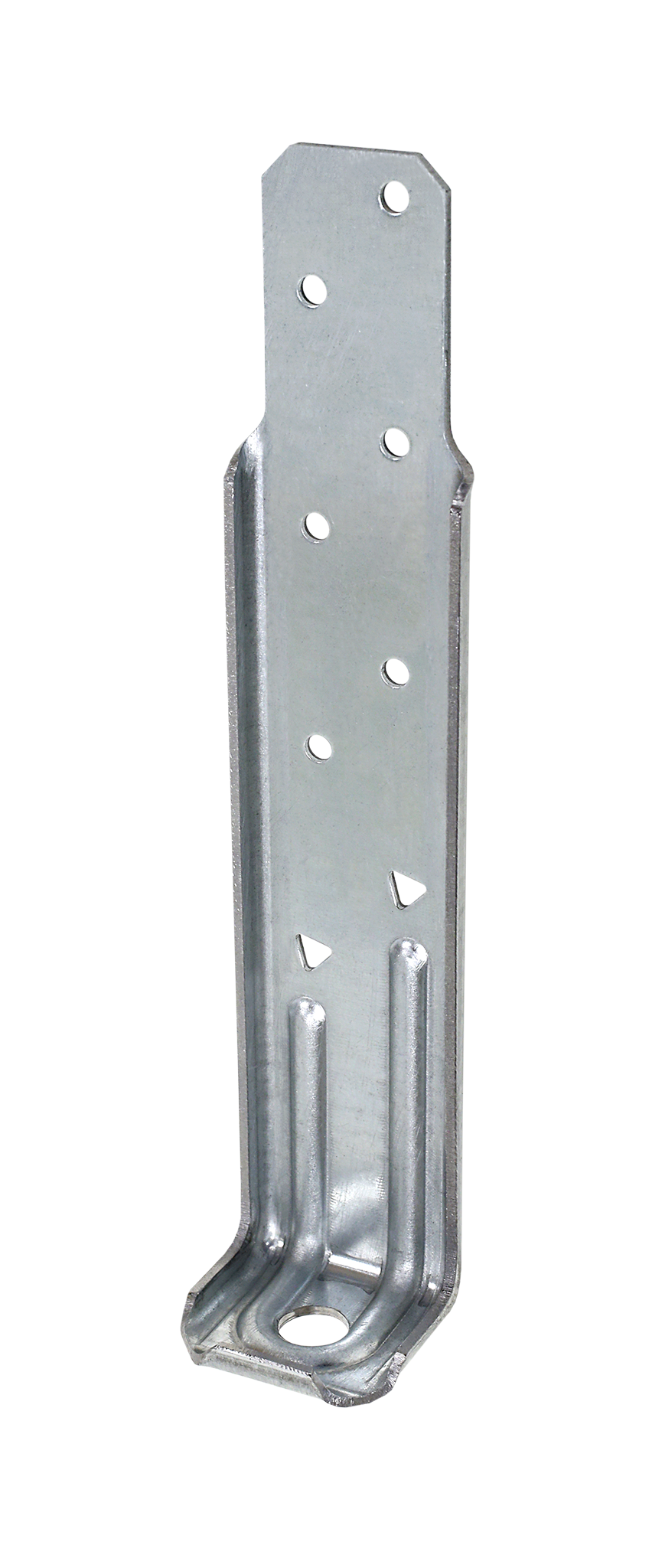

Simpson Strong-Tie DTT1Z-KT DTT1Z® ZMAX® Galvanized Deck Tension Tie Kit for 2x with Screws (4-Qty)

Simpson Strong-Tie DTT1Z-KT DTT1Z® ZMAX® Galvanized Deck Tension Tie Kit for 2x with Screws (4-Qty)

Simpson Strong-Tie® DTT™ tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications. The DTT1Z® deck tension tie provides a less invasive approach for attaching a new deck to a home or retrofitting an existing deck to current code standards. Retail pack includes Strong-Drive® SD Connector Screws and SDWH Timber-Hex HDG Screws.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides secure deck attachments without requiring access to interior floor joists
• Fastens to the narrow or wide face of a single 2x member for versatile installation
• Ties the guardrail post into deck framing
• Stronger and safer than nails, lag screws or bolts
• Ties the deck into the house for a stronger, safer ledger connection
• Helps prevent a common type of deck failure
• Made from 14-gauge steel with ZMAX® galvanization for added corrosion resistance in exterior and treated-wood applications
• Quantity: (4) DTT1Z connectors per kit

Specifications

• ERP Part Number: DTT1Z-KT
• UPC: 707392694137
• GTIN: 707392694137
• Feature 01: Provides secure deck attachments without requiring access to interior floor joists
• Feature 02: Fastens to the narrow or wide face of a single 2x member for versatile installation
• Feature 03: Ties the guardrail post into deck framing
• Feature 04: Stronger and safer than nails, lag screws or bolts
• Feature 05: Ties the deck into the house for a stronger, safer ledger connection
• Feature 06: Helps prevent a common type of deck failure
• Feature 07: Made from 14-gauge steel with ZMAX® galvanization for added corrosion resistance in exterior and treated-wood applications
• Feature 08: Quantity: (4) DTT1Z connectors per kit
• Install With: Fastens to the narrow or wide face of a single 2x with Simpson Strong-Tie Strong-Drive® SD Connector screws (SD9112) or nails and accepts a 3/8 in. machine bolt, anchor bolt, or lag screw (washer required) or can be installed with the Strong-Drive SDWH Timber-Hex HDG screw (SDWH27800G) with an integral washer (Strong-Drive screws included)
• Assembled Depth - Imperial: 1.46875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: DTT_Tie
• Base Product Name: DTT1
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Decking/Fencing Connectors > Deck Tie
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: ZMAX®
• Gauge: 14
• GUID: 219294461931289010488229465414834527537
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Single or double 2x
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.5
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 2
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.5
• Package Width UOM - Imperial: in.
• Packaging Quantity: 4
• Packaging Type: Carton
• Product Class: Deck Tie

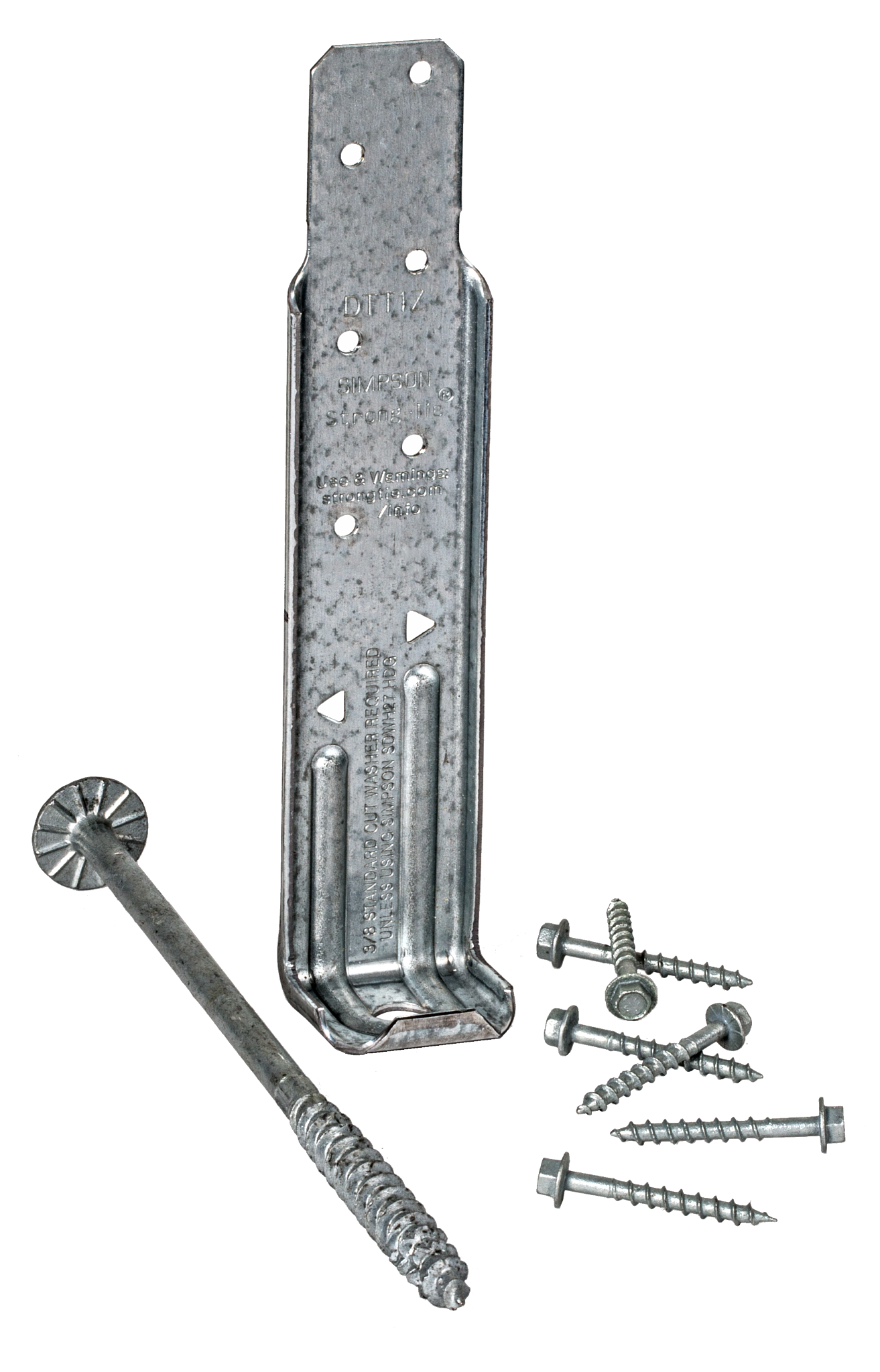

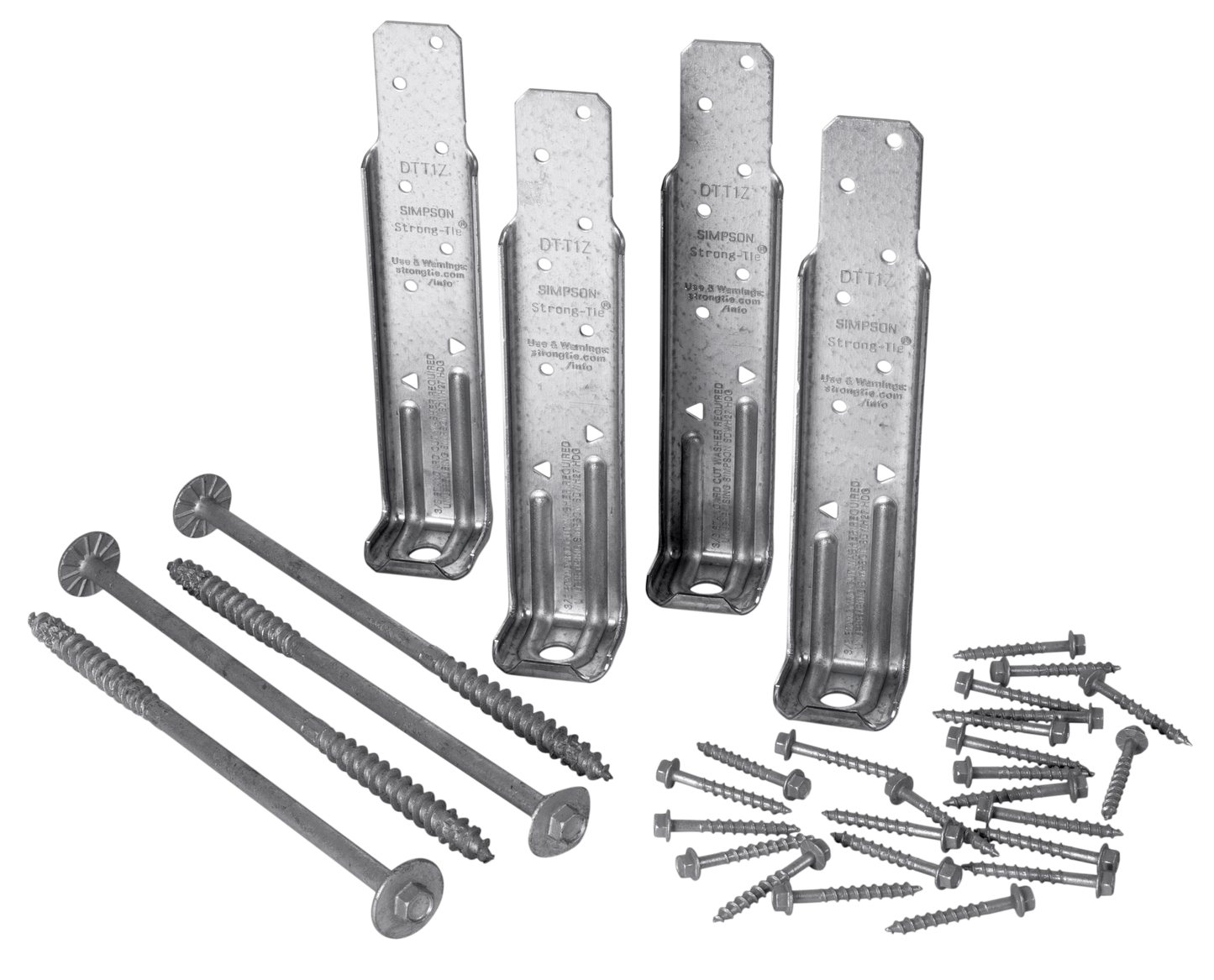

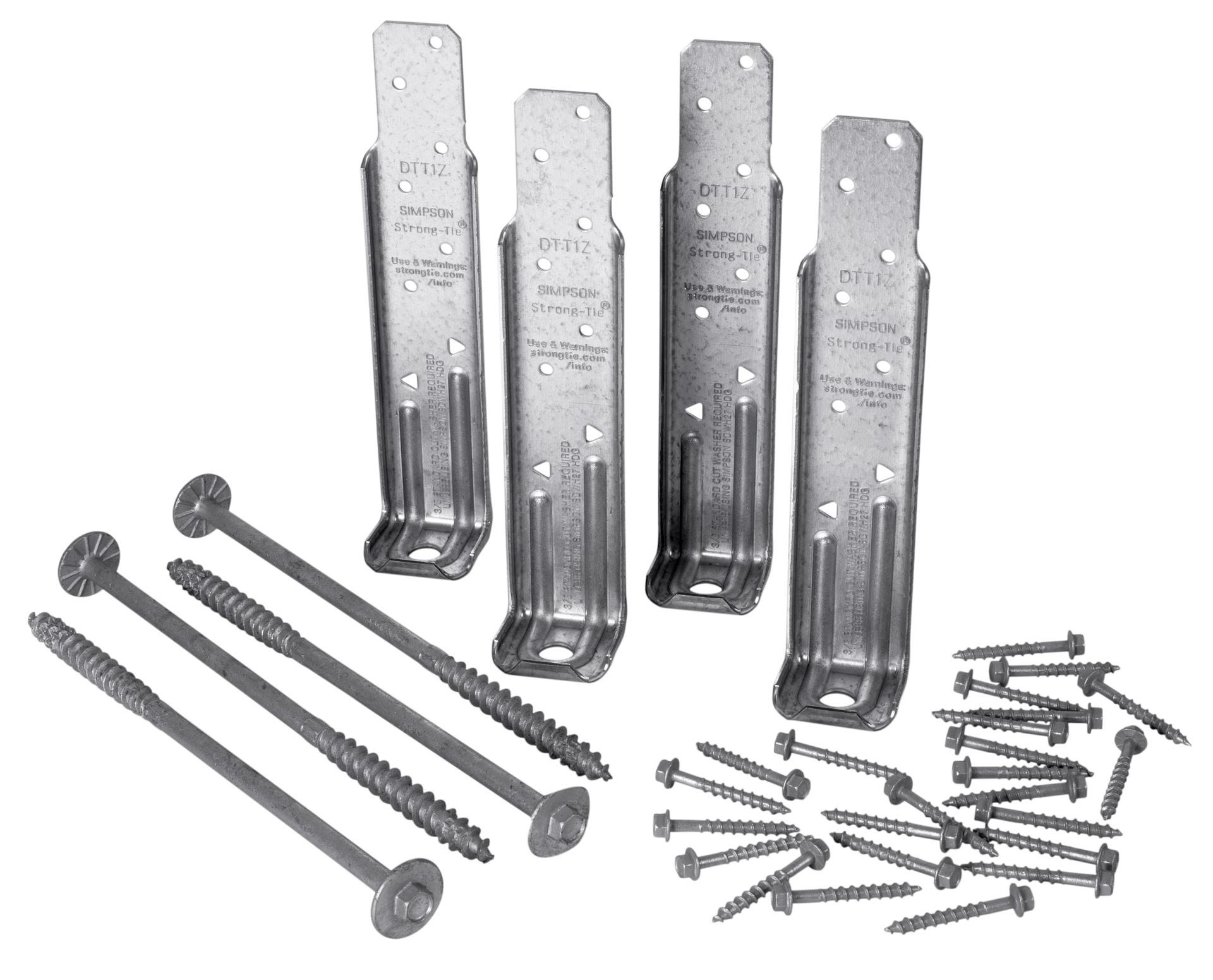

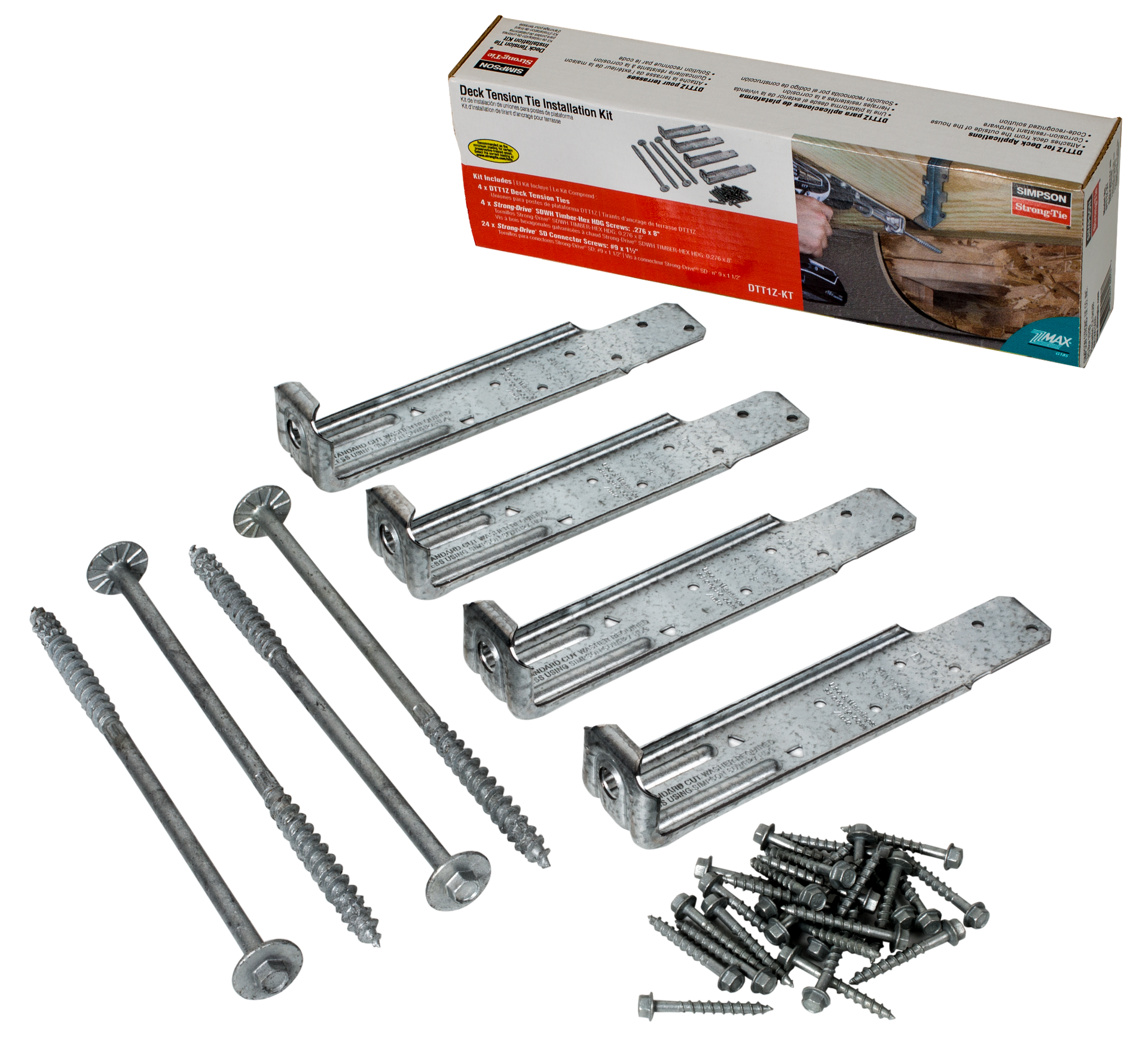

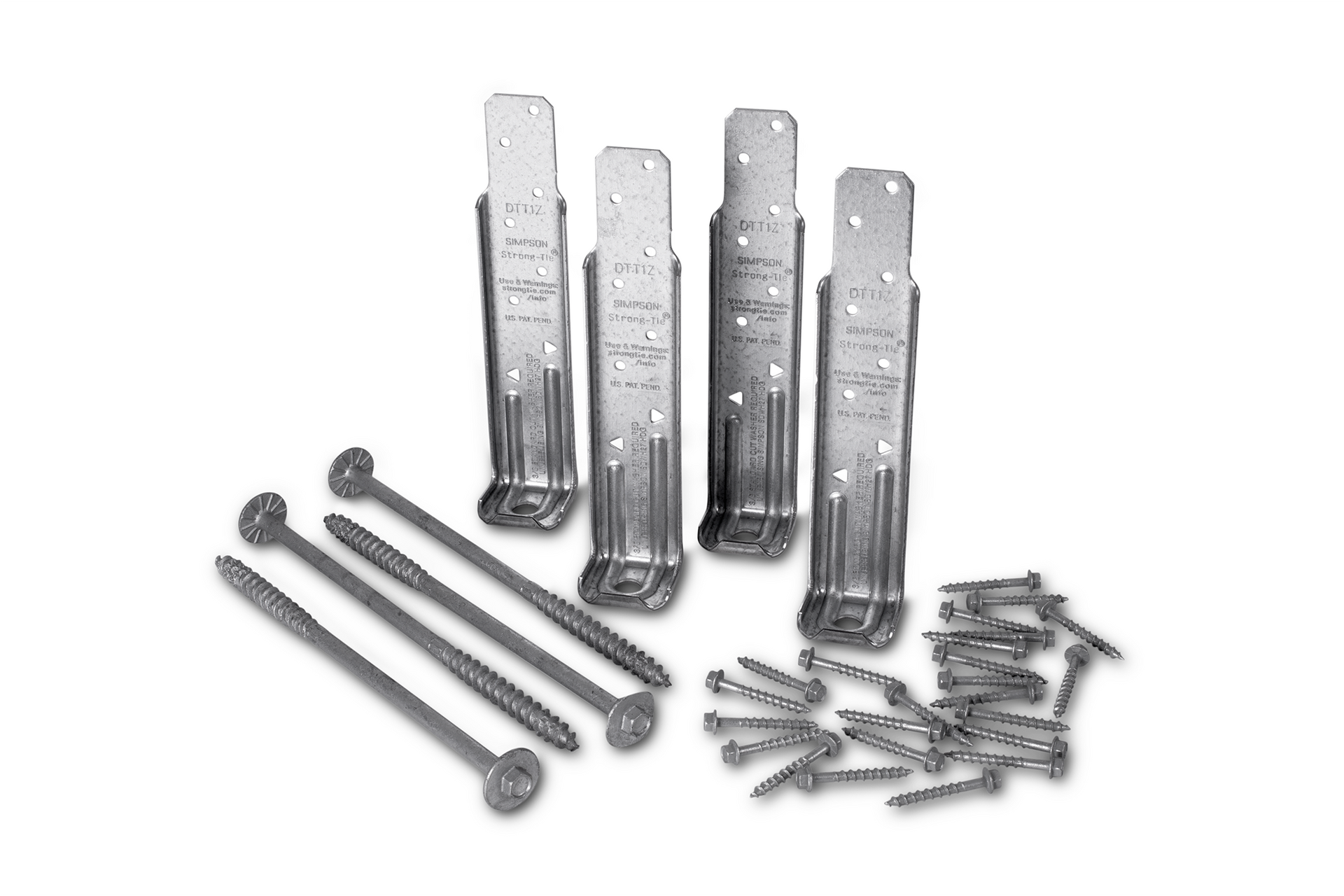

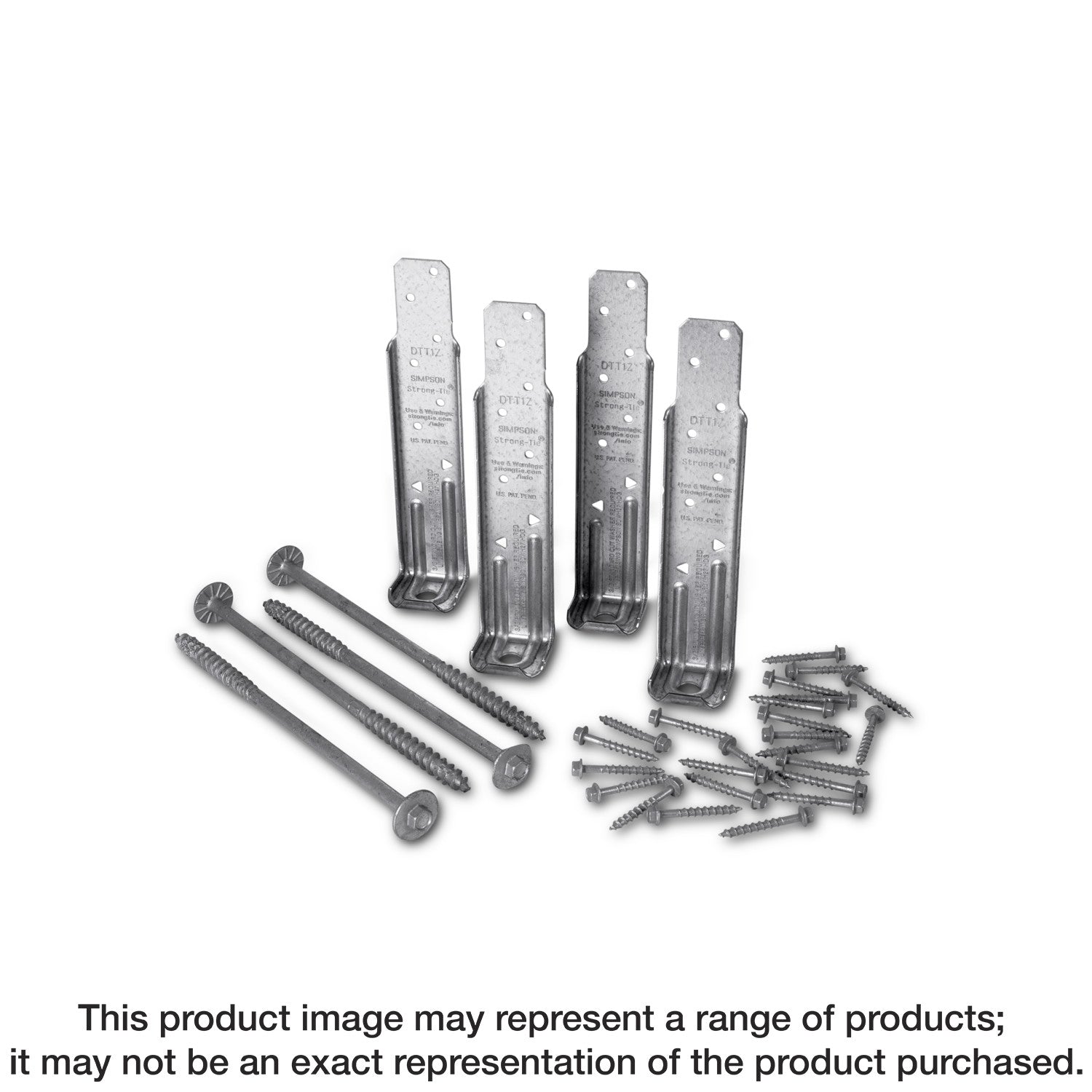

• Product Includes: Includes (4) DTT1Z connectors, (4) Strong-Drive SDWH Timber-Hex HDG screws (SDWH27800G), and (26) #9 x 1-1/2 in. Strong-Drive SD Connector screws — providing a complete hardware solution for one code-compliant deck installation
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.15
• Short Product Name: DTT1Z 4 PIECE KIT W/FASTENERS
• Strongtie.com URL: https://www.strongtie.com/decks_decksandfences/dtt_tie/p/dtt1
• Subcategory: Wood Construction Connectors
• Subcategory 2: Decking/Fencing Connectors
• US Patents: 10,865,558
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392694134
• PAL Reference: 60707392694139
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
