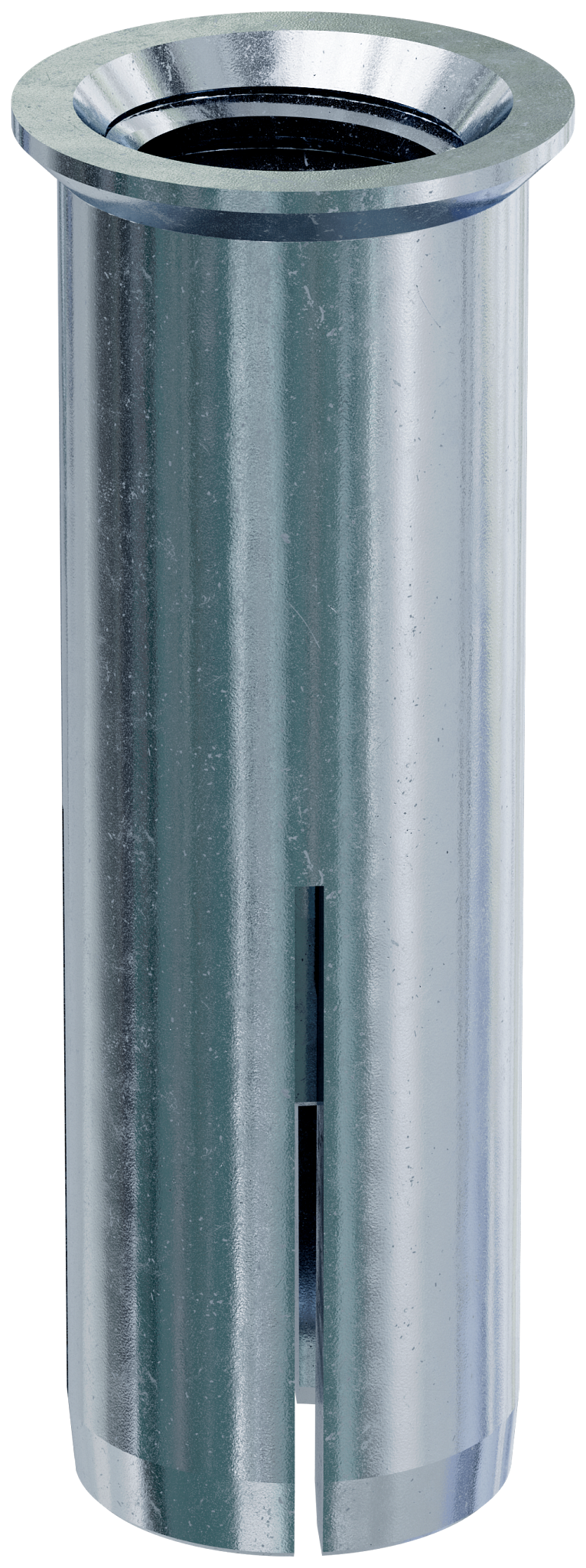

Simpson Strong-Tie DIABL50 DIAB Lipped Drop-In Internally Threaded Anchor for 1/2-in. Rod (50-Qty)

Simpson Strong-Tie DIABL50 DIAB Lipped Drop-In Internally Threaded Anchor for 1/2-in. Rod (50-Qty)

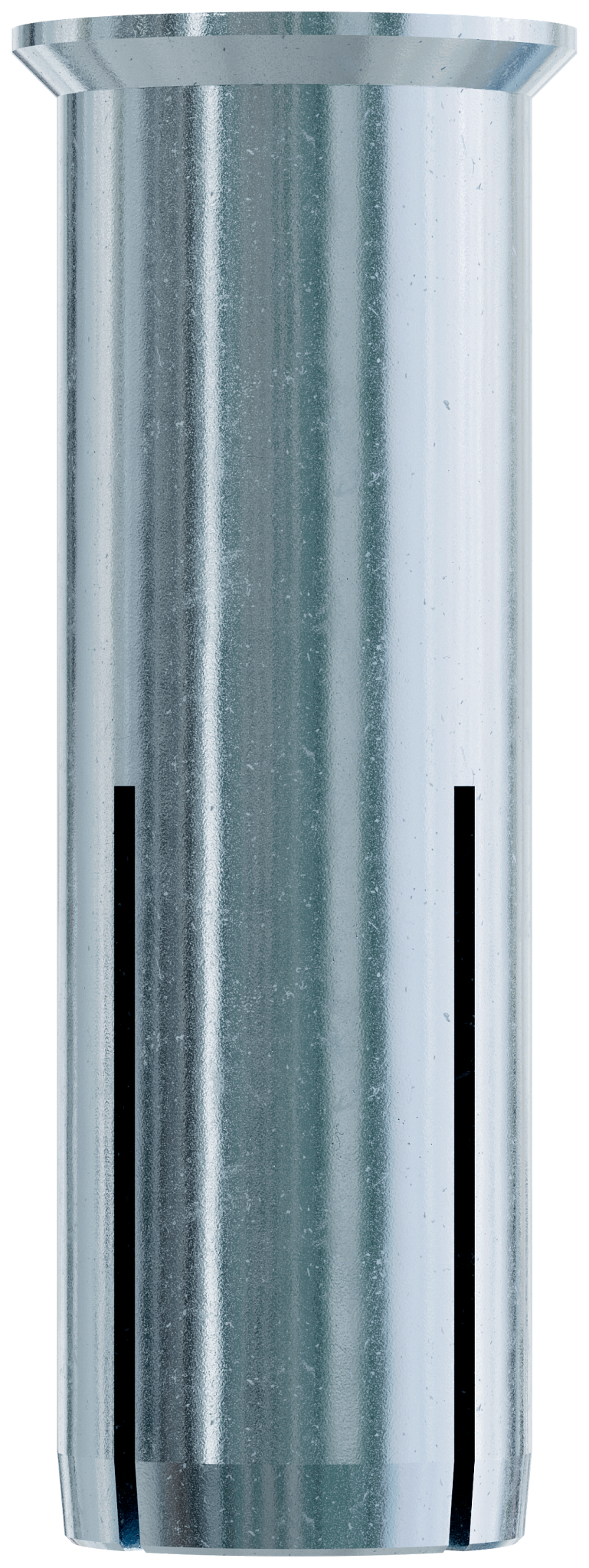

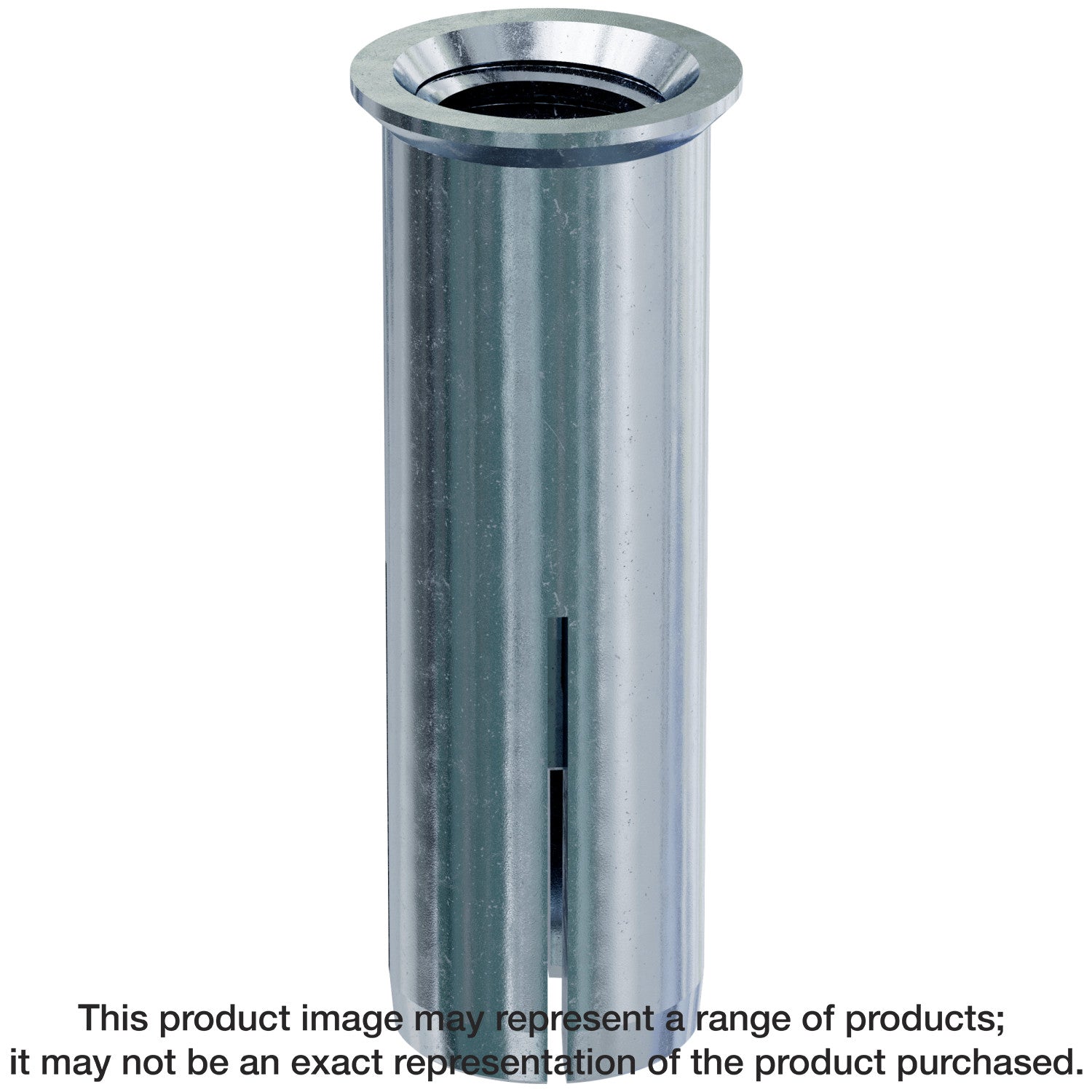

The Simpson Strong-Tie® DIAB features improved geometry for smooth and accurate installation into base materials. This displacement-controlled expansion anchor is easily set and features an indication marker to confirm proper placement. The enhanced setting capability of this internally threaded drop-in anchor requires minimum effort for quick and economical installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits

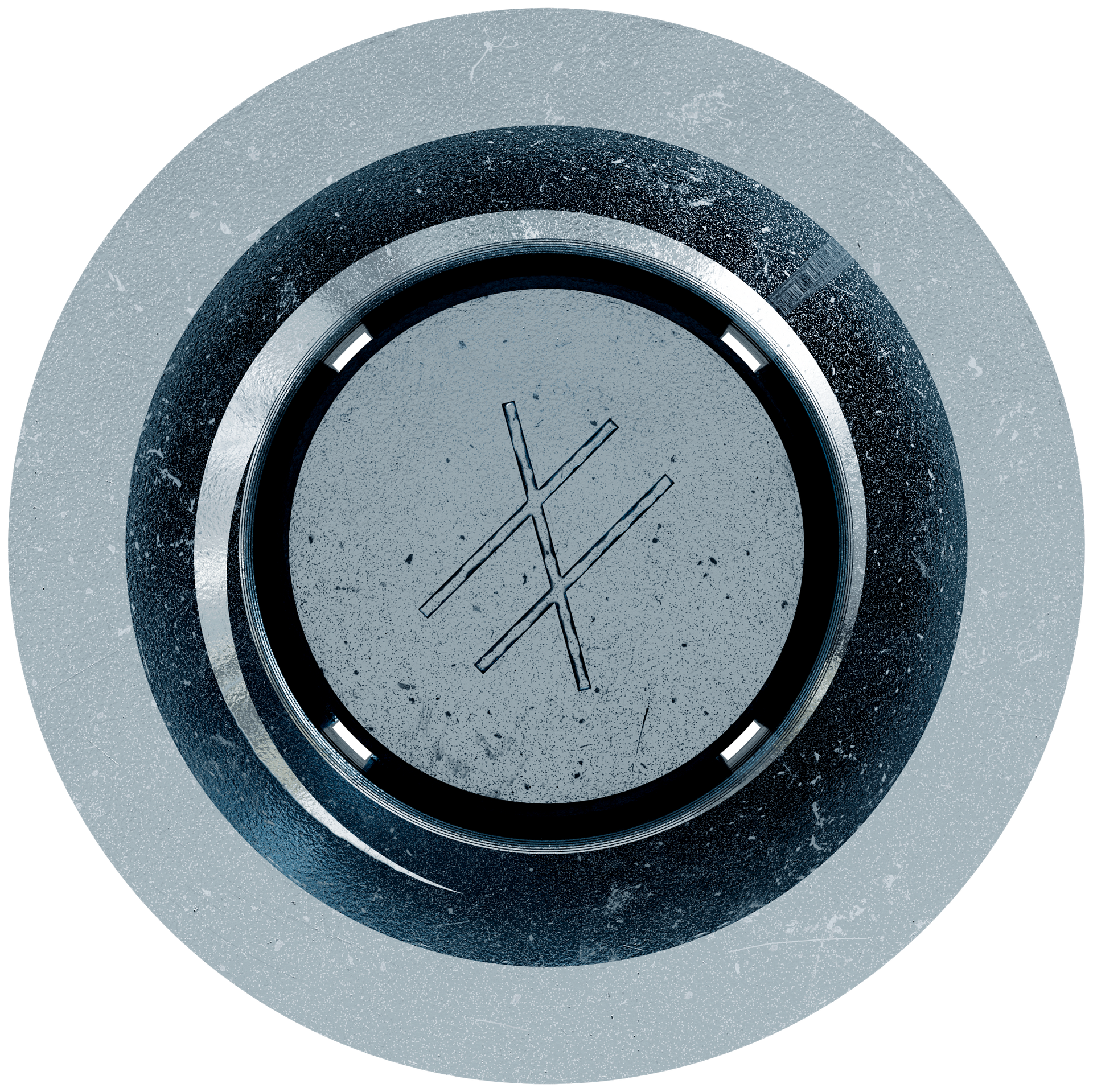

• Positive-set marking system indicates when anchor is properly set
• Lipped for flush installation
• Zinc-plated carbon steel
• Length: 2 in.
• Drill bit diameter: 5/8 in.
• Rod diameter: 1/2 in.
• Quantity: 50

Specifications

• ERP Part Number: DIABL50
• UPC: 707392899822
• GTIN: 707392899822
• Feature 01: Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits
• Feature 02: Positive-set marking system indicates when anchor is properly set
• Feature 03: Lipped for flush installation
• Feature 04: Zinc-plated carbon steel
• Feature 05: Length: 2 in.
• Feature 06: Drill bit diameter: 5/8 in.
• Feature 07: Rod diameter: 1/2 in.
• Feature 08: Quantity: 50
• Install With: Installs with DIABST hand-setting tool model DIABST50 or power-setting tool model DIABST50-SDS.
• Assembled Depth - Imperial: 0.71
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.02
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.71
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIAB_Anchors
• Base Product Name: Drop-In (DIAB)
• Bolt/Rod Diameter (in.): 1/2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Drop-In Anchor
• Coating: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 5/8
• EAN category: UC
• Finish: Zinc Plated
• GUID: 201396941965914002163869230568700435105
• Length (in.): 2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 7.88
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.54
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Drop-In Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 6
• Short Product Name: DROP-IN ANCHOR LIPPED 1/2
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/diab_anchors/p/drop-in-diab
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 3/4
• TPI: 13
