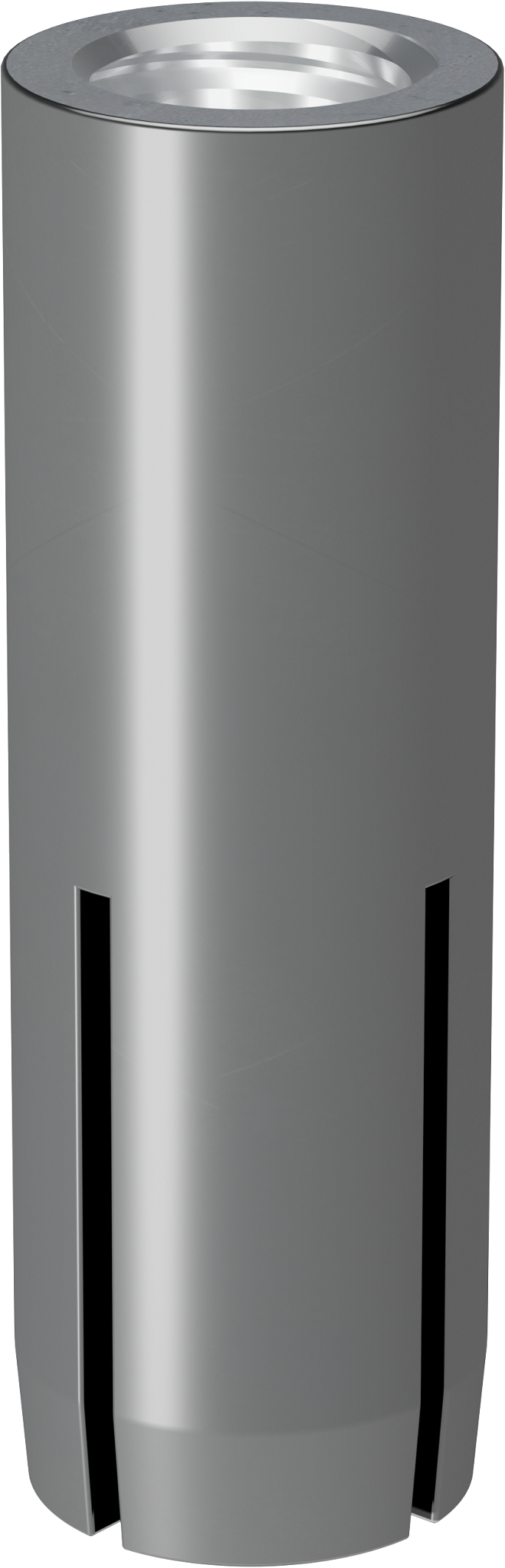

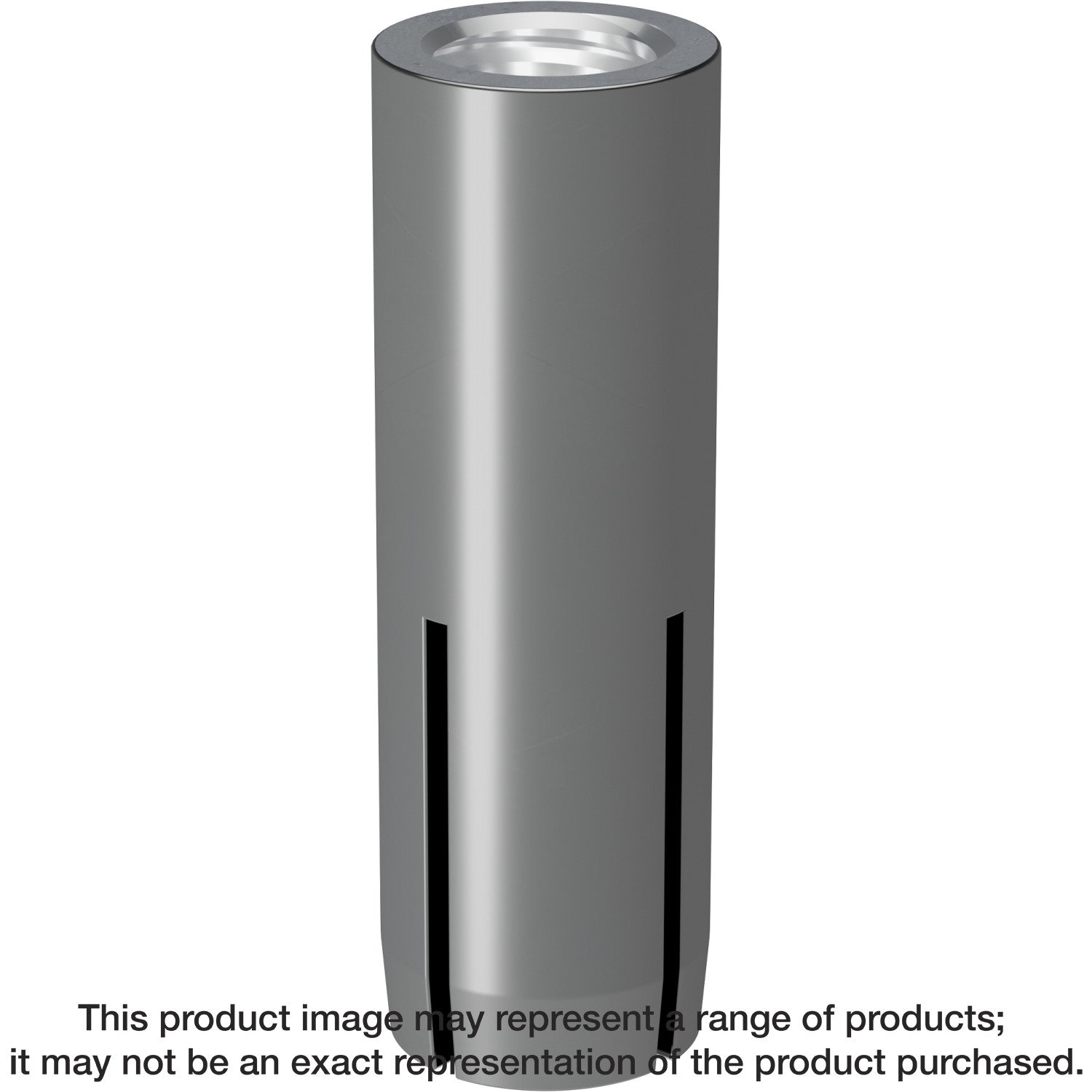

Simpson Strong-Tie DIA376SS DIA Type 316 Stainless-Steel Drop-In Internally Threaded Anchor for 3/8-in. Rod (50-Qty)

Simpson Strong-Tie DIA376SS DIA Type 316 Stainless-Steel Drop-In Internally Threaded Anchor for 3/8-in. Rod (50-Qty)

Drop-In anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Available in stainless steel (DIA) or short (DIAS) versions. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flush-mount expansion anchor for concrete applications
• Hand- and power-setting tools available for fast, easy and economical installation
• Fixed-depth stop bit helps you drill to the correct depth every time
• Rod size: 3/8 in.
• Drill bit diameter: 1/2 in.
• Length: 1-9/16 in.
• Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
• Quantity: 50

Specifications

• ERP Part Number: DIA376SS
• UPC: 707392300618
• GTIN: 707392300618
• Feature 01: Flush-mount expansion anchor for concrete applications
• Feature 02: Hand- and power-setting tools available for fast, easy and economical installation
• Feature 03: Fixed-depth stop bit helps you drill to the correct depth every time
• Feature 04: Rod size: 3/8 in.
• Feature 05: Drill bit diameter: 1/2 in.
• Feature 06: Length: 1-9/16 in.
• Feature 07: Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
• Feature 08: Quantity: 50
• Assembled Depth - Imperial: 0.506
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.57
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.506
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIA-SS_Anchor
• Base Product Name: Drop-In (DIASS)
• Bolt/Rod Diameter (in.): 3/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Drop-In Anchor
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 1/2
• EAN category: UC
• Finish: Type 316 Stainless Steel
• GUID: 235576302712952240350576199768633918082
• Length (in.): 1 9/16
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.30
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 1.77
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Drop-In Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 3.3
• Short Product Name: DROP-IN ANCHOR 316SS 3/8
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/dia-ss_anchor/p/drop-in-diass
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 5/8
• TPI: 16
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392300605
