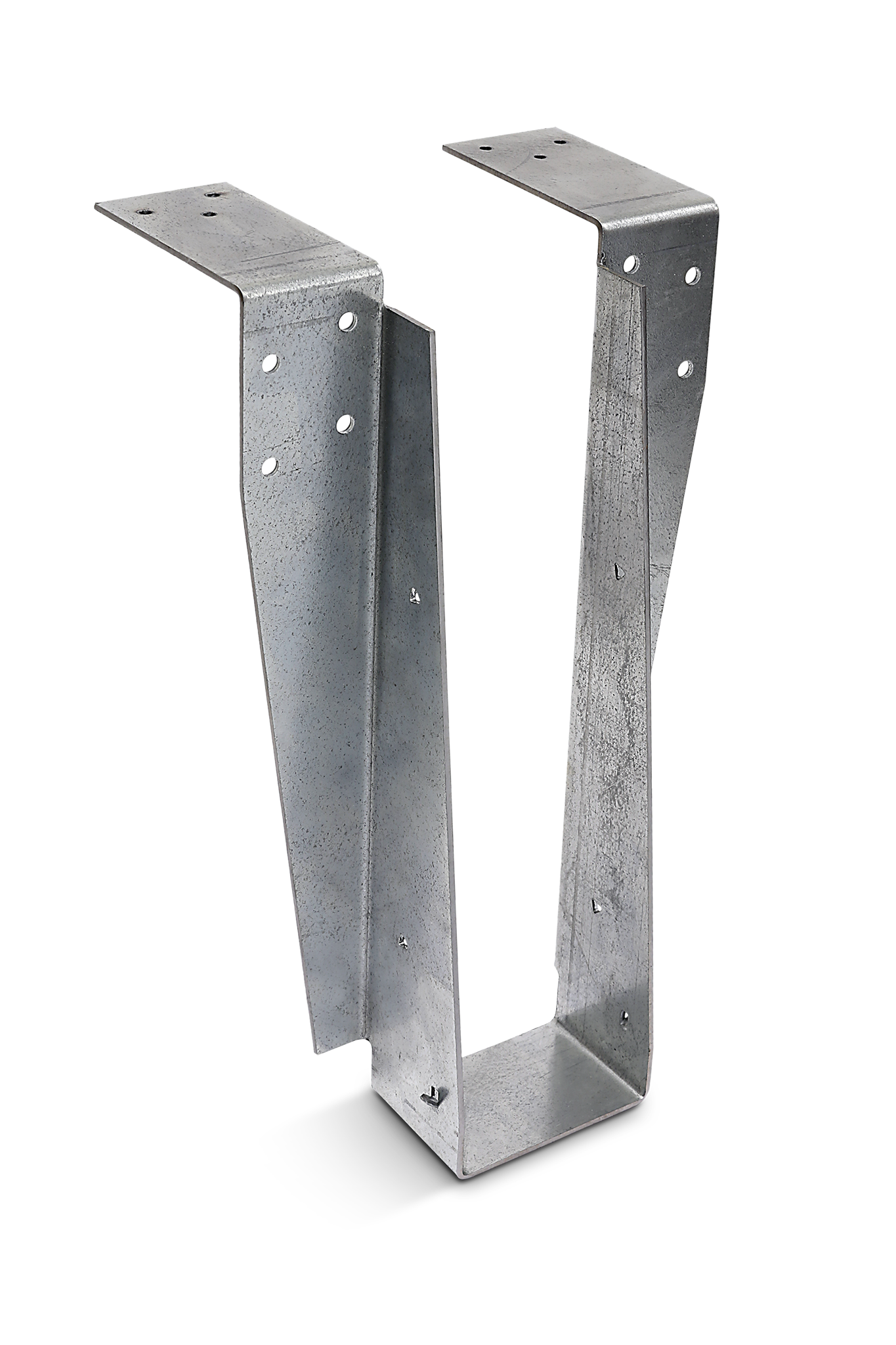

Simpson Strong-Tie DHU212TF DHUTF Top-Flange Drywall Hanger for 2x12 with SDS Screws

Simpson Strong-Tie DHU212TF DHUTF Top-Flange Drywall Hanger for 2x12 with SDS Screws

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHUTF top-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Available to order skewed up to 45°
• Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
• DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552
• Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
• If hangers are installed on both sides of the wall, then it must be a 2x6 wall
• Seat width: 1-9/16 in.
• Height: 11-1/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: DHU212TF
• UPC: 707392470373
• GTIN: 707392470373
• Feature 01: Available to order skewed up to 45°
• Feature 02: Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
• Feature 03: DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552
• Feature 04: Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
• Feature 05: If hangers are installed on both sides of the wall, then it must be a 2x6 wall
• Feature 06: Seat width: 1-9/16 in.
• Feature 07: Height: 11-1/8 in.
• Feature 08: Made from 12-gauge steel
• Feature 09: Galvanized (G90) for extra corrosion resistance
• Install With: Install with (2) 0.148 in. x 1-1/2 in. nails in the joist, (6) 0.148 in. x 1-1/2 in. nails in the top, and (8) 1/4 in. x 3-1/2 in. Strong Drive® SDS Heavy-Duty Connector screws in the face (screws included)
• Assembled Depth - Imperial: 6.724
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.323
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6.2605
• Assembled Width UOM - Imperial: in.
• Base Product ID: DHUTF_Hanger
• Base Product Name: DHUTF
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 56762200532095155710736030875598366415
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x12
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Product Includes: (8) 1/4 in. x 3-1/2 in. Strong Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.67
• Short Product Name: DRYWALL TOP FLANGE HANGER W/SDS SCREWS
• Strongtie.com URL: https://www.strongtie.com/firewallhangers_solidsawnlumberconnectors/dhutf_hanger/p/dhutf
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• US Patents: 9,394,680
