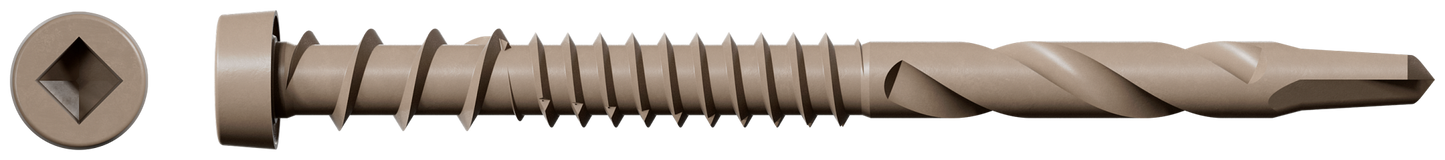

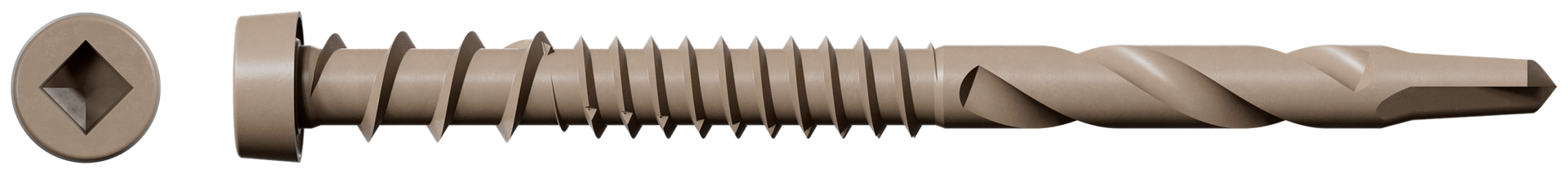

Simpson Strong-Tie DCSD238SGR01 Deck-Drive™ DCSD COMPOSITE-TO-STEEL Screw (Collated) — #10 x 2-3/8 in. Quik Guard® Gray 01 (1000-Qty)

Simpson Strong-Tie DCSD238SGR01 Deck-Drive™ DCSD COMPOSITE-TO-STEEL Screw (Collated) — #10 x 2-3/8 in. Quik Guard® Gray 01 (1000-Qty)

Simpson Strong-Tie offers a wide selection of collated fasteners that provide an easy way to reduce driving force and increase installation speed. Collated screws for Quik Drive® systems are designed for fastening a variety of wood and metal materials in applications such as sheathing, tiling, decking, subfloors, drywall, roofing, framing and stitching. The Deck-Drive™ DCSD Composite-to-Steel screw is ideal for fastening composite decking to steel deck framing. It drives easily through double 14-gauge steel box beams without predrilling and provides a clean, finished deck surface.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Drives easily through double 14 ga. steel box beam without predrilling
• Provides a clean, finished deck surface with no mushrooming
• The Quik Drive system holds the screw securely as it drills through the metal joist for a more consistent installation
• #2 (undersized) square drive for secure bit engagement and easy driving, especially for fasteners with protective coatings (bit included)
• Screw length: 2-3/8 in.
• Quik Guard coating for medium-level corrosion resistance; not recommended for use in marine environments
• Color: Gray 01
• Quantity: 1,000 per package

Application

• Decks — Deck Boards Composite

Specifications

• ERP Part Number: DCSD238SGR01
• UPC: 746056171003
• GTIN: 746056171003
• Feature 01: Drives easily through double 14 ga. steel box beam without predrilling
• Feature 02: Provides a clean, finished deck surface with no mushrooming
• Feature 03: The Quik Drive system holds the screw securely as it drills through the metal joist for a more consistent installation
• Feature 04: #2 (undersized) square drive for secure bit engagement and easy driving, especially for fasteners with protective coatings (bit included)
• Feature 05: Screw length: 2-3/8 in.
• Feature 06: Quik Guard coating for medium-level corrosion resistance; not recommended for use in marine environments
• Feature 07: Color: Gray 01
• Feature 08: Quantity: 1,000 per package
• Install With: Compatible with the Simpson Strong-Tie® Quik Drive PRO300SG2 decking system
• Applications List: Decks — Deck Boards Composite
• Assembled Depth - Imperial: 0.254
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.254
• Assembled Width UOM - Imperial: in.
• Base Product ID: DCSD_CScrew
• Base Product Name: Deck-Drive™ DCSD COMPOSITE-TO-STEEL Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Composite-Decking Screws > Collated Screw
• Coating: Quik Guard® Coating

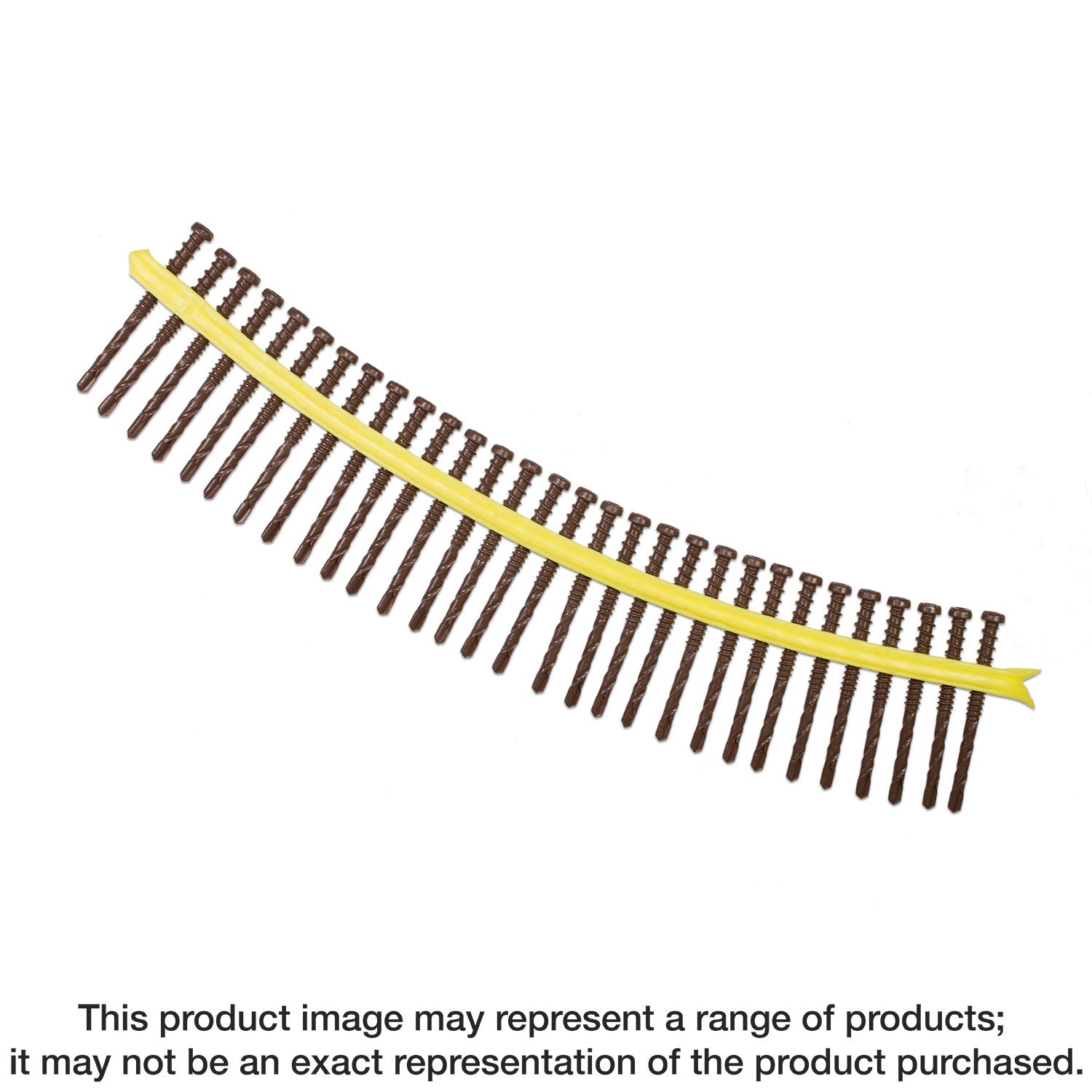

• Collation Type: Plastic Strip
• Color: Gray 01
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: #2 Square, Undersized
• Finish: Quik Guard® Coating
• GUID: 38763580001592129188363914598121067466
• Head Diameter (in.): 0.254
• Head Type: Cap Head
• Length (in.): 2 3/8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 0.97
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Point Type: Pilot Point
• Product Class: Collated Screw
• Product Includes: Driver bit included (replacement bit model: BIT2SU)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 11.163
• Short Product Name: 2-3/8IN DCSD GRAY 01 1000CT
• Strongtie.com URL: https://www.strongtie.com/deckdrive_collatedcompositedeckingscrews/dcsd_cscrew/p/deck-drive-dcsd-composite-to-steel-screw
• Subcategory: Fasteners
• Subcategory 2: Composite-Decking Screws
• Thread Type: Variable Thread Design
• US Patents: 9,322,422
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50746056171008
