Simpson Strong-Tie CPT66Z CPTZ™ ZMAX® Galvanized Concealed Post Base for 6x6 (Pack of 8)

Simpson Strong-Tie CPT66Z CPTZ™ ZMAX® Galvanized Concealed Post Base for 6x6 (Pack of 8)

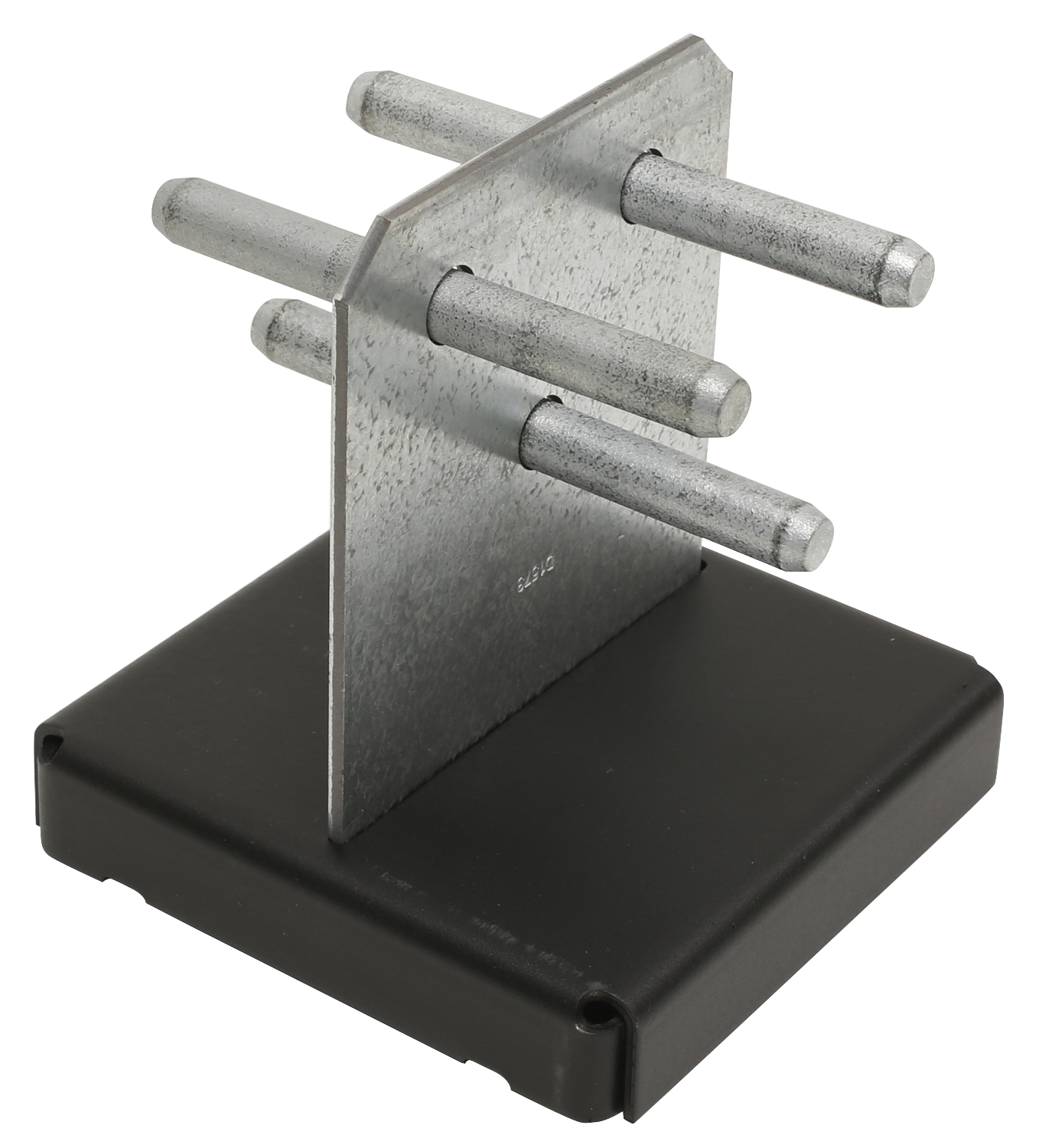

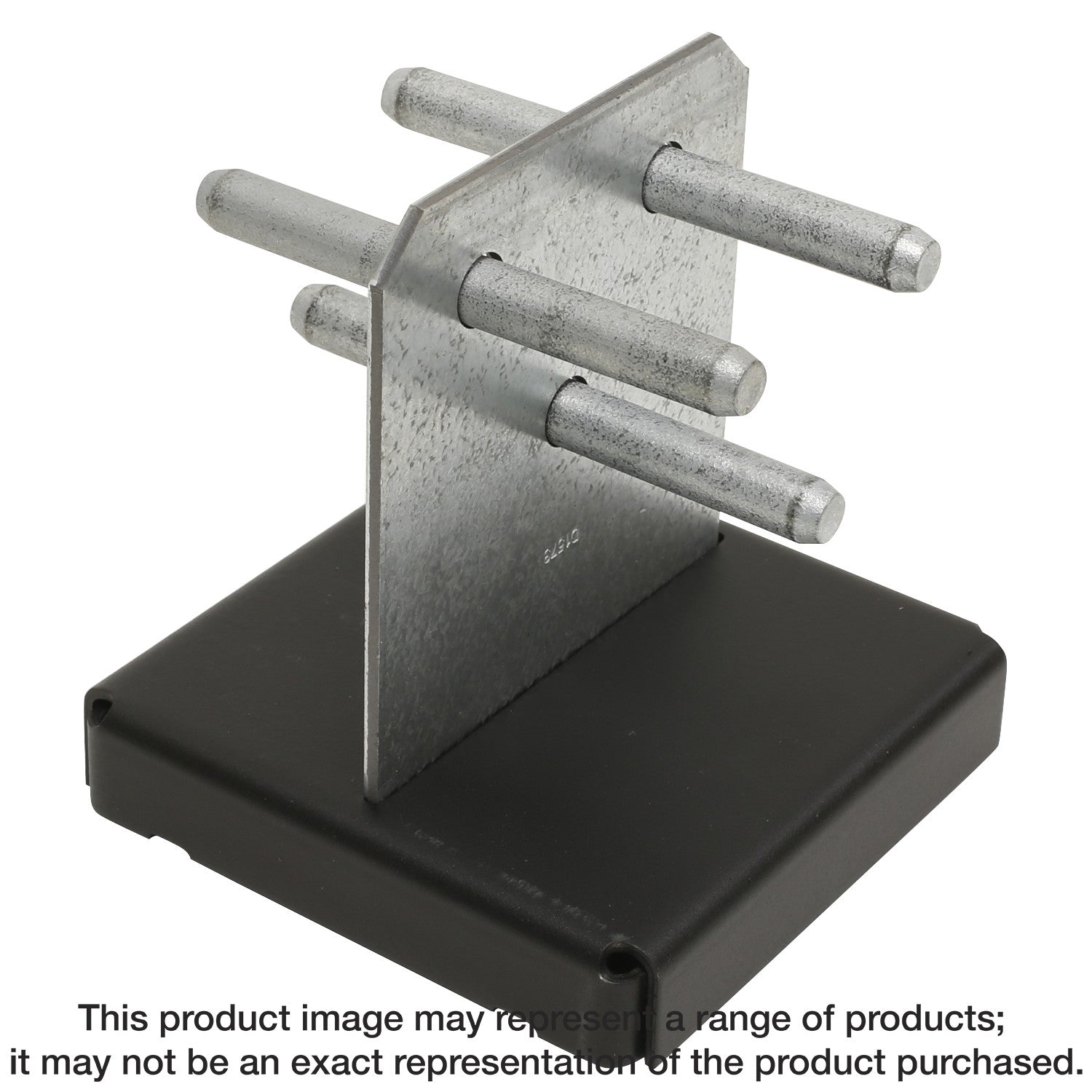

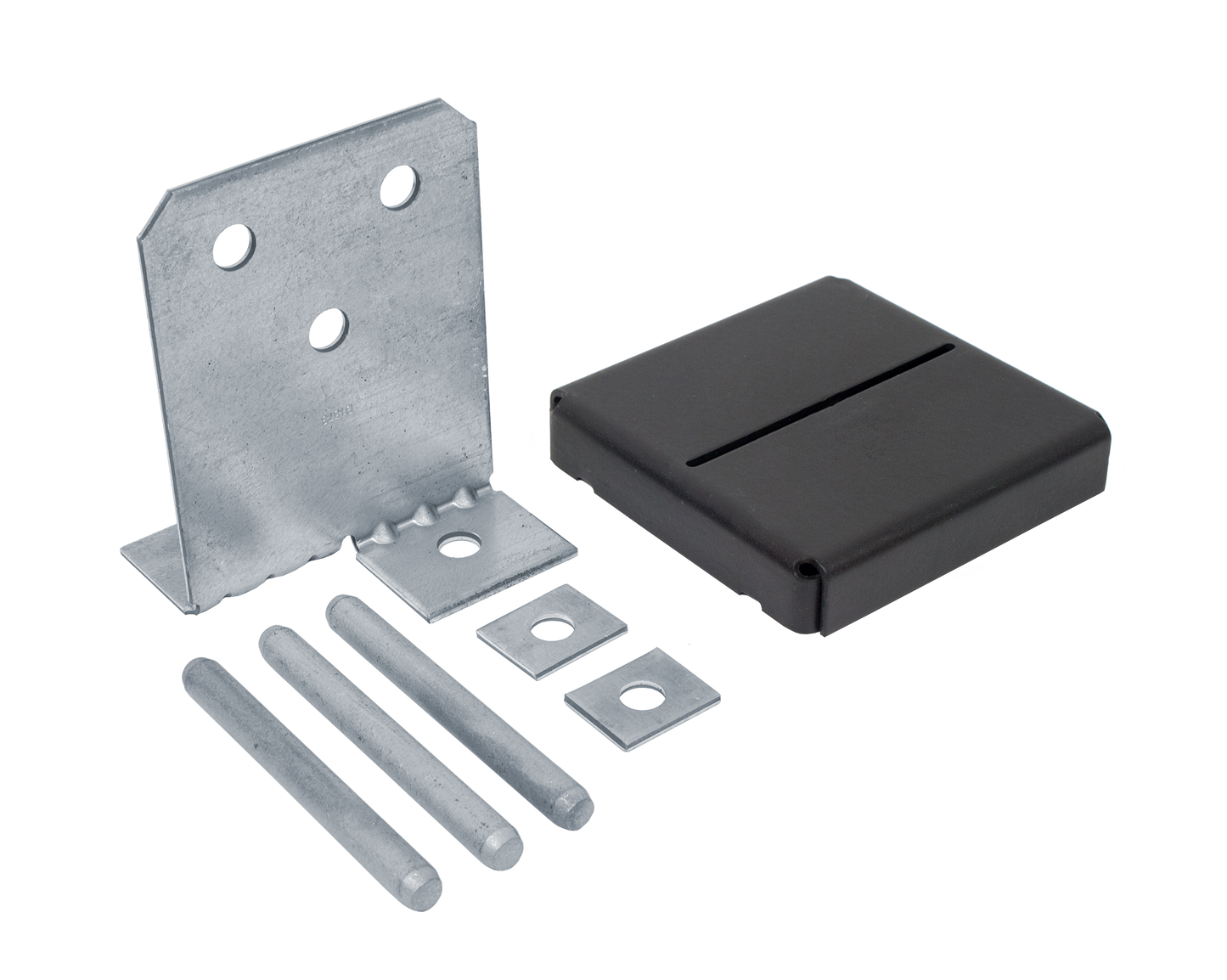

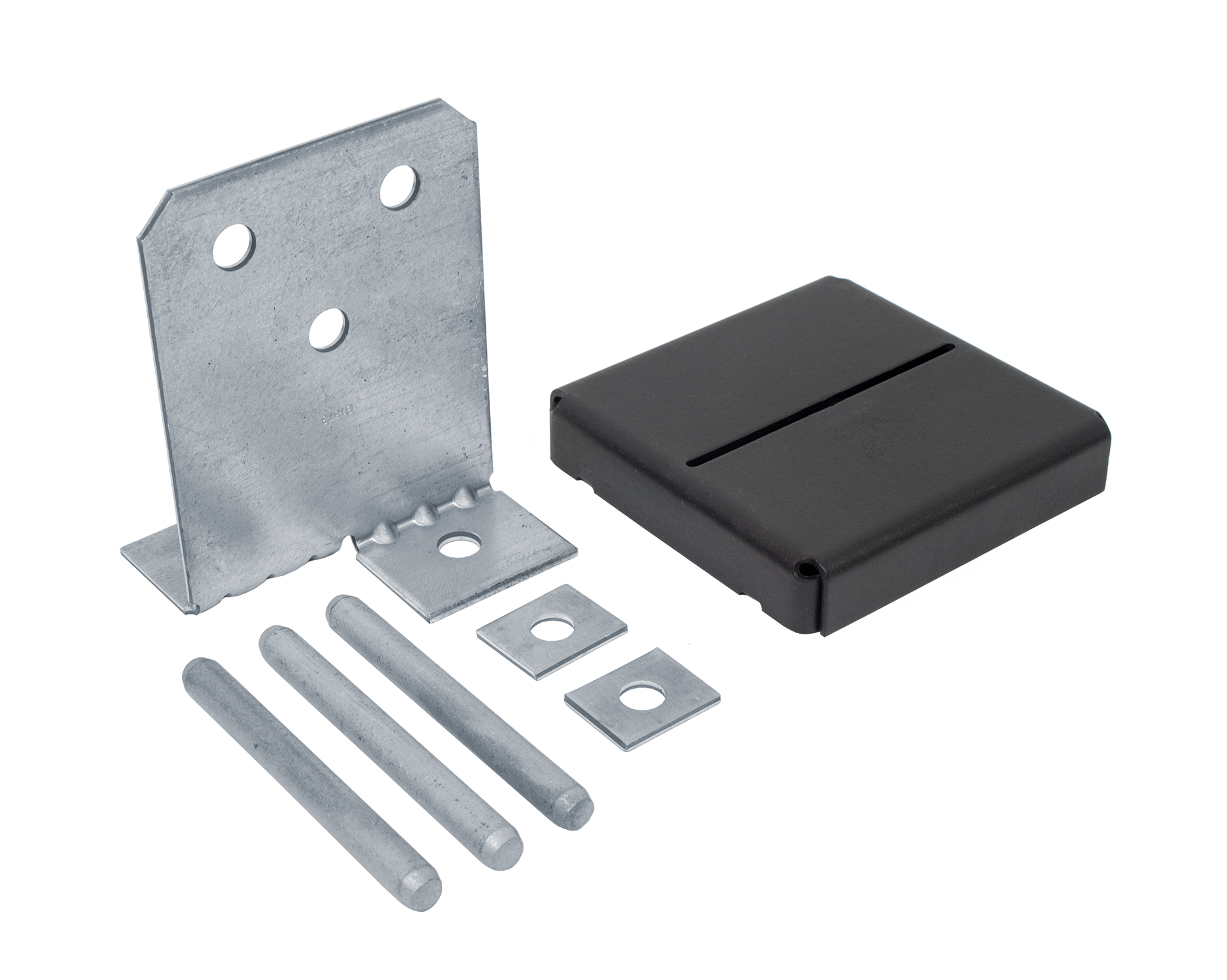

The CPTZ post base incorporates a knife plate with a standoff base. It achieves a clean, concealed look while providing a 1 in. standoff height above concrete. The CPTZ is installed with 1/2 in. diameter galvanized pins (supplied).

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The 1 in. standoff height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements
• The standoff reduces the potential for decay at post or column ends
• The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors
• Nominal post size: 6x6
• Base: 12 ga.; knife plate: 10 ga.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: CPT66Z
• UPC: 20707392373906
• GTIN: 20707392373906
• Feature 01: The 1 in. standoff height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements
• Feature 02: The standoff reduces the potential for decay at post or column ends
• Feature 03: The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors
• Feature 04: Nominal post size: 6x6
• Feature 05: Base: 12 ga.; knife plate: 10 ga.
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 5.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.71875
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: CPTZ_Base
• Base Product Name: CPTZ™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Post Base
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 57137644474340694632899805886059572556
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 23
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8.25
• Package Width UOM - Imperial: in.
• Product Class: Post Base
• Prop 65 Warning: No
• Quantity: 8
• Shipping Weight: 29.28
• Short Product Name: CONCEALED POST BASE FOR 6X6 POSTS
• Strongtie.com URL: https://www.strongtie.com/retrofitpostbases_postbases/cptz_base/p/cptz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bases
• US Patents: 8,484,917
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392373902
• PAL Reference: 50707392373907
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
