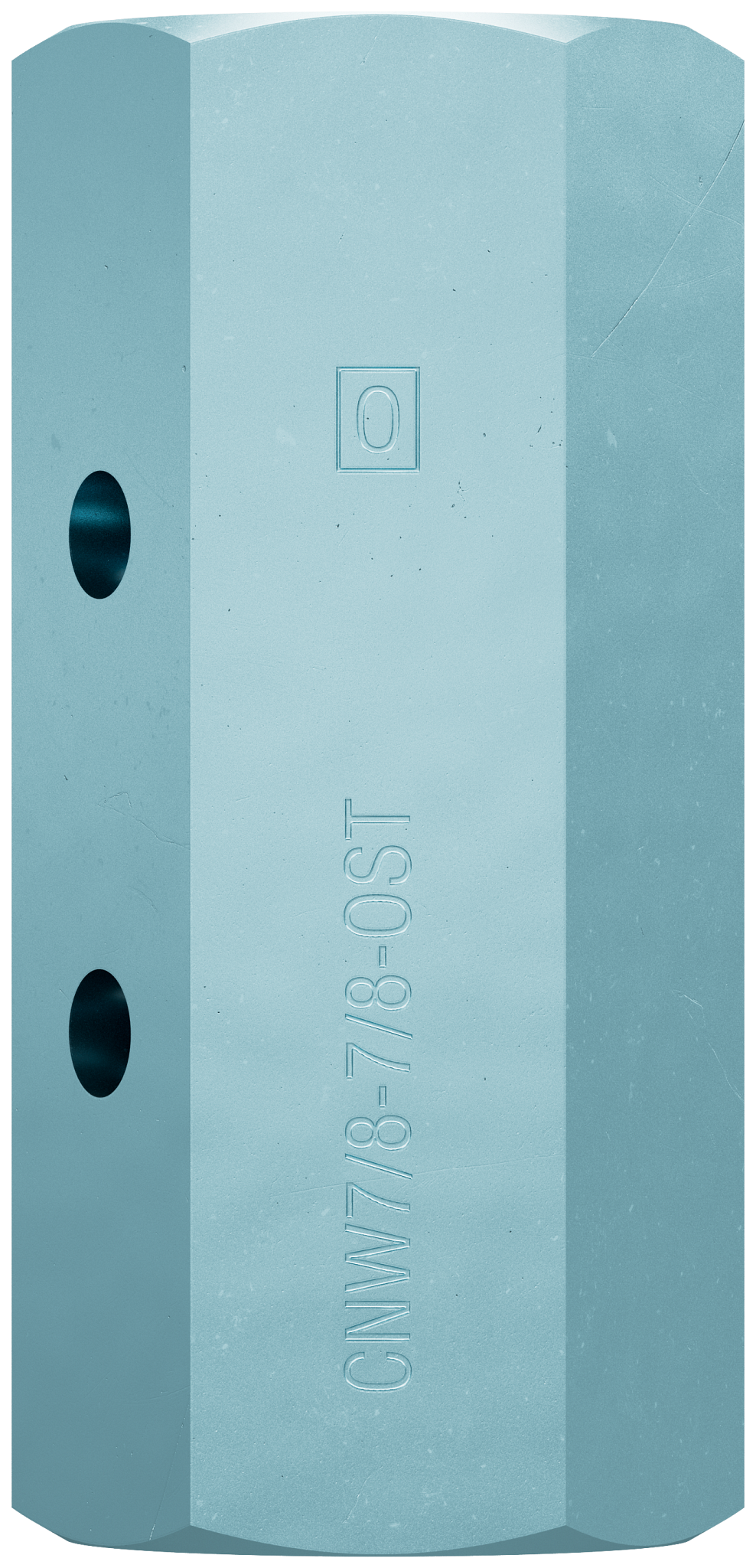

Simpson Strong-Tie CNW7/8-7/8-OST CNW 7/8 in. to 7/8 in. Oversized Thread Coupler Nut with Witness® Hole (Pack of 25)

Simpson Strong-Tie CNW7/8-7/8-OST CNW 7/8 in. to 7/8 in. Oversized Thread Coupler Nut with Witness® Hole (Pack of 25)

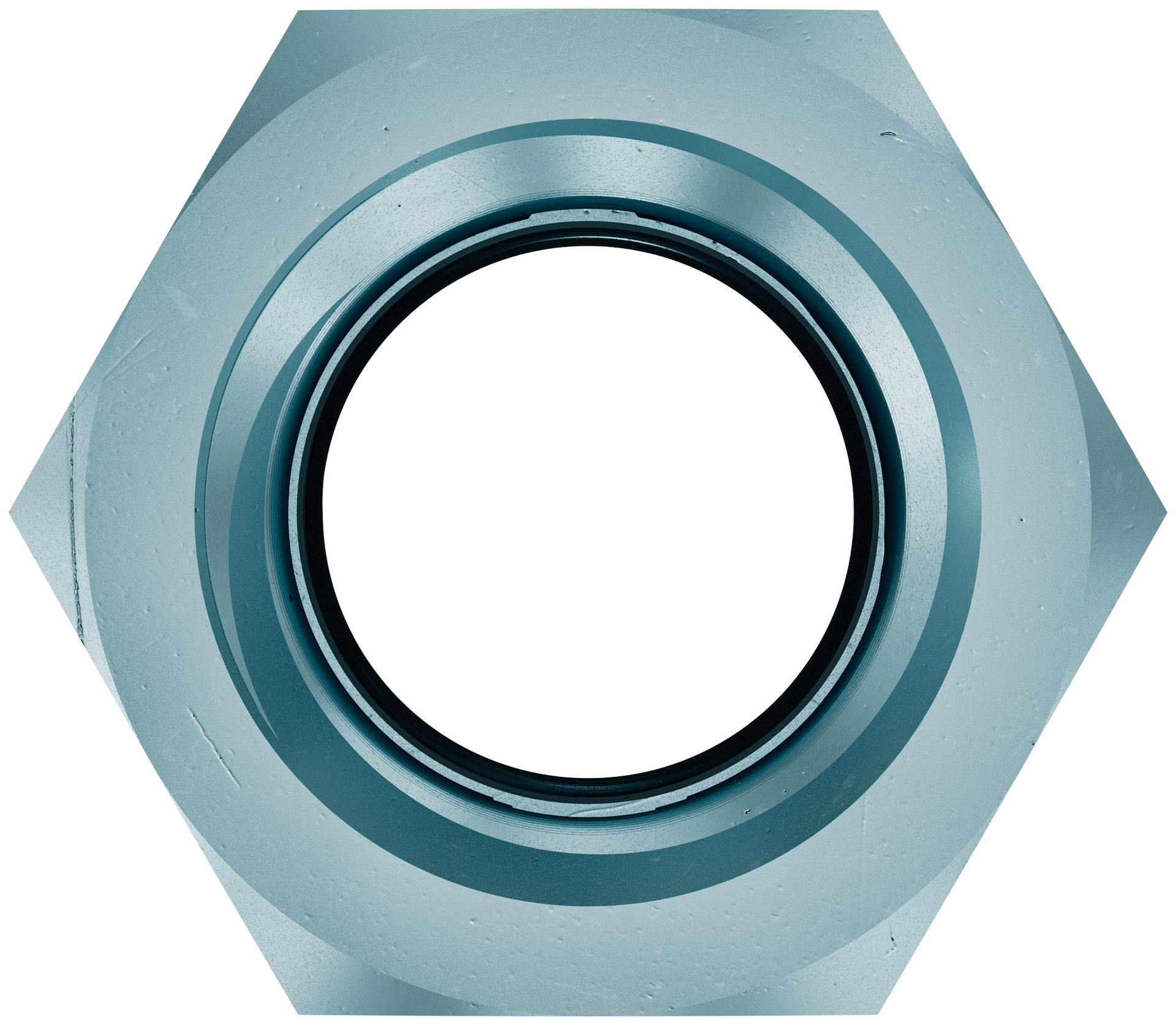

The Simpson Strong-Tie® CNW coupler nut is designed to connect threaded rods to one another and to anchor bolts. These nuts are designed to exceed the specified minimum tensile capacity of the corresponding bolts and threaded rod. All CNW coupler nuts feature a positive stop to help ensure even threading into each end of the nut and a Witness® hole as a means to verify when rods are properly installed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Tighten the two rods until each all-thread rod is visible in the Witness hole
• Oversized threads on one end for installation on hot-dip galvanized bolts

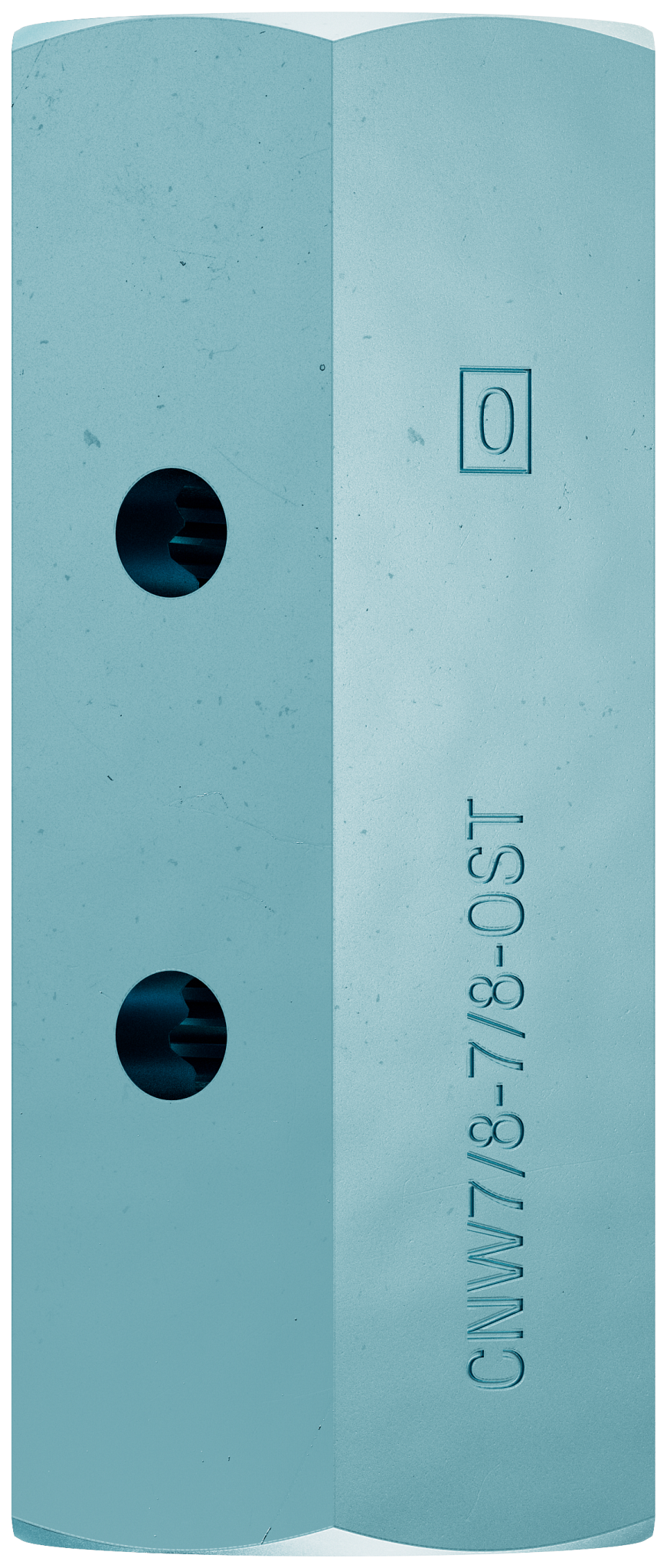

• OST couplers are oversized on one end of the coupler nut only and will be marked with an “O” on oversized side
• Rod diameter: 7/8 in. to 7/8 in. with oversized thread
• Height (min.): 2 in.

Specifications

• ERP Part Number: CNW7/8-7/8-OST
• UPC: 10707392705007
• GTIN: 10707392705007
• Feature 01: Tighten the two rods until each all-thread rod is visible in the Witness hole
• Feature 02: Oversized threads on one end for installation on hot-dip galvanized bolts
• Feature 03: OST couplers are oversized on one end of the coupler nut only and will be marked with an “O” on oversized side
• Feature 04: Rod diameter: 7/8 in. to 7/8 in. with oversized thread
• Feature 05: Height (min.): 2 in.
• Assembled Depth - Imperial: 1.09375 min.
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2 min.
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.26295 min.
• Assembled Width UOM - Imperial: in.
• Base Product ID: CNW_Nut
• Base Product Name: CNW/HSCNW/MCW
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Nuts and Couplers > Nut
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• GUID: 19006368176618060831848445746478749189
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.44
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.94
• Package Width UOM - Imperial: in.
• Product Class: Nut
• Prop 65 Warning: No
• Quantity: 25
• Shipping Weight: 13.75
• Short Product Name: CNW w/one side oversized for SSTB-HDG
• Strongtie.com URL: https://www.strongtie.com/nutsandcouplers_anchorbolts/cnw_nut/p/cnw.hscnw
• Subcategory: Wood Construction Connectors
• Subcategory 2: Nuts and Couplers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392705000
