Simpson Strong-Tie CILVFS3KT CI-LV FS™ Fast-Setting Low-Viscosity Structural Injection Epoxy (3-gal. Kit)

Simpson Strong-Tie CILVFS3KT CI-LV FS™ Fast-Setting Low-Viscosity Structural Injection Epoxy (3-gal. Kit)

CI-LV FS Fast-Setting Low-Viscosity Structural Injection Epoxy is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection of concrete cracks and for increasing the bond between freshly placed repair mortars or concrete mixes and existing concrete when substrate temperatures are between 40°F (4°C)–90°F (32°C). Available in 3-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Meets the requirements of ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 1, Class C
• Chemically bonds with the concrete to provide a structural repair; CI-LV FS seals the crack from moisture, protecting rebar in the concrete from corrosion.
• Moisture-tolerant; can be used on dry and damp surfaces
• Low surface tension allows the material to effectively penetrate narrow cracks
• Formulated for maximum penetration under pressure
• Suitable for pressure injection or gravity-feed applications
• Non-shrink and resistant to oils, salts and mild chemicals
• Can be used with metered pressure-injection equipment
• Freeze-thaw resistant
• 3-gal. kit

Specifications

• ERP Part Number: CILVFS3KT
• UPC: 707392008521
• GTIN: 707392008521
• Feature 01: Meets the requirements of ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 1, Class C
• Feature 02: Chemically bonds with the concrete to provide a structural repair; CI-LV FS seals the crack from moisture, protecting rebar in the concrete from corrosion.
• Feature 03: Moisture-tolerant; can be used on dry and damp surfaces
• Feature 04: Low surface tension allows the material to effectively penetrate narrow cracks
• Feature 05: Formulated for maximum penetration under pressure
• Feature 06: Suitable for pressure injection or gravity-feed applications
• Feature 07: Non-shrink and resistant to oils, salts and mild chemicals
• Feature 08: Can be used with metered pressure-injection equipment
• Feature 09: Freeze-thaw resistant
• Feature 10: 3-gal. kit
• Assembled Depth - Imperial: 8.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 21.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: CILVFS_Epoxy
• Base Product Name: CI-LV FS™
• Brand Name: Simpson Strong-Tie®
• Capacity: 3 gal.
• Category Tree (Computed): Restoration Solutions > Crack Repair > Injection Epoxy
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 7314814369140420520055479830676780311
• Hazardous Material Classification: 8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 8.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 9
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 21.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Kit
• Product Class: Injection Epoxy

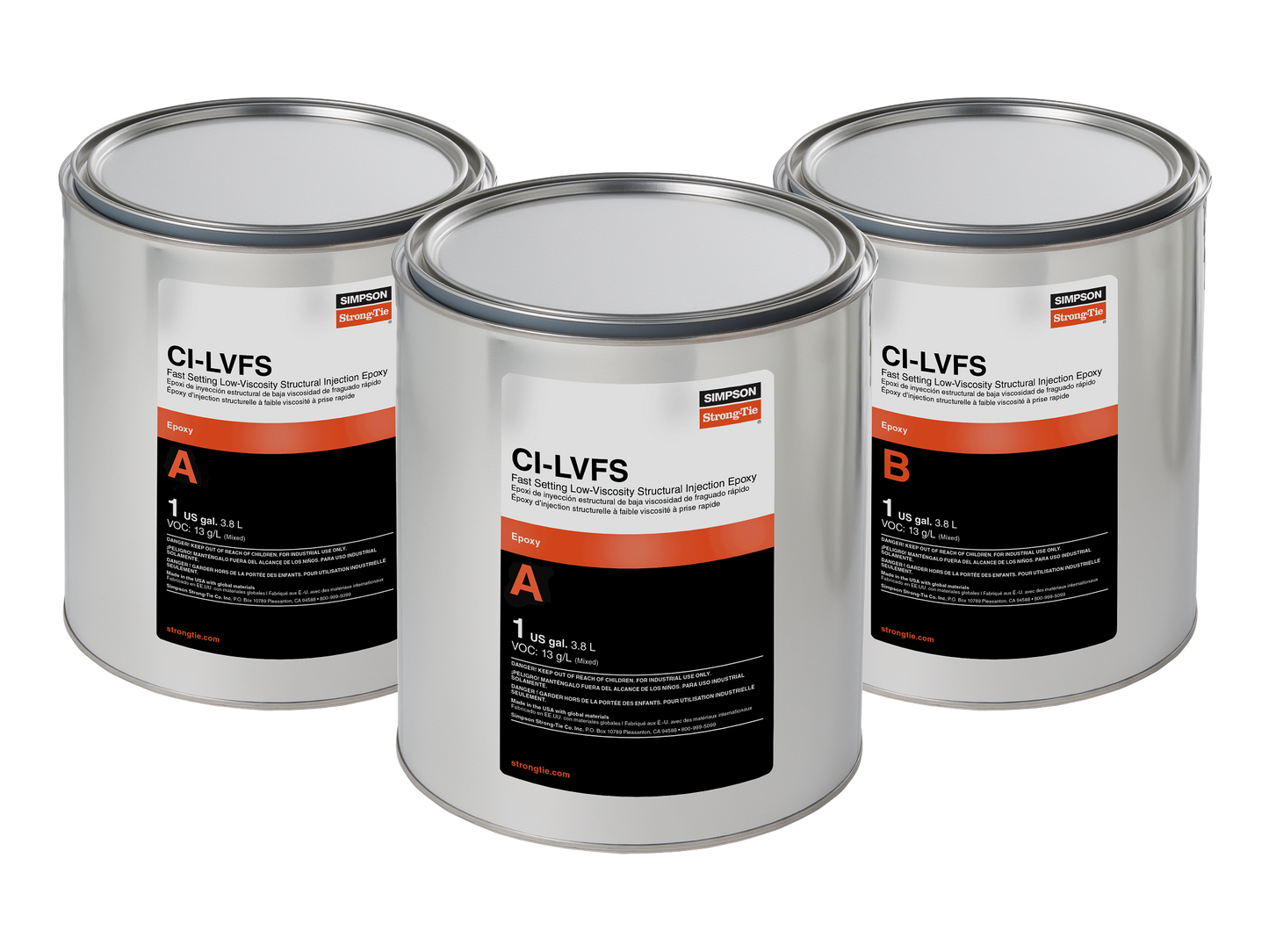

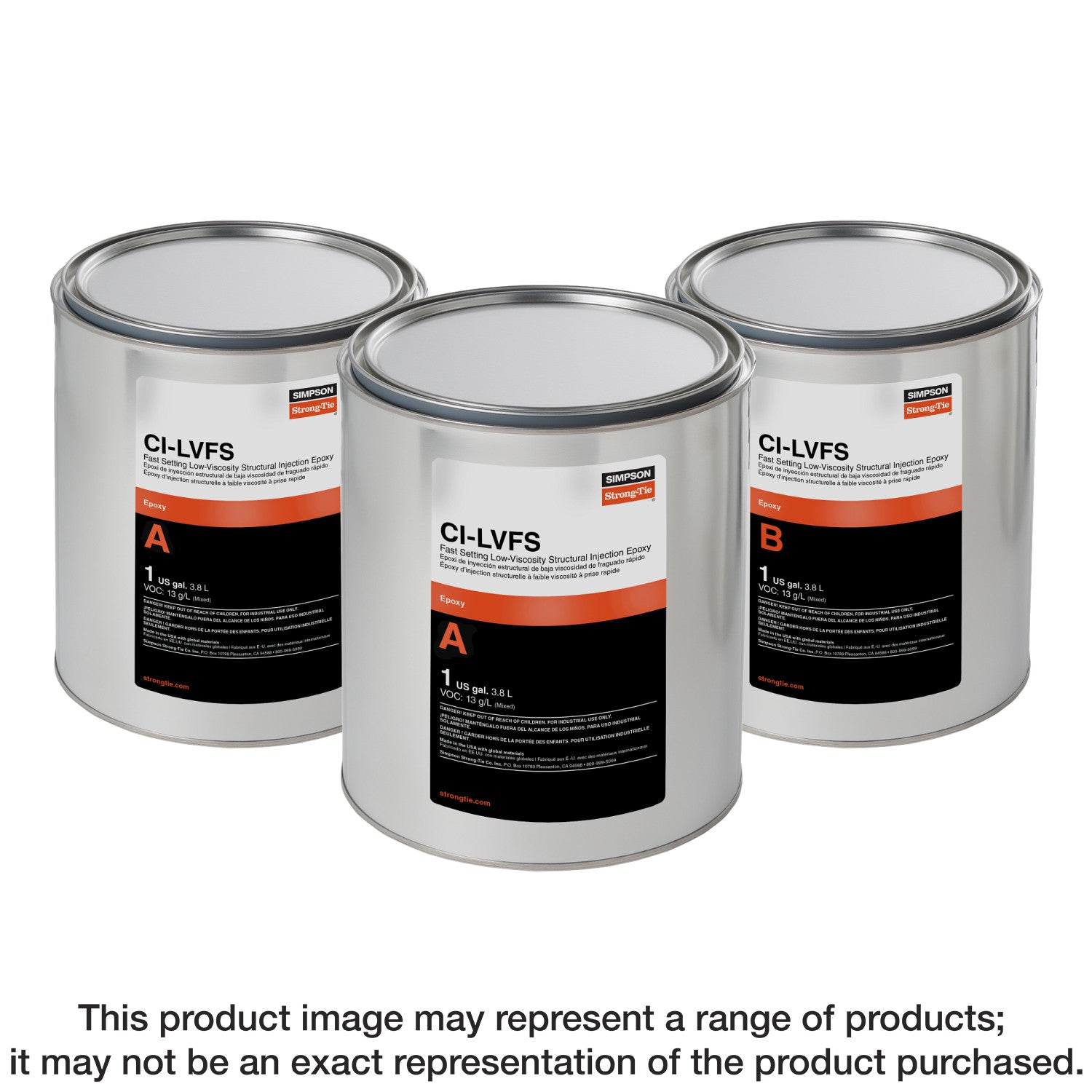

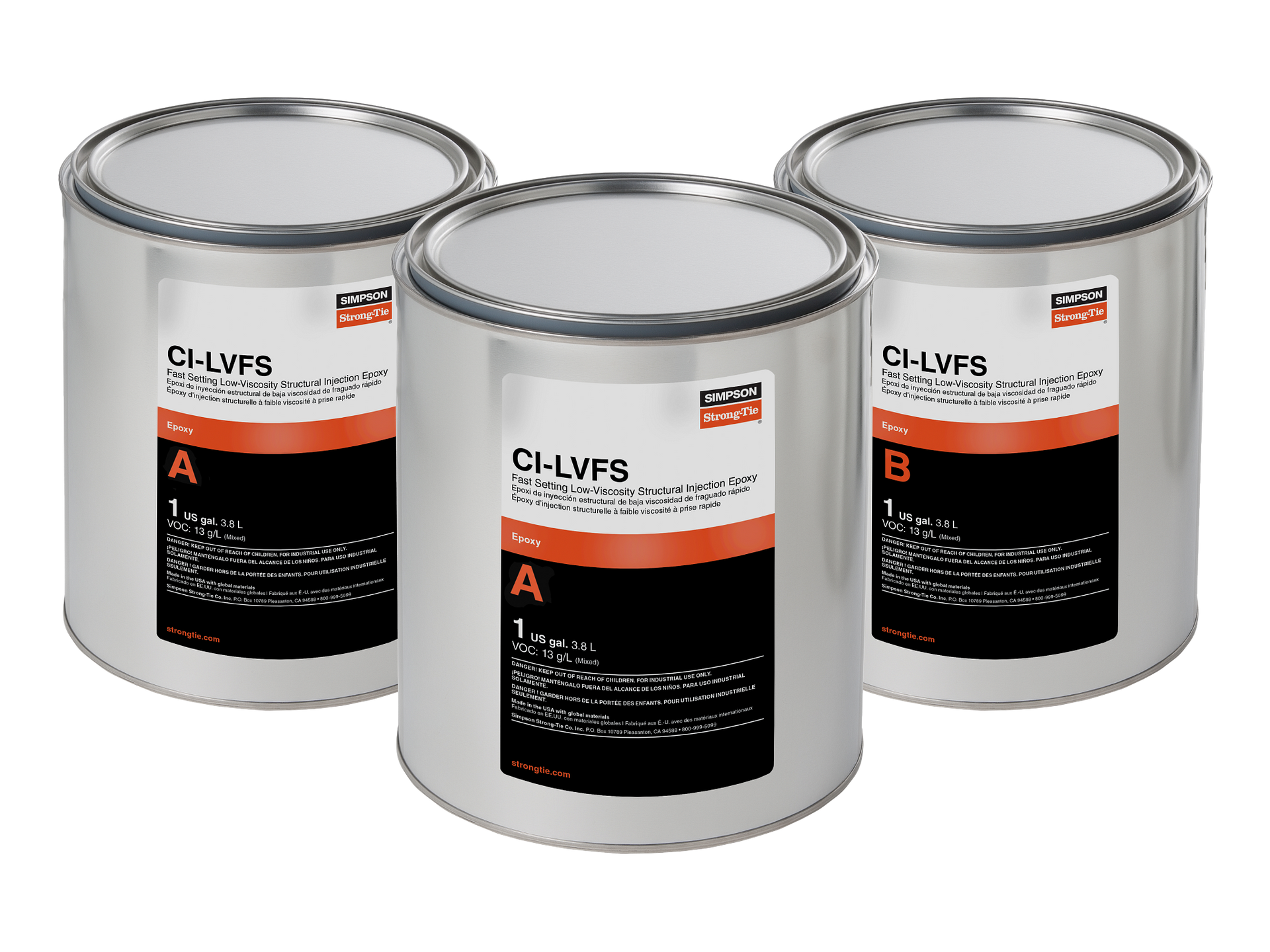

• Product Includes: Includes (2) 1 US gallon (3.8 L) cans of Component “A” (CILV1A) and 1 US gallon (3.8 L) can of Component “B” (CILVFS1B)
• Prop 65 - Cancer: Epichlorohydrin
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including epichlorohydrin which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 28
• Short Product Name: LOW VISC FAST SET INJ EPOXY 3G KIT
• Strongtie.com URL: https://www.strongtie.com/epoxyinjection_crackrepairrps/cilvfs_epoxy/p/ci-lv-fs
• Subcategory: Restoration Solutions
• Subcategory 2: Crack Repair
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
