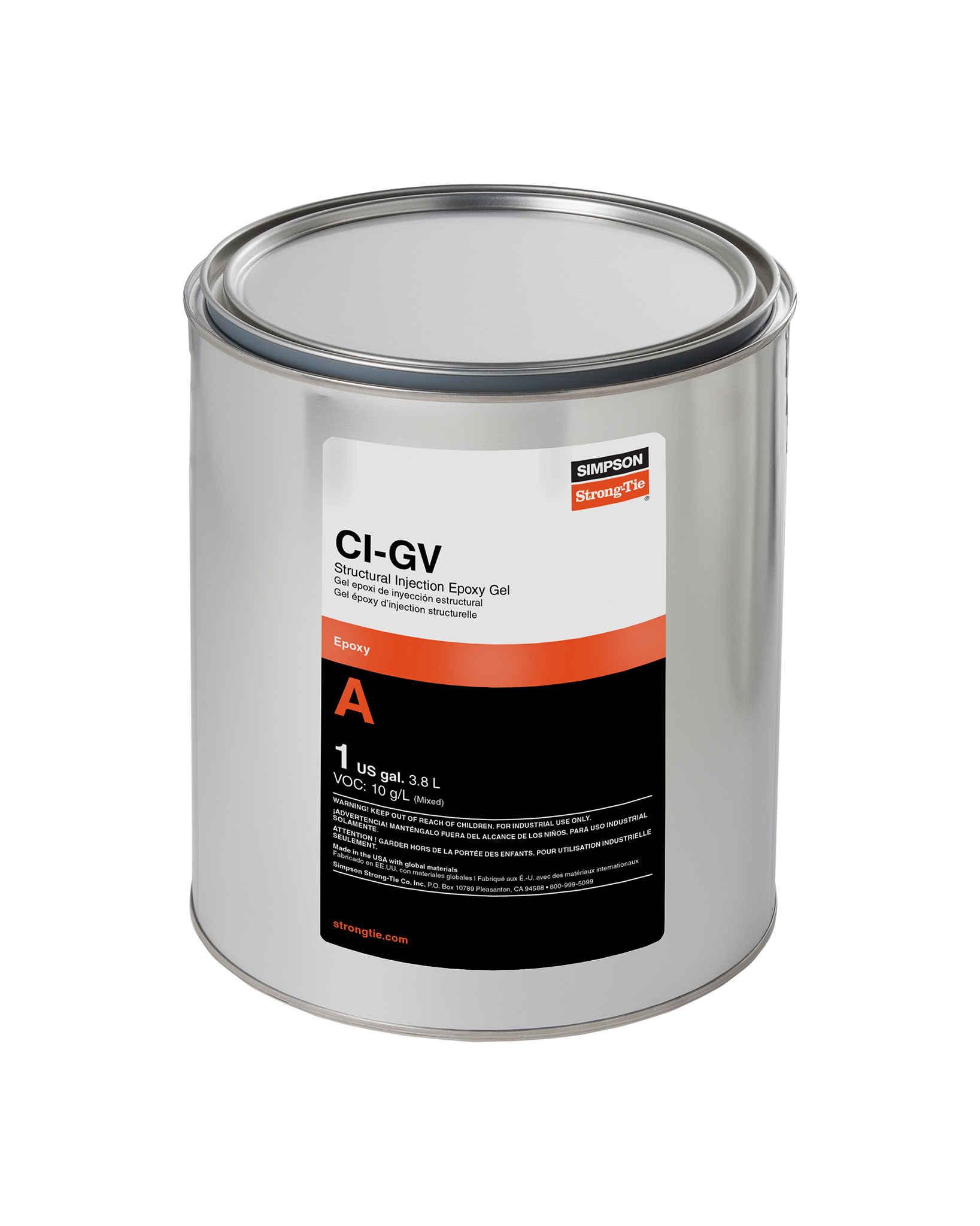

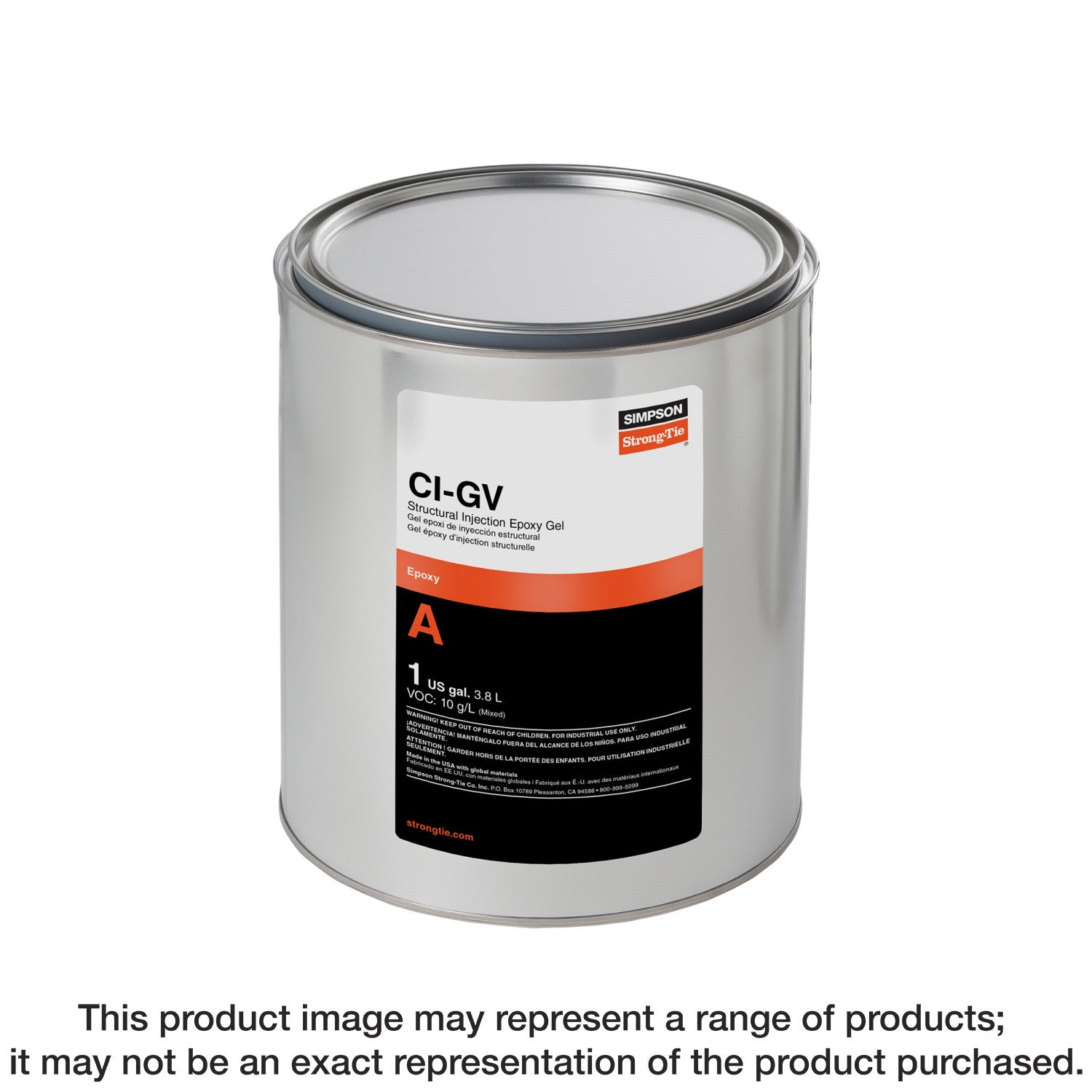

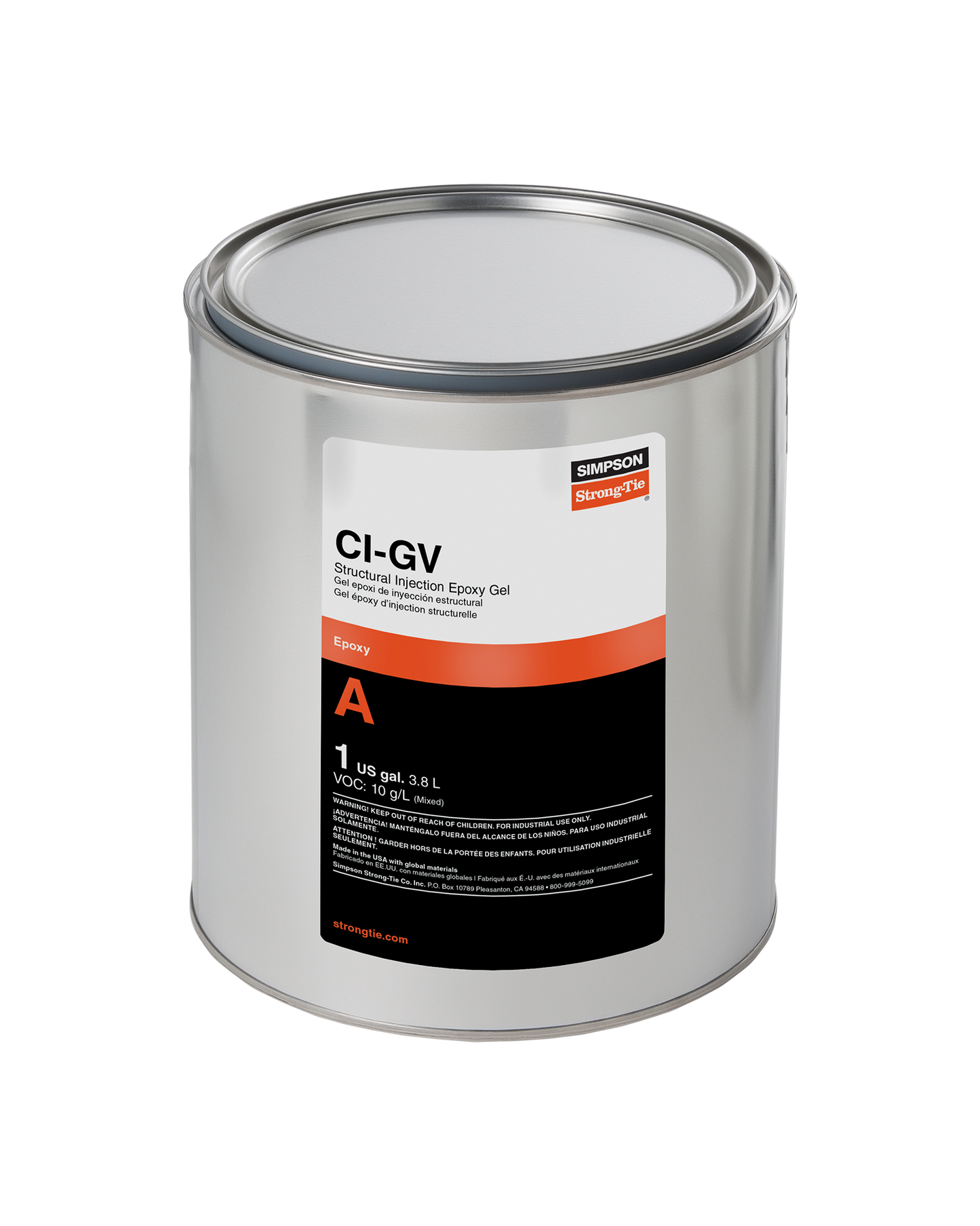

Simpson Strong-Tie CIGV3KT CI-GV™ Structural Injection Epoxy Gel (3-gal. Kit)

Simpson Strong-Tie CIGV3KT CI-GV™ Structural Injection Epoxy Gel (3-gal. Kit)

CI-GV Structural Injection Epoxy Gel is a two-component, high-modulus, high-solids, moisture-tolerant, thixotropic epoxy designed for pressure injection of concrete cracks. CI-GV is suitable for vertical and horizontal crack sealing and general concrete repair applications when substrate temperatures are between 40°F (4°C)–90°F (32°C). Available in 3-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Meets the requirements of ASTM C881 & AASHTO M235, Type I/II/V, Grade 3, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 3, Class C
• Chemically bonds with the concrete to provide a structural repair; CI-GV seals the crack from moisture, protecting rebar in the concrete from corrosion
• Gel-viscosity moisture-tolerant; can be used on dry and damp surfaces
• Decreases in viscosity under pressure for increased flowability
• Non-shrink
• Can be used with metered pressure-injection equipment
• Freeze-thaw resistant
• 3 gal. kit

Specifications

• ERP Part Number: CIGV3KT
• UPC: 707392008484
• GTIN: 707392008484
• Feature 01: Meets the requirements of ASTM C881 & AASHTO M235, Type I/II/V, Grade 3, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 3, Class C
• Feature 02: Chemically bonds with the concrete to provide a structural repair; CI-GV seals the crack from moisture, protecting rebar in the concrete from corrosion
• Feature 03: Gel-viscosity moisture-tolerant; can be used on dry and damp surfaces
• Feature 04: Decreases in viscosity under pressure for increased flowability
• Feature 05: Non-shrink
• Feature 06: Can be used with metered pressure-injection equipment
• Feature 07: Freeze-thaw resistant
• Feature 08: 3 gal. kit
• Assembled Depth - Imperial: 8.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 21.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: CIGV_Epoxy
• Base Product Name: CI-GV™
• Brand Name: Simpson Strong-Tie®
• Capacity: 3 gal.
• Category Tree (Computed): Restoration Solutions > Crack Repair > Injection Epoxy
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 29134742208662832736089341260153210216
• Hazardous Material Classification: 8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 8.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 9
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 21.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Kit
• Product Class: Injection Epoxy

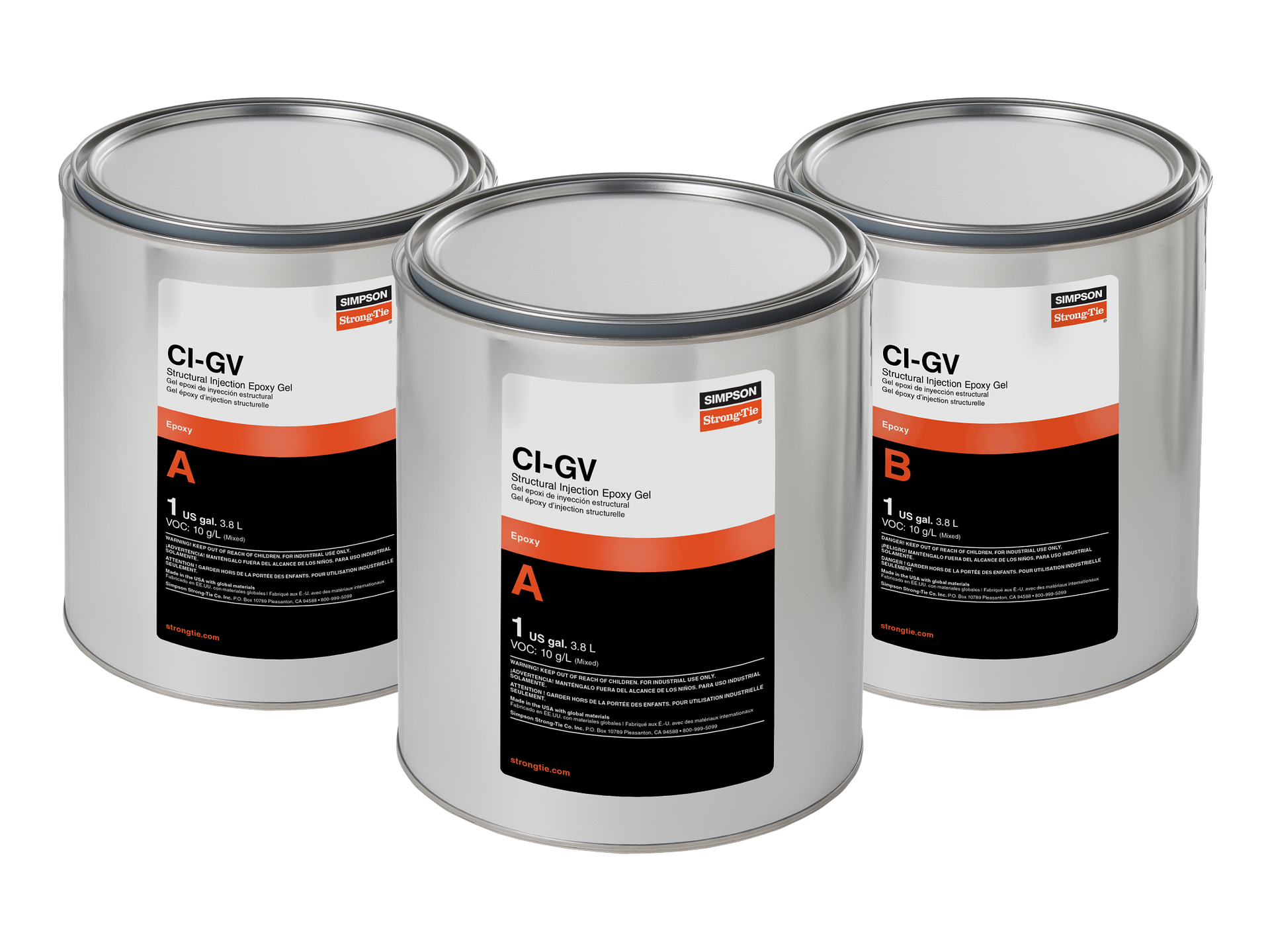

• Product Includes: Includes (2) 1 US gallon (3.8 L) cans of Component “A” (CIGV1A) and 1 US gallon (3.8 L) can of Component “B” (CIGV1B)
• Prop 65 - Cancer: Epichlorohydrin
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including epichlorohydrin which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 28
• Short Product Name: GEL VISC INJ EPOXY 3G KIT
• Strongtie.com URL: https://www.strongtie.com/epoxyinjection_crackrepairrps/cigv_epoxy/p/ci-gv
• Subcategory: Restoration Solutions
• Subcategory 2: Crack Repair
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
