Simpson Strong-Tie CD25200C Crimp Drive® 1/4 in. x 2 in. Zinc-Plated Countersunk Head Anchor (100-Qty)

Simpson Strong-Tie CD25200C Crimp Drive® 1/4 in. x 2 in. Zinc-Plated Countersunk Head Anchor (100-Qty)

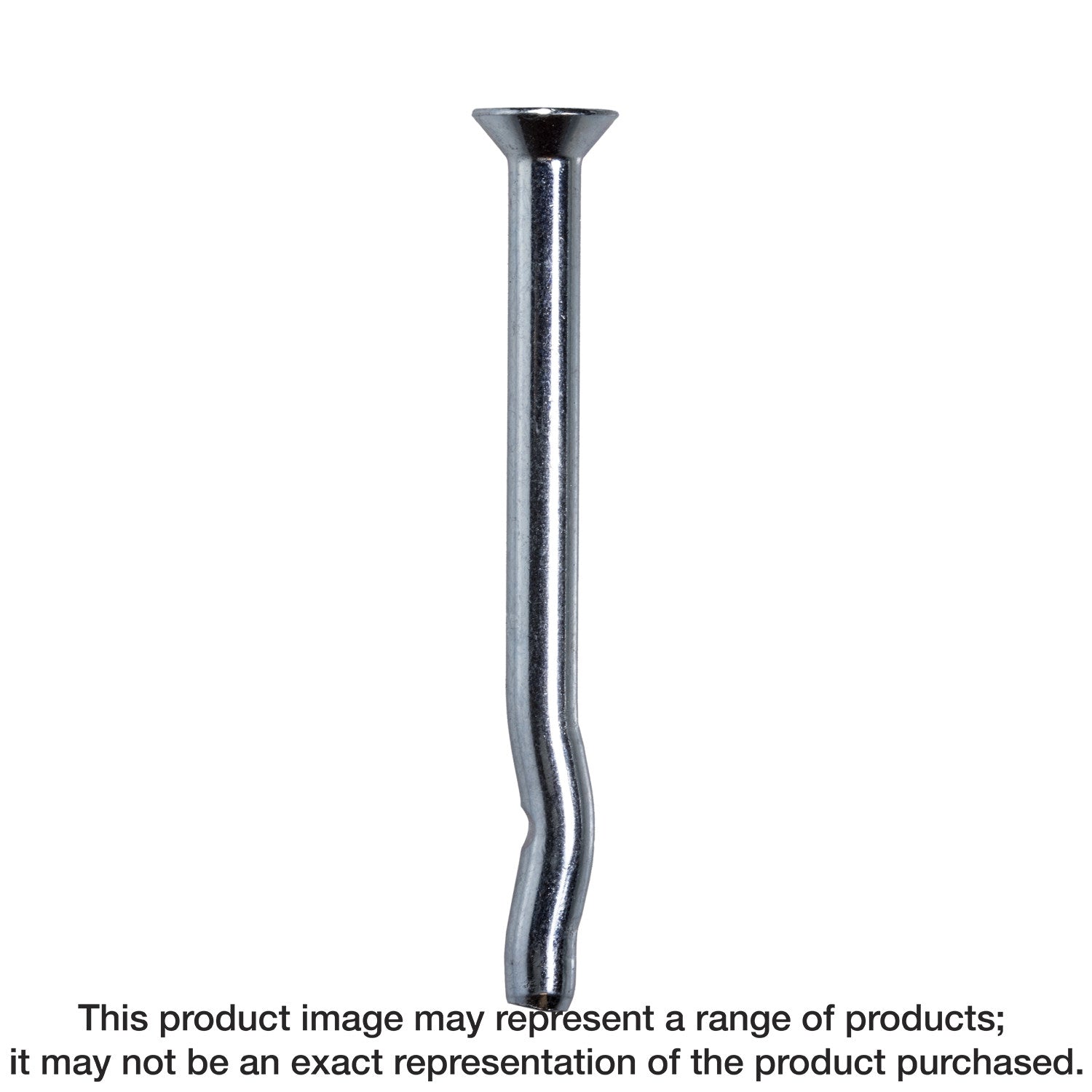

The Simpson Strong-Tie® Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure. The anchor is available in five different head styles to handle different applications that include fastening wood or light-gauge steel, attaching concrete formwork, and hanging overhead support for sprinkler pipes or suspended ceiling panels.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Unique curved shaft design that provides secure placement
• Speeds up anchor installation by eliminating need for additional tightening
• Countersunk head provides a zero-profile solution
• Zinc-plated carbon-steel anchor
• Size: 1/4 in. x 2 in.
• Quantity: 100

Specifications

• ERP Part Number: CD25200C
• UPC: 707392458012
• GTIN: 707392458012
• Feature 01: Unique curved shaft design that provides secure placement
• Feature 02: Speeds up anchor installation by eliminating need for additional tightening
• Feature 03: Countersunk head provides a zero-profile solution
• Feature 04: Zinc-plated carbon-steel anchor
• Feature 05: Size: 1/4 in. x 2 in.
• Feature 06: Quantity: 100
• Assembled Depth - Imperial: 0.531
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.031
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.531
• Assembled Width UOM - Imperial: in.
• Base Product ID: CD_Anchor
• Base Product Name: Crimp Drive®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Expansion Anchor
• Coating: Zinc Plated
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 1/4
• EAN category: UC
• Finish: Zinc Plated
• GUID: 29033529081352448893328057234276477652
• Head Type: Countersunk Head
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.30
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.54
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Box
• Product Class: Expansion Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 3.1
• Short Product Name: 1/4IN X 2IN COUNTERSUNK CRIMP DRV
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/cd_anchor/p/crimp-drive
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392434792
