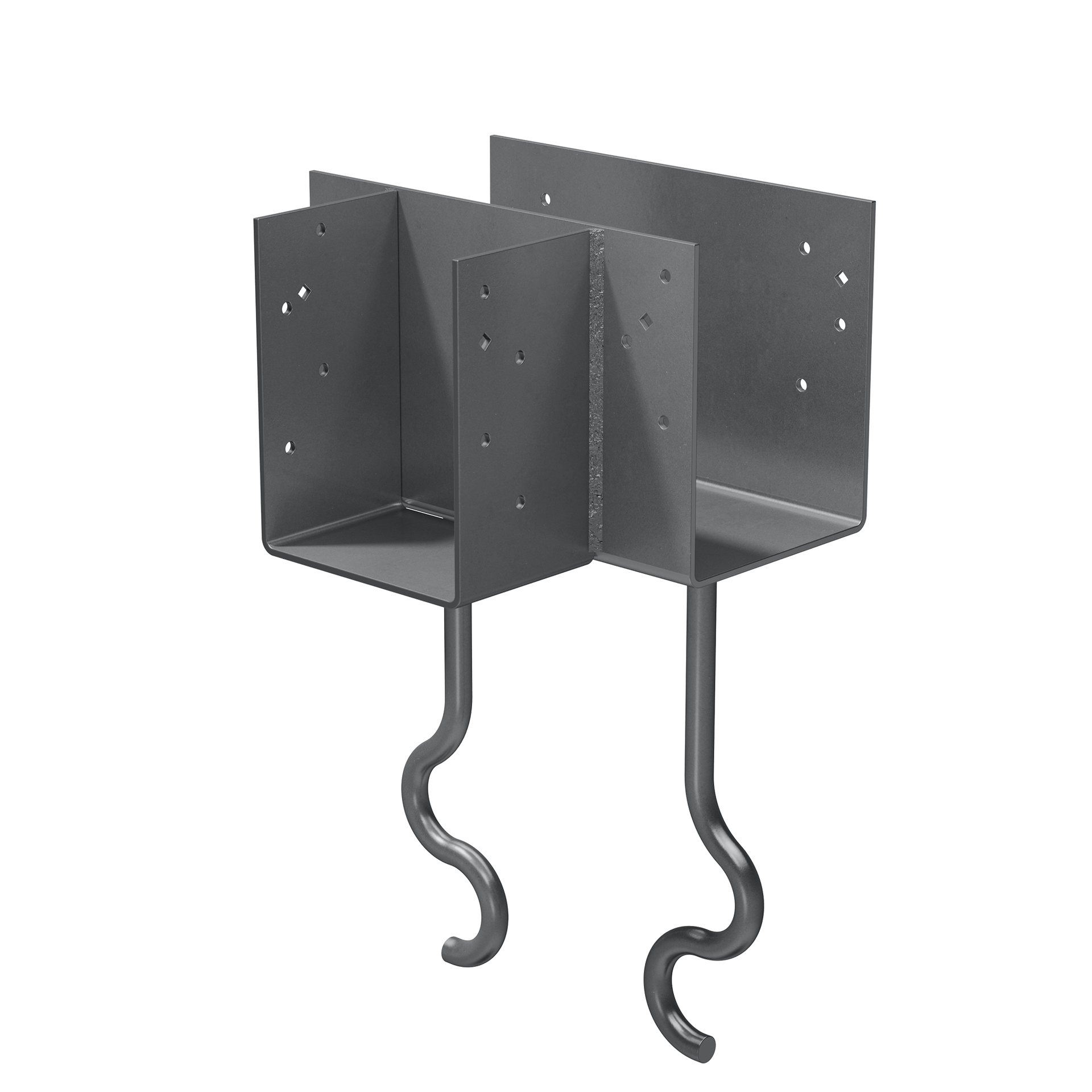

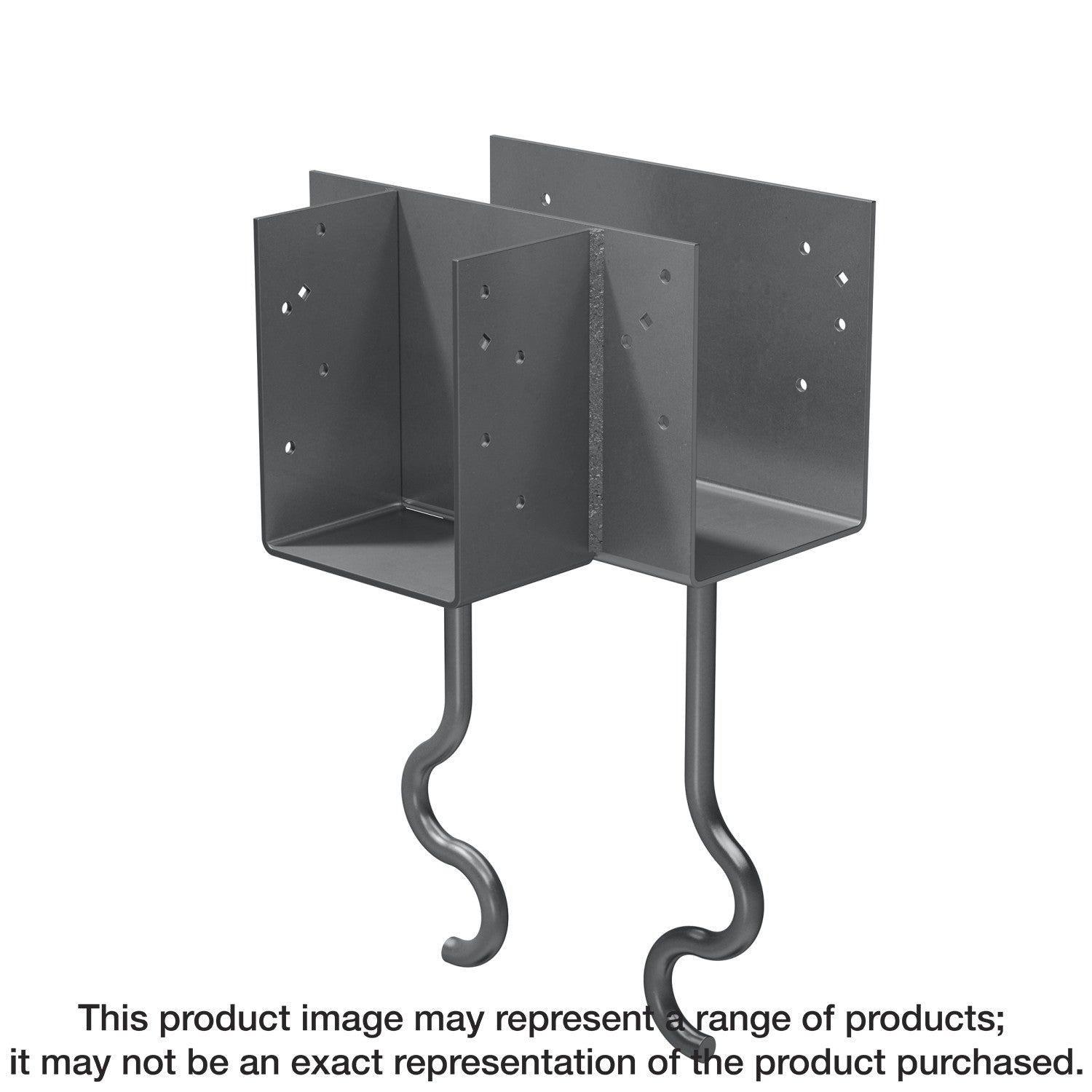

Simpson Strong-Tie CCTQM5.50-SDSG CCTQM® 5-1/2 in. T-Shape Column Cap for Masonry w/ SDS Screws

Simpson Strong-Tie CCTQM5.50-SDSG CCTQM® 5-1/2 in. T-Shape Column Cap for Masonry w/ SDS Screws

The CCTQM® embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCTQM is for use along a floor support beam and non-corner locations with a side stirrup to accommodate intermediate support beams at 90° angles.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• SSTB offset allows flush installation to edge of pier
• SSTBs spaced to fit standard CMU cells
• 5-1/2 in. main channel and side stirrup widths
• 13-1/2 in. main channel length
• Made from 7-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Fasten with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating

Specifications

• ERP Part Number: CCTQM5.50-SDSG
• UPC: 707392496304
• GTIN: 707392496304
• Feature 01: Screws are configured to provide high uplift design values
• Feature 02: Certified welds for confidence in strength and loading
• Feature 03: SSTB offset allows flush installation to edge of pier
• Feature 04: SSTBs spaced to fit standard CMU cells
• Feature 05: 5-1/2 in. main channel and side stirrup widths
• Feature 06: 13-1/2 in. main channel length
• Feature 07: Made from 7-gauge steel
• Feature 08: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Feature 09: Fasten with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating
• Install With: (20) 1/4-in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
• Assembled Depth - Imperial: 13.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 19.1745
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.849
• Assembled Width UOM - Imperial: in.
• Base Product ID: CCTQM_Cap
• Base Product Name: CCTQM®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Hot-Dip Galvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: Hot-Dip Galvanized
• Gauge: 7
• GUID: 36421486428325739490076079915846274662
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Product Includes: (20) 1/4-in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 19.2
• Short Product Name: 5.50" MASONRY CC T-SHAPE SDS HDG
• Strongtie.com URL: https://www.strongtie.com/columncapsforcmuandconcretepiers_masonryconnectors/cctqm_cap/p/cctqm
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392496301
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
