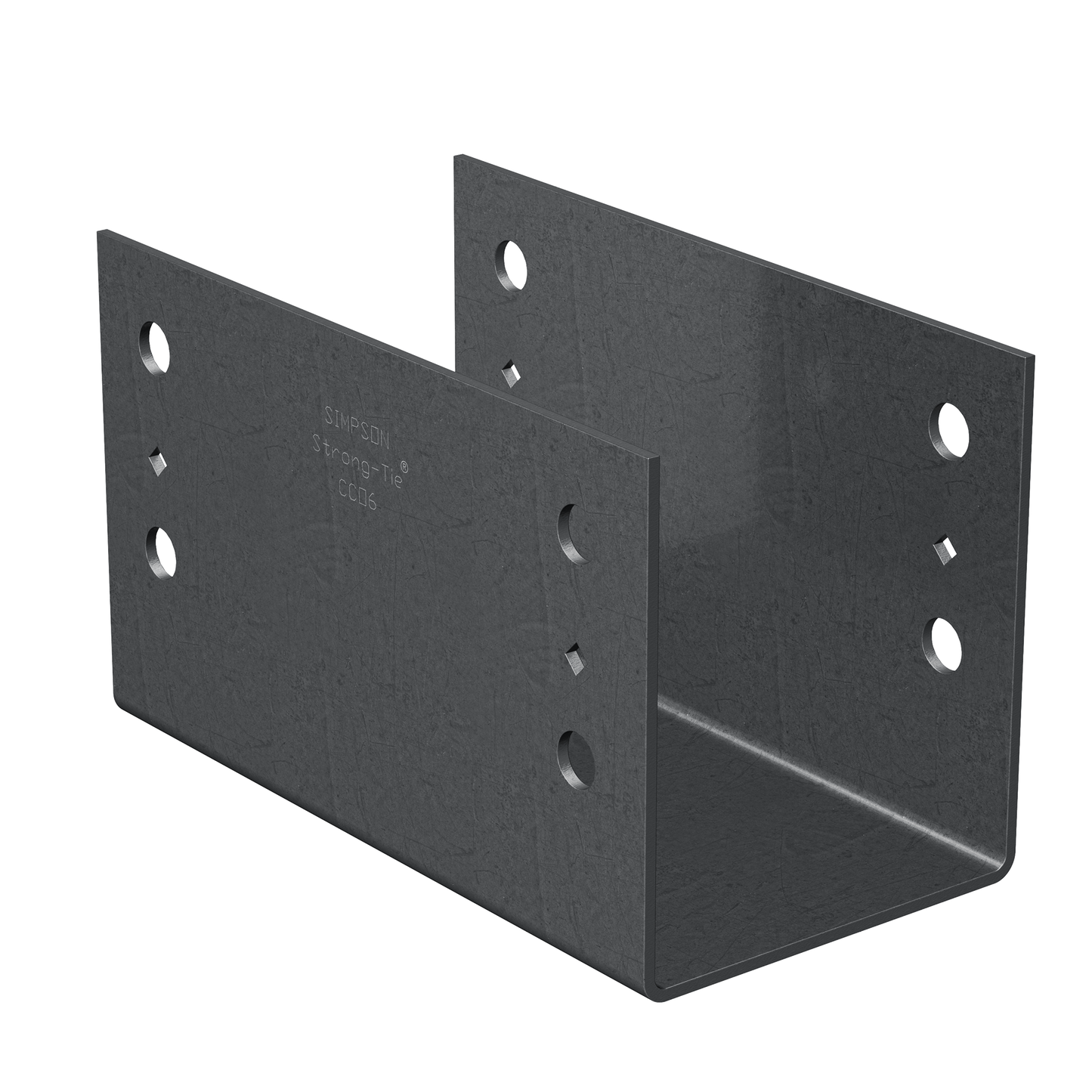

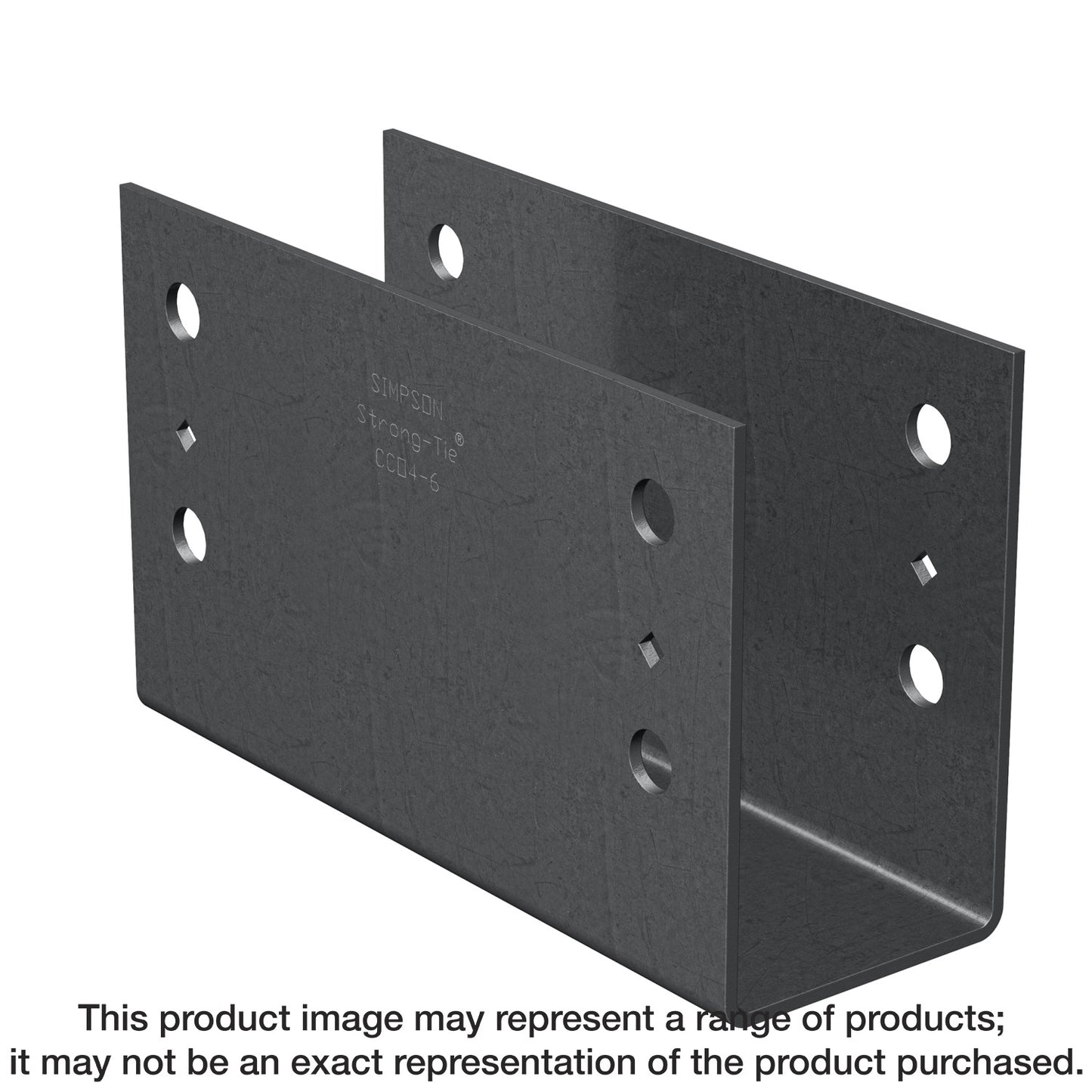

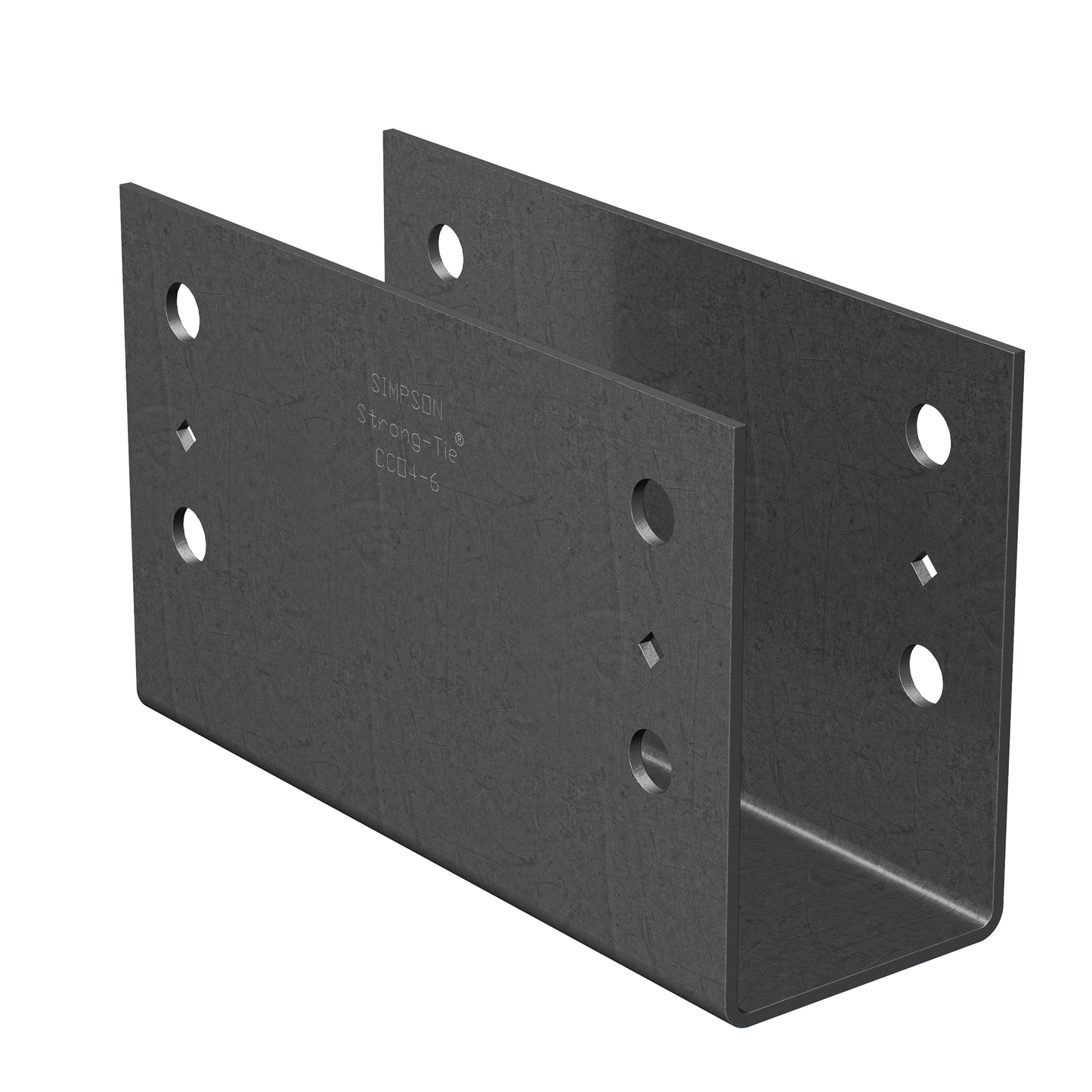

Simpson Strong-Tie CCO6 CCO Column Cap (No Legs) for 6x Beam

Simpson Strong-Tie CCO6 CCO Column Cap (No Legs) for 6x Beam

The Simpson Strong-Tie® CCO is designed to provide strong column-beam connections using steel columns. The column cap features a design without legs enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column helping to distribute the load from the beam and provide support for the connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Uplift loads increased for earthquake or wind loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• For nominal 6x, 5-1/4 in. or 5-1/2 in. beam width
• Cap height of 6-1/2 in.
• Made from 7-gauge uncoated steel

Specifications

• ERP Part Number: CCO6
• UPC: 44315174001
• GTIN: 44315174001
• Feature 01: Uplift loads increased for earthquake or wind loading
• Feature 02: Bolt spacing that meets NDS code requirements to ensure optimal performance
• Feature 03: Diamond holes to provide temporary fastening
• Feature 04: For nominal 6x, 5-1/4 in. or 5-1/2 in. beam width
• Feature 05: Cap height of 6-1/2 in.
• Feature 06: Made from 7-gauge uncoated steel
• Install With: (4) 5/8 in. diameter machine bolts
• Assembled Depth - Imperial: 11
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.671
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.842
• Assembled Width UOM - Imperial: in.
• Base Product ID: CCO_Cap
• Base Product Name: CCO
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Uncoated Steel
• Gauge: 7
• GUID: 241931594350526688086071271201982322085
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x, 5-1/4 in., 5-1/2 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 10.32
• Short Product Name: 6X BEAM CAP ONLY
• Strongtie.com URL: https://www.strongtie.com/boltedcolumncaps_columncaps/cco_cap/p/cco
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
