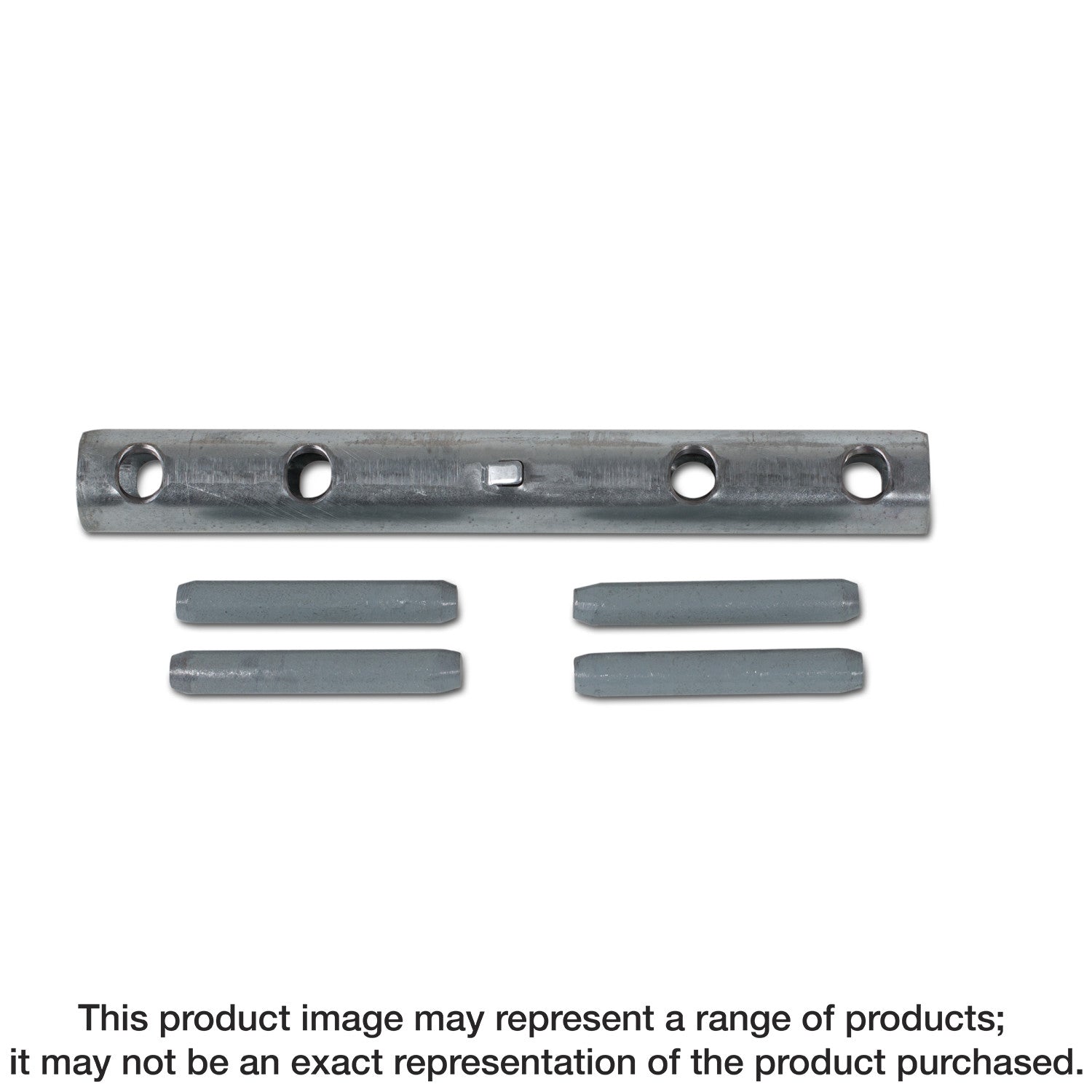

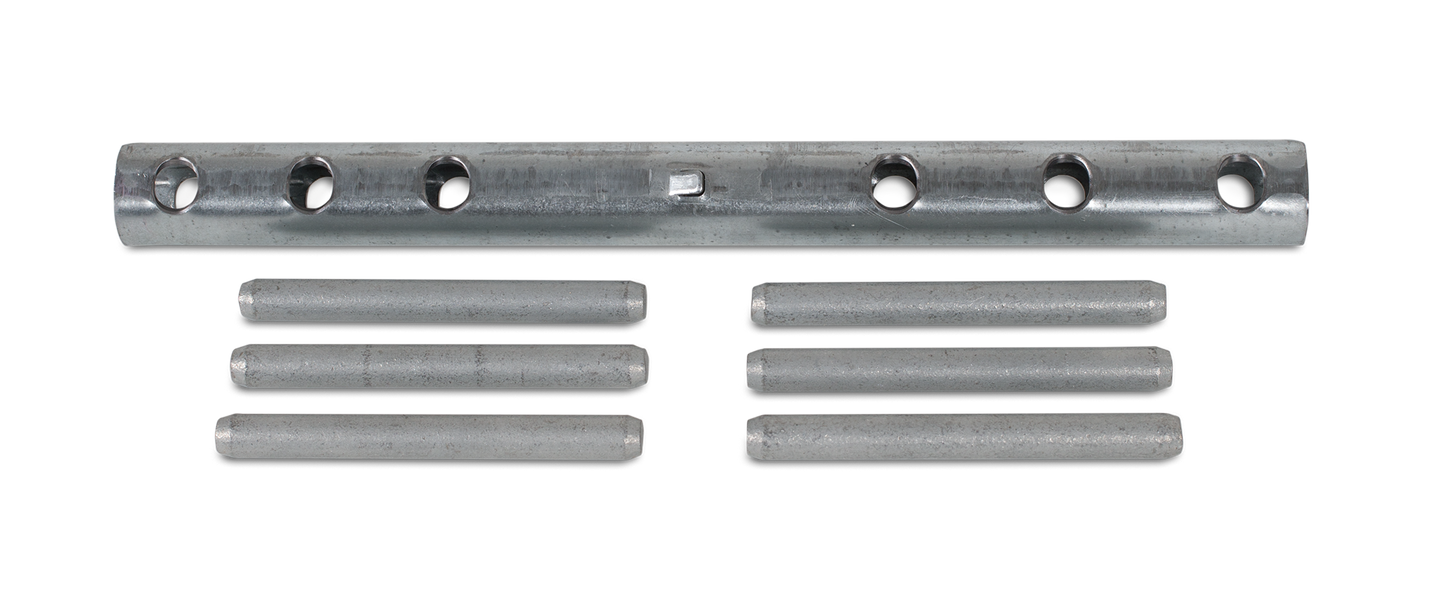

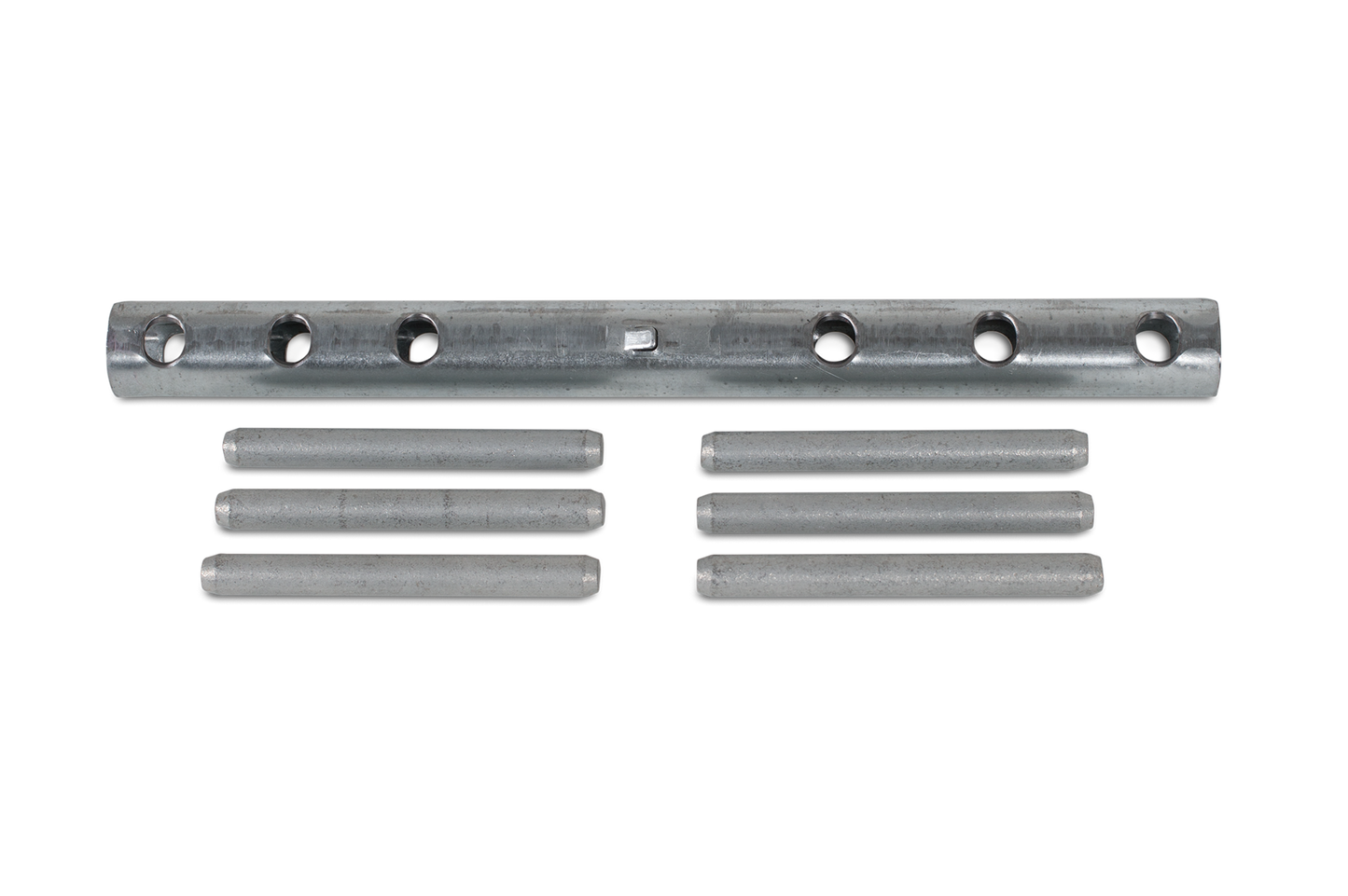

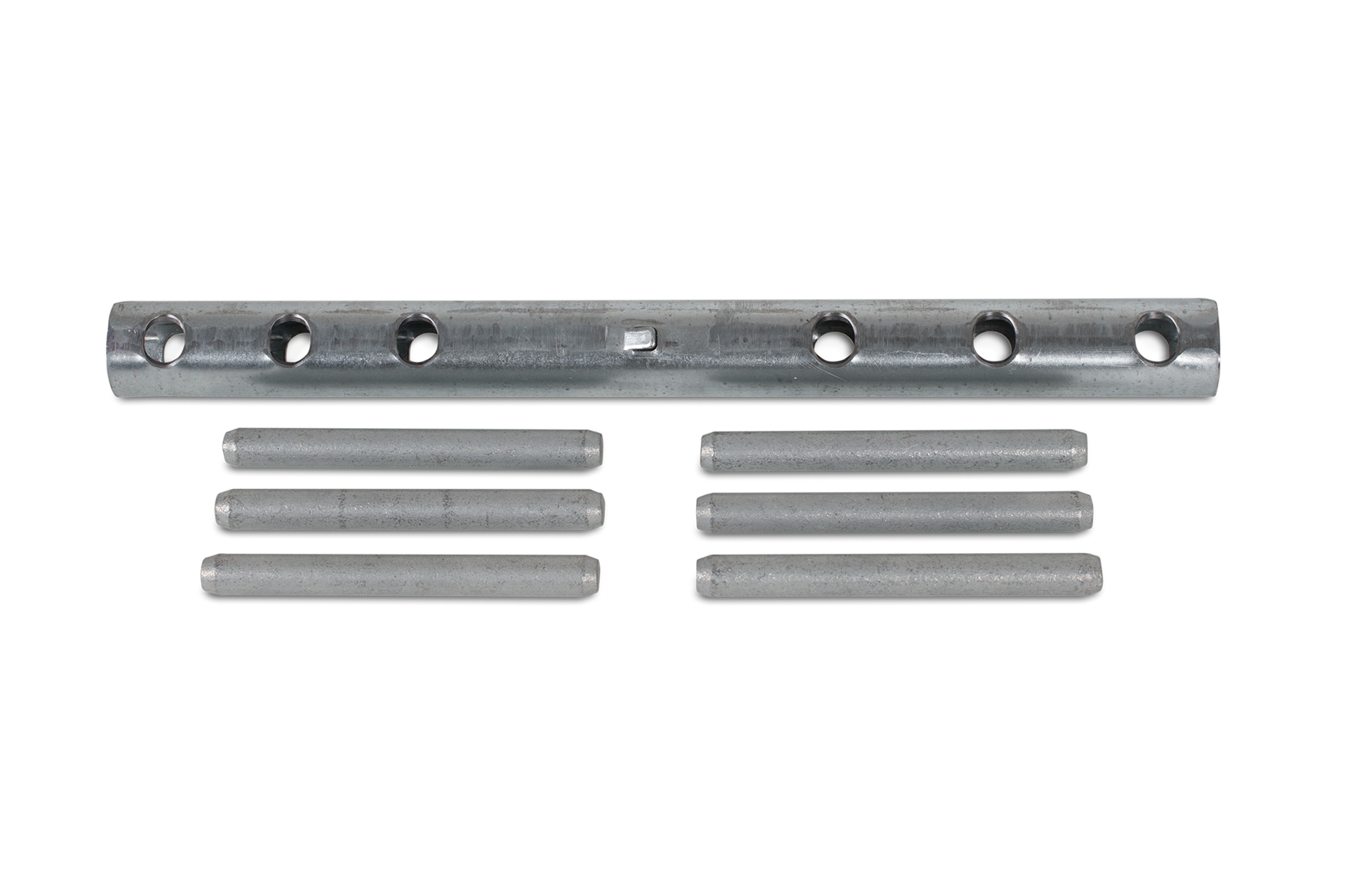

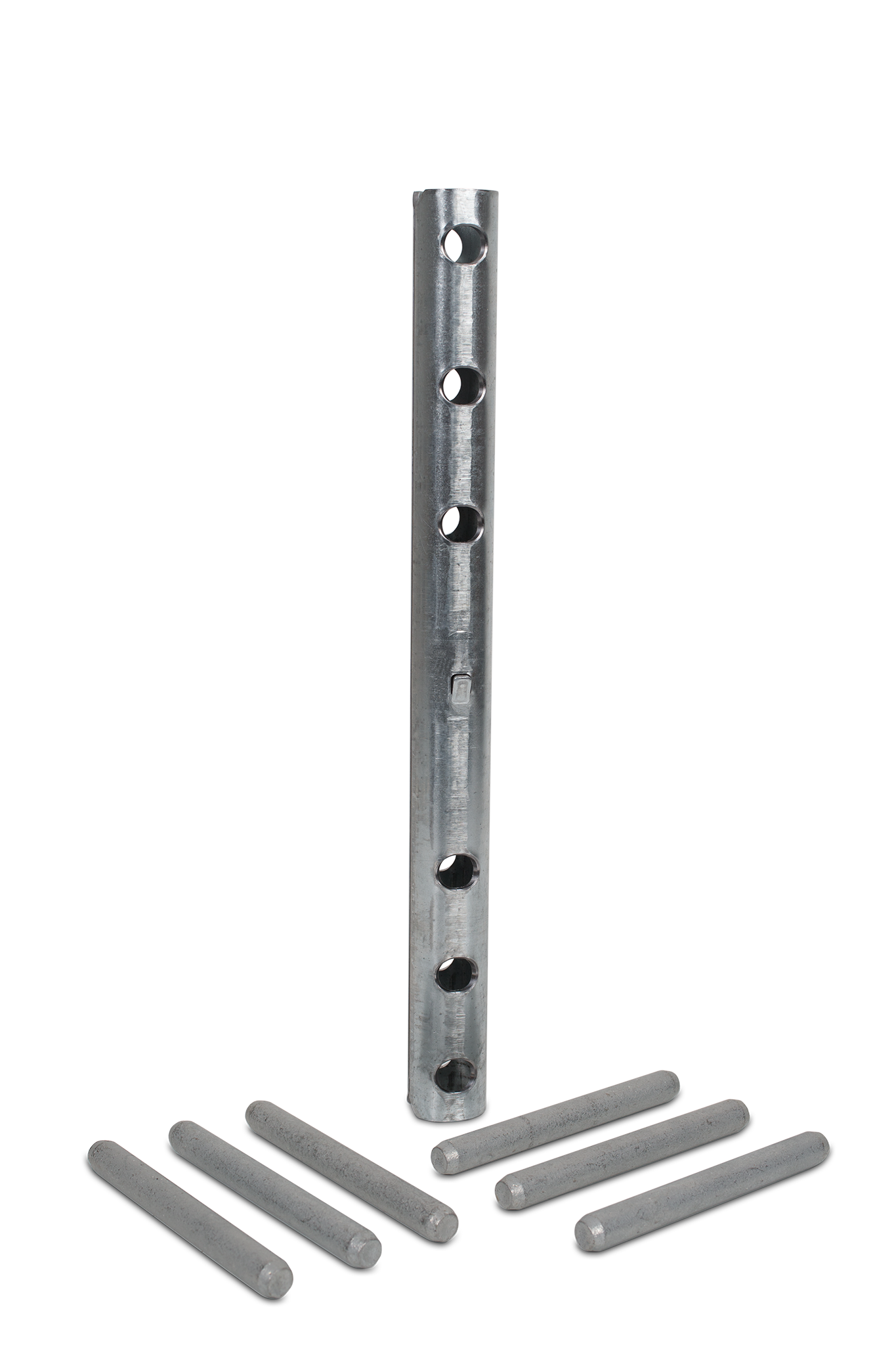

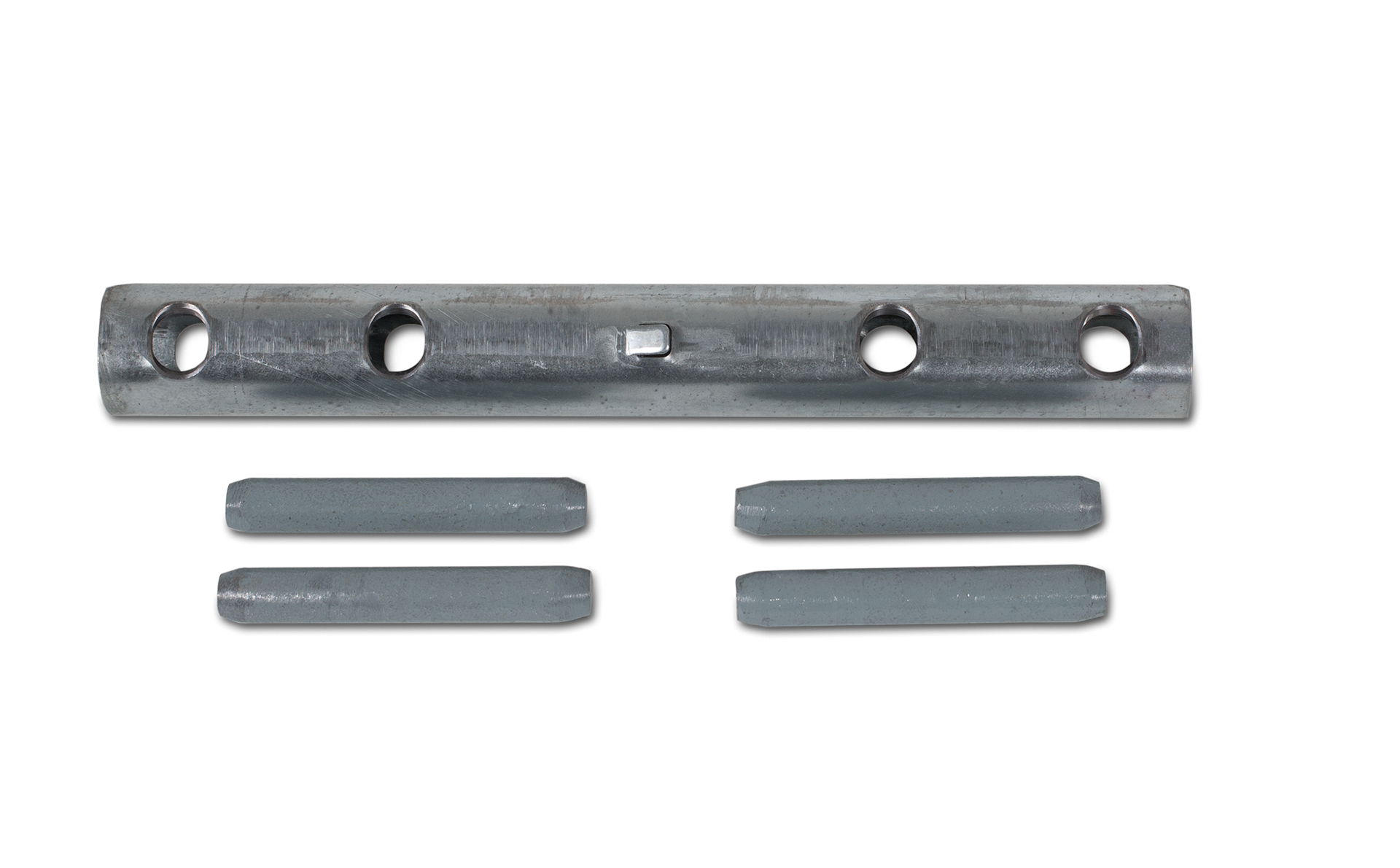

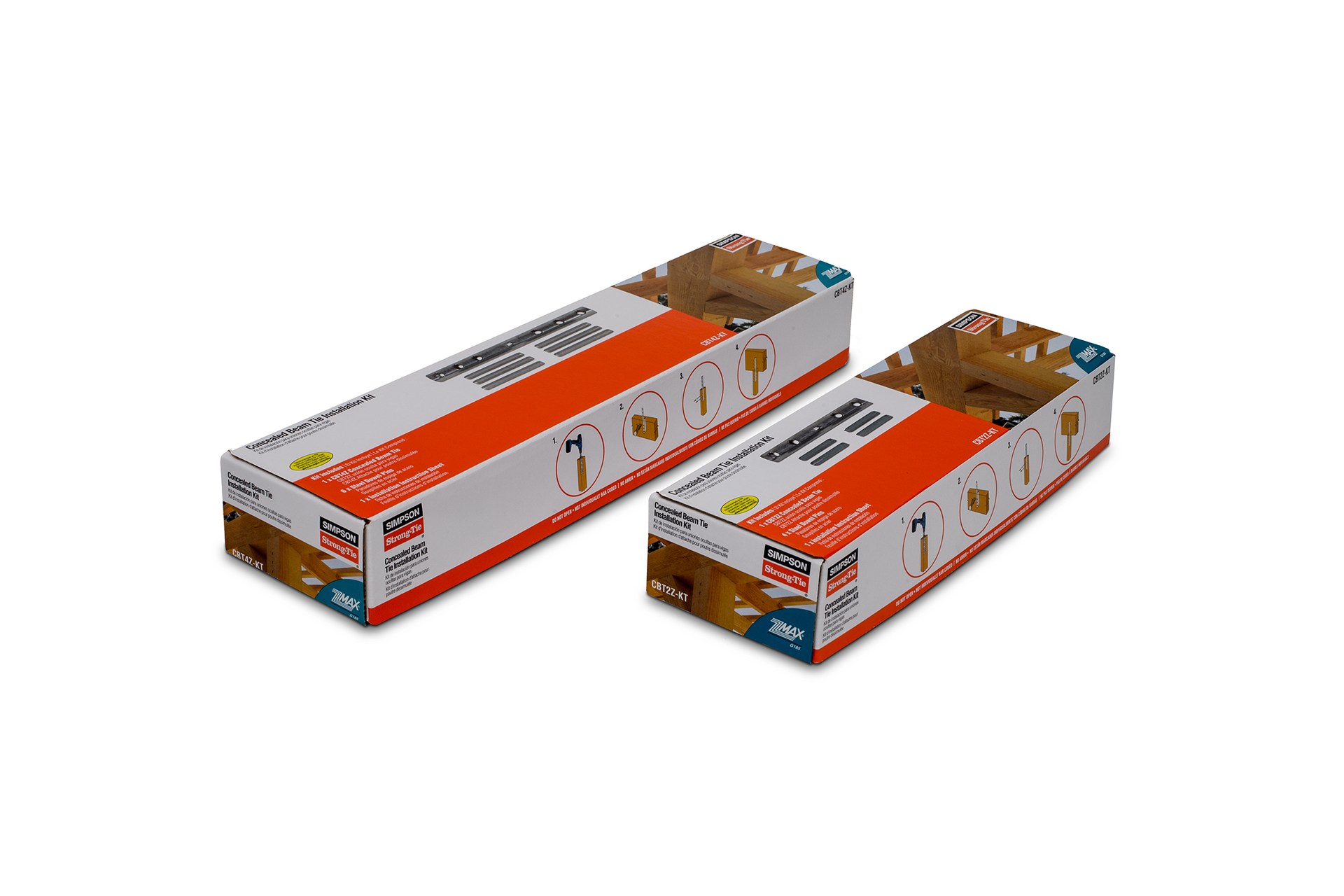

Simpson Strong-Tie CBT4Z-KT CBTZ™ 12-Gauge ZMAX® Concealed Beam Tie for 6x6 Post (Pack of 240)

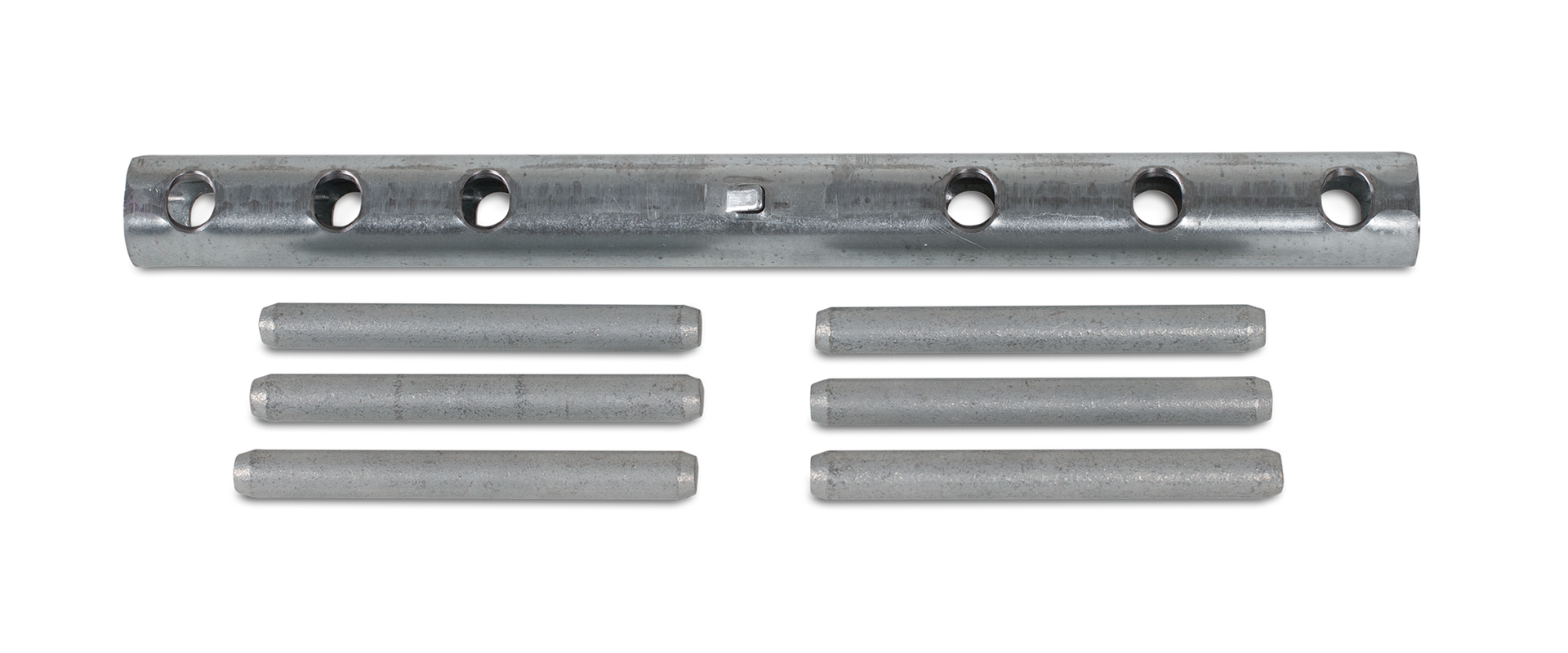

The Simpson Strong-Tie® CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout
- Required dowel pins included
- Orientation markings distinguish which end installs into the post and which end goes into the beam
- Dimensions: 1-1/4 in. x 14 in.
- Sized for a nominal 6x6 post
- Made from 12-gauge steel
- ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
- 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55
Specifications
- ERP Part Number: CBT4Z-KT
- UPC: 50707392875814
- GTIN: 50707392875814
- Feature 01: Flattened sides assist installer while using the CBTZ as a template
- Feature 02: Locator tabs provide proper dimensional layout
- Feature 03: Required dowel pins included
- Feature 04: Orientation markings distinguish which end installs into the post and which end goes into the beam
- Feature 05: Dimensions: 1-1/4 in. x 14 in.
- Feature 06: Sized for a nominal 6x6 post
- Feature 07: Made from 12-gauge steel
- Feature 08: ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
- Feature 09: 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55
- Assembled Depth - Imperial: 1.230
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 14
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 1.40625
- Assembled Width UOM - Imperial: in.
- Base Product ID: CBT_Tie
- Base Product Name: CBTZ™
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
- Country of Origin: US
- Customer Unit: No
- Display Unit/Measure: PAL
- EAN category: IC
- GUID: 127784063744327927402106470496112099591
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Pallet
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Product Class: Column Cap
- Prop 65 - Cancer: Wood Dust
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 240
- Shipping Weight: 744
- Short Product Name: CONCEALED BEAM TIE 14IN 4.75PIN ZMAX
- Strongtie.com URL: https://www.strongtie.com/columncaps_capsandbases/cbt_tie/p/cbtz
- Subcategory: Wood Construction Connectors
- Subcategory 2: Caps
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 10707392875816
- EA Reference: 707392875819
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
