Simpson Strong-Tie CBT2Z-KT CBTZ™ 12-Gauge ZMAX® Concealed Beam Tie for 4x4 Post

Simpson Strong-Tie CBT2Z-KT CBTZ™ 12-Gauge ZMAX® Concealed Beam Tie for 4x4 Post

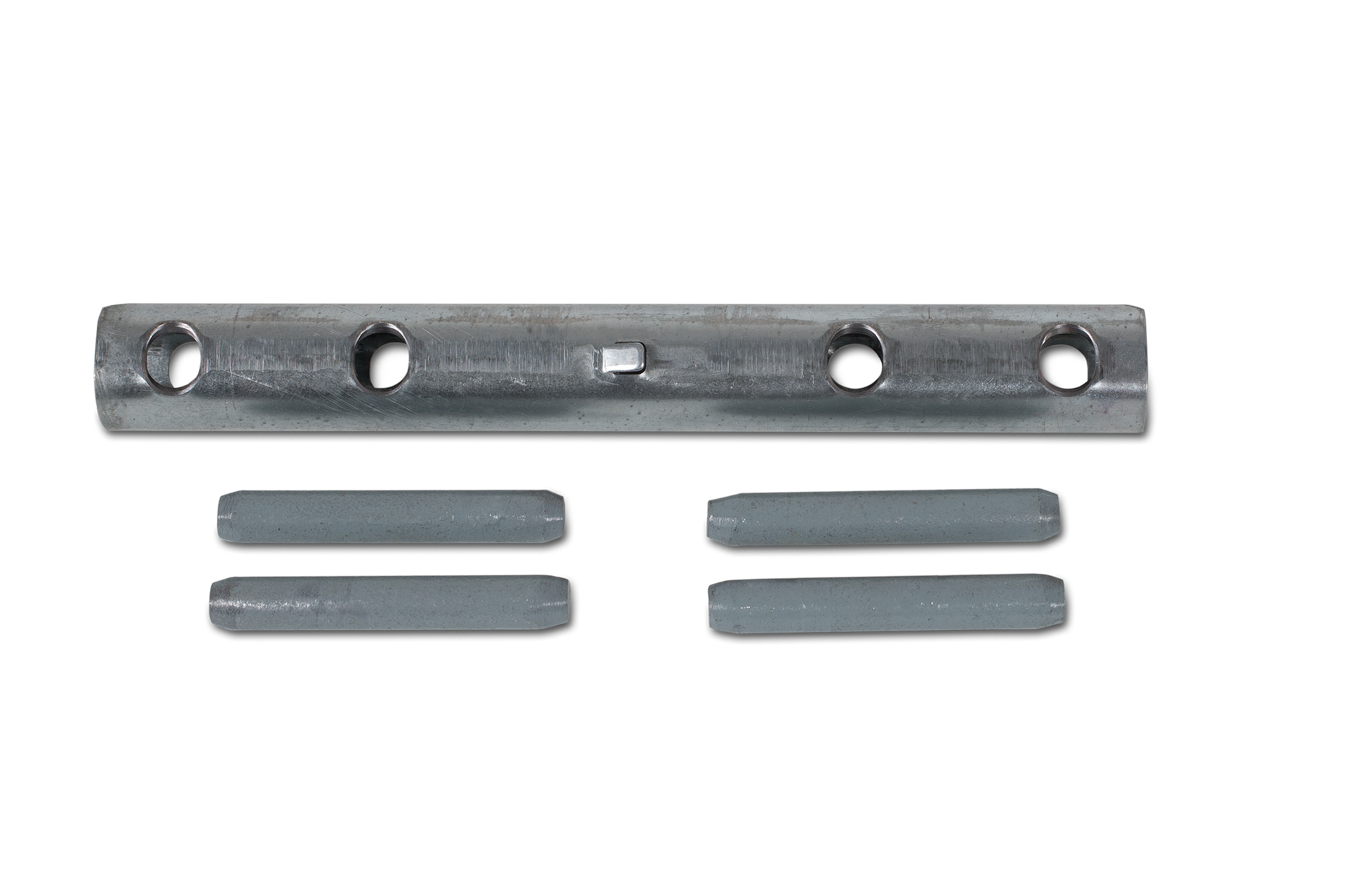

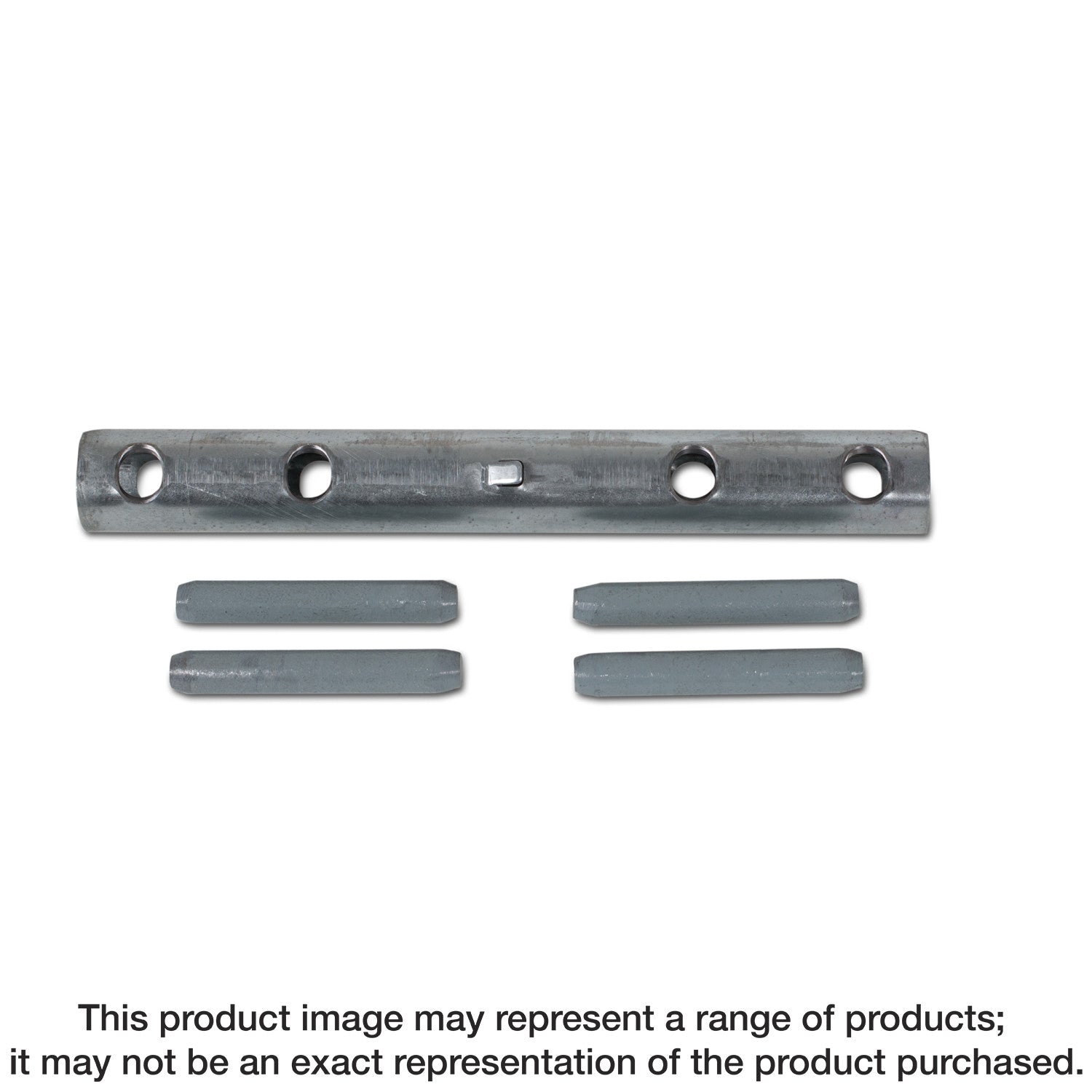

The Simpson Strong-Tie® CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flattened sides assist installer while using the CBTZ as a template
• Locator tabs provide proper dimensional layout
• Required dowel pins included
• Orientation markings distinguish which end installs into the post and which end goes into the beam
• Dimensions: 1-1/4 in. x 10 in.
• Sized for a nominal 4x4 post
• Made from 12-gauge steel
• ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
• 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55

Application

• General Framing
• Framing — Wood
• Rough Lumber
• Wood / Residential Construction

Specifications

• ERP Part Number: CBT2Z-KT
• UPC: 707392935049
• GTIN: 707392935049
• Feature 01: Flattened sides assist installer while using the CBTZ as a template
• Feature 02: Locator tabs provide proper dimensional layout
• Feature 03: Required dowel pins included
• Feature 04: Orientation markings distinguish which end installs into the post and which end goes into the beam
• Feature 05: Dimensions: 1-1/4 in. x 10 in.
• Feature 06: Sized for a nominal 4x4 post
• Feature 07: Made from 12-gauge steel
• Feature 08: ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
• Feature 09: 1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55
• Install With: Install with (4) 1/2 in. x 3-1/4 in. dowels (included) or 1/2 in. bolts
• Applications List: General Framing
• Applications List.1: Framing — Wood
• Applications List.2: Rough Lumber
• Applications List.3: Wood / Residential Construction
• Assembled Depth - Imperial: 1.230
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.40625
• Assembled Width UOM - Imperial: in.
• Base Product ID: CBT_Tie
• Base Product Name: CBTZ™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 12
• GUID: 222942135431936480193991061741424593857
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.88
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.37
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 1.94
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1

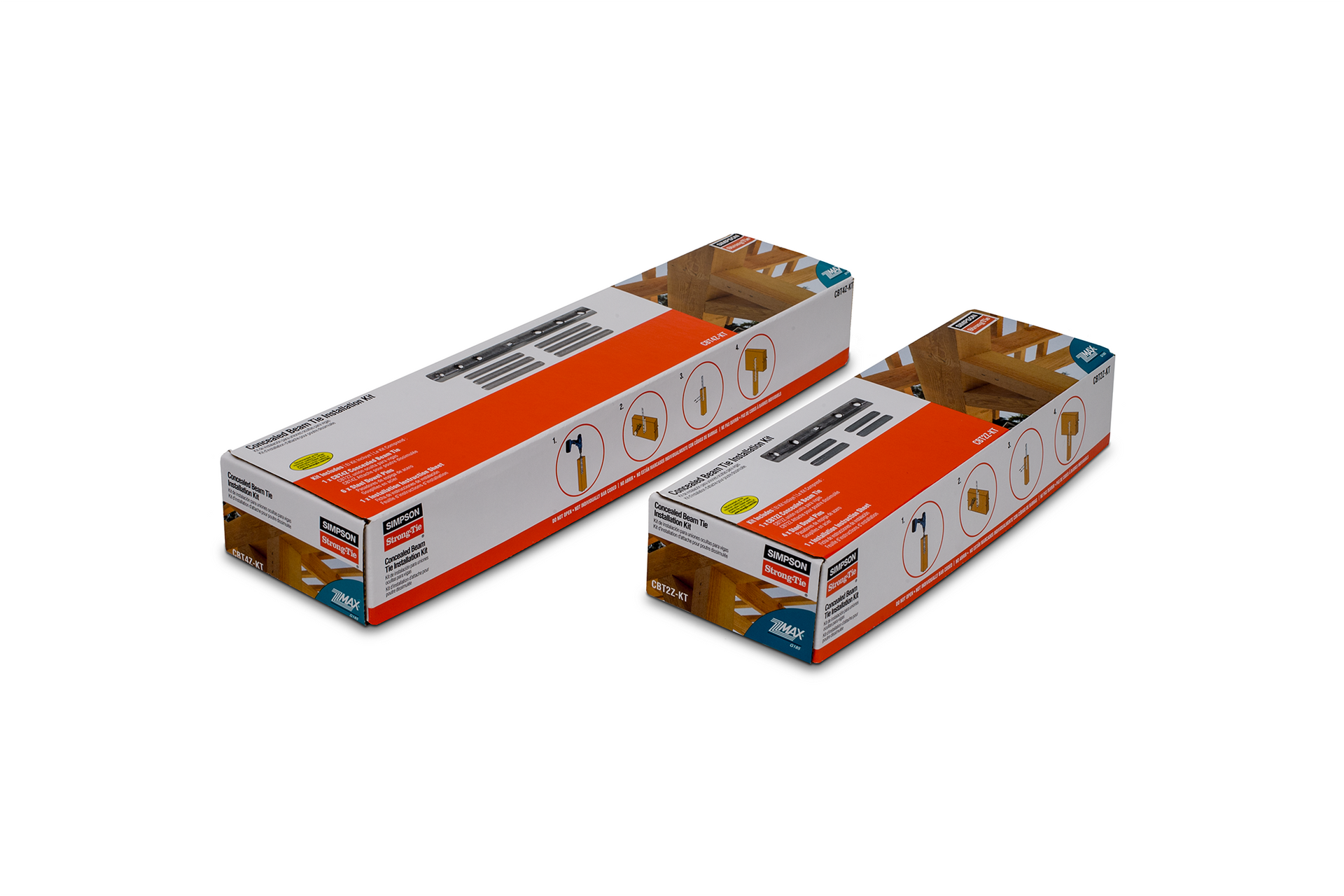

• Packaging Type: Box
• Product Class: Column Cap
• Product Includes: (4) 1/2 in. x 3-1/4 in. dowels
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 1.9
• Short Product Name: CONCEALED BEAM TIE 10IN 3.25PIN ZMAX
• Strongtie.com URL: https://www.strongtie.com/columncaps_capsandbases/cbt_tie/p/cbtz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392935046
• PAL Reference: 50707392935044
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
