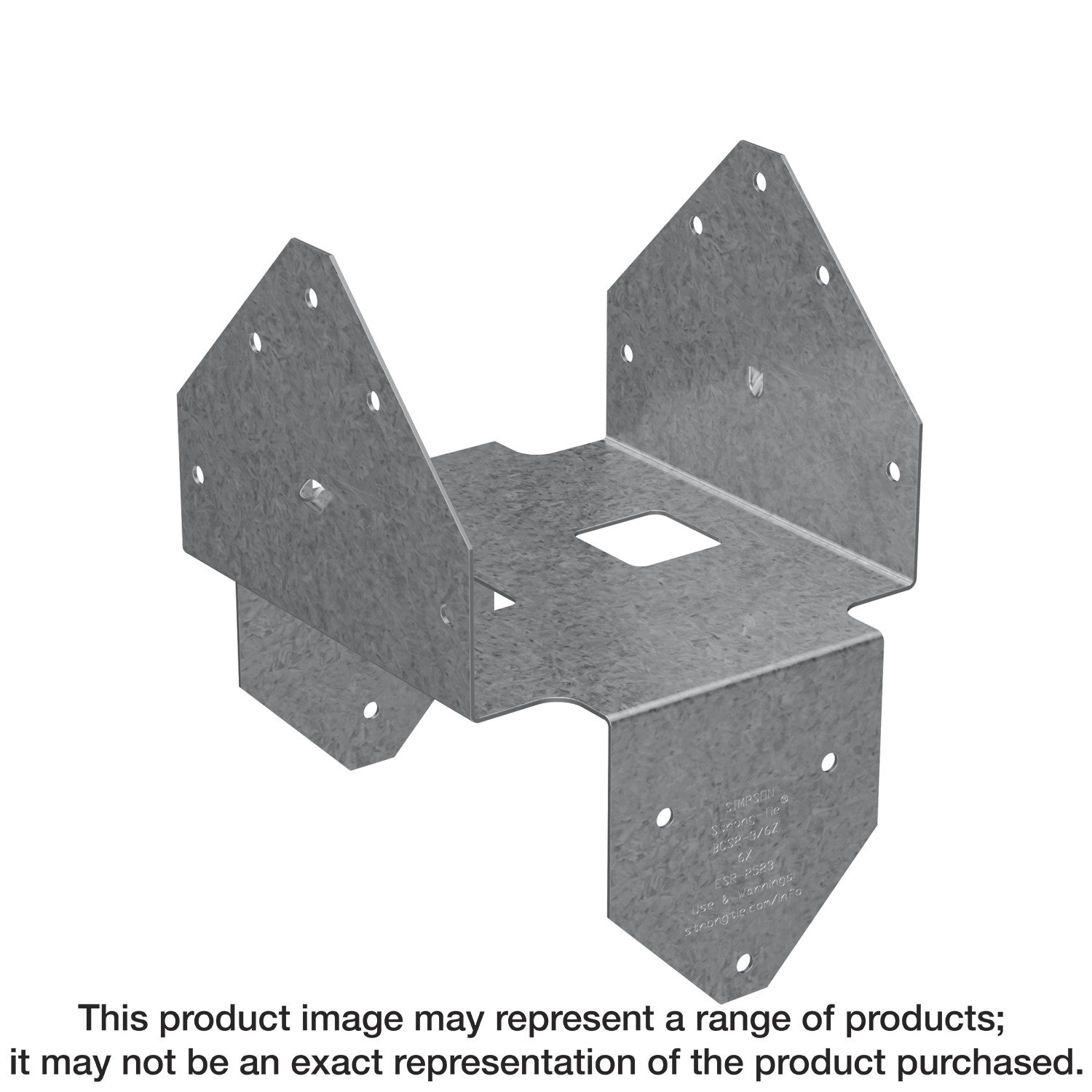

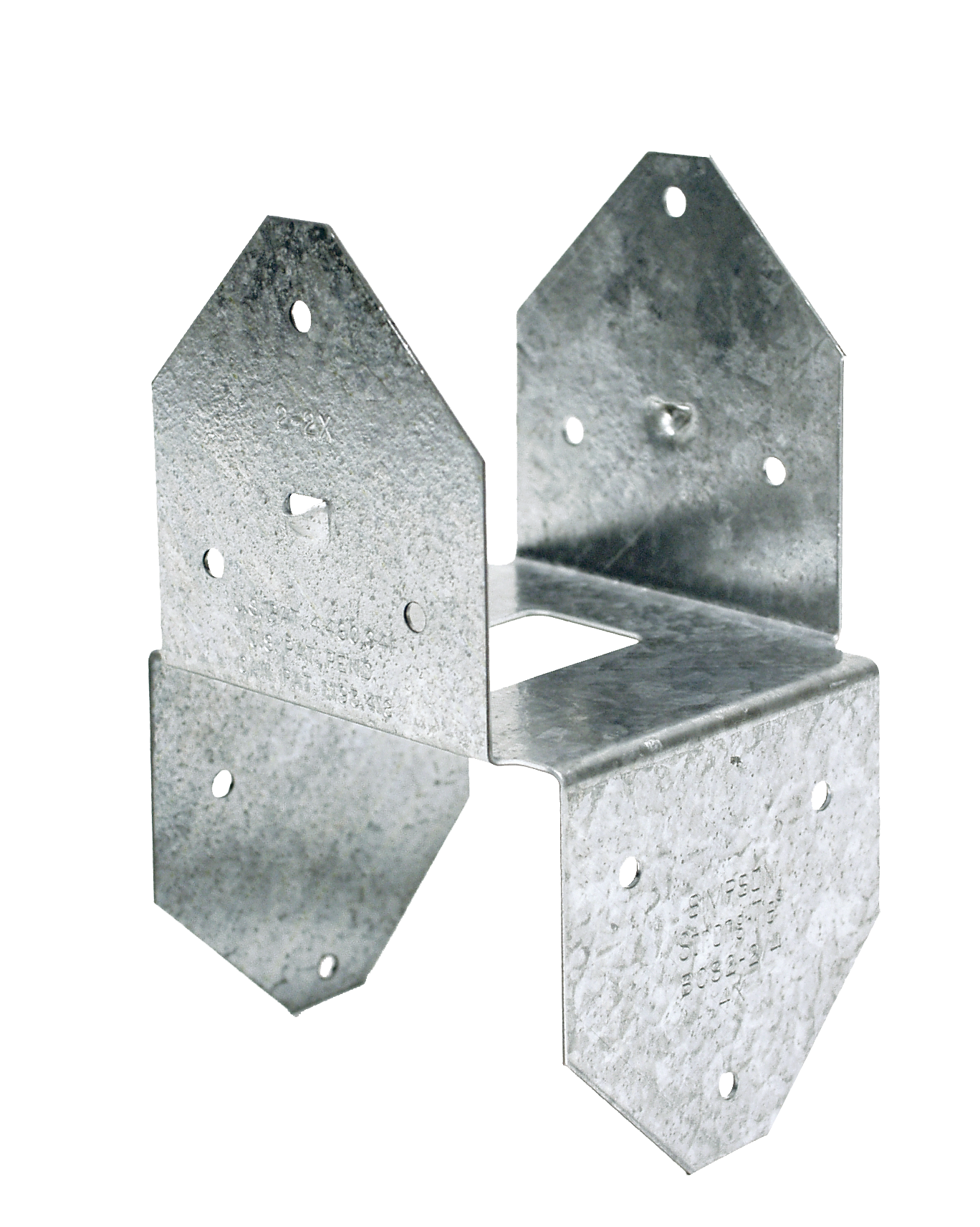

Simpson Strong-Tie BCS2-2/4 BCS Galvanized Post Cap for Double 2x Beam, 4x Post

Simpson Strong-Tie BCS2-2/4 BCS Galvanized Post Cap for Double 2x Beam, 4x Post

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The BCS allows for the connection of 2-2xs to a 4x post or 3-2xs to a 6x post. Double-shear nailing between beam and post gives added strength.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides a positive connection for a post to a wood deck
• Stronger than angled nailing or screw fastening
• Reduces the chance of the post splitting and eliminates nailing into end grain
• Not recommended for non top-supported installations (such as fences or unbraced carports)
• Nominal size: Double 2x beam, 4x post
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: BCS2-2/4
• UPC: 44315676406
• GTIN: 44315676406
• Feature 01: Provides a positive connection for a post to a wood deck
• Feature 02: Stronger than angled nailing or screw fastening
• Feature 03: Reduces the chance of the post splitting and eliminates nailing into end grain
• Feature 04: Not recommended for non top-supported installations (such as fences or unbraced carports)
• Feature 05: Nominal size: Double 2x beam, 4x post
• Feature 06: Made from 18-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive® SD screws
• Assembled Depth - Imperial: 3.519642
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.796
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.6545
• Assembled Width UOM - Imperial: in.
• Base Product ID: BCS_Cap
• Base Product Name: BCS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Post Cap
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 36986190403837555577274509432985772114
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Double 2x beam, 4x post
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Post Cap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.525
• Short Product Name: 2-2X4 POST CAP
• Strongtie.com URL: https://www.strongtie.com/onepiecepostcaps_postcaps/bcs_cap/p/bcs
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315676403
• PAL Reference: 50044315676401
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
